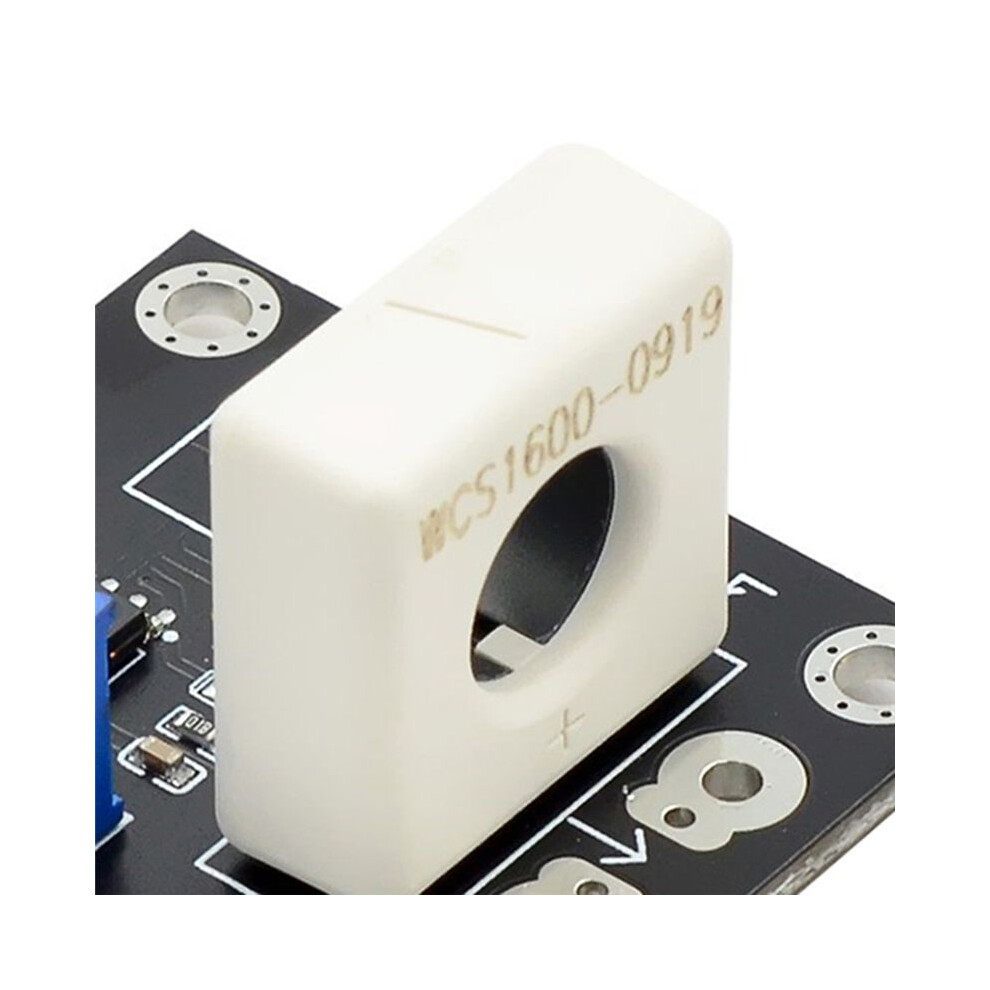

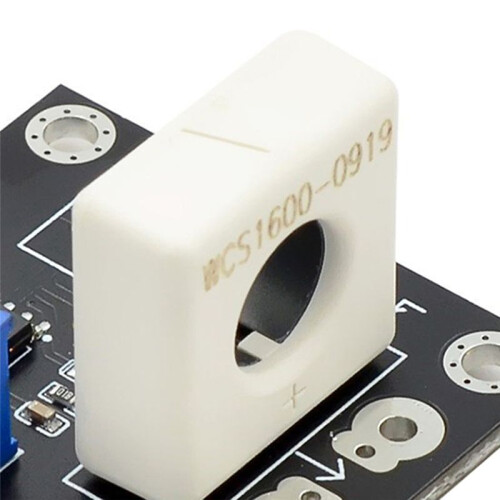

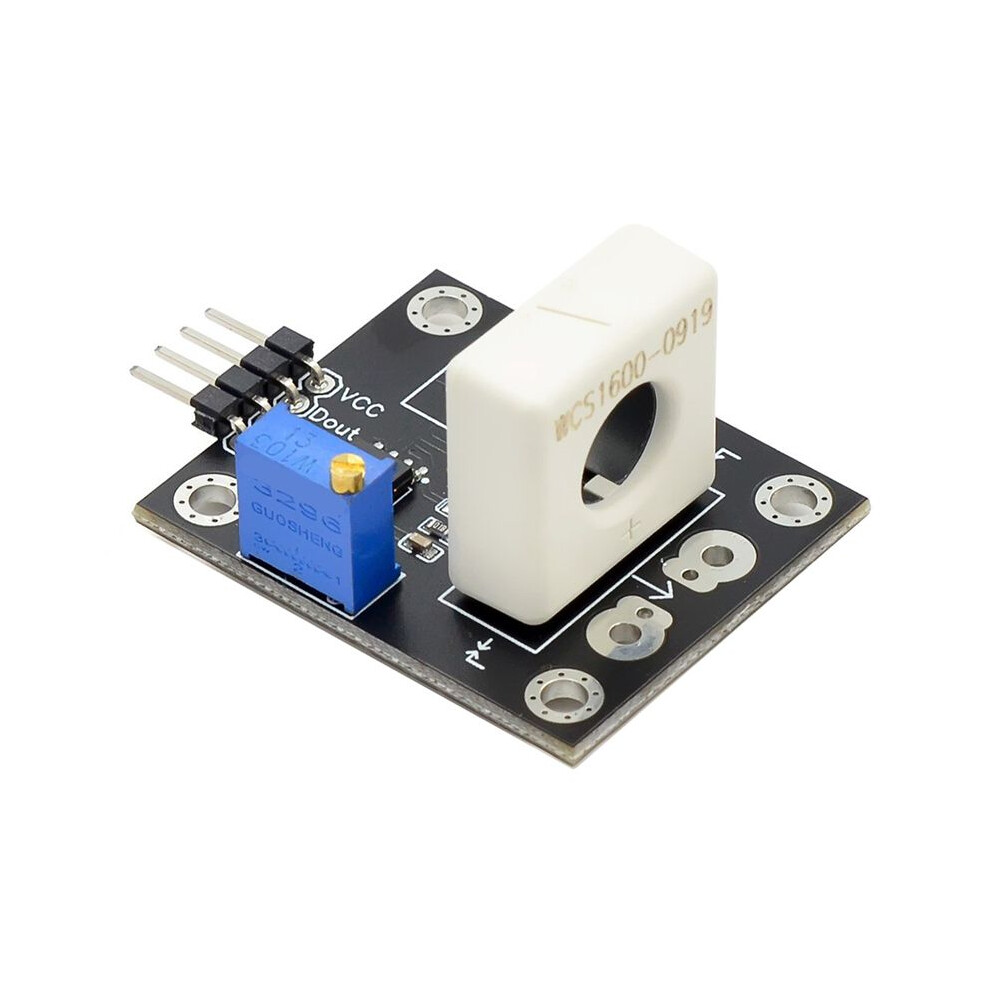

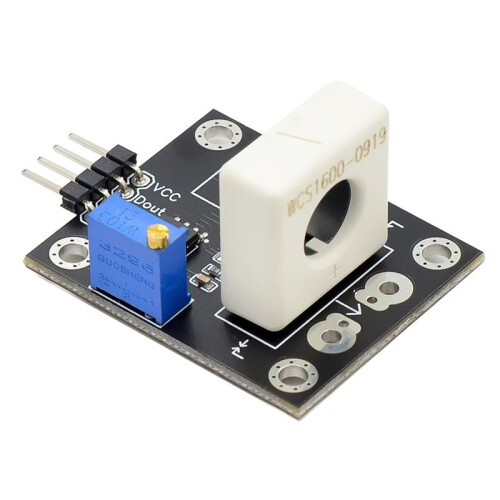

WCS1600 3-5V Hall Current Sensor Adjustable DC100A 70A 35A Short over-Current Detector Protection Module
Brand Jojomino
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 127,000 Trustpilot reviews and an 'Excellent' rating
€13.59
€20.32
33% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Thu 2nd - Tue 7th Jul
Sold by: BALURE
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Connectors
Description & Details
Summary
- This module has two main functions, The first function is the analog signal followed by the op amp, suitable for A/D conversion; The second function is the switch signal, which can set the current limit value in advance. When the actual current value is greater than the preset current value, the switch signal will change from low level to high level, and the LED indicator indicates.
- Easy to use.
- WCS1700
- WCS1800
- WCS1800 Hall Current Sensor
WCS1600 3-5V Hall Current Sensor Adjustable DC100A 70A 35A Short over-Current Detector Protection Module Description

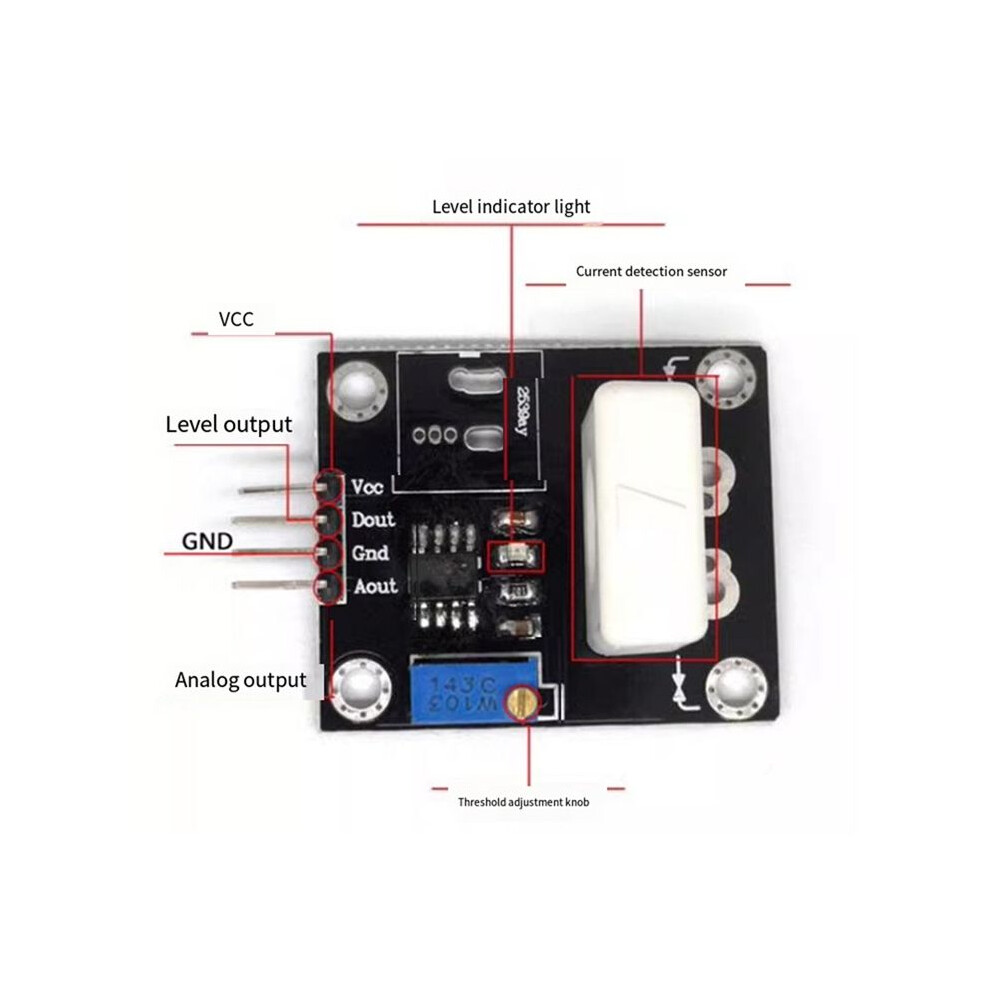

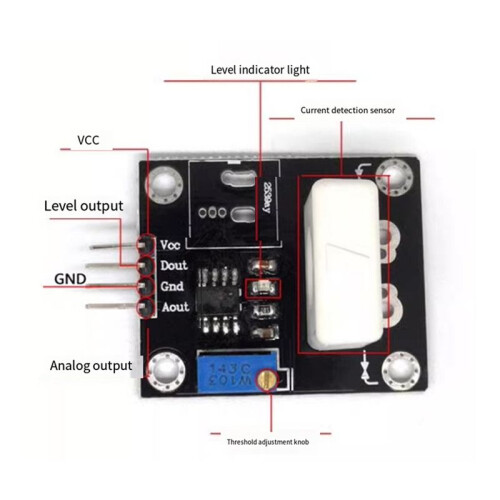

This module has two main functions, The first function is the analog signal followed by the op amp, suitable for A/D conversion; The second function is the signal, which can set the current limit value in advance. When the actual current value is greater than the preset current value, the signal will change from low level to high level, and the LED indicator indicates.
Easy to use.
1. Power supply voltage: 3-5V, 5V is recommended;
2. Power current: 3.5mA;
3. Operating temperature: -20 - 125 ;
4. Isolation voltage: 1.5kV;
5. Detection current range: -100A-100A;
6. Linearity: 20mV/A
7. Limited current range: 1.5A-100A;

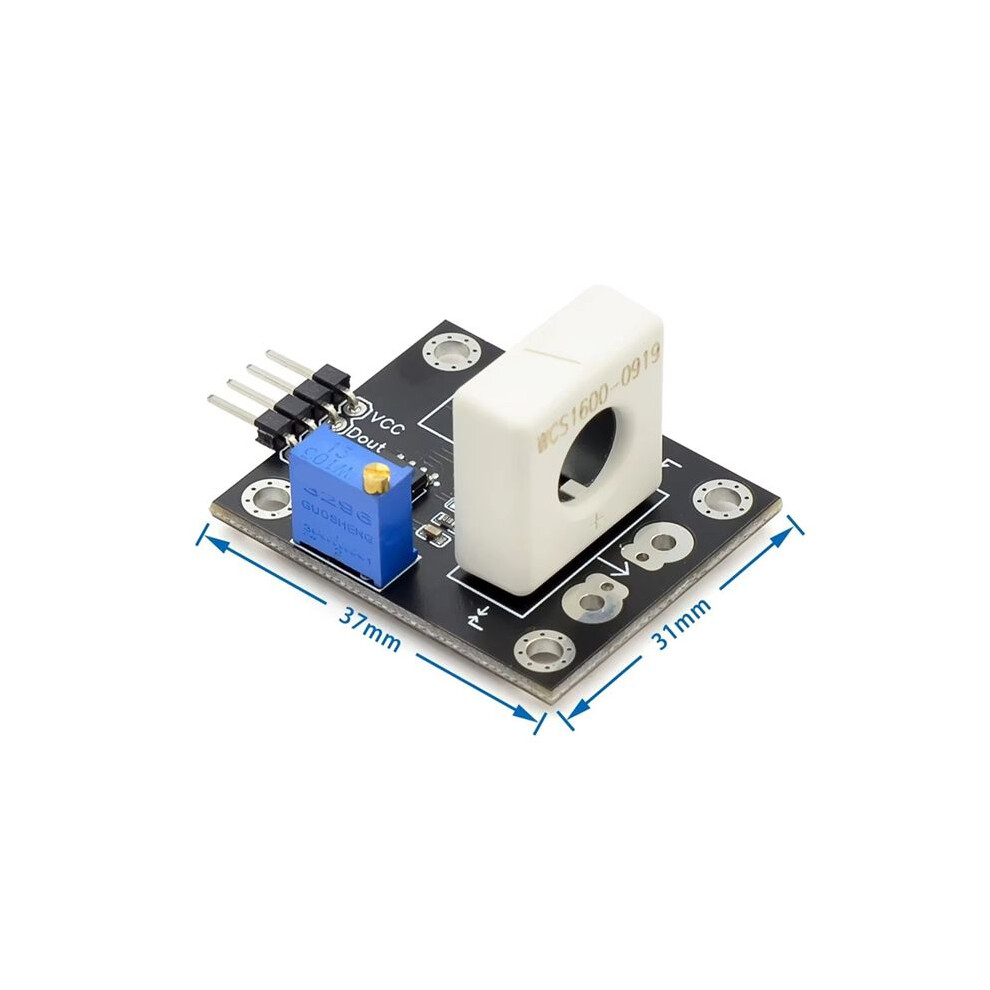

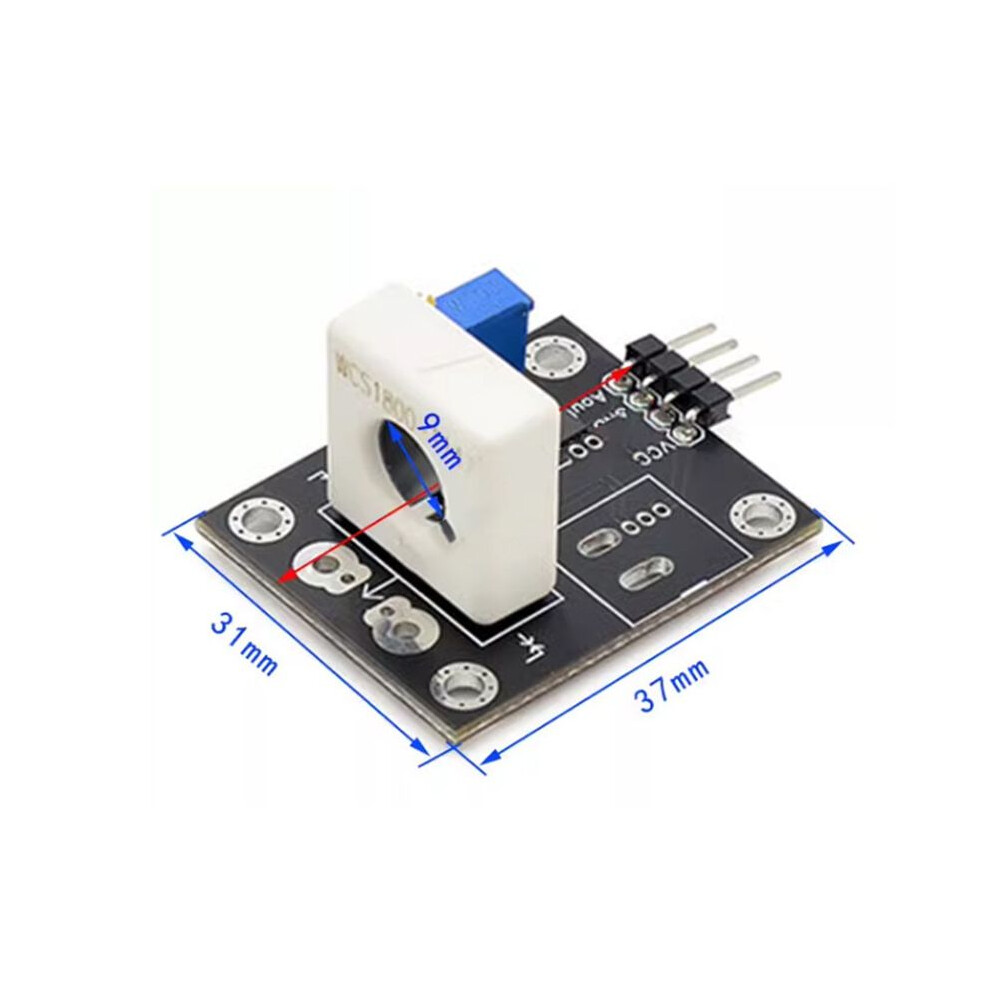

8. Board size: 30mmx37mm with 4 M3 fixed mounting holes
Specification: WCS1600
Colour:As Shown
Material:plastic+metal
Package Contents:
1 * module
Details
| OPC | PTPRP7V |
|---|---|
| Brand | Jojomino |
| Codes | 4711580812476 (EAN) |
Product Data
| Height | 3cm |
|---|---|
| Width | 7cm |
| Length | 12cm |
| Weight | 0.012kg |
| Colour | As Shown |
| Size | WCS1600 |
| Material | plastic+metal |
