WiFi LoRa 32 V4-R8 Development Board ESP32-S3R8 SX1262 Dev-Board WiFi BLE LoRa Node with GPS Module for Meshtastic

WiFi LoRa 32 V4-R8 Development Board ESP32-S3R8 SX1262 Dev-Board WiFi BLE LoRa Node with GPS Module for Meshtastic Description

The WiFi LoRa 32 now comes with the latest ESP32-S3R8 version: The all-new V4 version of the classic ESP32+LoRa development board WiFi LoRa 32., is a powerful, high-efficiency IoT maker board featuring latest ESP32-S3R8 MCU and SX1262 LoRa Node chip.
Retaining the V3's size and identical pinout, it integrates performance upgrades including a built-in Wi-Fi/ antenna, 281dBm LoRa output power.
Its superior RF and stable system design ensure it's ready-to-use and highly beginner-friendly, supporting development via , PlatformIO, ESP-IDF, and MicroPython.
Making it ideal for long-range wireless open-source projects like Meshtastic, LoRaWAN, and Meshcore in applications such as cities and industrial control, with custom hardware available the Heltec MQB platform.

Features
The WiFi LoRa 32 now comes with the latest ESP32-S3R8 version.
Base ESP32-S3R8 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication.

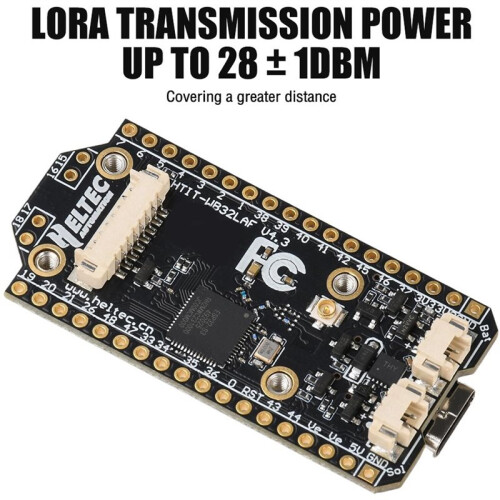

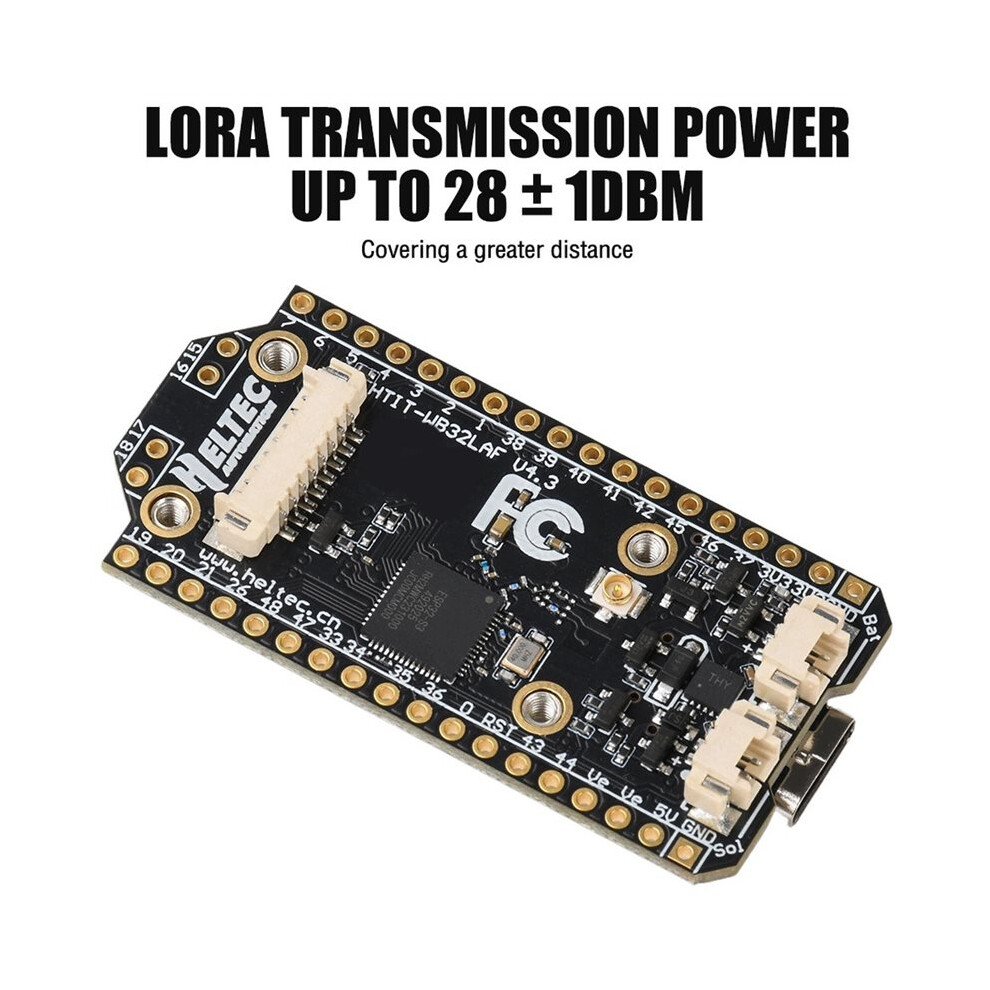

LoRa Transmit Power: 28 dBm
Form factor and pin compatibility with WiFi LoRa 32 V3.
Added 1.25-2Pin solar panel interface, and 1.25-8Pin GNSS interface.
Optimized lithium battery management.
Low power consumption is less than 20μA.

Specifications
Version: WiFi LoRa 32 V4-R8
MCU: ESP32-S3R8
LoRa Chip: SX1262
Frequency: 863-928MHz
Wi-Fi: 802.11 b/g/n, to 150Mbps
: (LE), 5, Mesh

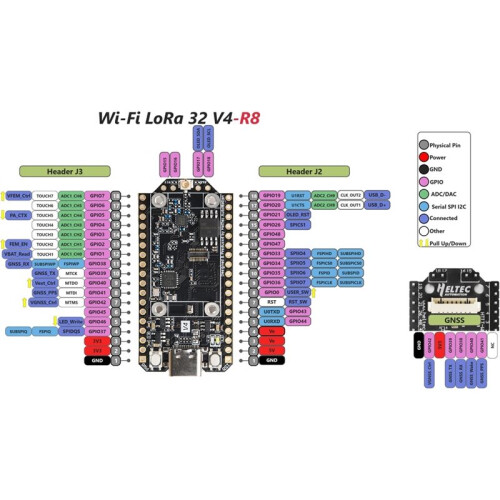

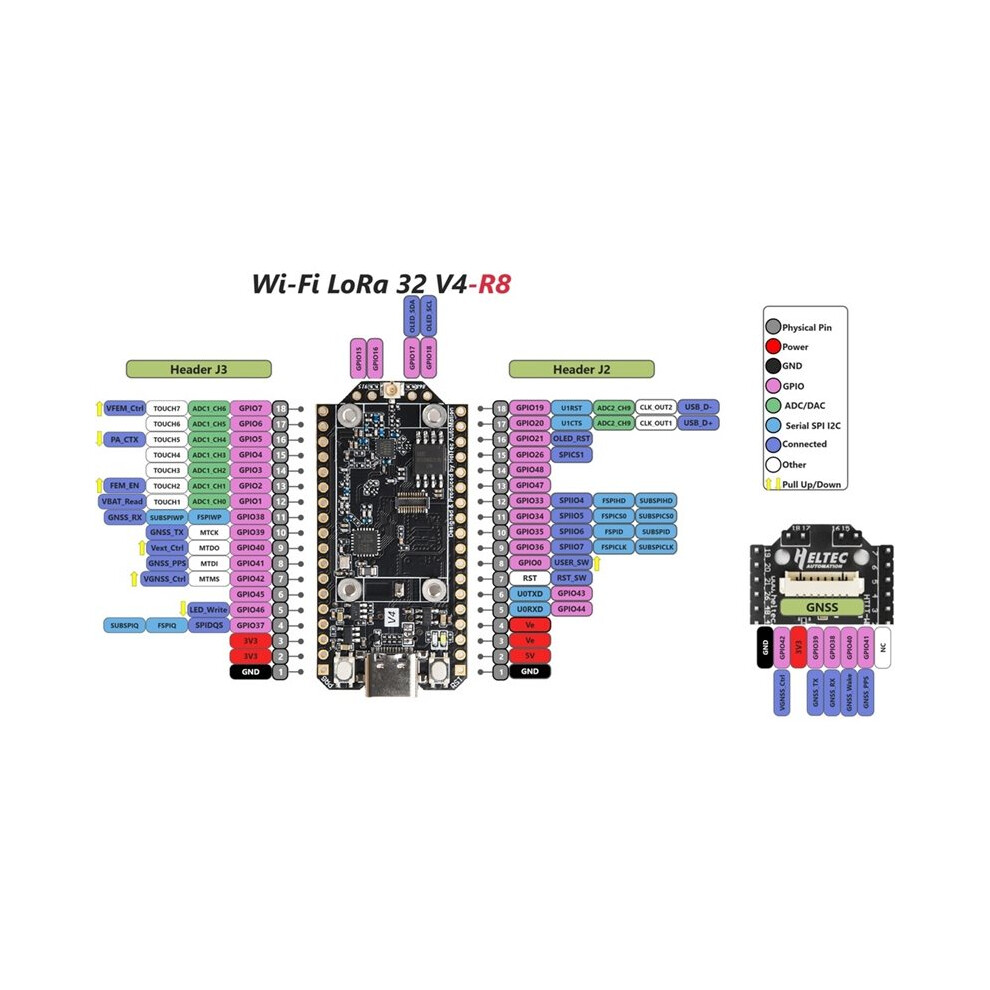

Hardware Resource
7*ADC1 + 2*ADC2;
7*Touch;
3*UART;
2*I2C;
2*SPI; etc.
Memory
384KB ROM; 512KB ; 16KB RTC ; 8MB PSRAM; 16MB Flash
Interface
Type-C USB;
1.25*2 Pin lithium battery interface;
1.25*2 Pin Solar interface;
1.25*8 Pin interface;
LoRa ANT(IPEX1.0);
2.4G ANT(IPEX1.0)
Battery applicable: 3.3-4.4V lithium battery (not included)
