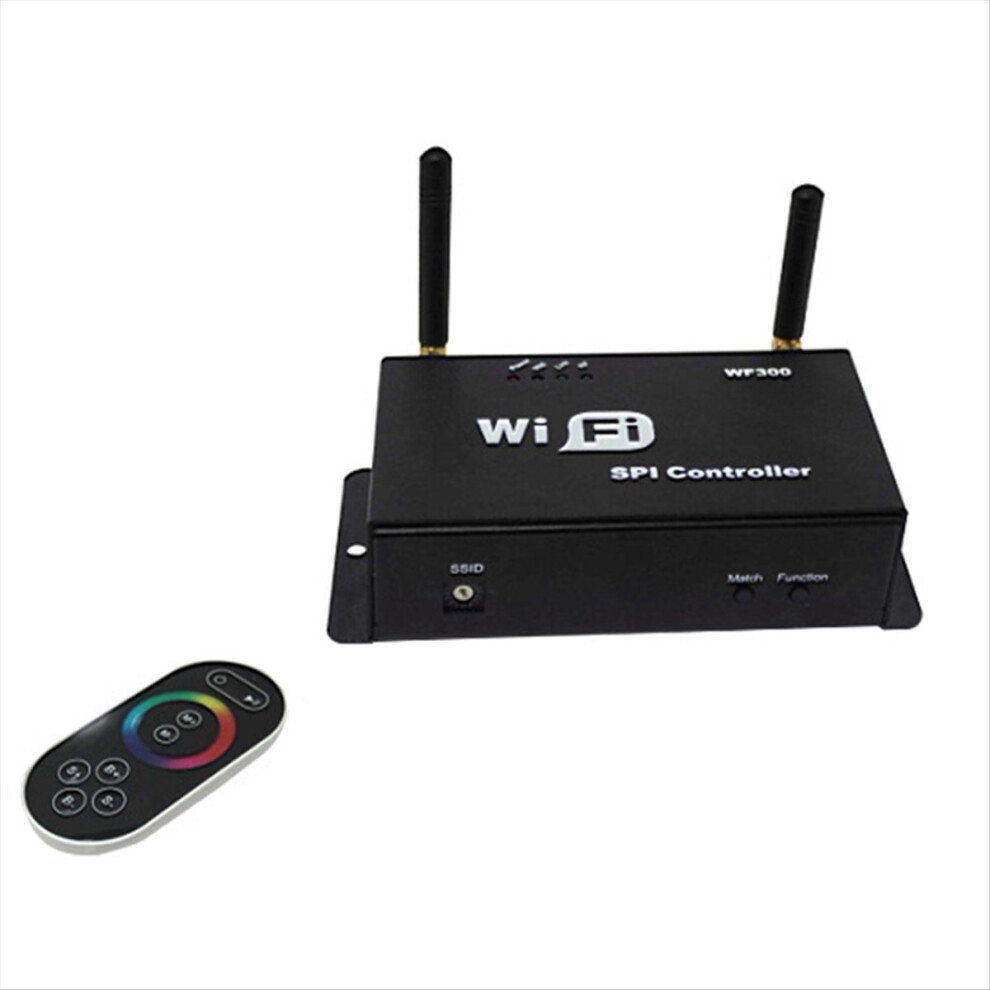

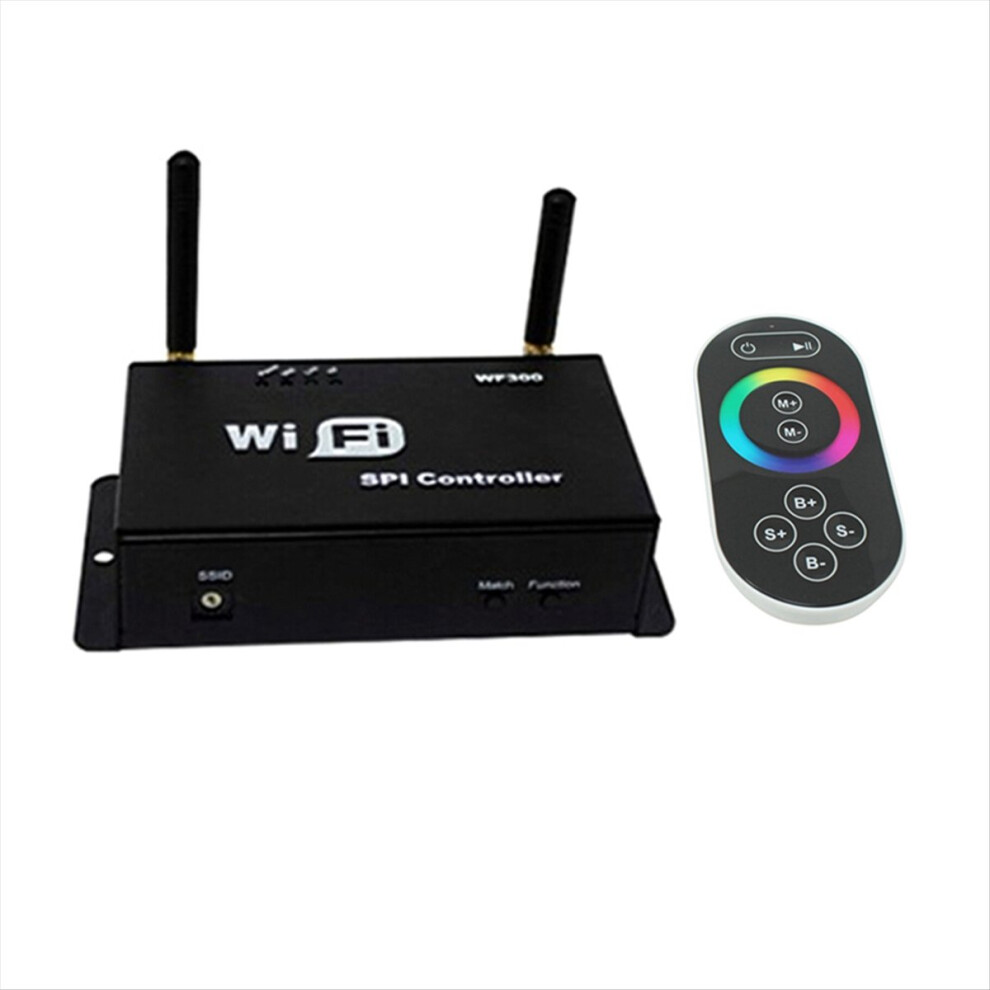

Wifi SPI Led Controller Wireless Module Dimmer System Rgb Tape Strip L

Wifi SPI Led Controller Wireless Module Dimmer System Rgb Tape Strip L Description

1. LED-WiFi Controller: It is the core of product, responsible for receive control signal and control LED equipment.
2. remote control: In the condition of not use the mobile phone as remote control, you can choose remote control to control LED.

Remote control technical parameters
1:Working temperature: -20-60degree
2:Power supply method: AAA*3
3:Supply voltage: 1.5V*3
4:Standby power: 0.015mW
5:Standby current: 3uA
6:Working current: 200uA
7:Emission current: 10mA
8:Remote control distance: about 30m
9:Standby time: 6 month
2. Software technical parameters
1:Name: Magic Color
2:Runtime platform: Android version support Android system(better one can support for , ), IOS version support IOS system, equipment must have WiFi function.
3:Language: English
4:Category: communications
5:green, no plug-ins
3. Controller technical parameters
1:Working voltage: DC5--24V
2:Output control: SPI signal output
3:Output current: 4A*3CH
4:Connect mode: SPI signal wires(DATA, CLK)
5:Receiving sensitivity: 802.11b DSSS(-5dBm), 802.11b (-10dBm), 802.11g OFDM(-15dBm)
Colour:Black
Material:iron

Package Contents:
1 x SPI LED Controller
1 x Remote Controller

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
