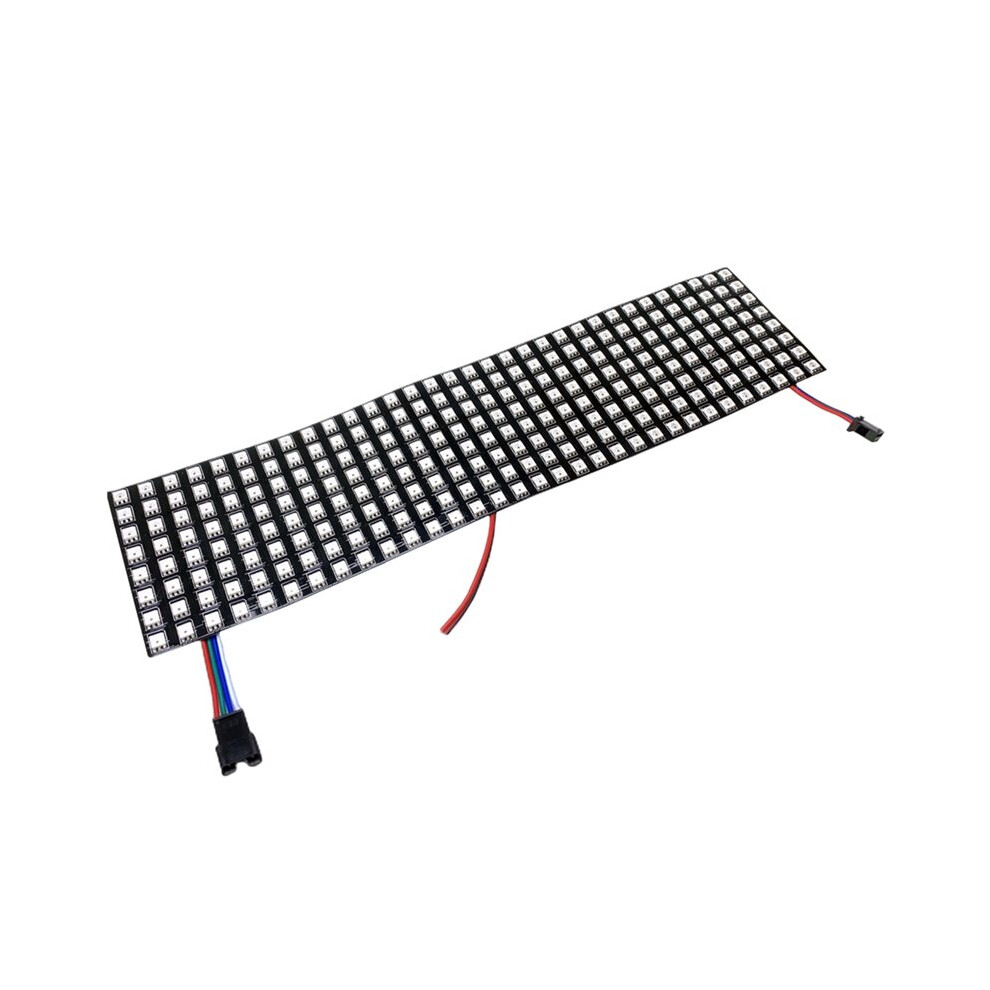

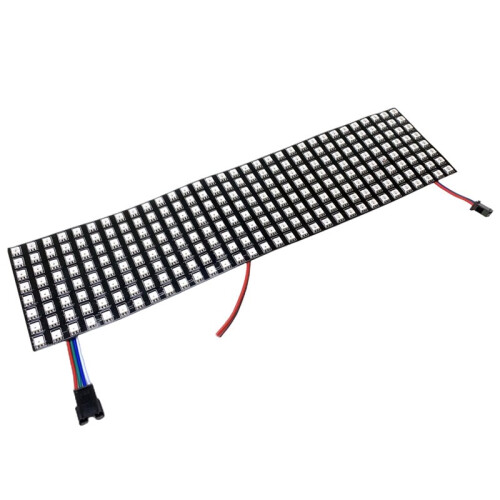

WS2812 Flexible LED Screen 8x32cm Individually Addressable Digital Panel Light 5V

WS2812 Flexible LED Screen 8x32cm Individually Addressable Digital Panel Light 5V Description

Product Advantages:


1. Powerful Functionality: Displays any text, image, animation, dance, cool effects, fireworks, and other desired effects via a programmable controller;

2. Portable: Compact, slim, and with a flexible design, it saves space and can be used for education and product displays;

3. All circuits in the pixel screen are internally integrated, eliminating contact and preventing short circuits.

Product Composition:

Adopts advanced built-in driver IC 5050RGB LED beads + circuit board + protection resistor + filter capacitor

Dimensions:

1. Product Model: XT-8*32 pixel screen

2. Light Source: SMD 5050 RGB;

3. Board Material: Soft copper board, rolled copper

4. Chip: Sanan;

5. Driver IC Model: SK6812 IC

6. Grayscale Level: 256 levels

7. Angle: 120;

8. Emitting Color: Full color;

9. Standard Operating Voltage: 5V;

10. Power: 0.3W 0.01%;

11. Waterproof Rating: Not waterproof;

12. FPCB Color and Shape: Black, square

13. Number of LED Beads: 8*32 = 256 pieces

Precautions:

1. This product is not waterproof; do not allow water to enter.

2. Operates 5V; do not use voltages higher than 5V.
Color: As Shown
Material: Electronic Component

Package Contents:
1*LED Screen
