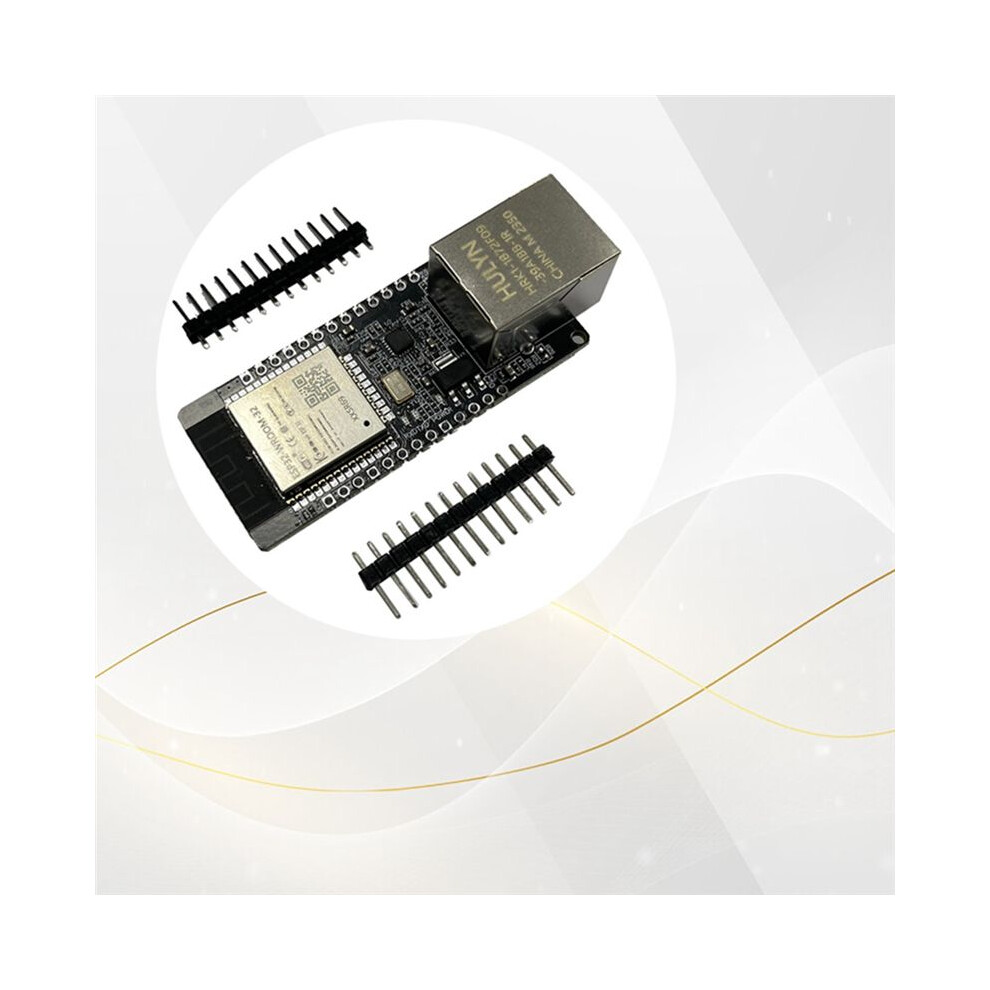

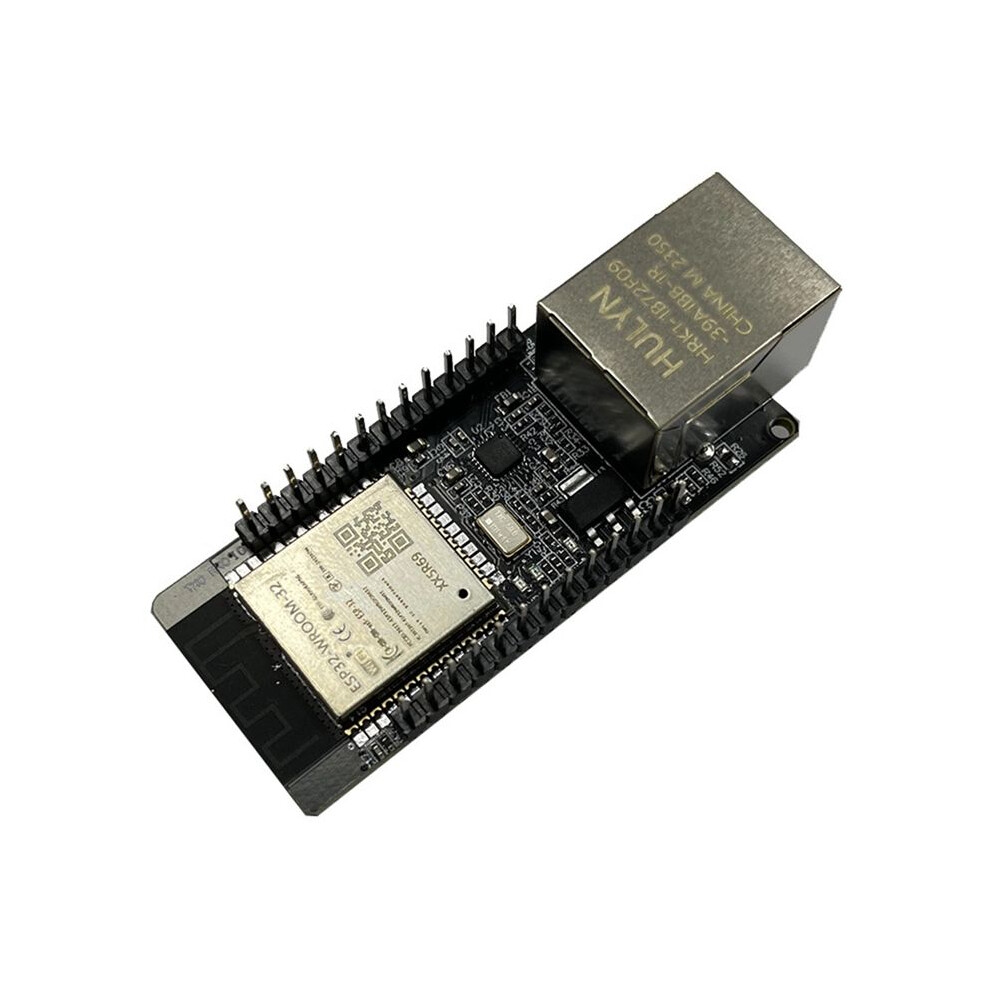

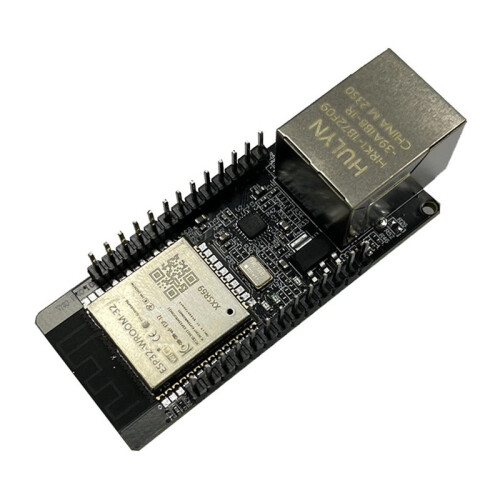

WT32-ETH01 ESP32 Wireless Module Serial Port Networking + WiFi Combo Gateway Module WT32 ETH01
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 126,000 Trustpilot reviews and an 'Excellent' rating
€9.18
€13.31
31% off!
+€4.92 Delivery
1%
What is instant Cashback?
Learn More
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Standard (€4.92) | Mon 22nd - Sat 27th Jun
Sold by: PPEART
Returns: 30 days
180-day payment protection
Most Popular in USB Gadgets
Description & Details
Summary
- ESP32-ETHO1 is an embedded serial-to-Ethernet module based on the ESP32 series.
- The module integrates an optimized TCP/IP protocol stack, which makes it easy for users to complete the networking function of embedded devices, greatly reducing the development time cost.
- It has ultra-high RF performance, stability, versatility and reliability, as well as ultra-low power consumption.
- The module board width is a universal width. The module can be directly welded on the board, the connector can be welded, and it can also be used on the breadboard, which is convenient for users to use in different scenarios.
- Serial to Ethernet Module
WT32-ETH01 ESP32 Wireless Module Serial Port Networking + WiFi Combo Gateway Module WT32 ETH01 Description
ESP32-ETHO1 is an embedded serial-to-Ethernet module based the ESP32 series.
The module integrates an optimized TCP/IP protocol stack, which makes it easy for users to complete the networking function of embedded devices, greatly reducing the development cost.
It has ultra-high RF performance, stability, versatility and reliability, as well as ultra-low power consumption.
The module board width is a universal width. The module can be directly welded the board, the connector can be welded, and it can also be used the breadboard, which is convenient for users to use in different scenarios.
WIFI frequency range: 2.4-2.5 GHz
Network port specifications: RJ45, 10/100Mbps, -connection and direct connection adaptive
Serial port baud rate: 80-5000000
Onboard Flash: 32Mbit

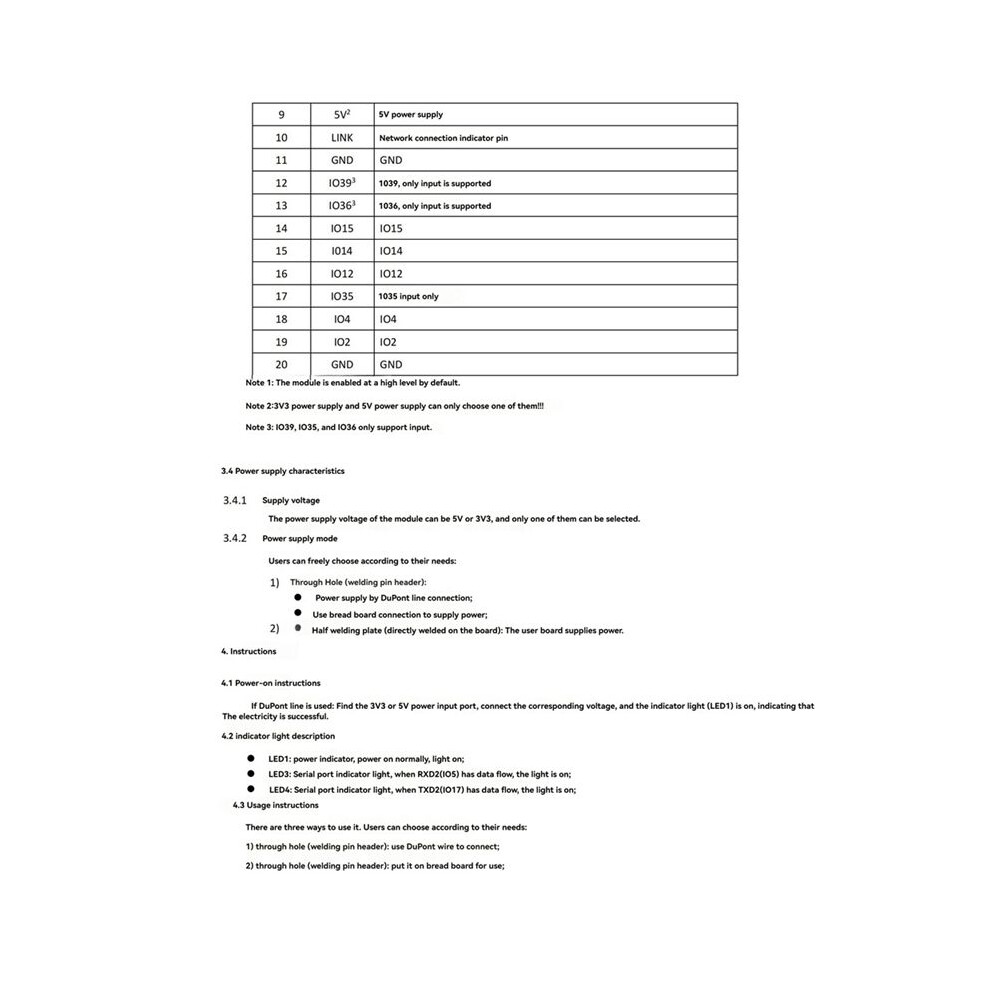

Operating voltage: 5V or 3.3V power supply (choose one)
Operating current: average: 80mA
Power supply current: minimum: 500mA
The product appearance and printed words may vary depending the batch, but this does not affect use.
Colour:Black
Material:PCB
Package Contents:
1 * Wireless Module
Details
| OPC | PRJN59F |
|---|---|
| Codes | 4711783494554 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 6cm |
| Length | 8cm |
| Weight | 0.015kg |
| Colour | Black |
| Material | PCB |
