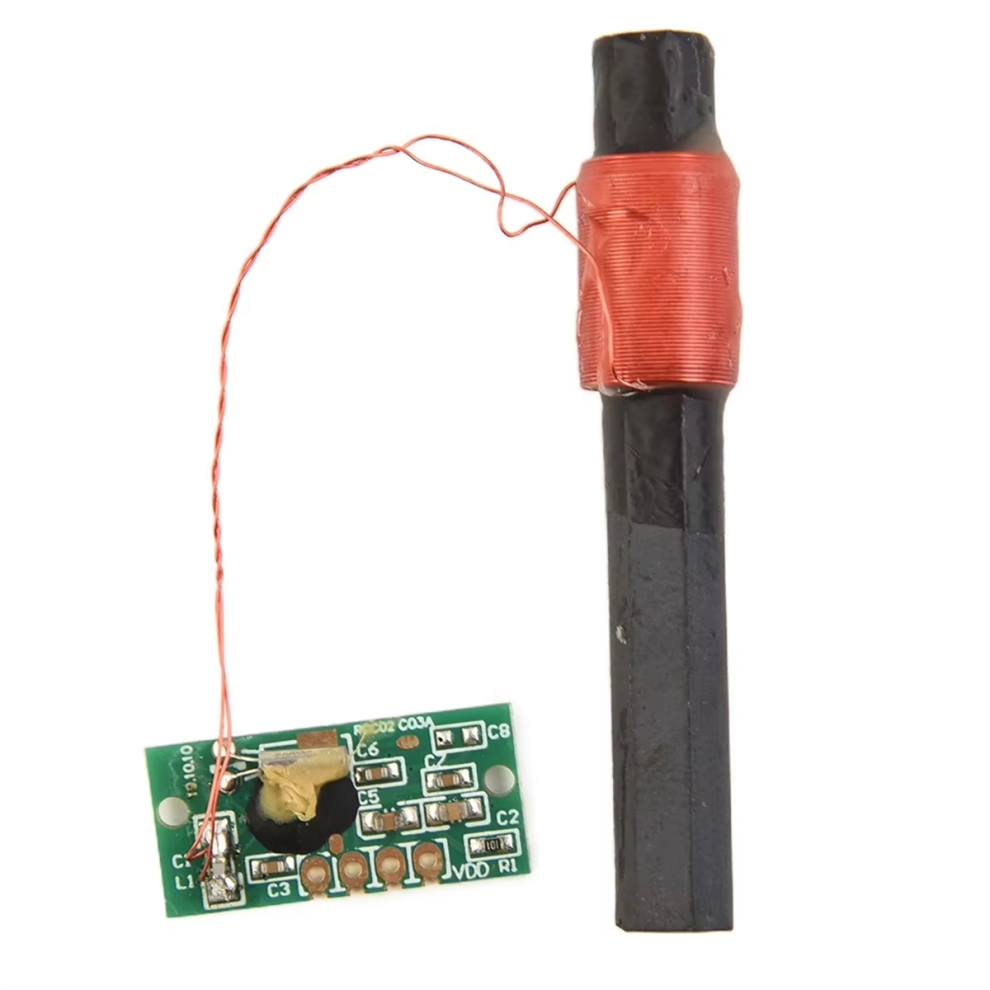

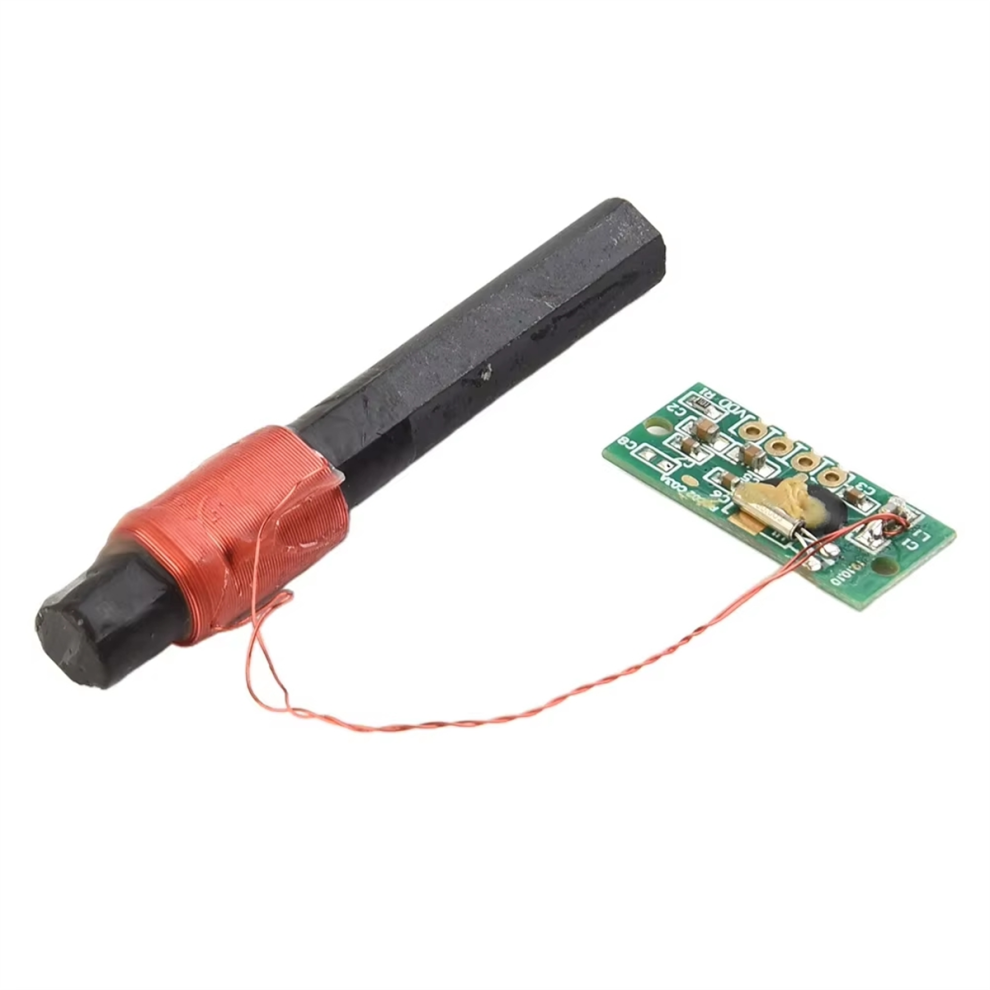

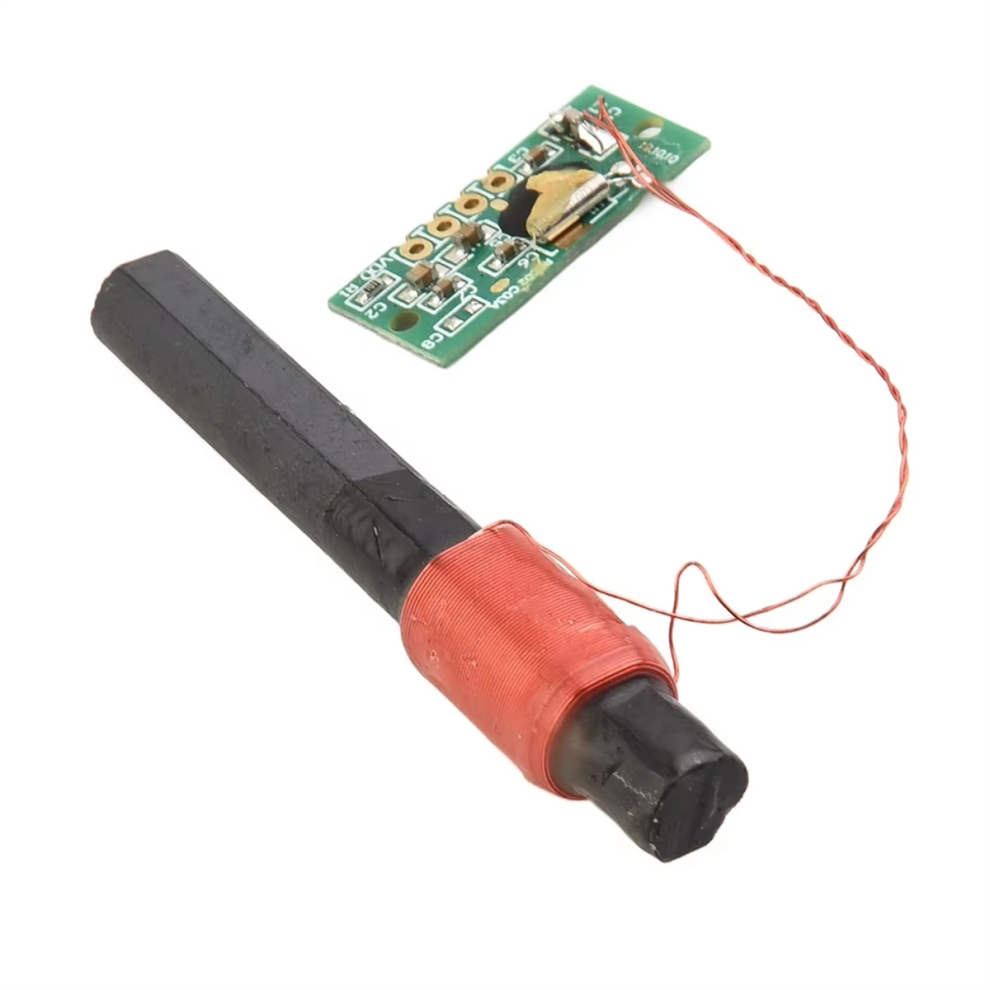

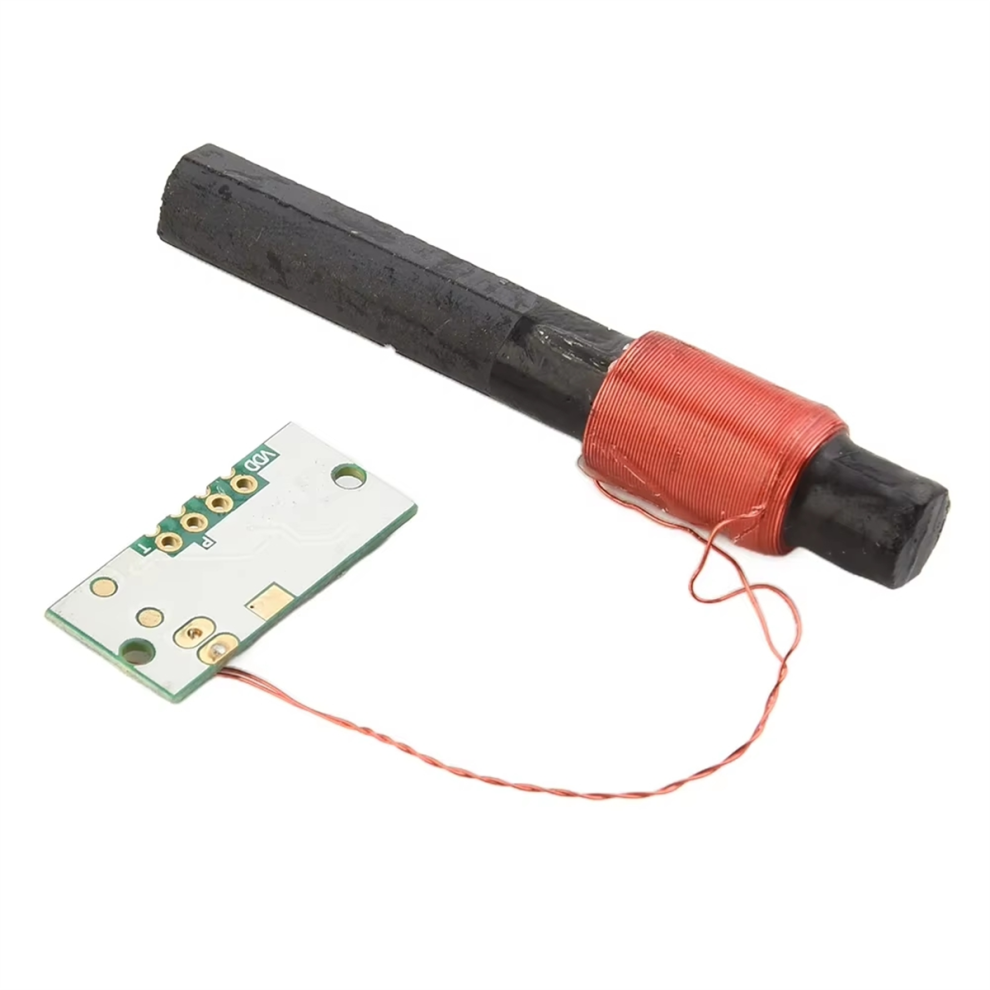

WWVB 60KHz Single Frequency Module Receiver Module Radio Time Module

WWVB 60KHz Single Frequency Module Receiver Module Radio Time Module Description

RCCM category: WWVB/60KHz single frequency module
Nominal frequency: 60KHz300Hz
Sensitivity: 282dB
Receiving IC: CME6005
Operating voltage: 1.1...3.3 V

Current consumption: 85 µA max
Receiving frequency: 60KHz
connect:
Ground = Pin G
Operating Voltage = Pin V
data = pin T
Power On/Off = Pin P1
Important note:PIN P1 is an on/off switch and must be set to logic low.
Note: The single-frequency module cannot switch between different frequencies of DCF/WVB/HBG/. The dual-frequency module can switch between the two frequencies of 40K/60K. As a single-frequency module, it can only receive signals in this frequency band.
Color: As Shown
Material: Plastic+Metal

Package Contents:
1 x Receiving module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
