Xh-M299 Switching Power Supply Module Ac-Dc Isolated Pcb Board

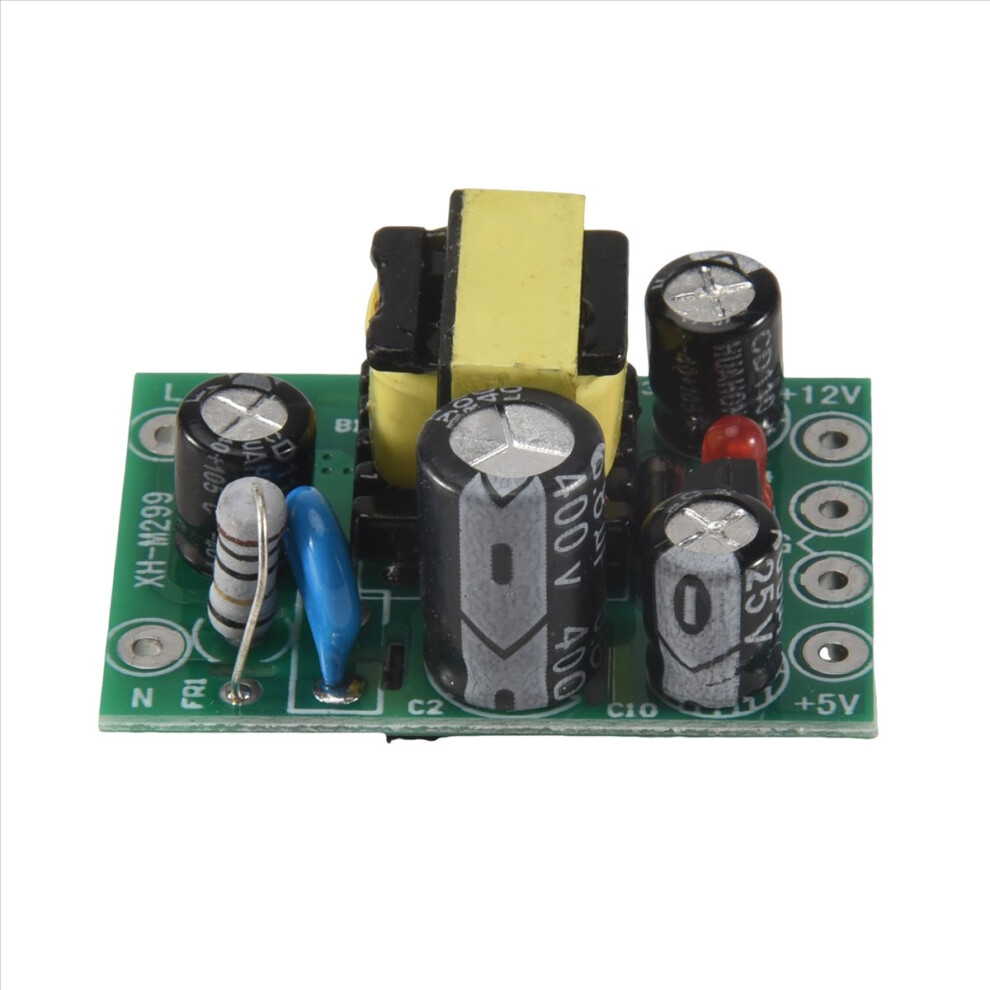

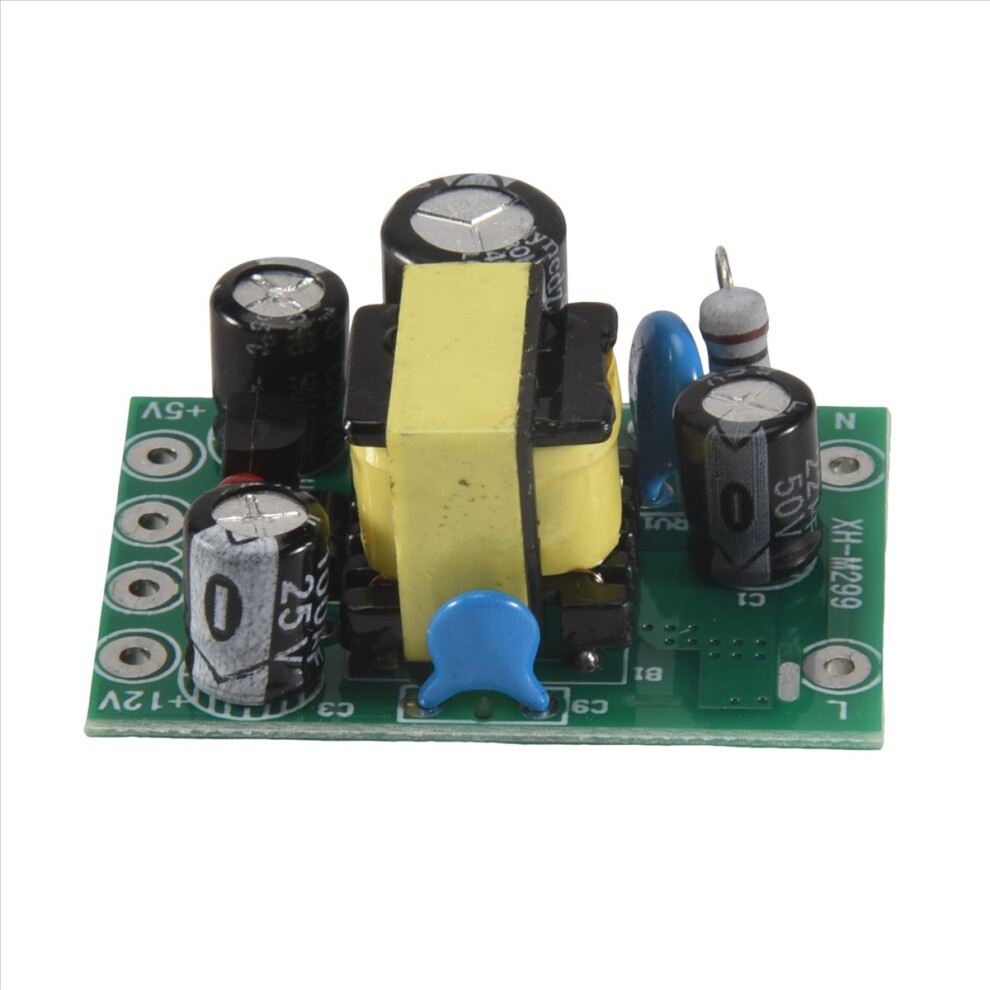

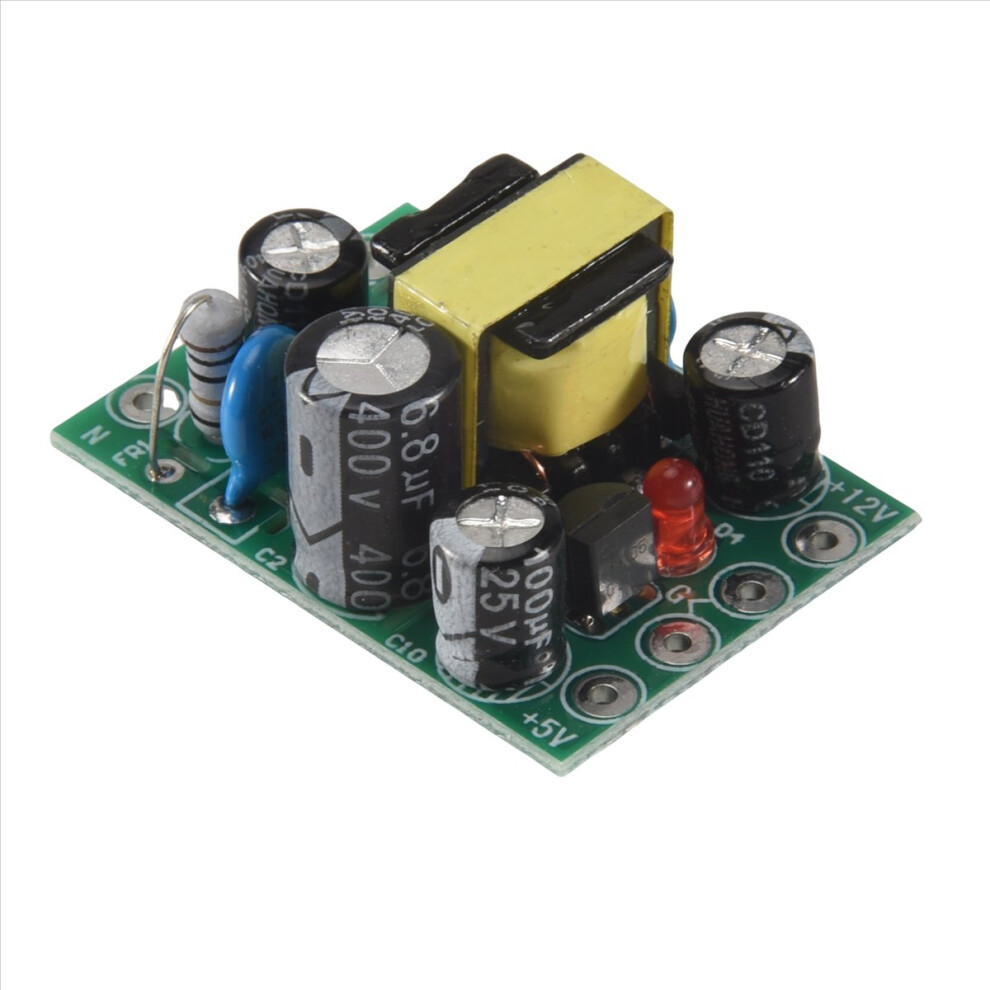

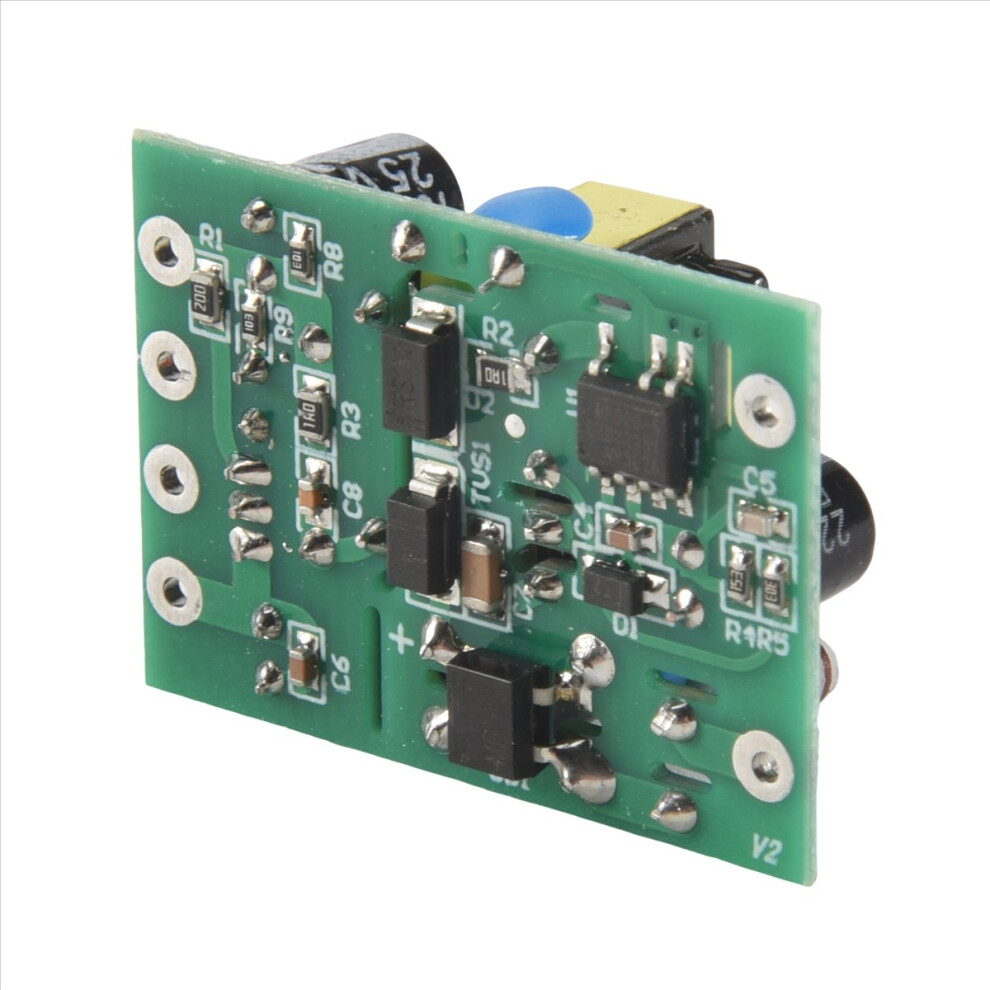

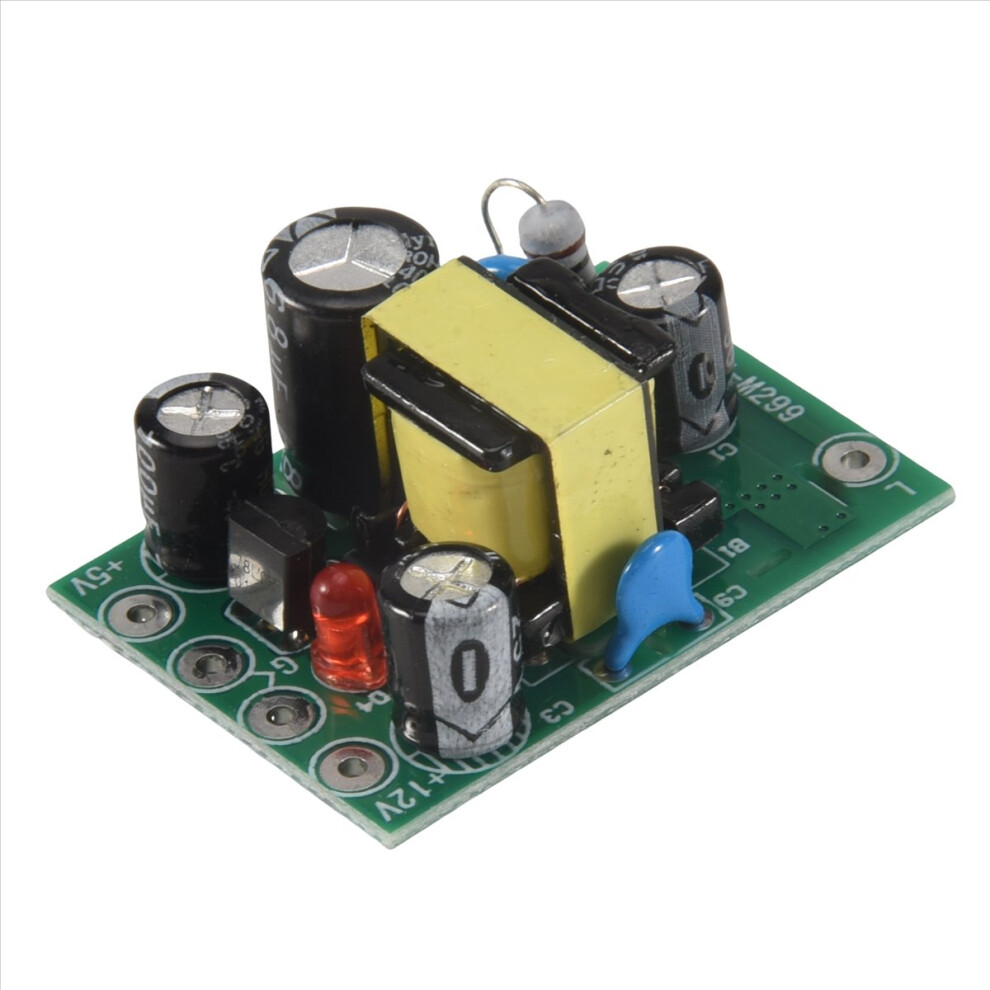

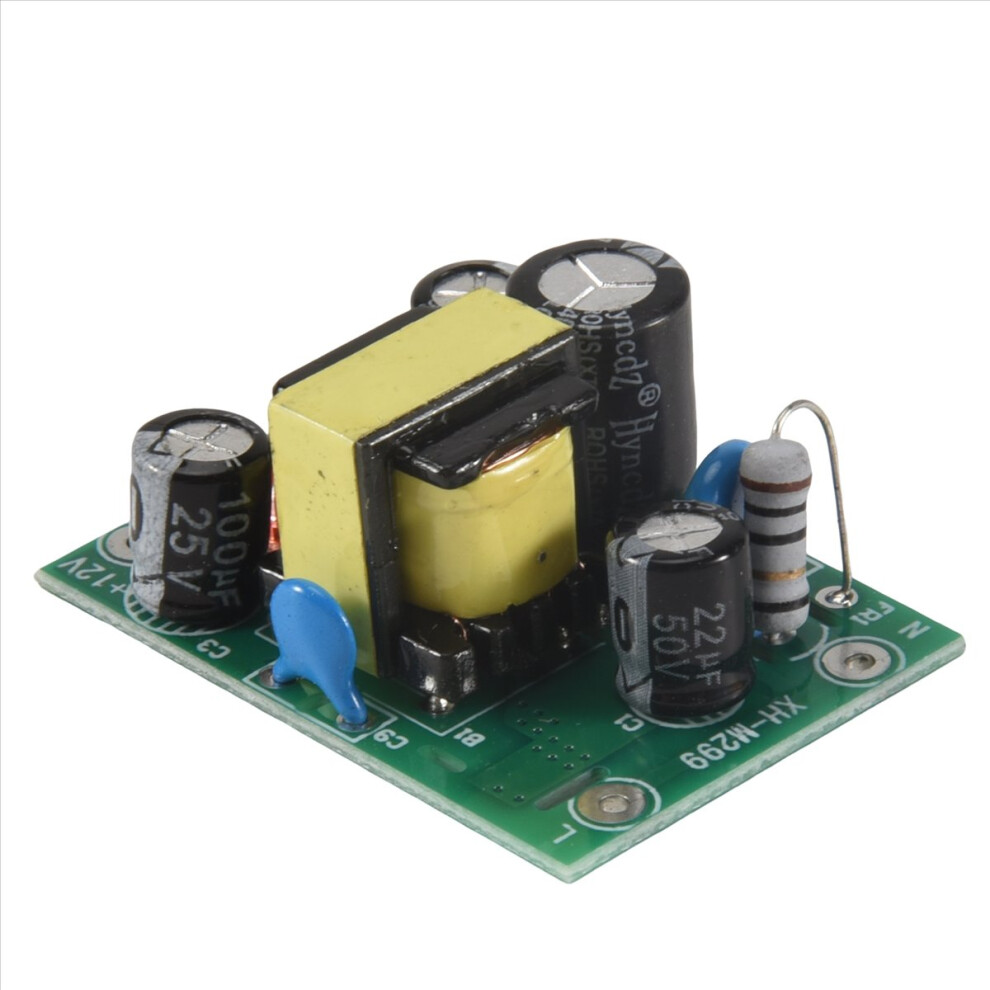

Xh-M299 Switching Power Supply Module Ac-Dc Isolated Pcb Board Description

XH-M299 is an AC to DC power module with isolated power, dual output, strong anti-interference and other characteristics;
The input voltage is AC110-220VV, the dual outputs are DC5V and DC12V, and the maximum output current is
100mA / 500mA, the maximum power is 0.5W and 6W; the input and output can be used directly by pad connection, and can also be used with pin headers and other circuit board soldering.

Description:
Product name: AC-DC power module
Product model: XH-M299
Input voltage: AC110-240V
Output voltage: DC5V DC12V
Output current: 100mA / 500mA
Output power: 0.5W / 6W
Pad pitch: Input 15.24 output 5.08 (mm)
Type: Voltage Regulator
Application: Computer
Supply Voltage: 110-220V Output 12V0.5A + 5V
Explanation:
1. Connect AC110-220V power at the power input.

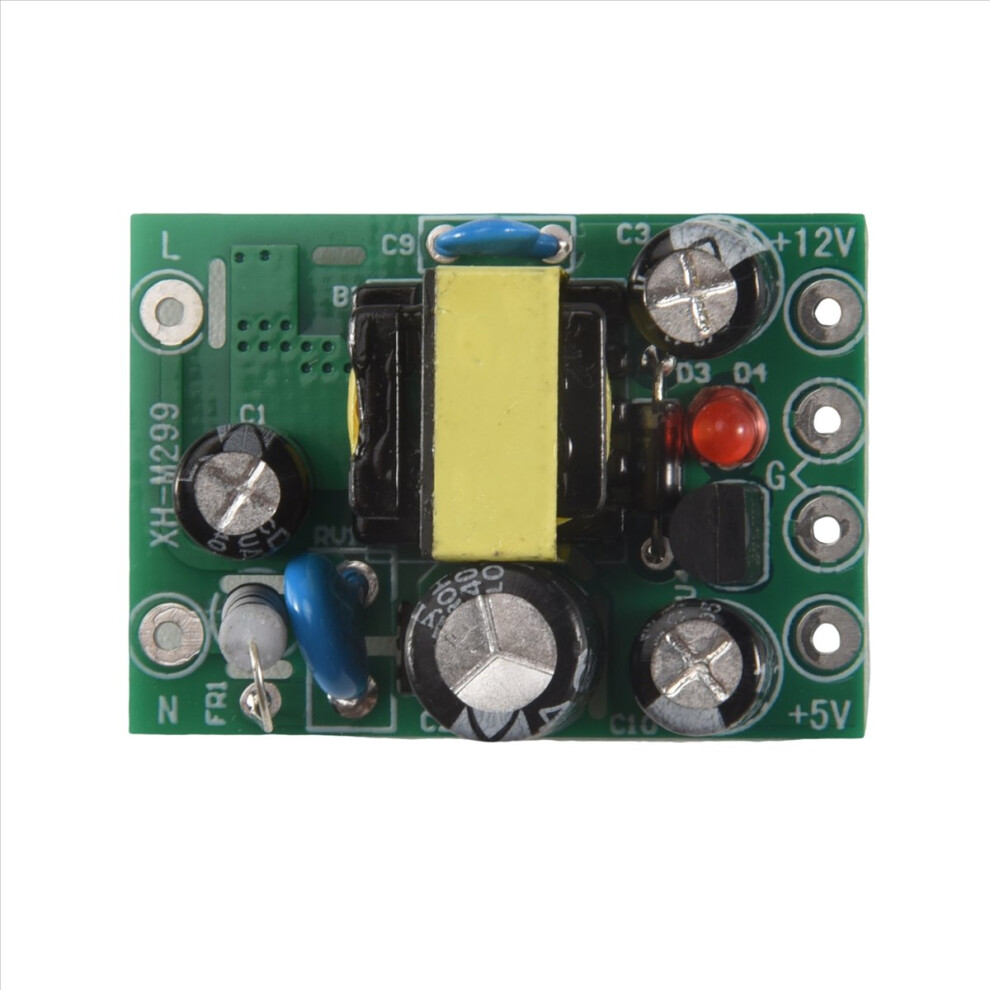

2.Dual output, 5V and 12V respectively, can be connected to the load matching the output voltage at the same time, note the difference between the positive and negative poles of the power supply. (As shown below)
colour:Green
Material:plastic
Size: 35 x 25 x 15m

Package Contents:
1 Supply Module

Only the above package content, other products are not included.
