XY6506X CNC Adjustable DC Voltage Regulator Power Supply

XY6506X CNC Adjustable DC Voltage Regulator Power Supply Description

XY6506X CNC Adjustable DC Voltage Regulator Power Supply Description
Supports serial communication, standard MODBUS protocol, firmware upgrades, and MPPT solar charging. Display area: 38 x 29 mm, LCD screen over 1.8 inches! The LCD screen layout is user-friendly, the text is large, full, and rounded, and the LCD screen features a professional power supply. The display panel is gold-plated for improved conductivity. The housing is a one-piece injection-molded case and is made of flame-retardant material for enhanced safety. Double-layer buckle design, double circuit board securely attached. High-precision external clock crystal for more accurate timing and capacity/energy statistics, powerful 48-pin MCU controller, faster 64M frequency processing speed! Built-in buzzer for alarm notifications. Input voltage: 12.0-72 V Output voltage: 0-65 V Voltage accuracy: +0.5% + 1 word Current accuracy: +0.5% + 3 words Voltage resolution: 0.01 V Current resolution: 0.001 A Conversion efficiency: approx. 95% Soft start: Yes Buzzer: Yes

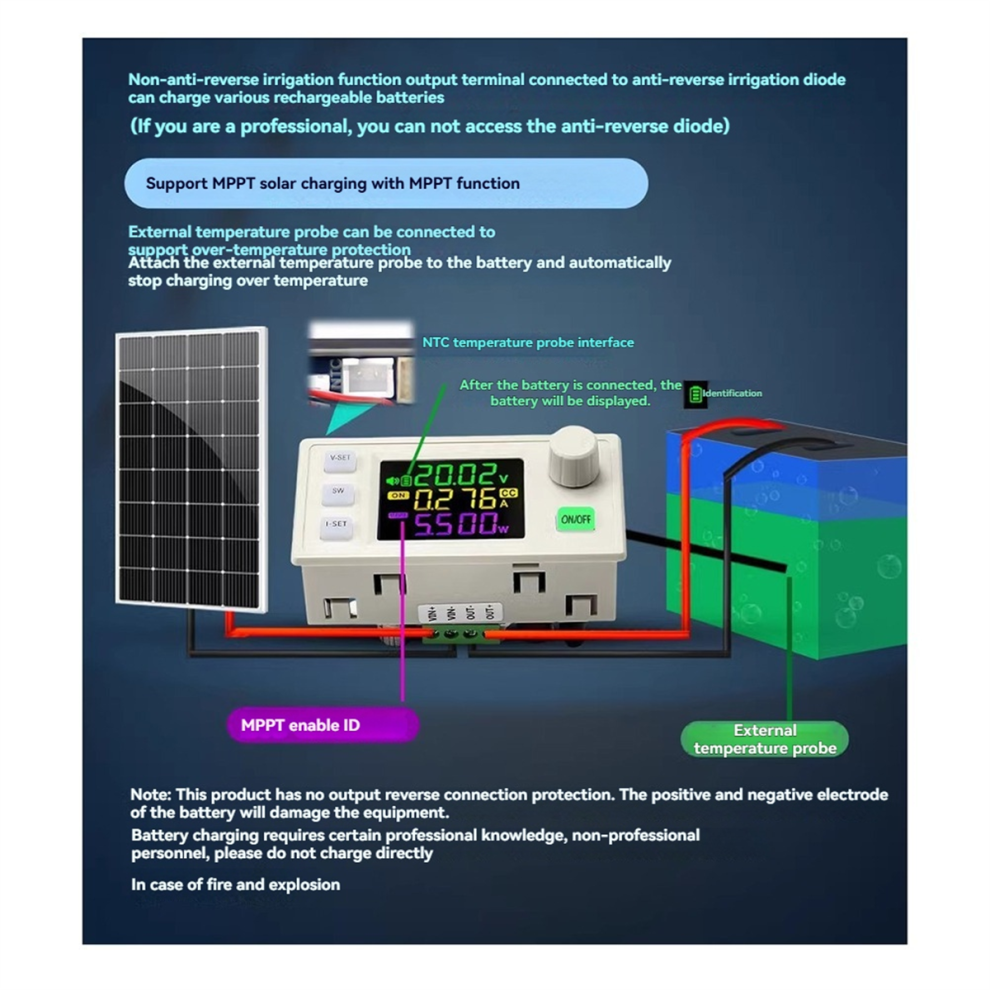

MPPT Function: Supports MPPT Solar Charging
Protection Mechanism Information:
Input Anti-Reverse Connection: Yes
Input Undervoltage Protection (): 10-75 V adjustable, default 10 V output
Overvoltage Protection (OVP): 0-67 V adjustable, default 67 V output
Overtemperature Protection (OTP): 0-110 C adjustable, default 95 C
Overtime Protection (OHP): 1 minute-99 hours and 59 minutes, default off
Overcapacity Protection (OAP): 0-9999 Ah adjustable, default off
Overenergy Protection (OPH): 0-4200 kWh adjustable, default off
Specification: XY6506X:
Output Current: 0-6,000 A
Output Power: 390 W
Output Overload Protection (OPP): 0-420 W, Standard 400 W
Overcurrent Protection (OCP): 0-6.2 A, Standard 6.2 A
Color: as shown
Material: Plastic
Package Contents:
1 * DC Downstream Power Supply
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the original. The allowable measurement error is +/- 1-3 cm.
