YJ-320A Optical Power Meter SC/FC/ Interface

YJ-320A Optical Power Meter SC/FC/ Interface Description

YJ-320A -70~+6dBm YJ-320C -50~+26dBm Handheld Mini Optical Power Meter
YJ-320 handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy.

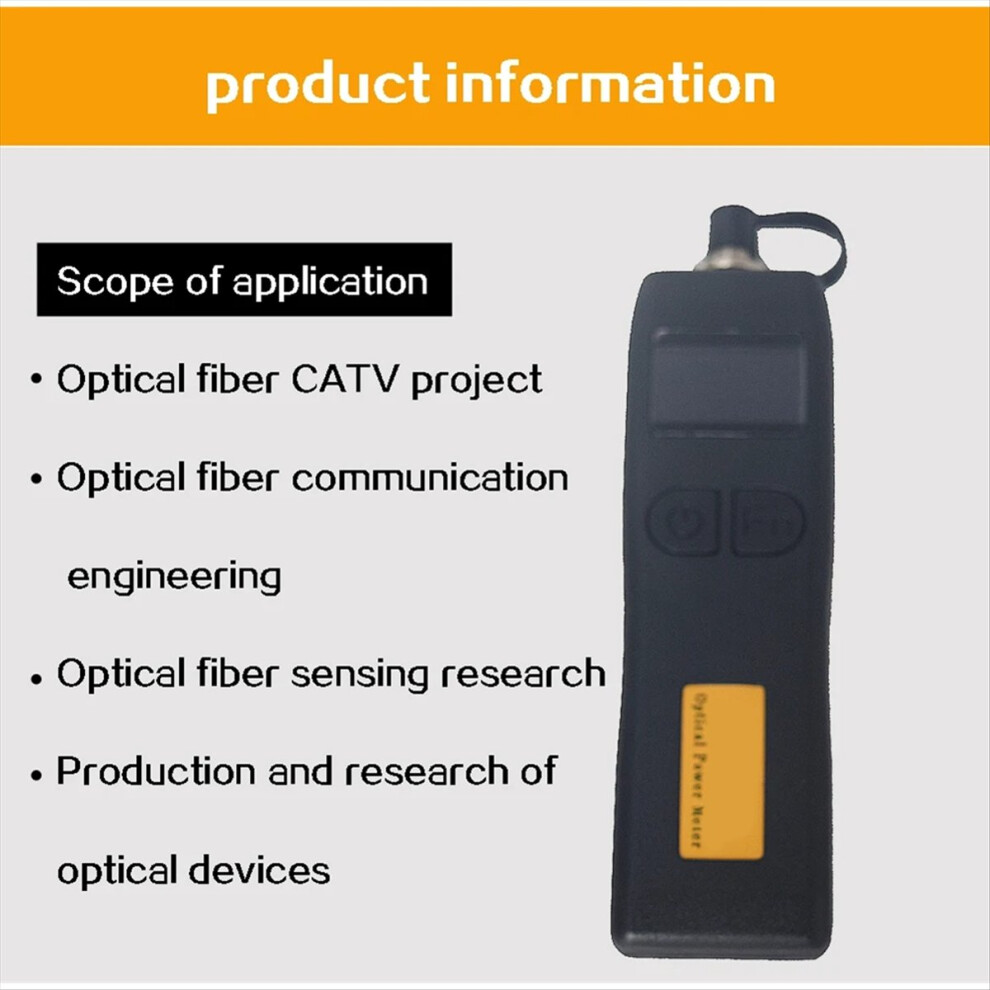

Applicapions:
Maintenance in
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
Model: YJ-320A YJ-320C
Measurement Range(dBm): -70 to +6dBm -50 to +26dBm

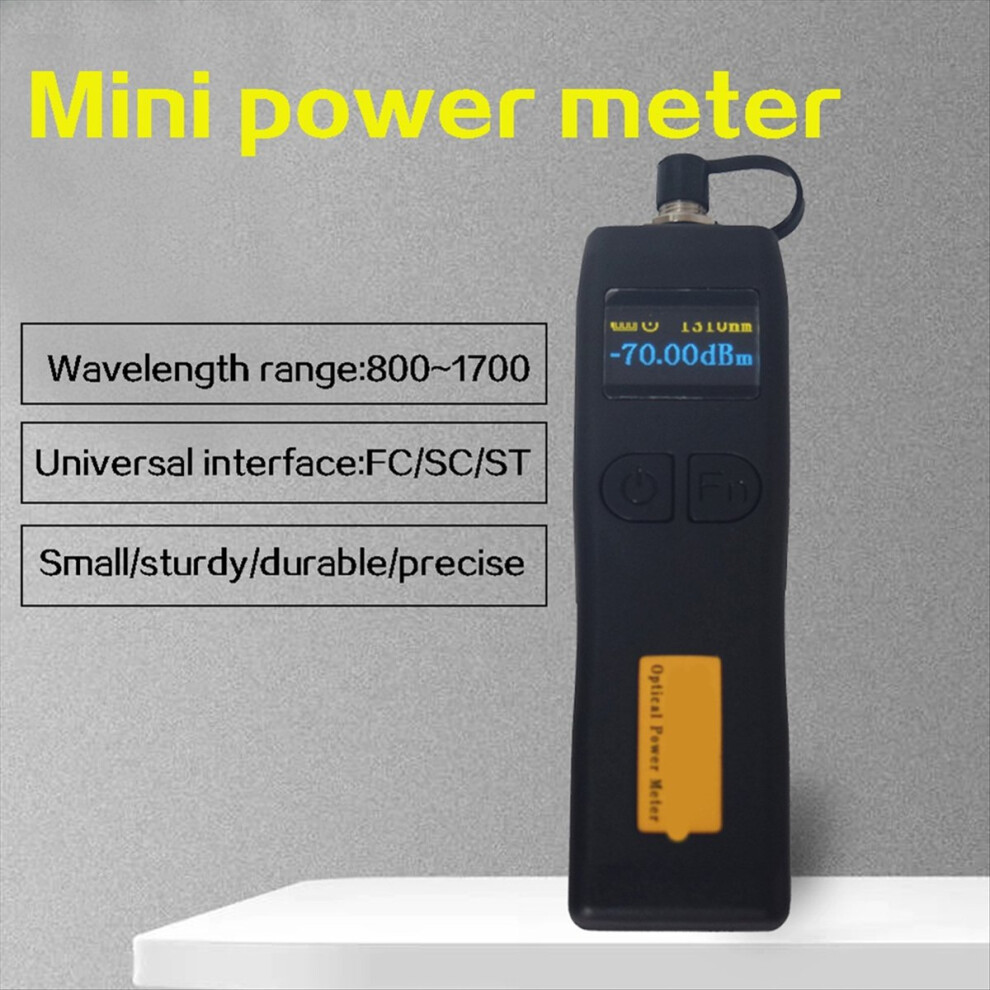

Wavelength Rangenm: 800 to 1700
Detector Type: InGaAs
Uncertainty: 5%

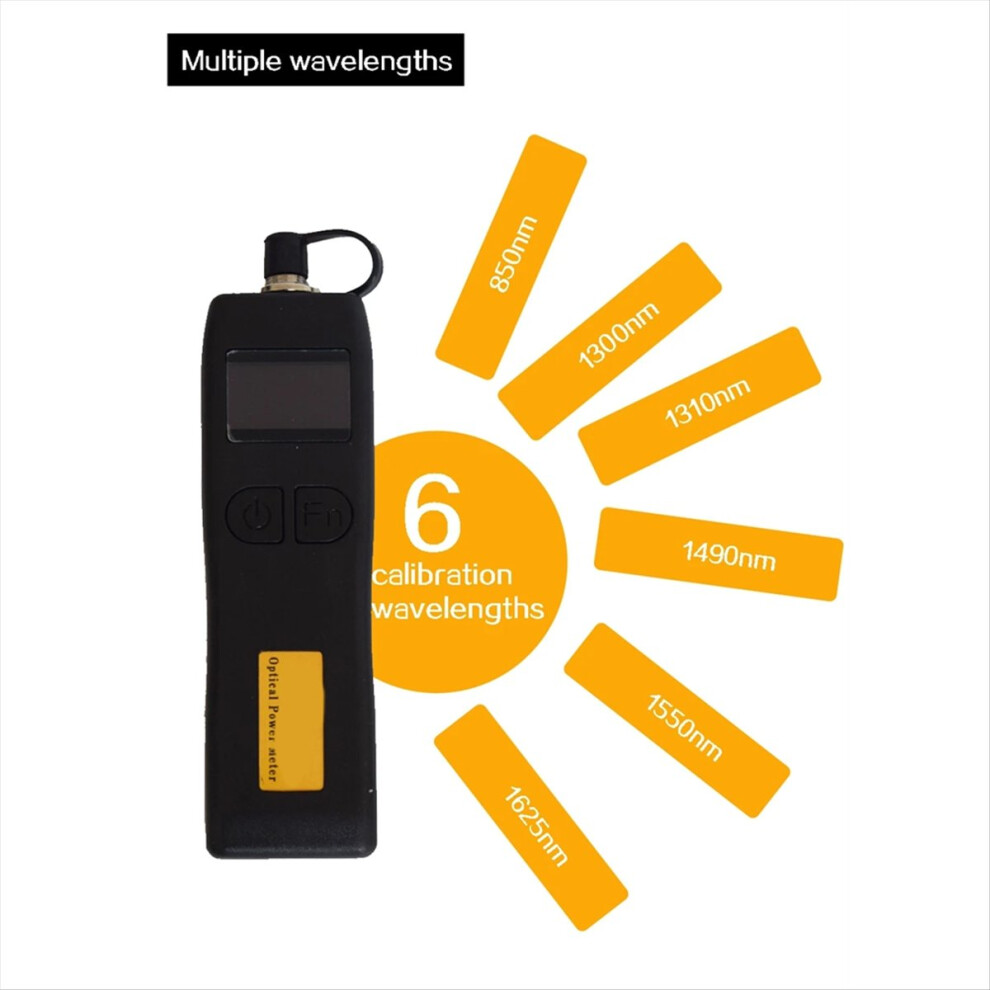

Calibrated Wavelength: 850 1300 1310 1490 1550 1625 nm
Accuracy: 0.05dB
Operating Temperature: -10 to +50

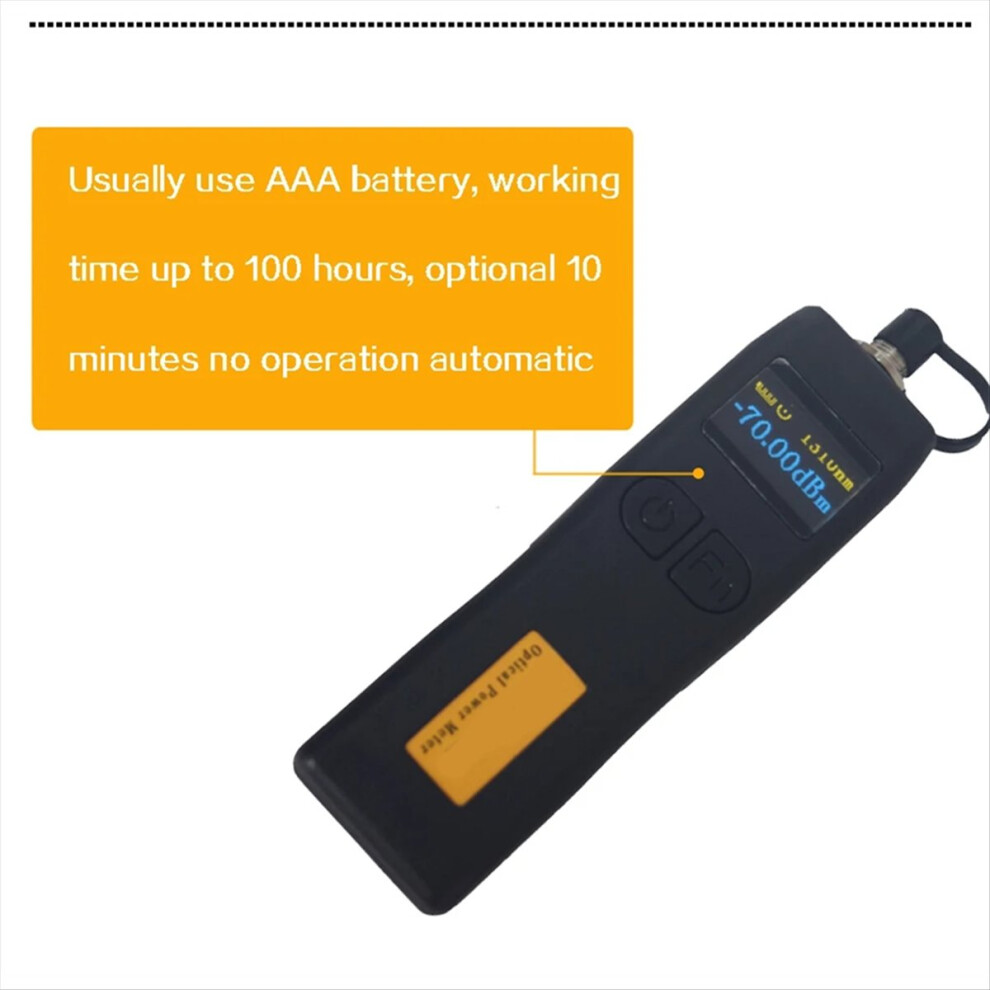

Auto-off Time: 10 min
Operating Time: 100 h
(Without batteries, bring your own 3 AA batteries)
Color: As Shown
Material: ABS

Package Contents:
1 set * YJ-320A mini optical power meter tester

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
