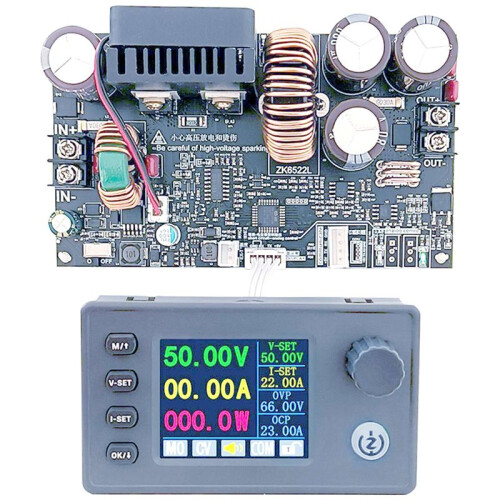

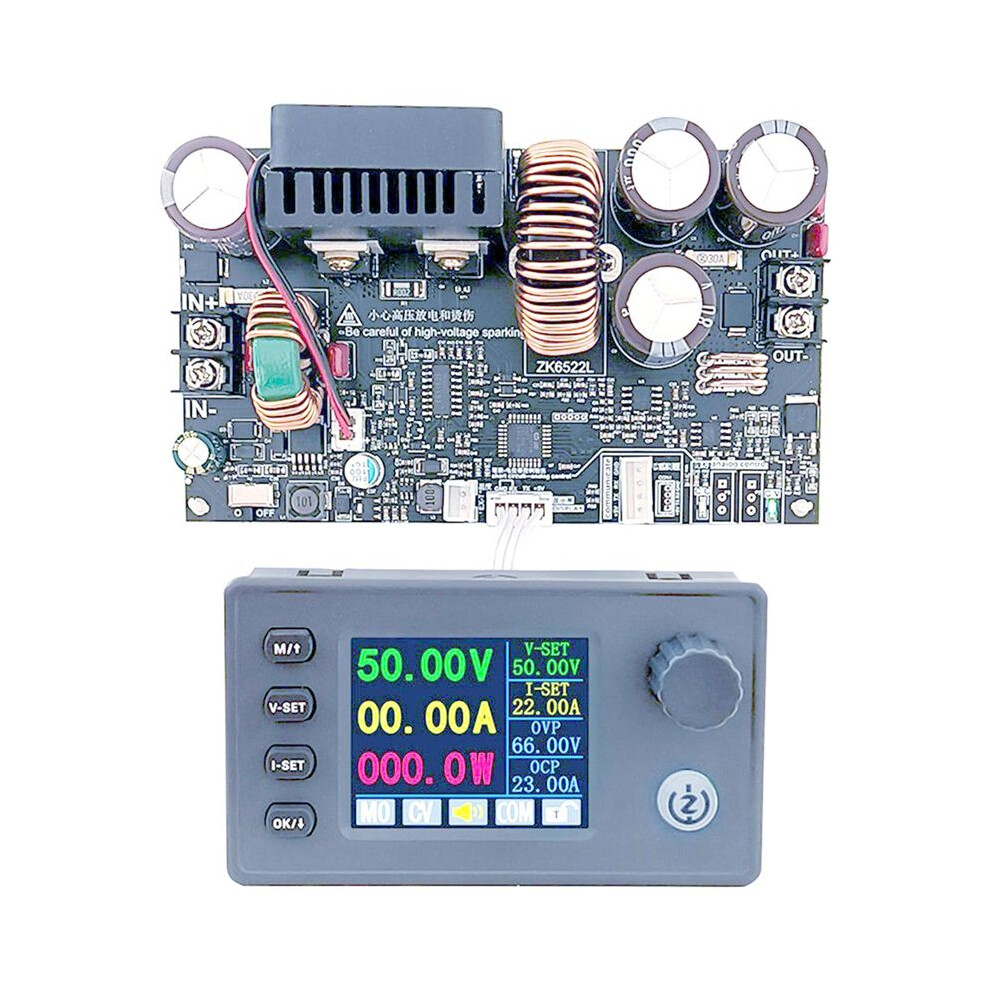

ZK6522C CNC Step-Down Power Supply Adjustable Voltage Voltage and Constant Voltage Constant Current Module 1430W
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 127,000 Trustpilot reviews and an 'Excellent' rating
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Wed 1st - Mon 6th Jul
Sold by: BALURE
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Connectors
Summary
- 1. AC power cannot be input, let alone 220V mains power. 2. The maximum allowed input voltage is 75V, and no overvoltage input or reverse polarity connection is allowed.
- 3． The output cannot be completely guaranteed to prevent backflow. When connecting the battery, ensure that the output voltage of the power module is always higher than the battery voltage, or connect a diode in series with the positive terminal of the output to conduct one-way conduction to prevent the battery voltage from backflow and burning the power supply.
- 4. When connecting the output terminal to the battery, be careful not to reverse the positive and negative poles. 5. The product is a step-down module, the maximum output voltage = input voltage * 0.95-1V.
- Product parameters: Product name: CNC DC step-down power supply; Product model: ZK-6522C (color screen model); Input voltage: 6.0-75.00V; Output voltage: 0.0-65.00V; Output current:0-22A; Output voltage accuracy: ±0.3% + 3 words (can be calibrated); Output power: 0-1430W; Output current accuracy: ±0.5% + 3 words (can be calibrated)
- Voltage resolution: 0.01V; Current resolution: 0.01A; Data group storage: 11 groups; Silicone buttons: 5; Screen size: 1.8-inch upgraded large screen, 36 x 29mm viewing range
ZK6522C CNC Step-Down Power Supply Adjustable Voltage Voltage and Constant Voltage Constant Current Module 1430W Description
1. AC power cannot be input, let alone 220V mains power. 2. The maximum allowed input voltage is 75V, and no overvoltage input or reverse polarity connection is allowed.
3． The output cannot be completely guaranteed to prevent backflow. When connecting the battery, ensure that the output voltage of the power module is always higher than the battery voltage, or connect a diode in series with the positive terminal of the output to conduct one-way conduction to prevent the battery voltage from backflow and burning the power supply.
4. When connecting the output terminal to the battery, be careful not to reverse the positive and negative poles. 5. The product is a step-down module, the maximum output voltage = input voltage * 0.95-1V.
Product parameters: Product name: CNC step-down power supply; Product model: ZK-6522C (color screen model); Input voltage: 6.0-75.00V; Output voltage: 0.0-65.00V; Output current:0-22A; Output voltage accuracy: 0.3% + 3 words (can be calibrated); Output power: 0-1430W; Output current accuracy: 0.5% + 3 words (can be calibrated)
Voltage resolution: 0.01V; Current resolution: 0.01A; Data group storage: 11 groups; Silicone buttons: 5; Screen size: 1.8-inch upgraded large screen, 36 x 29mm viewing range
Buzzer: Yes
Cooling fan opening conditions: temperature more than the 45 or current more than the 2A or power more than the 30W
Product shell: product size 83x48x29.4mm (height does not include rotary encoder)
Product motherboard: 124x71x42mm
protection mechanism:
Input undervoltage protection (LUP): 5.5-64V adjustable, factory default value 5.5V
Output overvoltage protection (OUP): 1-66V adjustable, factory default value 66V
Output overcurrent protection (OCP): 0.01-23A adjustable, factory default value 23A
Output over-power protection (OPP): 1-1450W adjustable, factory default value 1450W
Over-temperature pro
Details
| OPC | PVB6RXT |
|---|---|
| Brand | Jojomino |
| Codes | 4713706962256 (EAN) |
Product Data
| Height | 5cm |
|---|---|
| Width | 10cm |
| Length | 21cm |
| Weight | 0.3kg |
| Colour | Black |
| Material | PCB |
