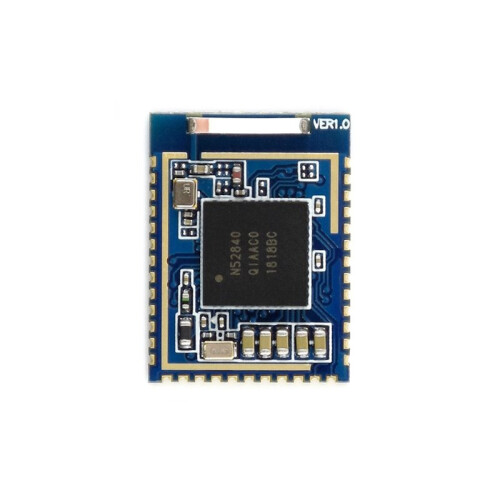

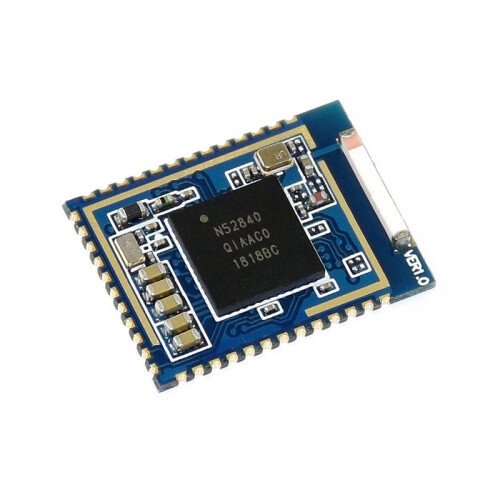

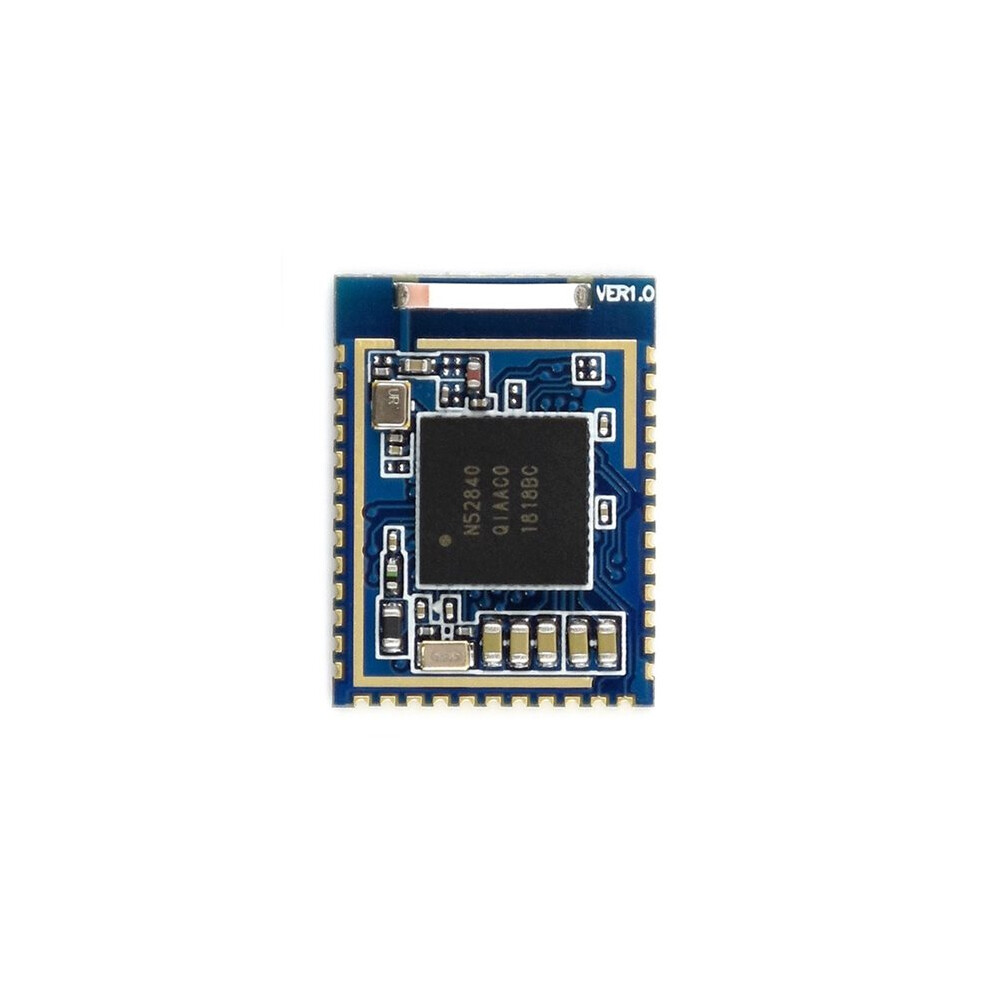

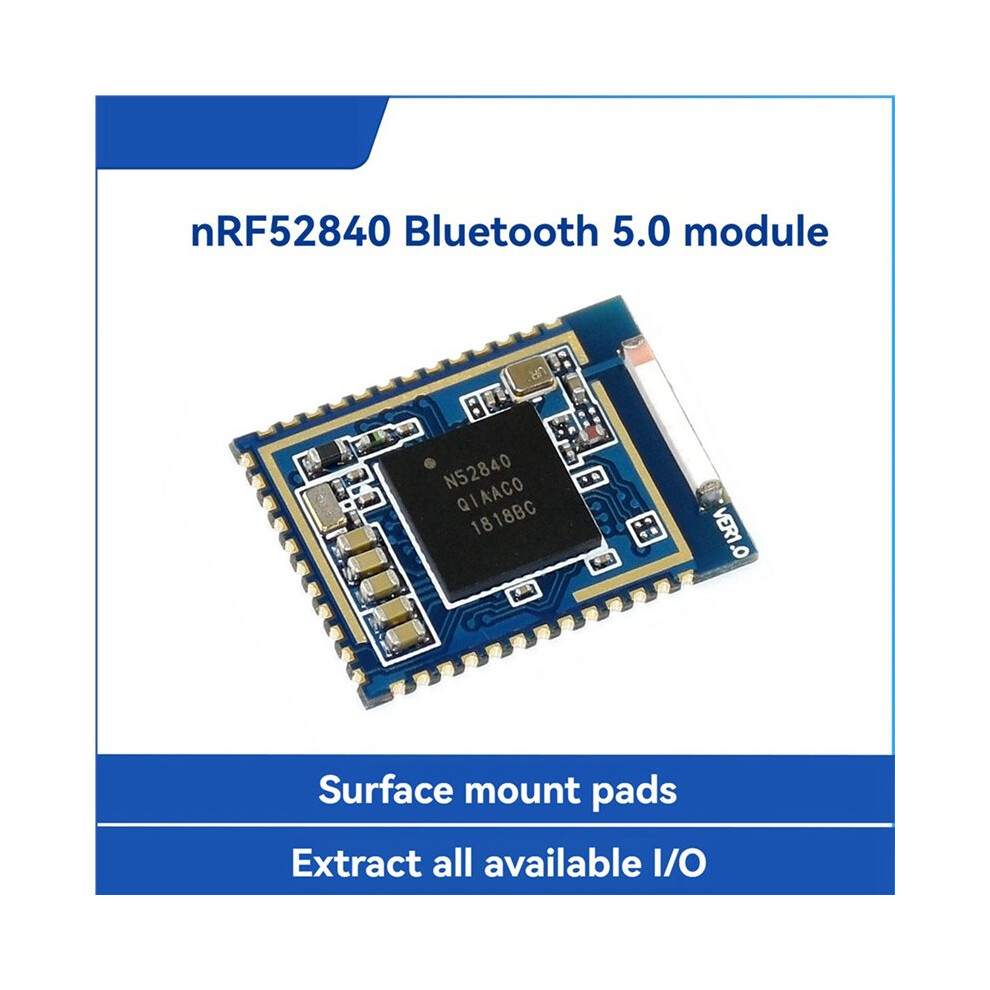

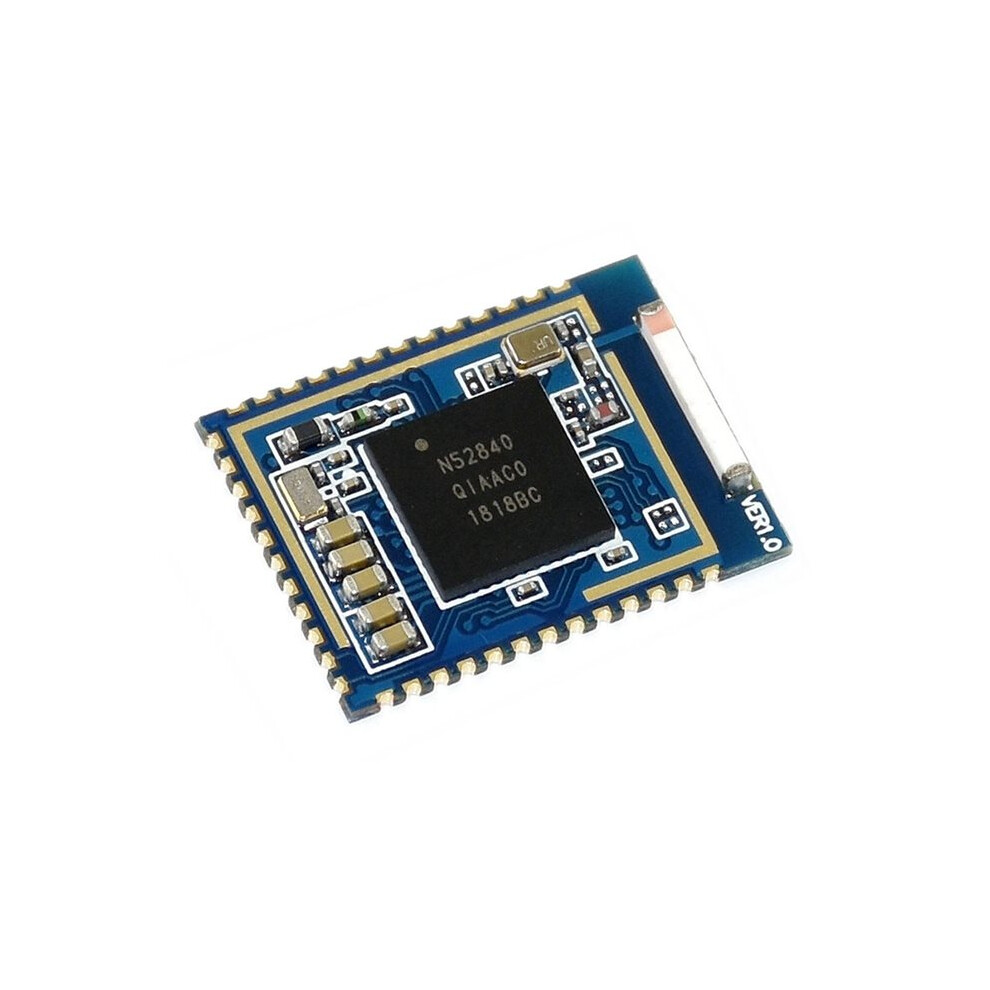

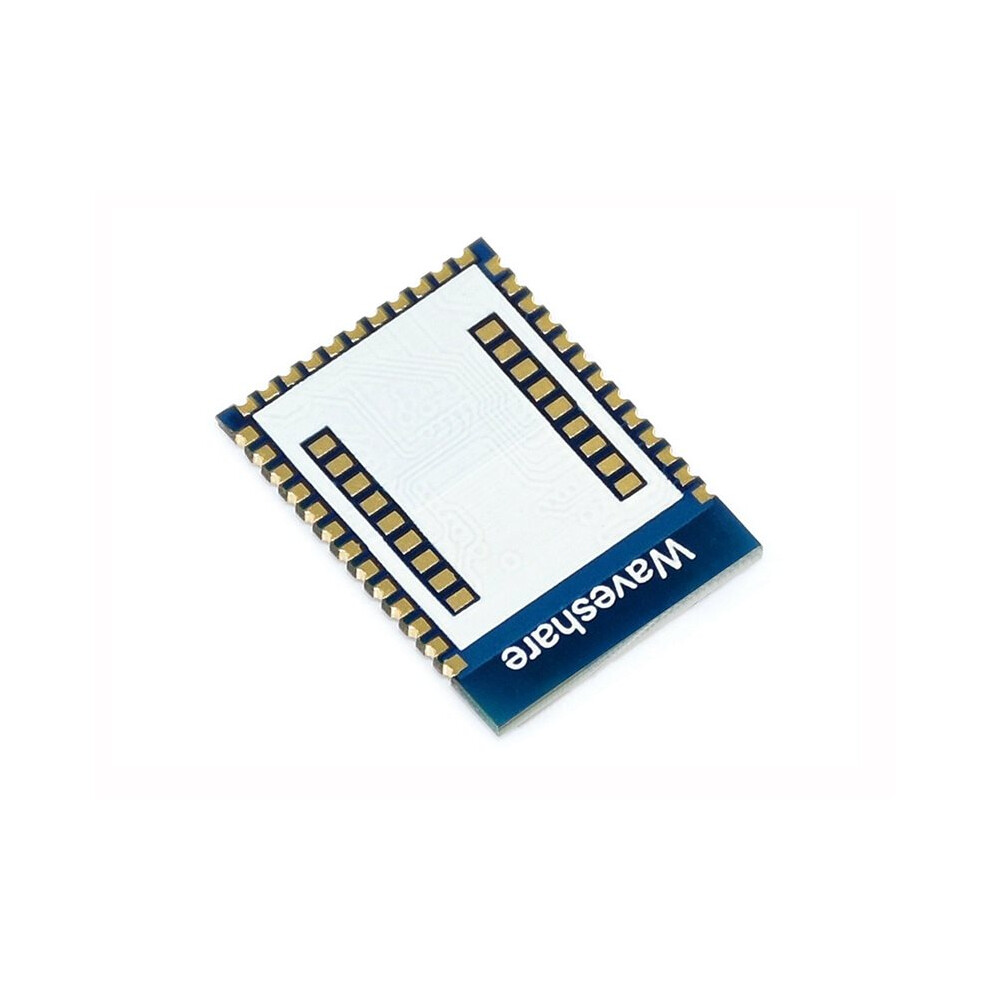

10X Waveshare NRF52840 5.0 Module Compact Size -Board Antenna Compatible with NRF52/NRF51/NRF24L/NRF24AP

Descrizione di 10X Waveshare NRF52840 5.0 Module Compact Size -Board Antenna Compatible with NRF52/NRF51/NRF24L/NRF24AP

The nRF52840 is a low-power, highly flexible single-chip solution ideal for short-range wireless applications such as wearable devices and interactive entertainment equipment.
• 5.0, IEEE 802.15.4-2006, 2.4 GHz multi-protocol transceiver
• Compatible with nRF52, nRF51, nRF24L and nRF24AP series
• ARM Cortex-M4F 32-bit processor (with FPU, 64MHz)
• 1MB flash and 256kB RAM

Main Control Chip: nRF52840
Effective Communication Distance: 150m (open area), 40m (indoor)
Transmission Speed: 2Mbps, 1Mbps, 500kbps, and 125kbps
Operating Frequency Band: 2.4GHz
Operating Voltage: 2.0V~3.6V (3.0V recommended)
Operating Temperature: -40~+85
Storage Temperature: -55~+125
Product Dimensions: 18mm x 13.5mm
Antenna Interface: -board antenna
Color: As Shown
Material: PCB

Package Contents:
10 x Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
