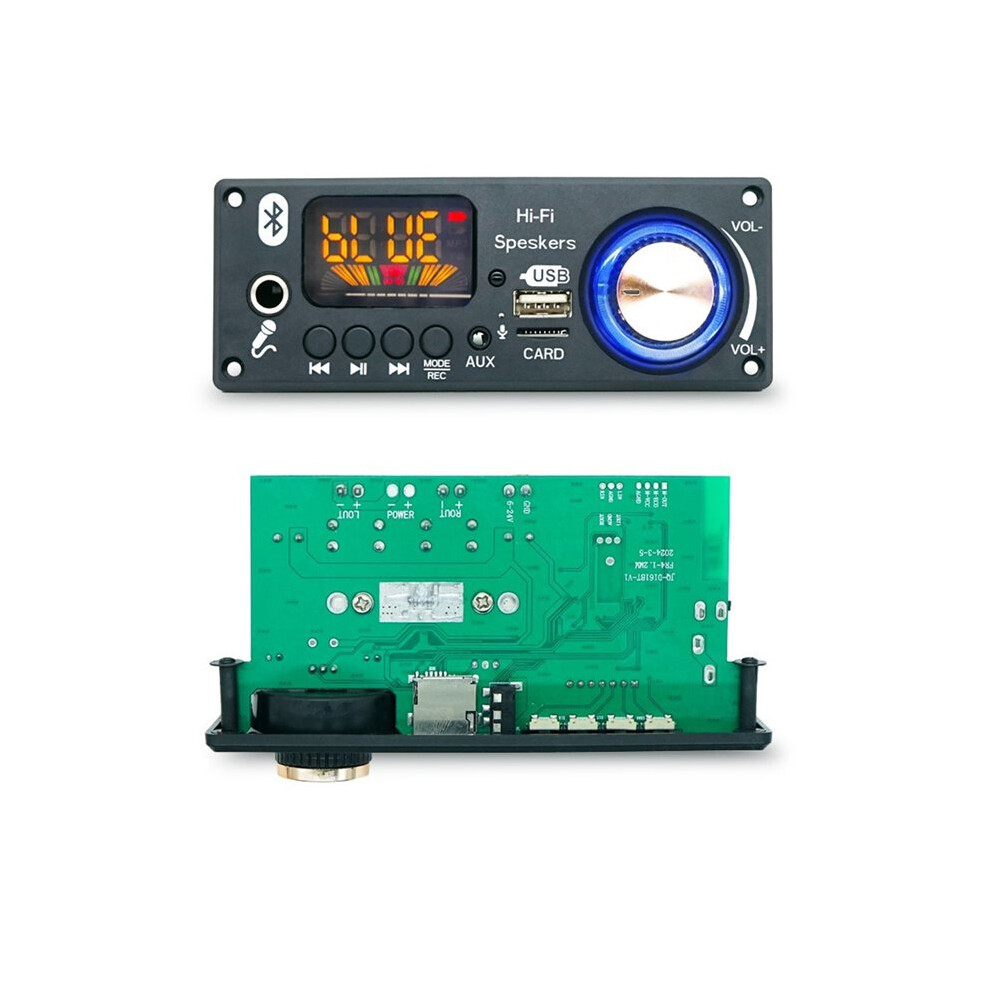

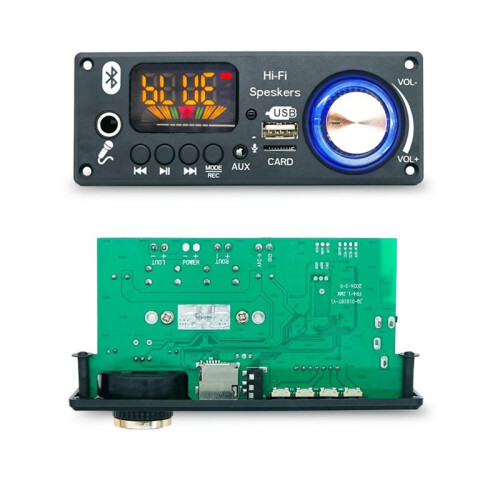

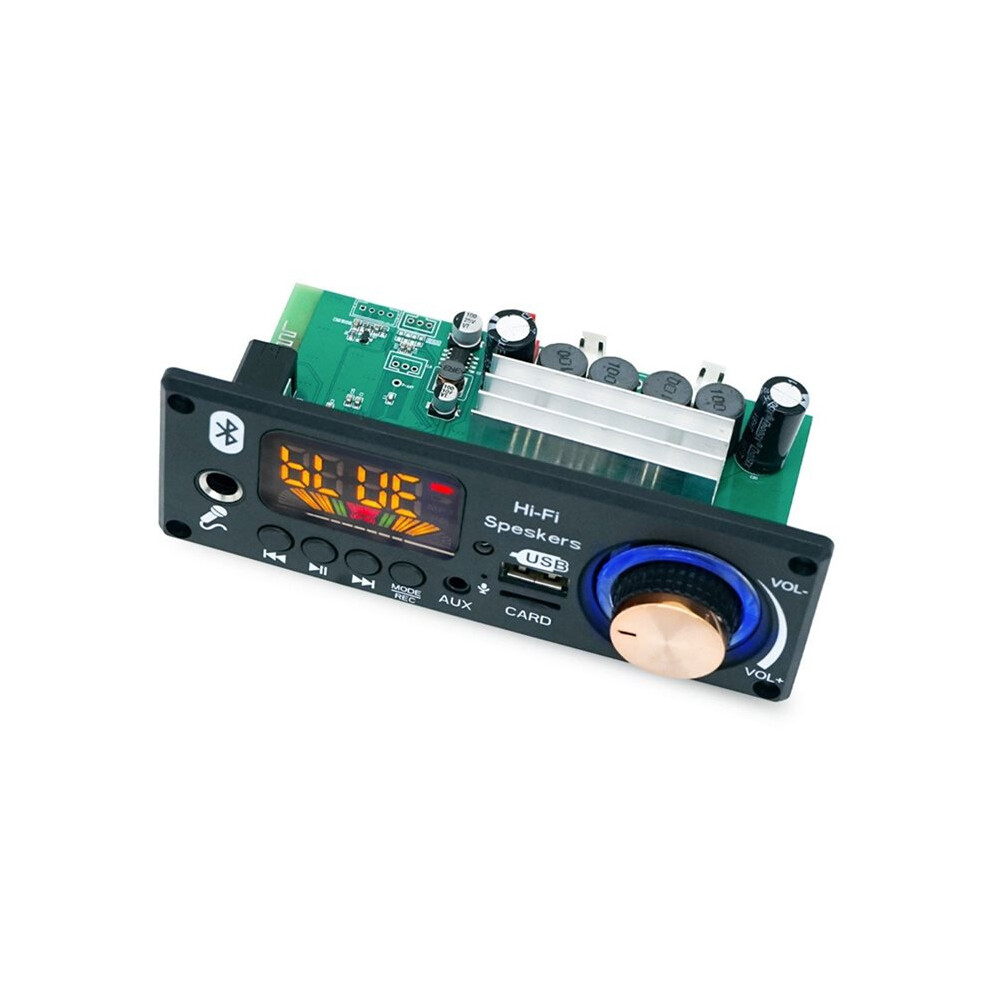

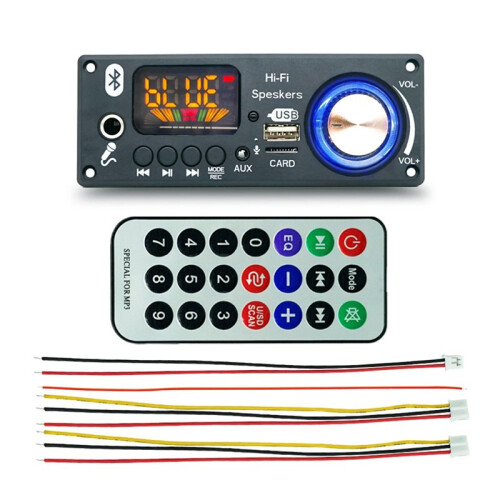

160W Amplifier 5.1 MP3 Decoder Board 2x80W Audio Player 12V DIY MP3 Player Car FM Radio Module TF USB Mic

Descrizione di 160W Amplifier 5.1 MP3 Decoder Board 2x80W Audio Player 12V DIY MP3 Player Car FM Radio Module TF USB Mic

Power: 2 * 80W/ call function/recording function/dual decoding MP3, WMA, WAV, FLAC, APE lossless format music/read USB drive/read TF card/external audio input IN/infrared remote control/power-off memory/12V voltage (range 6V-24V)/current above 2A

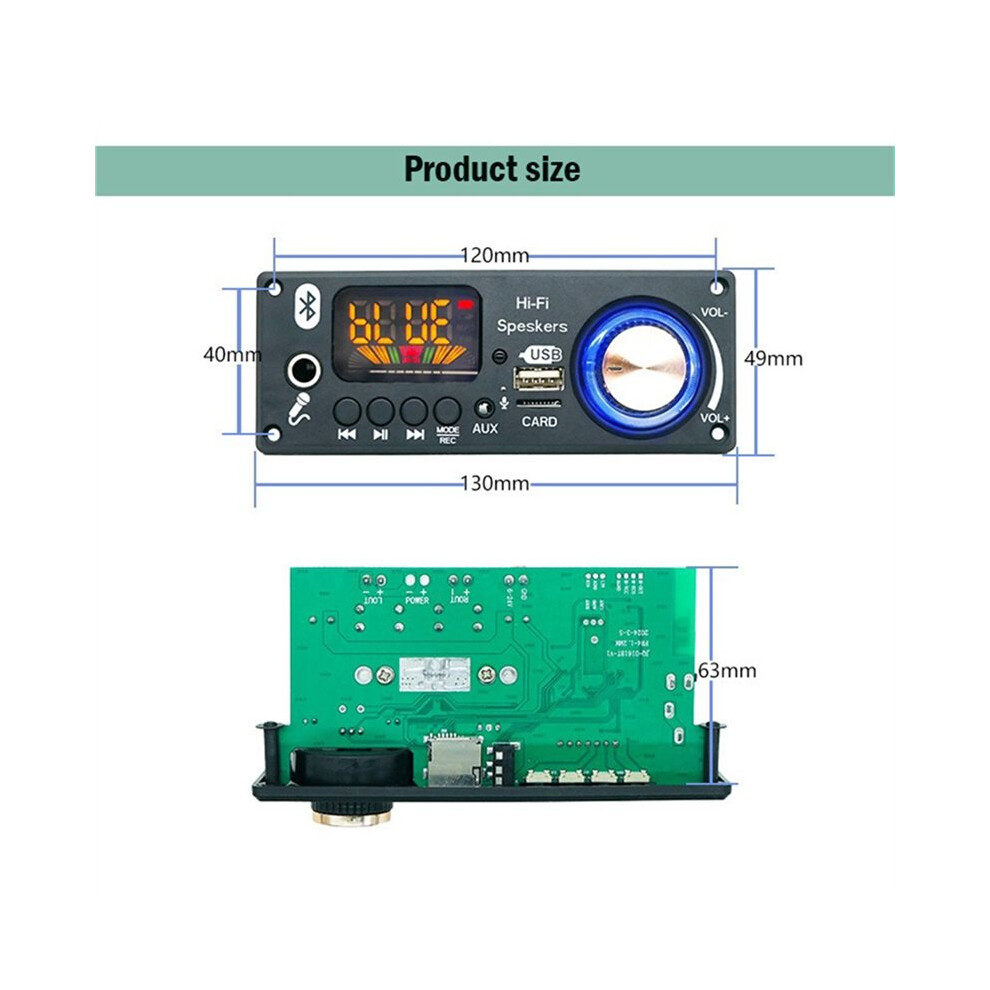

Shell size: 130mm in length and 49mm in width; Depth: 63MM
⑴ Main functions: 1. Dual decoding supports lossless formats of music such as MP3, WMA, WAV, FLAC, and APE; 2. Power amplifier 2 * 80W, capable of connecting two 80W speakers simultaneously; 3. Voltage range 6V-24V, current not less than 2A; 4. Supports calling function, version 5.0; 5. Support recording function; 6. Supporting microphone function
7. Digital color screen display; 8. Supports MMC//MMA and other cards, and supports USB interface (USB flash drive); 9. Power off memory function; 10. Support infrared remote control operation at a distance of 10 meters;

11. Support external audio input IN;

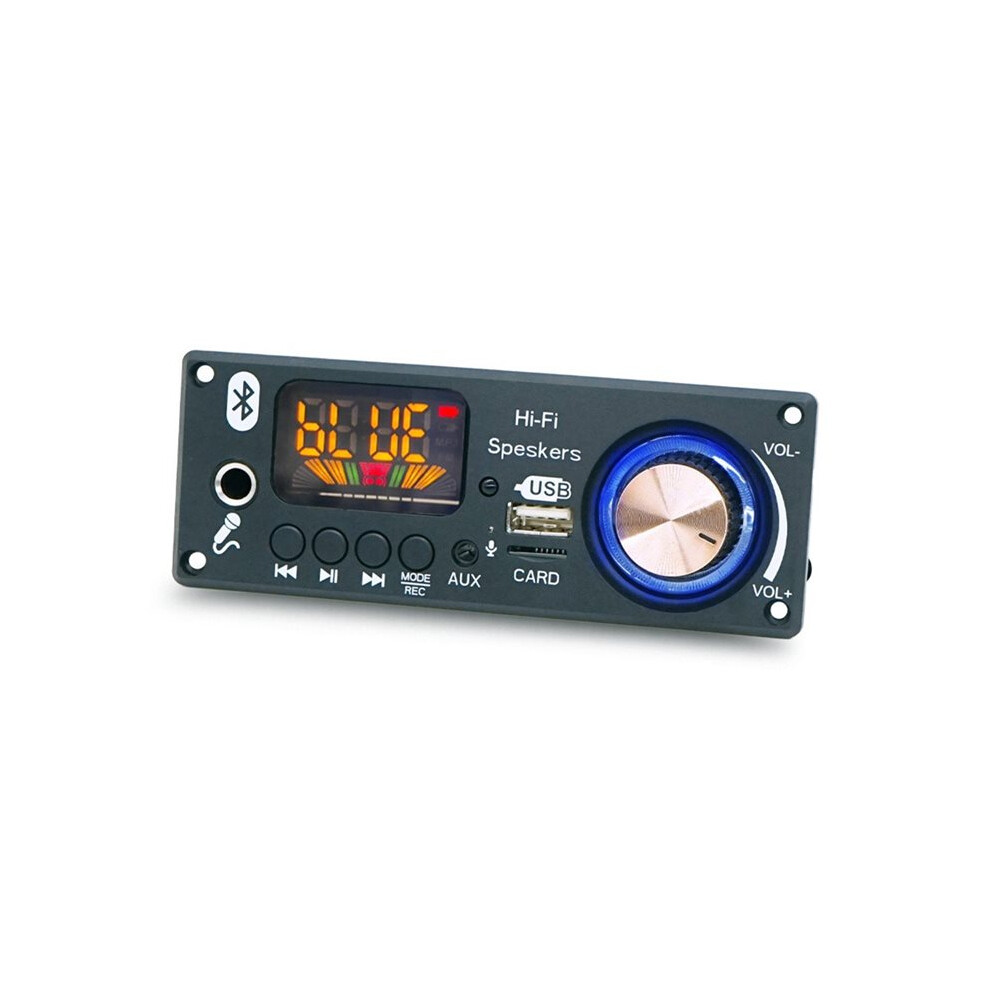

12. Button: Four buttons for multi-directional control of VOL -/AUTO/VOL+/MODE;
⑵ Detailed button operation

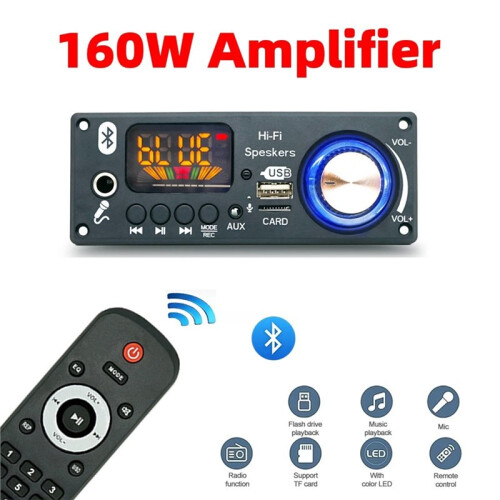

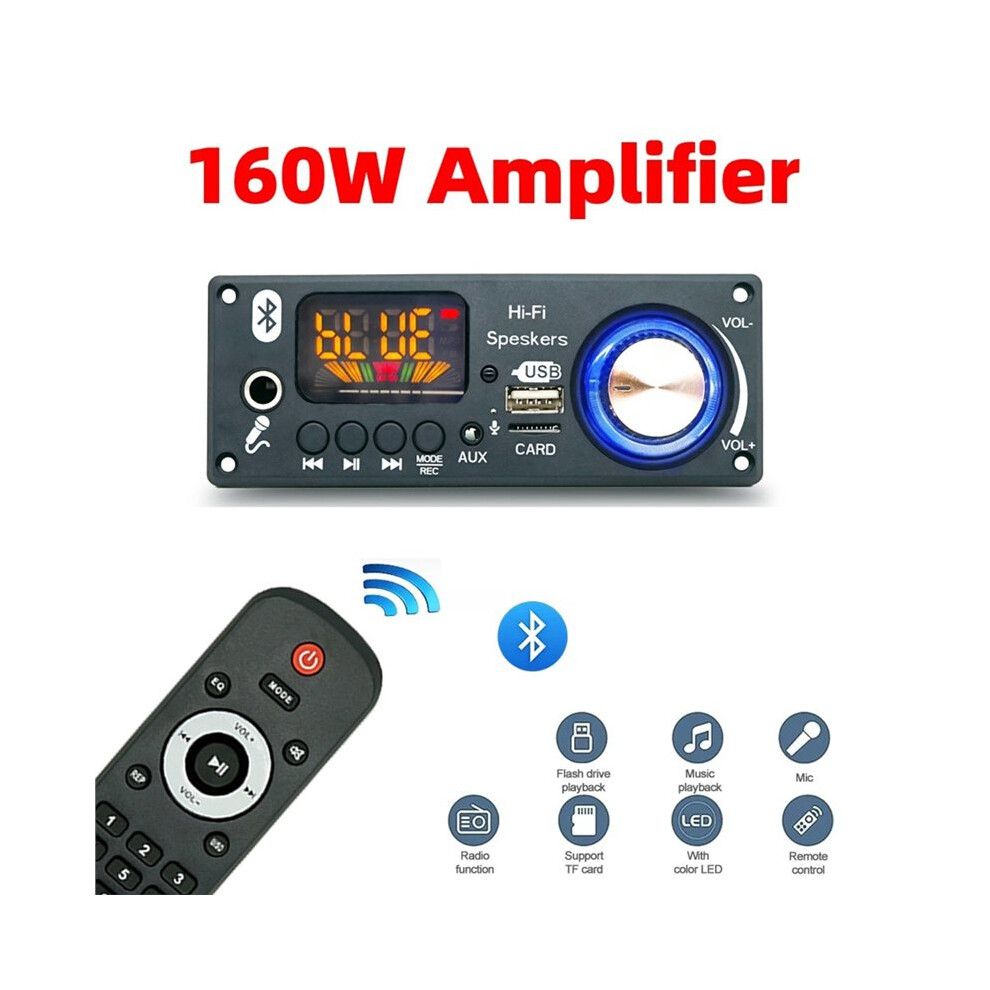

1. PREV button (previous track): In MP3 mode, VOL - short press for previous track, long press for volume reduction; Short press in FM mode to move one station number; Short press under function to the previous song ;
2. AUTO button (/pause): Short press AUTO in MP3 mode to /pause; Short press to /pause in FM mode, long press to automatically receive and coexist channels; Short press to /pause under function.
3. NEXT button (next track): In MP3 mode, short press VOL+for next track, long press for volume increase; Short press in FM mode to downgrade one station number; Short press under function to to next track;
4. MODE button: between USB/TF card/audio input/ function in s
