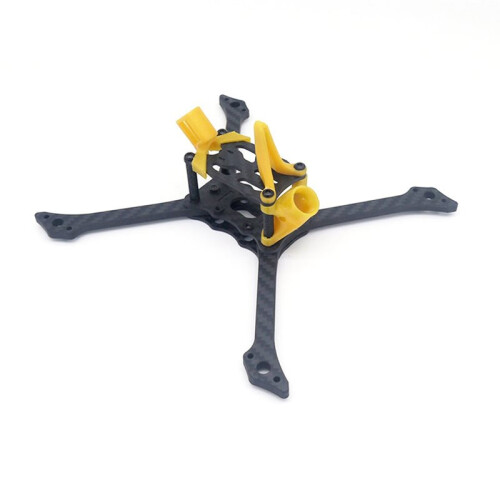

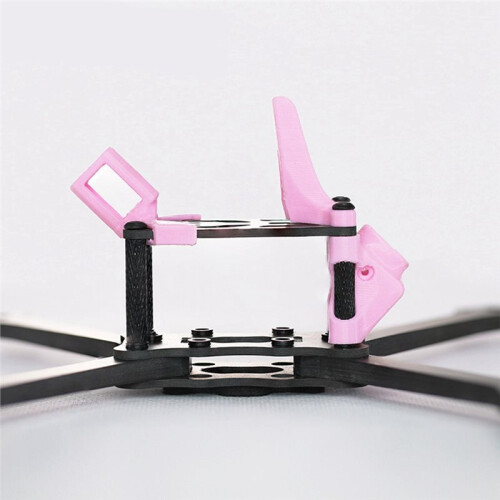

533Max 5inch FPV Frame Kit X-Type Split FPV RC Quadcopter for CADDX Vista Polar Nebula Pro RunCam Link A

Descrizione di 533Max 5inch FPV Frame Kit X-Type Split FPV RC Quadcopter for CADDX Vista Polar Nebula Pro RunCam Link A

Wheelbase of 192mm for enhanced stability and control during flight.
design at approximately 62g with printed parts for improved agility.
Arm thickness of 5.0mm and other parts at 2.0mm for durability and strength.
Compatible with 5.0-inch propellers for optimal thrust and performance.
X-type split design with a flight controller mounting hole spacing of 20*20mm (M3) and motor mounting hole spacing of 16*16mm (M3), allowing for versatile configurations and easy assembly.

1. Wheelbase: 192mm
2. Weight: Approximately 62g with printed parts
3. Thickness: Arm 5.0mm, other parts 2.0mm
4. Propellers: 5.0-inch propellers
5. Flight controller mounting hole spacing: 20*20mm (M3)
6. Camera mounting width: 14mm (camera angle approximately 51 degrees)
7. Motor mounting hole spacing: 16*16mm (M3)
8. Structure: X-type split design
9. Aluminum column height: M3*25mm
10. Front and rear aluminum column distance: Approximately 44mm
11. Compatible printed parts: Slingshots 551 degrees, Foxeer Micro Lollipop
Color: Yellow
Material: Carbon Fibre

Package Contents:
1*FPV Frame Kit
