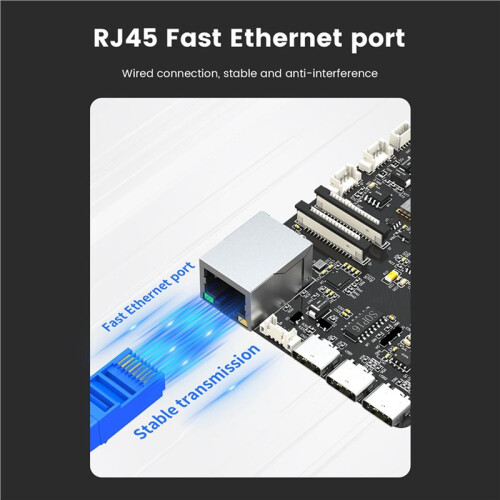

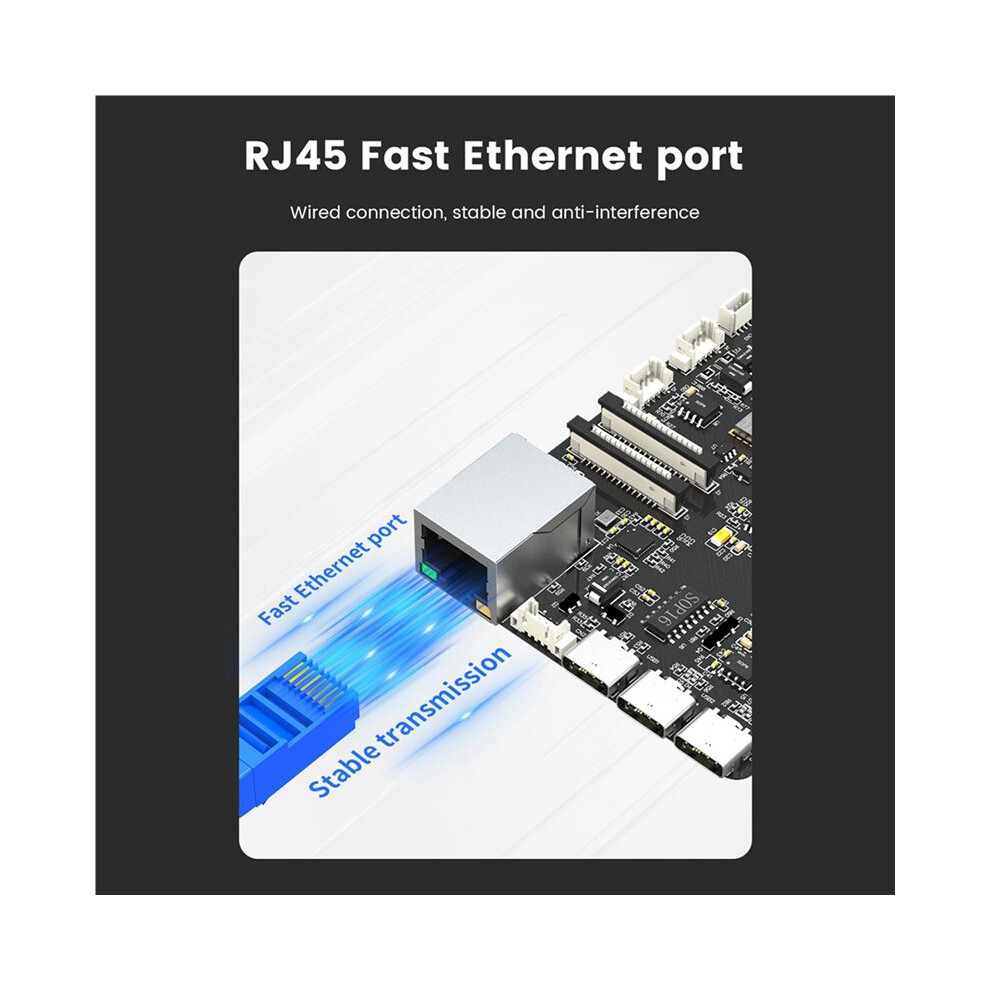

5X ESP32-P4-Module Development Board with Integrated ESP32-C6 Module Supports WiFi 6 and Bluetooth5 RJ45 Port
Disponibile
Perché amerai fare acquisti su OnBuy:
- Ottieni Cashback su ogni acquisto – spendilo subito sul tuo prossimo ordine
- Consegna gratuita – su milioni di articoli in tutto il sito
- I clienti ci amano – 135,000 recensioni con valutazione « Eccellente »
I prezzi degli articoli in vendita su OnBuy includono l’IVA
Opzioni di pagamento a rate senza interessi disponibili
Vedi la descrizione completa e i dettagli del prodotto
Consegna: Standard (4,20 €) | ven 16 - mer 21 ott
Resi: 30 giorni
Protezione dei pagamenti per 180 giorni
Riepilogo
- It is an ESP32-P4 core board with integrated ESP32-C6, supporting Wi-Fi 6 and Bluetooth 5 wireless connectivity. lt provides rich HCl interfaces including MIPI-CSI(Integrated lmage Signal Processor ISP),MIPI-DSI, SPI,12S,12C,LED PWM,MCPWM,RMT,ADC,UART,TWAI and so on. In addition, USB OTG 2.0 HS is supported.
- The ESP32-P4 adopts a 360MHz dual-core RISC-V processor,supports up to 32MB PSRAM,and is equipped with peripherals such as USB 2.0,MIPI-CSI/DS, H.264 encoding, etc., which meets the needs of low-cost, high-performance and low-power multimedia development. In addition, ESP32-P4 integrates digital signature peripheral and dedicated key management unit to ensuredata and operation security.
- ESP32-P4-Module Board
- Microcontroller Development Board
- ESP32-P4-Module With ESP32-C6 Module
Descrizione di 5X ESP32-P4-Module Development Board with Integrated ESP32-C6 Module Supports WiFi 6 and Bluetooth5 RJ45 Port
It is an ESP32-P4 core board with integrated ESP32-C6, supporting Wi-Fi 6 and 5 wireless connectivity. lt provides rich HCl interfaces including MIPI-CSI(Integrated lmage Signal Processor ISP),MIPI-, SPI,12S,12C,LED PWM,MCPWM,RMT,ADC,UART,TWAI and so . In addition, USB OTG 2.0 HS is supported.
The ESP32-P4 adopts a 360MHz dual-core RISC-V processor,supports to 32MB PSRAM,and is equipped with peripherals such as USB 2.0,MIPI-CSI/, H.264 encoding, etc., which meets the needs of low-cost, high-performance and low-power multimedia development. In addition, ESP32-P4 integrates digital signature peripheral and dedicated key management unit to ensuredata and operation security.
High-performance MCUs with RISC-V 32-bit dual-core and single-core processors.
128KB ROM,16KB LP ROM, 768KB L2MEM, 32KB LP RAM,8KB TCM.
Powerful image and voice processing capabilities, with image and voice processing interfaces including JPEG codec, Pixel Processing Accelerator (PPA),Image Signal Processor (ISP),and H264 video encoder.
32MB PSRAM stacked in chip package, 16MB Nor Flash integrated in module.
MIPI-CSI,MIPI-, USB 2.0 0TG,SDIO 3.0 common periphera interfaces onboard.
Security mechanisms: Secure Boot, Flash Encryption, Hardware Encryption Accelerator and Hardware Random Number Generator. Hardware access protection is also supported,enabling access rights management(APM and privilege separation.
Color: As Shown
Material: PCB
Package Contents:
5 x ESP32-P4-Module Development Board
Dettagli
| OPC | PYJJ9XD |
|---|---|
| Codici | 4712139097405 (EAN) |
| Informazioni sul prodotto e sulla sicurezza |
Dati prodotto
| Height | 10cm |
|---|---|
| Width | 6cm |
| Length | 9cm |
| Weight | 0.2925kg |
| Colour | As Shown |
| Material | PCB |
