DC Buck Boost Converter Variable Voltage Regulator CC CV0.5-30V4A5V6V12V24V Power Supply Module

Descrizione di DC Buck Boost Converter Variable Voltage Regulator CC CV0.5-30V4A5V6V12V24V Power Supply Module

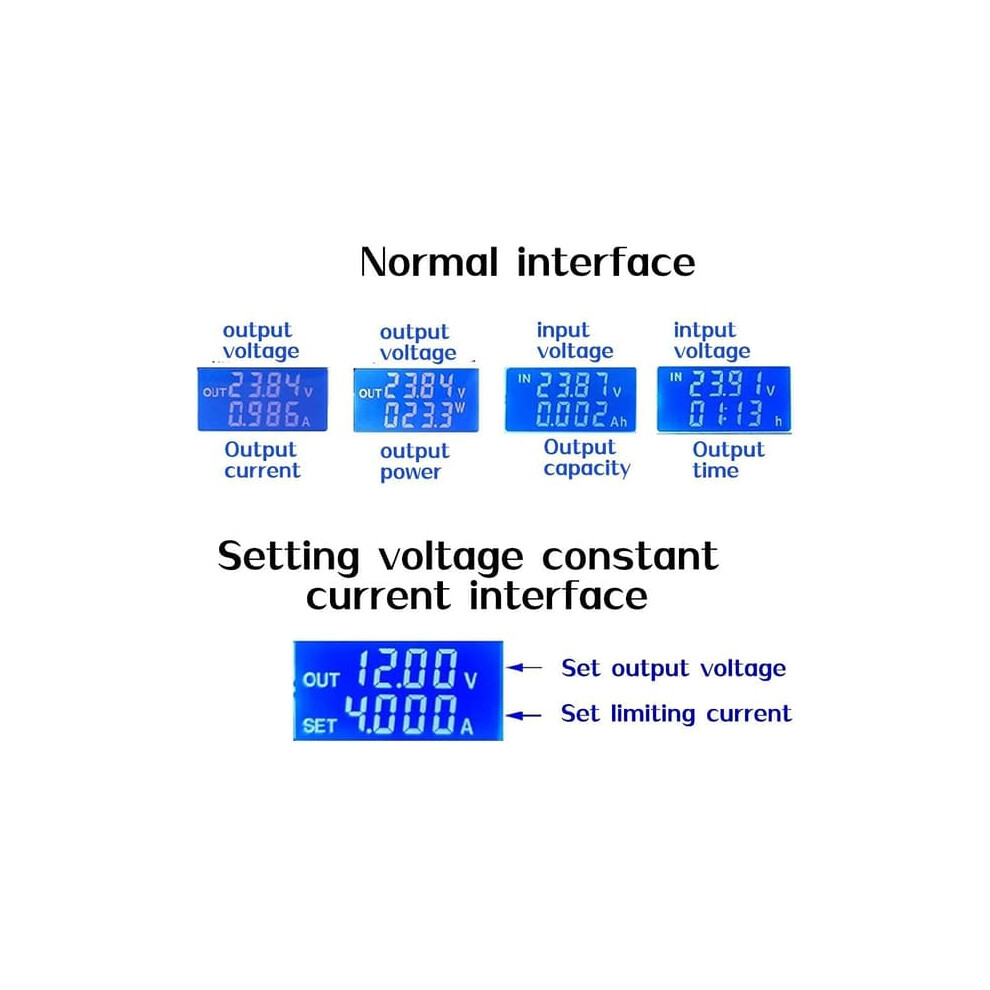

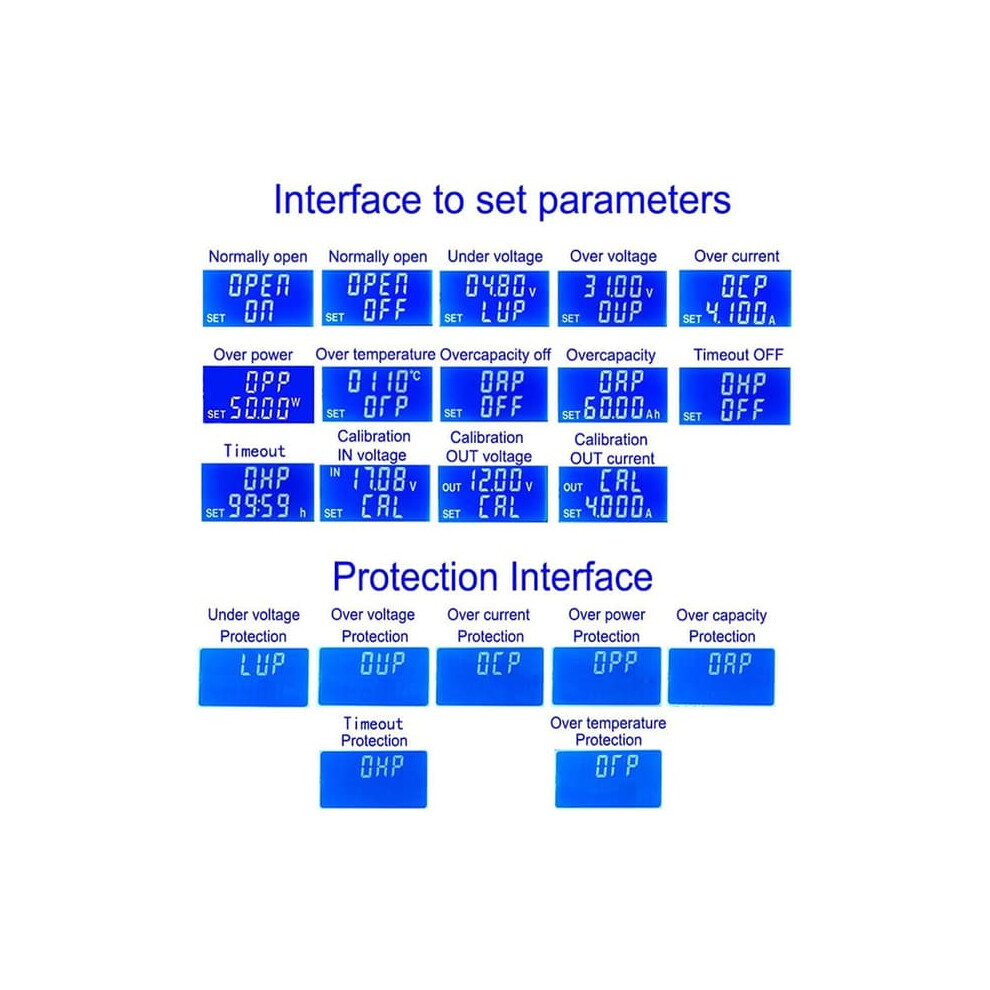

About this item Input voltage range is DC5-30V; output voltage range is DC0.5-30V, can be arbitrarily adjusted; output current can be3A for long-term use, if heat dissipation is improved, it can reach4A; max output power is35W, if power dissipation is improved, it can reach50W LCD displays input/output voltage, output current/output power/output capacity/out time. The module can be set to ON/OFF by default Safety protection: The module is with anti-reverse connection protection for the input side, so that it will not burn out when there is a reverse connection. Anti-backflow protection at the output side. No need to add anti-backflow diode when charging. Multiple software protection mechanisms are available, and the protection threshold is adjustable. When the module's working parameters exceed the protection threshold, the output will automatically shut down Application: The voltage conversion board can be used as a common buck/boost module with overcurrent protection; used as a high-power LED constant current drive module; DIY a solar controller, battery charging The output ripple is small and π filter is available. Thick heat sink. Buck-boost integrated
