For Raspberry Pi RP2350 RP2350B N16R8 Super RP2350B Core Board MicroPython RP2350B PSRAM

Descrizione di For Raspberry Pi RP2350 RP2350B N16R8 Super RP2350B Core Board MicroPython RP2350B PSRAM

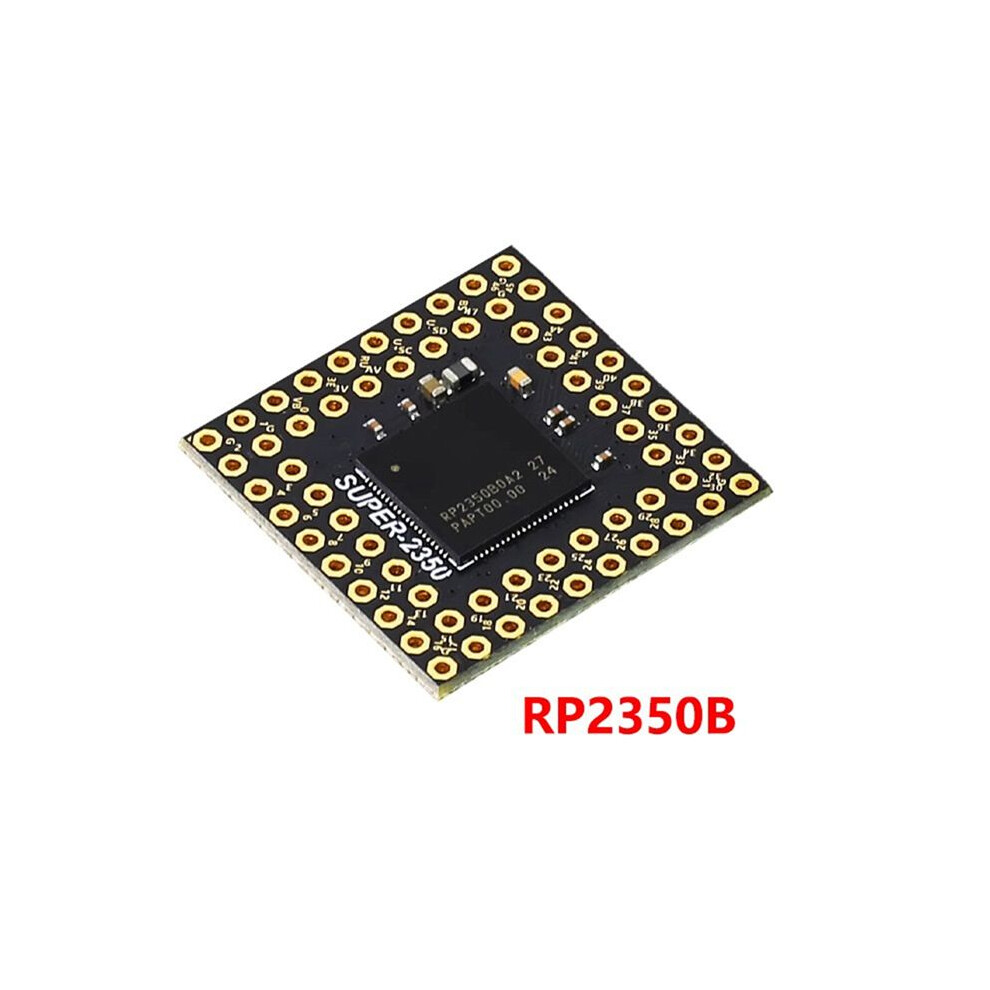

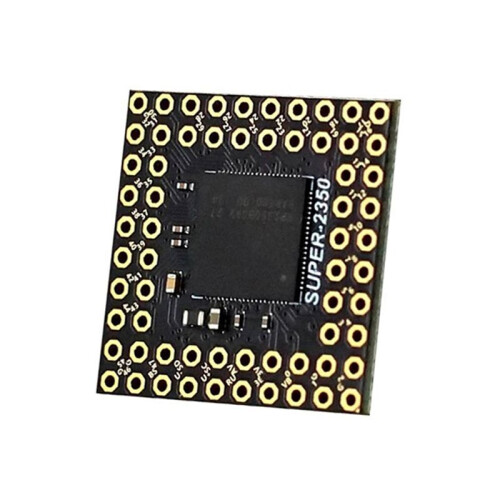

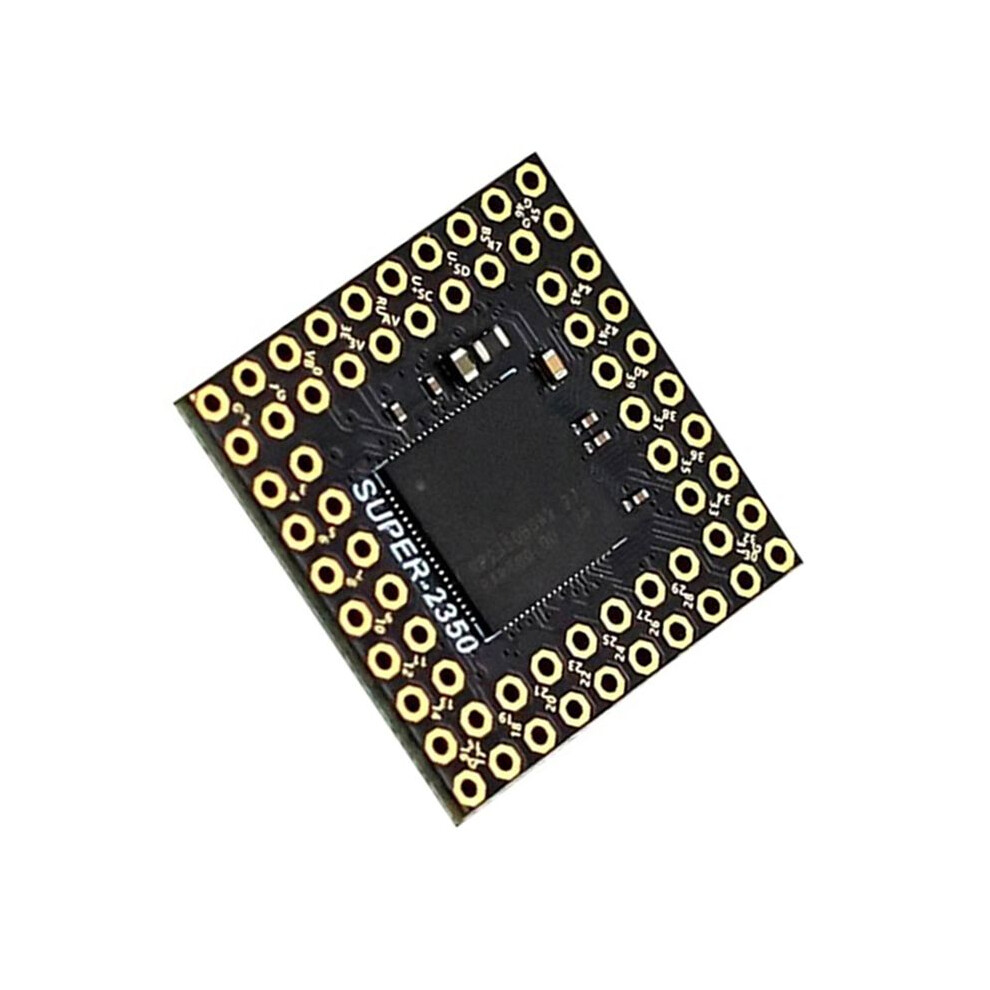

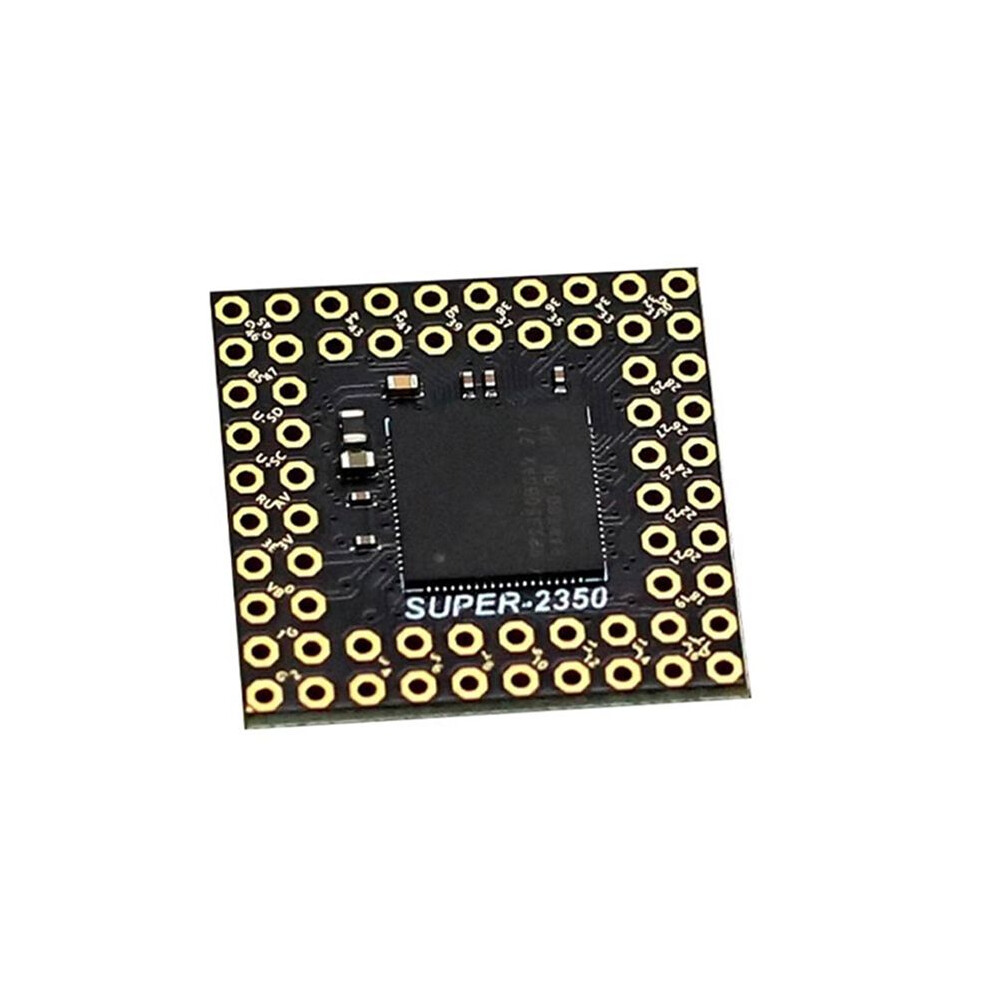

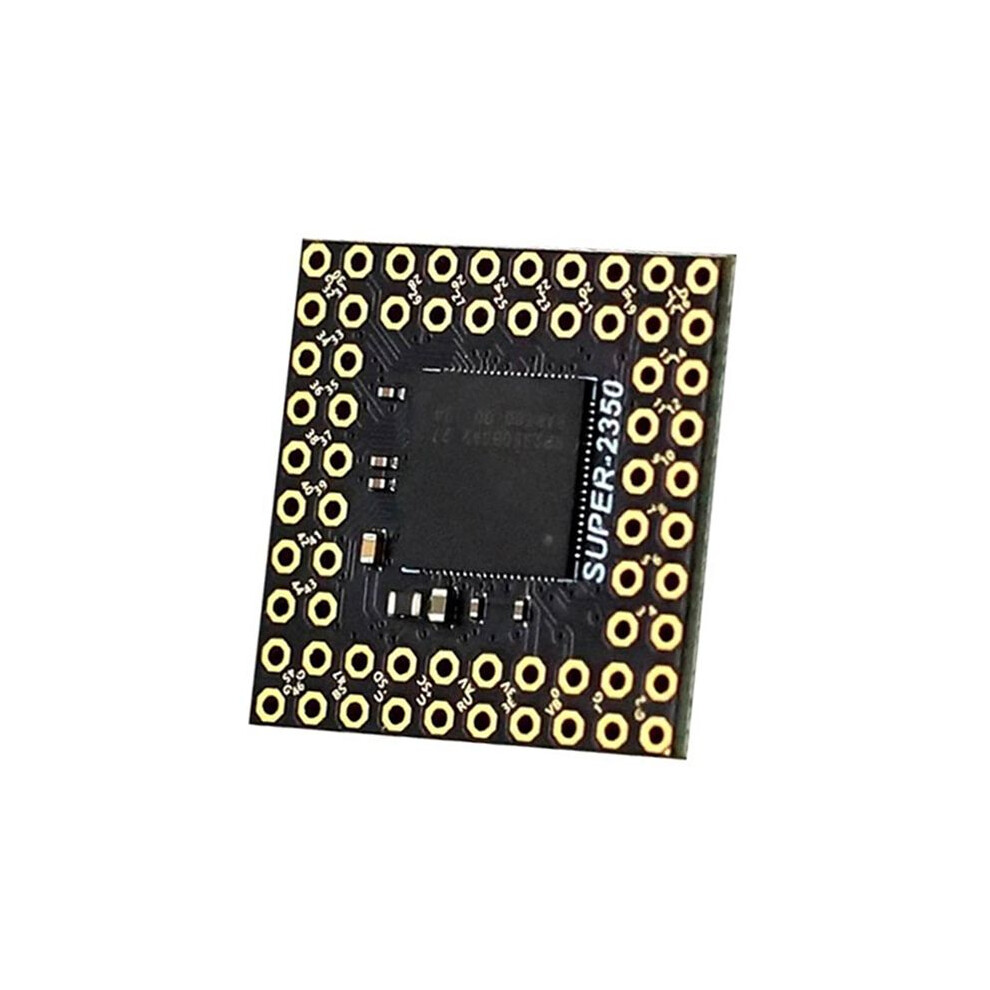

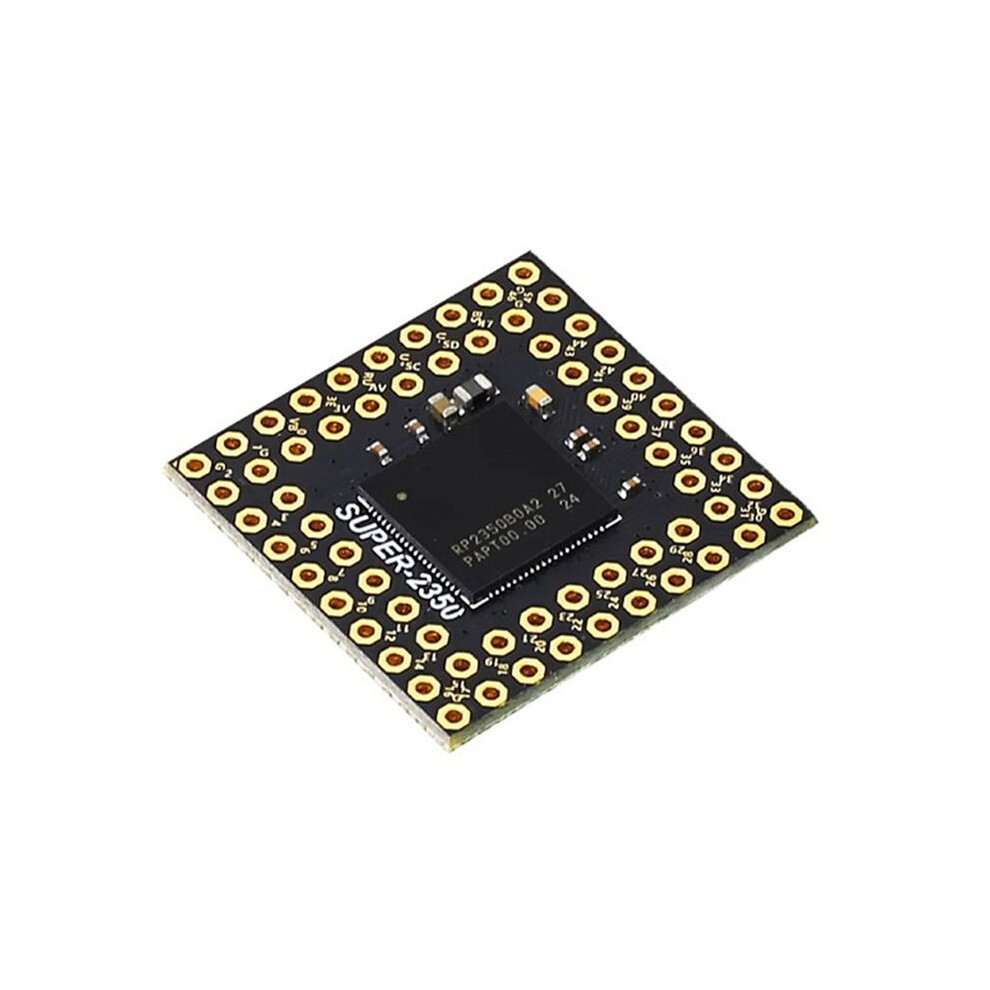

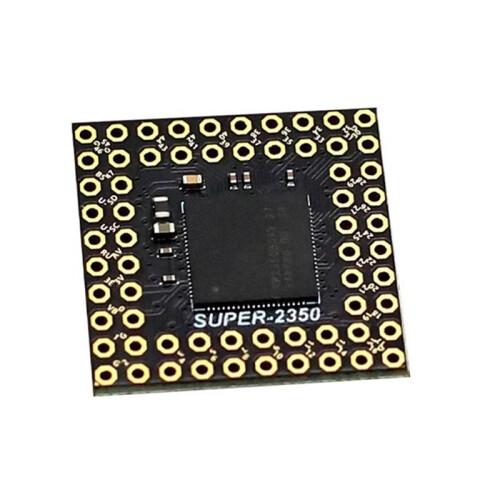

Super RP2350B is a compact RP2350 development board designed to be embedded in projects with limited space. It contains the components required to run the powerful RP23508 chip (i.e. crystals, regulators, and necessary support circuits), powerful 8MB PSRAM, and astonishing 16MB flash memory. Please note that it does not have an LED, button, or USB connector - you will need to connect your own USB connector to program it.
All these significant trims mean you will get a small space of 25.4 millimeters square and a lot of exposed RP2350 pins. Among them, 48 can be used as universal 1/0 (18 1/0 more than Raspberry Pi !)! )8 equipped with ADC. We even managed to squeeze in some tiny pin labels to help identify them.
Adopting RP2350B (dual Arm Cortex M33, running at to 150MHz, equipped with 520KB ) and supporting 16MB QSPI flash memory for XiP.
8MB PSRAM (CS is connected to GP47 through switchable wiring).

Crystal oscillator
Onboard 3V3 voltage regulator (maximum regulator current output 300mA)
64 pins arranged in a pin grid array with a spacing of 2.54 millimeters (0.1 inches) -48 multifunctional general-purpose 10 (8 available for ADC)
6 GND pins
Input voltage range 3V-5.5V (only VB pin)
Can be programmed using C/C++ or MicroPython
Color: Black
Material: plastic

Package Contents:
1 * RP2350B core board
