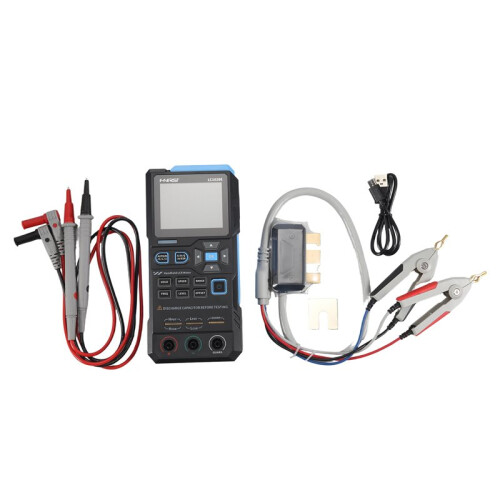

LC1020E Digital Bridge ESR Tester for Resistance Capacitance Inductance Electronic Component Measurement

Descrizione di LC1020E Digital Bridge ESR Tester for Resistance Capacitance Inductance Electronic Component Measurement

Four and a half digits display of main and auxiliary parameters The accuracy is improved by 10 times, with the basic accuracy to 0.05%, and the main and secondary parameters can be displayed simultaneously
Multi-frequency test effective value test level Supports five test frequencies: 100Hz, 120kHz, 1kHz, 10kHz, and 100kHz, adapting to the measurement needs of different application scenarios. 0.1V, 0.3V, and 0.6Vrms RMS test levels ensure more accurate and reliable measurement results
Sorting Comparison Function Preset nominal values and tolerance values can be used to instantly complete both batch screening and precise location of problem components, greatly improving work efficiency
Automatic identification of components Automatic selection based component characteristics makes it easier to use and makes the measurement process simpler and more efficient
Internal Bias Function Eliminate material nonlinearity and restore true capacity to achieve nonlinear components and weak signals or precise measurement and control of complex environments

Display: 2.8-inch TFT LCD display
Basic Accuracy: 0.3%
Display Digits: Main Parameter: 4.5 digits; Secondary Parameter: 4.5 digits
Test Frequency: 100Hz, 120Hz, 1KHz, 10KHz, 100KHz
Test Level: 0.1V, 0.3V, 0.6V
Internal Bias: 0.0V, 0.5V
Measurement Parameters: Main Parameters: AUTO/R/C/L/Z; Secondary Parameters: X/D/Q/θ/ESR
Measurement Range: L: 0-100H, C: 0-100mF, R: 0-10MΩ
Measurement Speed: Fast (4 times/s), Medium (2 times/s), Slow (1 /s)
Calibration Functions: Open circuit calibration, Short circuit calibration
Color: As Shown
Material: ABS

Package Contents:

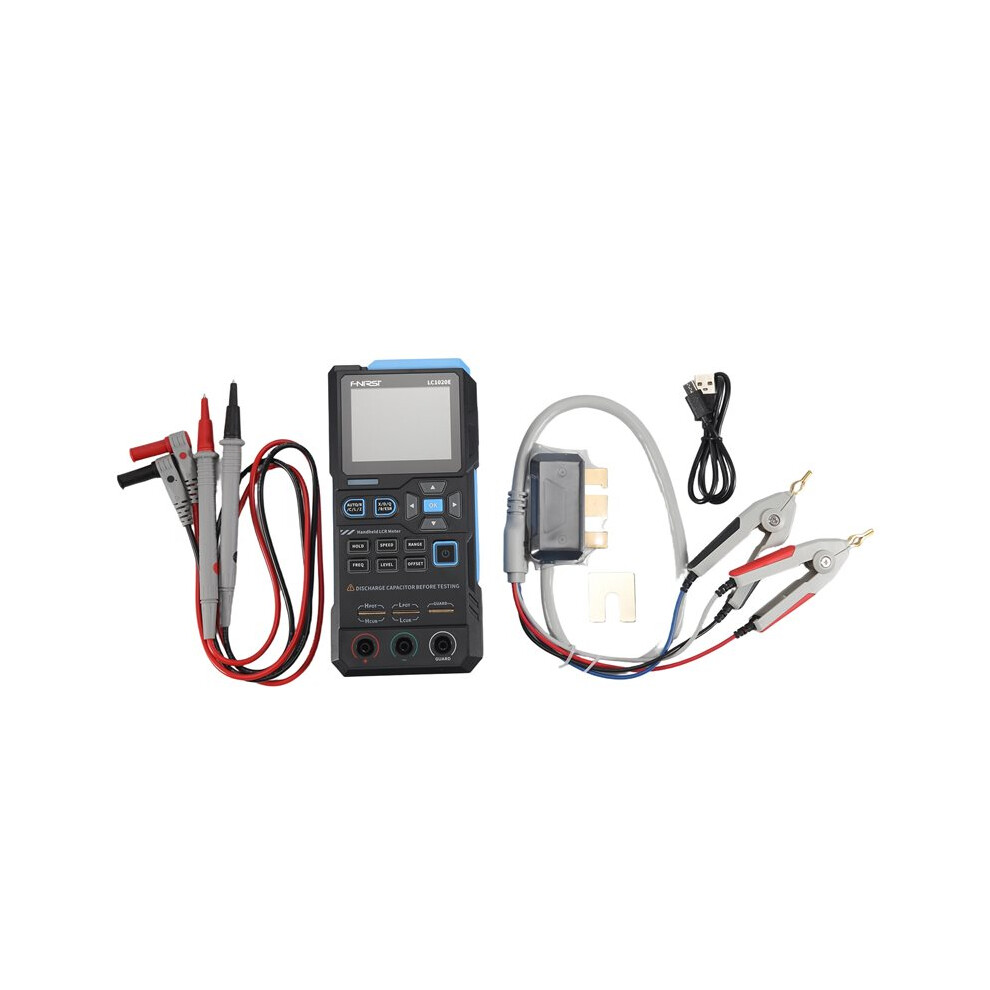

1 set * tester with accessories
