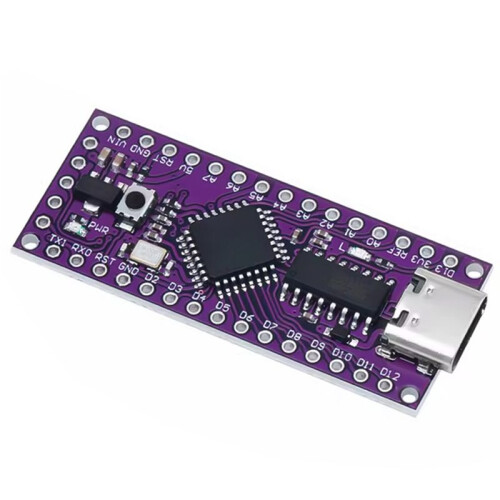

LGT8F328P MiniEVB V3.0 Development Board Compatible with for Featuring CH9340C HT42B534 TYPE-C
Nuovo
Disponibile
Perché amerai fare acquisti su OnBuy:
- Ottieni Cashback su ogni acquisto – spendilo subito sul tuo prossimo ordine
- Consegna gratuita – su milioni di articoli in tutto il sito
- I clienti ci amano – 132,000 recensioni con valutazione « Eccellente »
6,82 €
11,25 €
Sconto del 39%!
+6,73 € Consegna
1%
Che cos'è il Cashback istantaneo?
Scopri di più
I prezzi degli articoli in vendita su OnBuy includono l’IVA
Opzioni di pagamento a rate senza interessi disponibili
Vedi la descrizione completa e i dettagli del prodotto
Consegna: Standard (6,73 €) | ven 4 - gio 10 set
Venduto da: ITbuy
Resi: 30 giorni
Protezione dei pagamenti per 180 giorni
Potrebbe interessarti anche
Descrizione e dettagli
Riepilogo
- Advanced Microcontroller Board: The LGT8F328P MiniEVB is a high-performance development board in LQFP32 package, seamlessly compatible with ATMEGA328 Nano V3.0. Ideal for DIY electronics projects and educational purposes, ensuring compatibility with a wide range of for Arduino sketches and libraries.
- Flexible Connectivity: Equipped with TYPE-C ports, this board provides versatile power and connection options, making it easy to integrate with existing hardware and software environments.
- Enhanced Features: Includes the CH9340C and HT42B534 chips, enhancing its functionality for sophisticated projects requiring stable and efficient serial communication.
- LGT8F328P Development Board
- for Arduino
Descrizione di LGT8F328P MiniEVB V3.0 Development Board Compatible with for Featuring CH9340C HT42B534 TYPE-C
Advanced Microcontroller Board: The LGT8F328P MiniEVB is a high-performance development board in LQFP32 package, seamlessly compatible with ATMEGA328 V3.0. Ideal for DIY electronics projects and educational purposes, ensuring compatibility with a wide range of for sketches and libraries.
Flexible Connectivity: Equipped with TYPE-C , this board provides versatile power and connection options, making it easy to integrate with existing hardware and software environments.
Enhanced Features: Includes the CH9340C and HT42B534 chips, enhancing its functionality for sophisticated projects requiring stable and efficient serial communication.
MCU: LGT8F328P
FLAS: H32KBYTES
: 2KBYTES
E2PROM: configurable to 0K/1K/2K/4K/8K (shared with FLASH)
PWM: 8 channels
Main frequency: internal 16MHZ (maximum 32MHZ)
ADC: 6 channels 12 bits
DAC: 1 channel 8 bits
UART: 1 channel
ANALOGREAD range: 0-4095 accuracy
SPI: Yes
TWI (I2C): Yes
GUID (global device number): Yes
Internal reference: 1.024V/2.048V/4.096V +0.5%
PCB size: 50.8MMX25.4MM
Pin spacing: 2.54MM
Specifications: B:LGT8F328P TYPE-C
Color: As Shown
Material: PCB
Package Contents:
1 * LGT8F328P Development Board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Dettagli
| OPC | PNVJ6VW |
|---|---|
| Codici | 4711629809436 (EAN) |
| Informazioni sul prodotto e sulla sicurezza |
Dati prodotto
| Height | 1cm |
|---|---|
| Width | 3cm |
| Length | 5cm |
| Weight | 0.006kg |
| Colour | As Shown |
| Size | B |
| Material | PCB |
