LNB multiswitch for satellite systems with 3 input ports

Descrizione di LNB multiswitch for satellite systems with 3 input ports

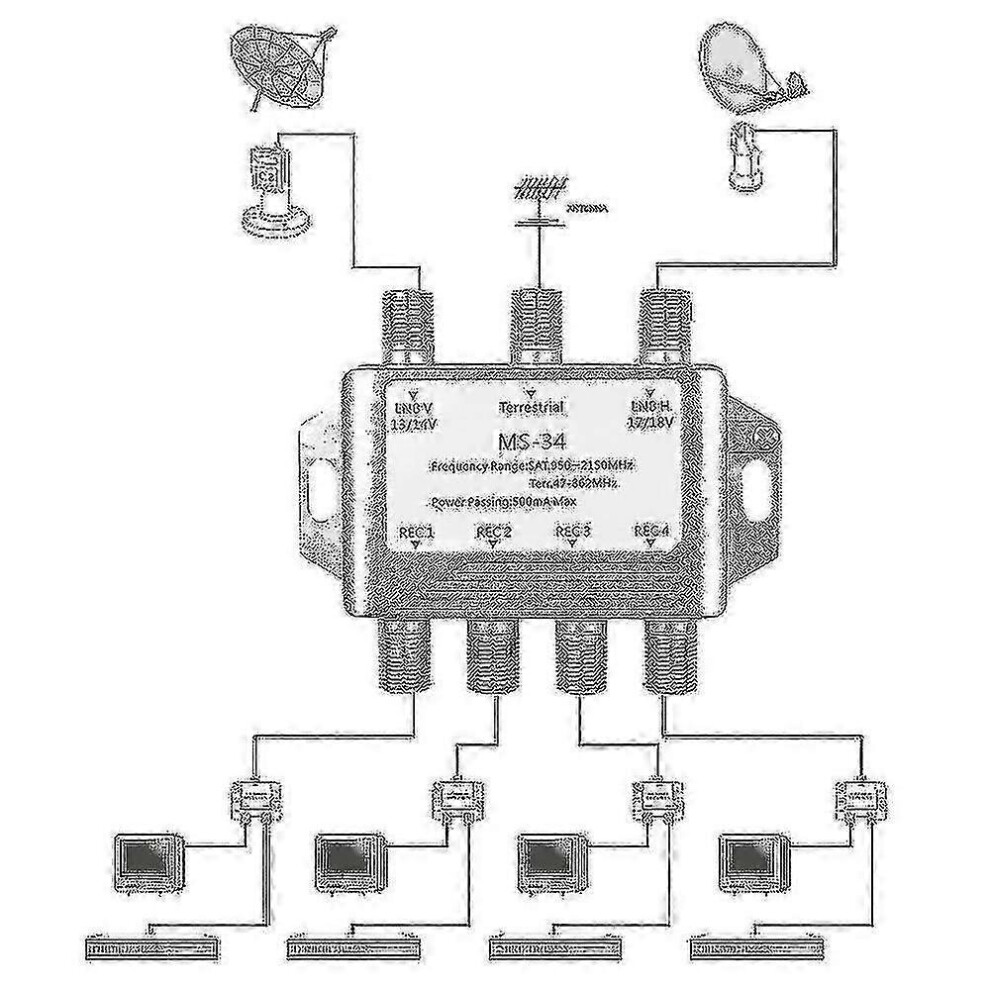

Ms34ez 3x4 Satellite Multiswitch Splitter Fta Tv Lnb Forswitch Cascade Satellite 3 In 4 Multiswitch MS34EZ 3x4 Satellite MultiSwitch Splitter FTA TV LNB forSwitch Cascade satellite 3 in 4 Multiswitch For DVB-S2 DVB-T2 Features: 1. Low power consumption; 2. External Power Units or power by receiver; 3. Zinc die-cast housing, nickel-plated; 4. Built-in amplification circuit compensate cable loss; 5. Alternative SAT IF selection: 13/18V; 6. Chips research and development independently on our own; 7. For the products, we have our own patent 8. IC in forswitch distribute and control power supply to LNB , reducing energy consumption. Specification: 1,Frequency Range:950-2150MHz (Sat) / 5-862MHz (Terr) 2,Insertion Loss:5Db(SAT) / 5dB (ANT) 3,Isolation Between Outputs:25(dB) 4,Switching Isolation Input: 28(dB) 5,Return Loss Inputs: 12(dB) 6,Return Loss Outputs: 10(dB) 7,Output Level: 88dBuV (ANT) / 100dBuV (SAT) 8,Normal Working Voltage: 12-20(V) 9,D-C Power Consumption: 30(mA) 10,D-C Max Power Passing: 500(mA) 11,Impedance (all ports): 75() 12,Switching Voltage/Signal: 13/18V, 0/22KHz 13,Connectors F type: female 14,Working Temperature: -20c-60c Package included: 1 x Satellite SSwitch
