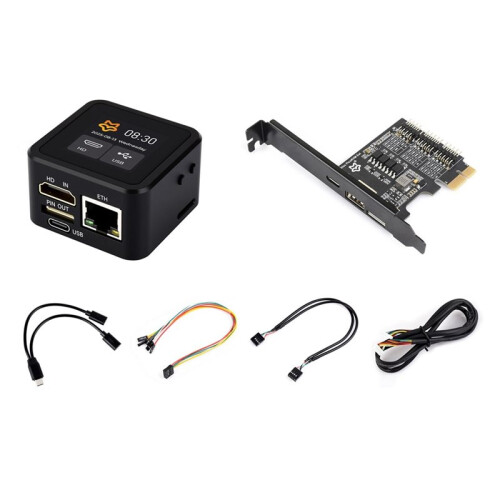

Luckfox PicoKVM Kit IP KVM Remote Management Tool for HD Video Input and HID Signal Output

Descrizione di Luckfox PicoKVM Kit IP KVM Remote Management Tool for HD Video Input and HID Signal Output

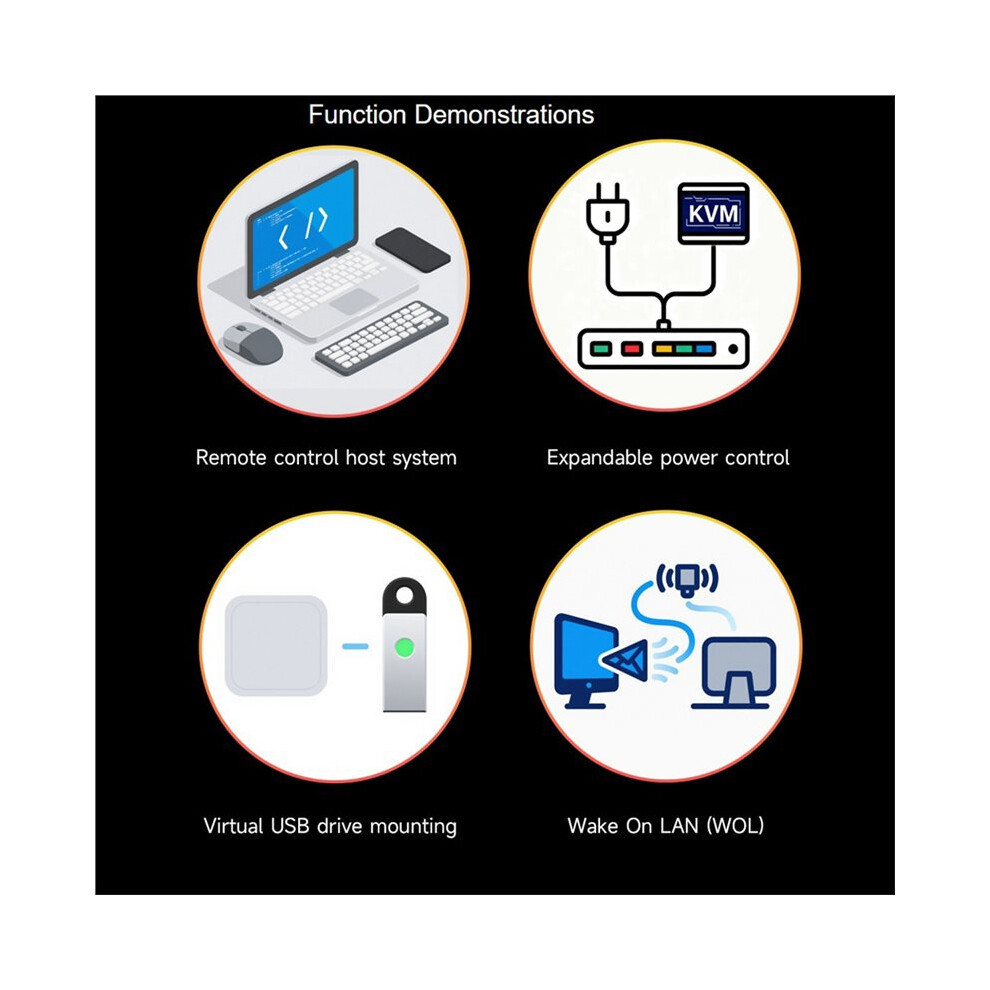

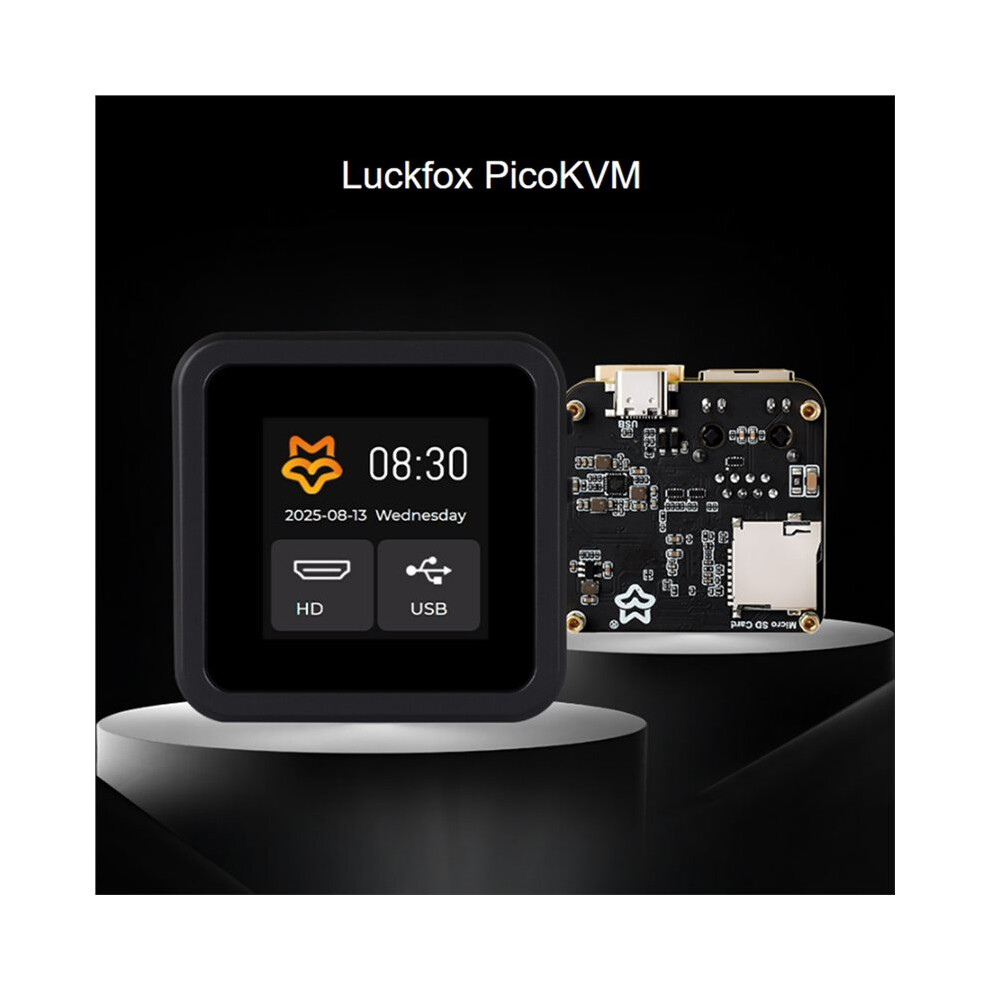

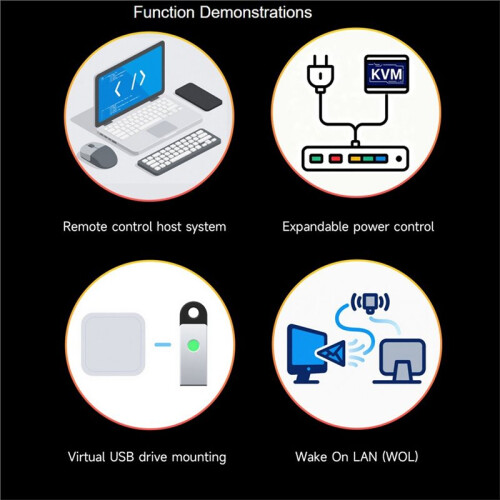

Luckfox PicoKVM is a IP KVM operation and maintenance tool that supports remote access to target device screens and simulates HID inputs over the network, enabling contactless operation and maintenance of systems such as development boards, computers, and servers.
This product features stable, low-latency video capture and remote control capabilities, making it widely applicable for remote computer control and server maintenance scenarios.

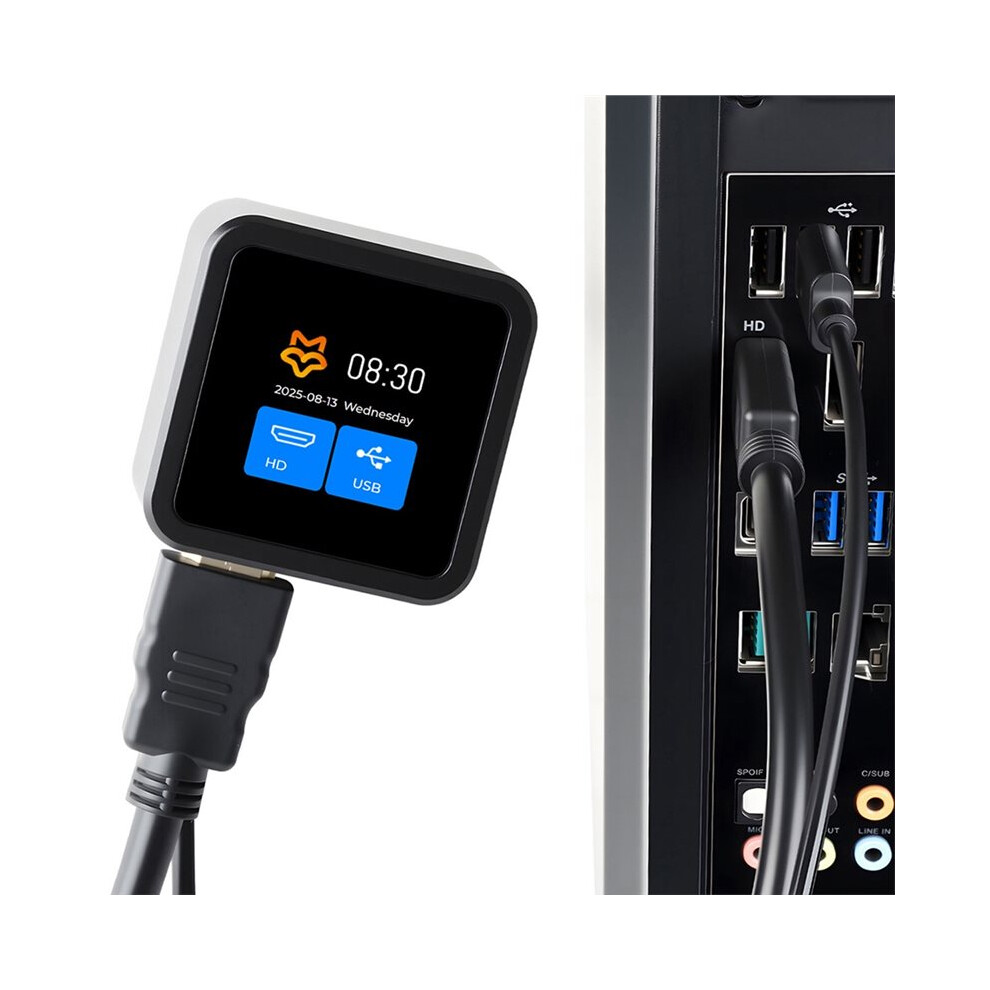

Onboard -compatible input port: Allows computers to recognize it as a monitor for screen capture. Onboard USB port: Supports simulation of mouse, keyboard, and USB storage devices
1.54inch touch display: for displaying IP address, connection status, and system operating status.

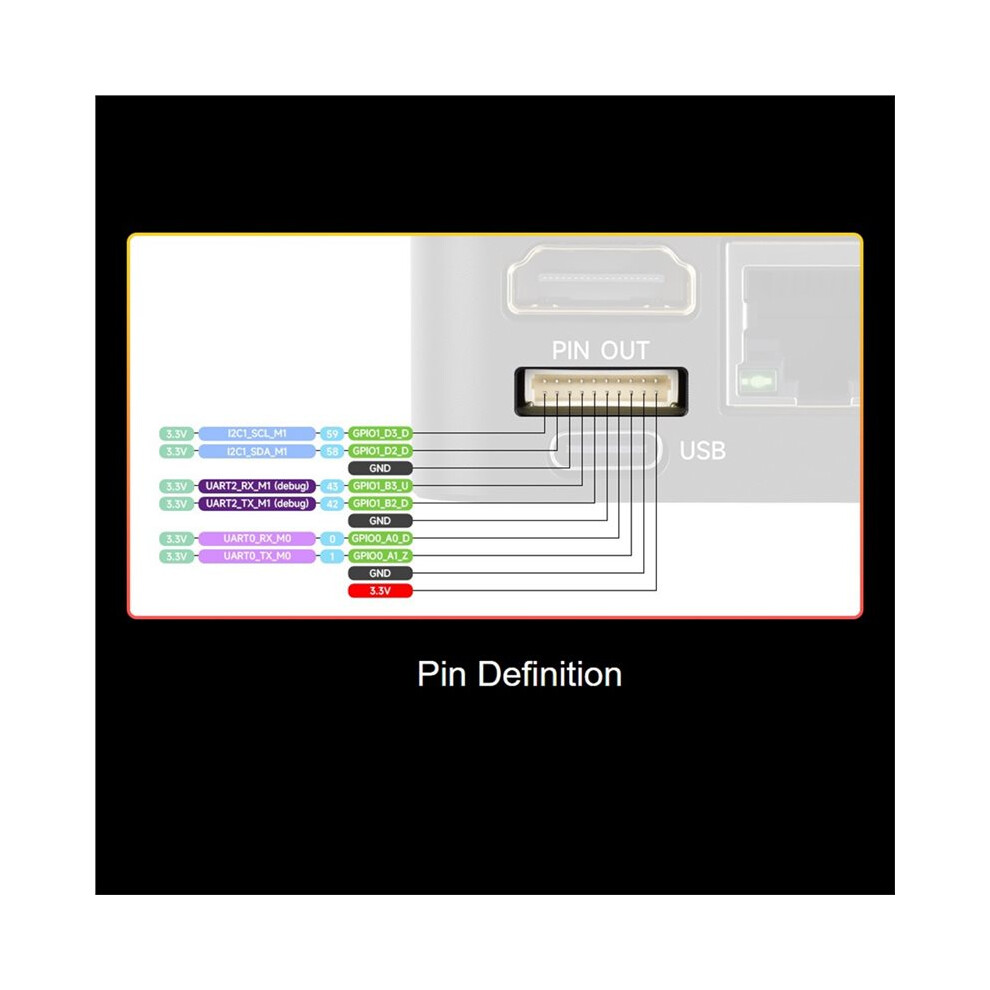

Onboard 100Mbps Ethernet port: For video and control signal transmission. IO expansion port: Can be used to control the host computer's power and off. TF card slot: Supports storage expansion.

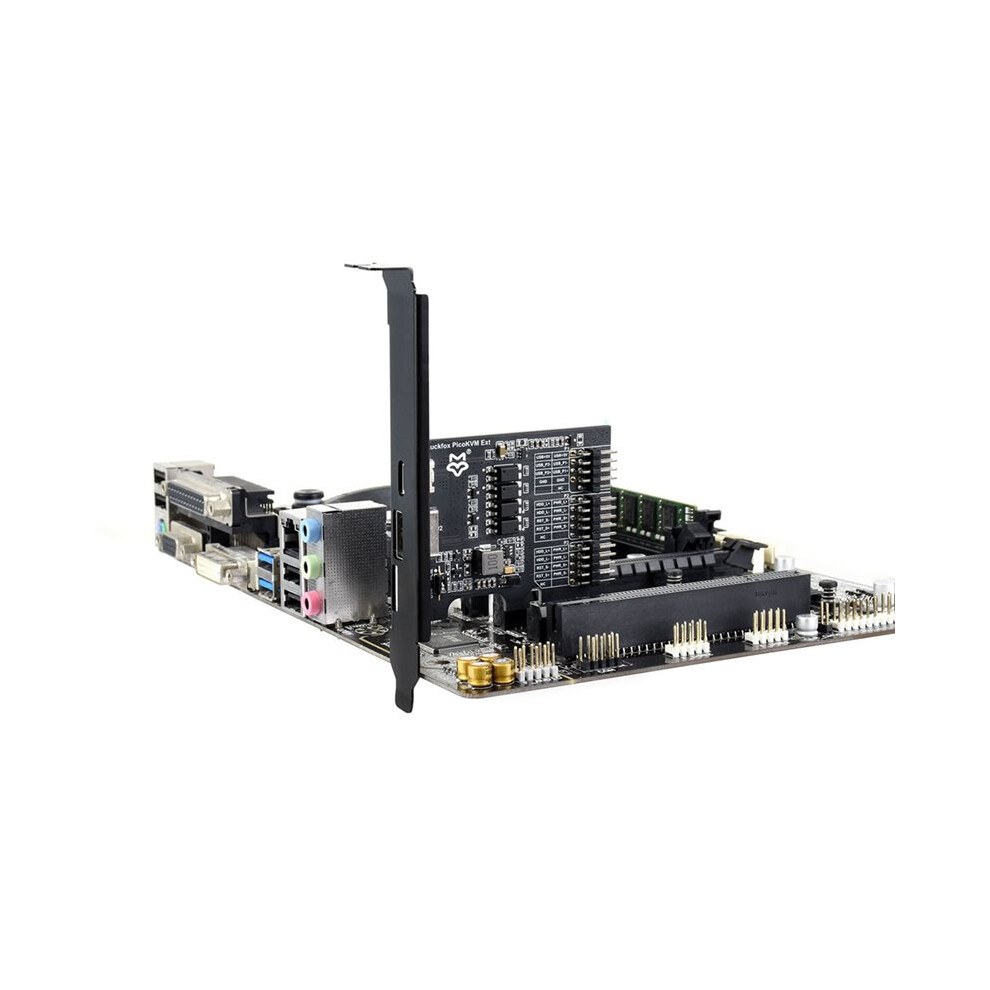

Luckfox PicoKVM Ext:

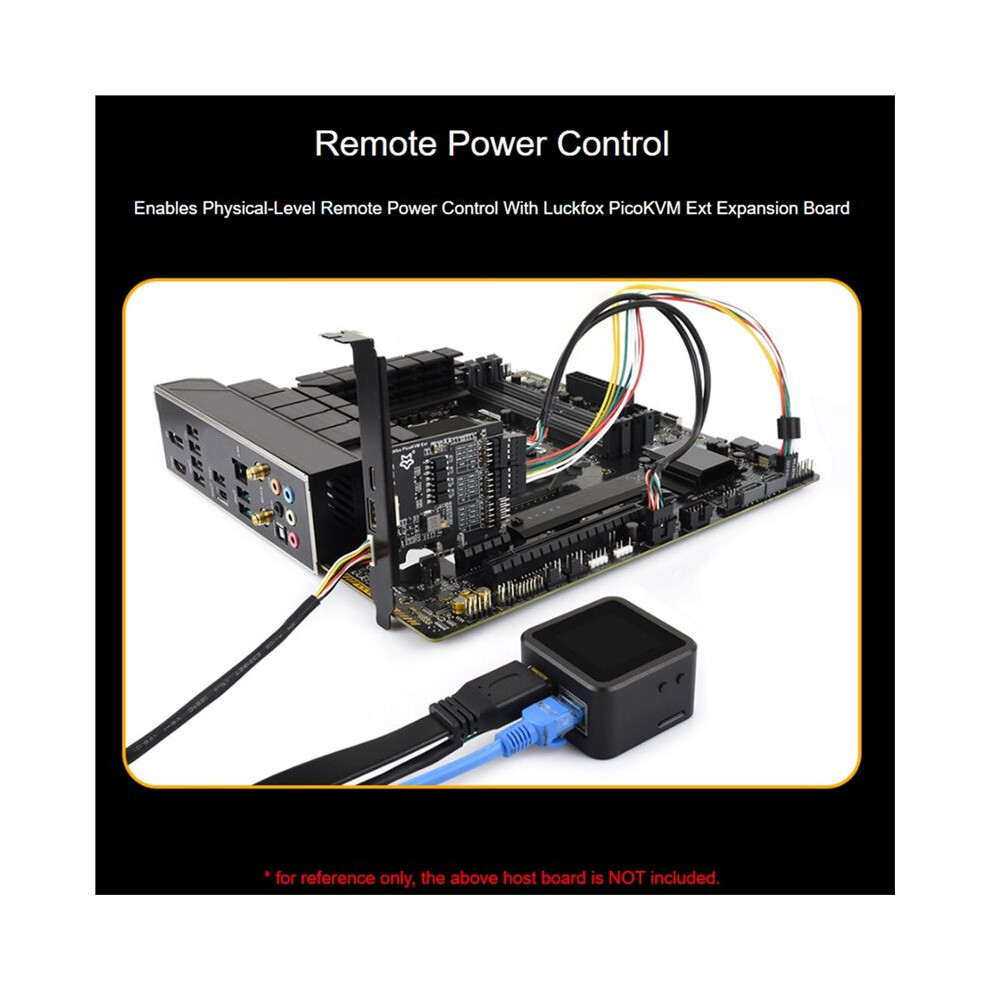

Luckfox PicoKVM Ext Works With Luckfox PicoKVM For Remote Power Management.
PCIe Interface Compatible: Supports motherboards with PCIe x1 / x4 / x8 / x16 slot. * Note: the PCIe interface is for 12V power supply only.
Onboard 2 x Front panel header: Allows simultaneous connection to the motherboard front panel header and the chassis front panel, enabling shared power control.
Supports PCIe or USB power supply: Two Power Supply Modes selectable via onboard .
Adapting motherboard USB : Adapting USB-A & USB-C via motherboard USB header, for connecting Luckfox PicoKVM or other USB devices.

Specification:

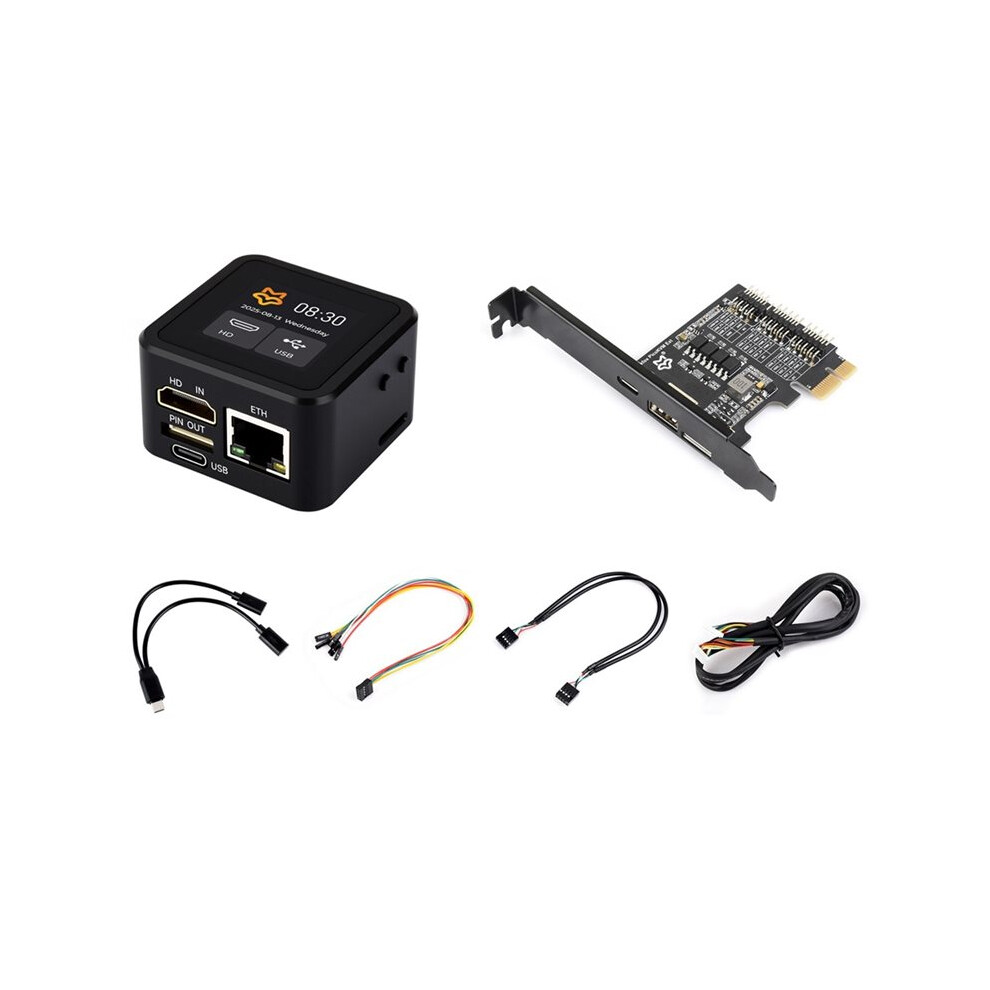

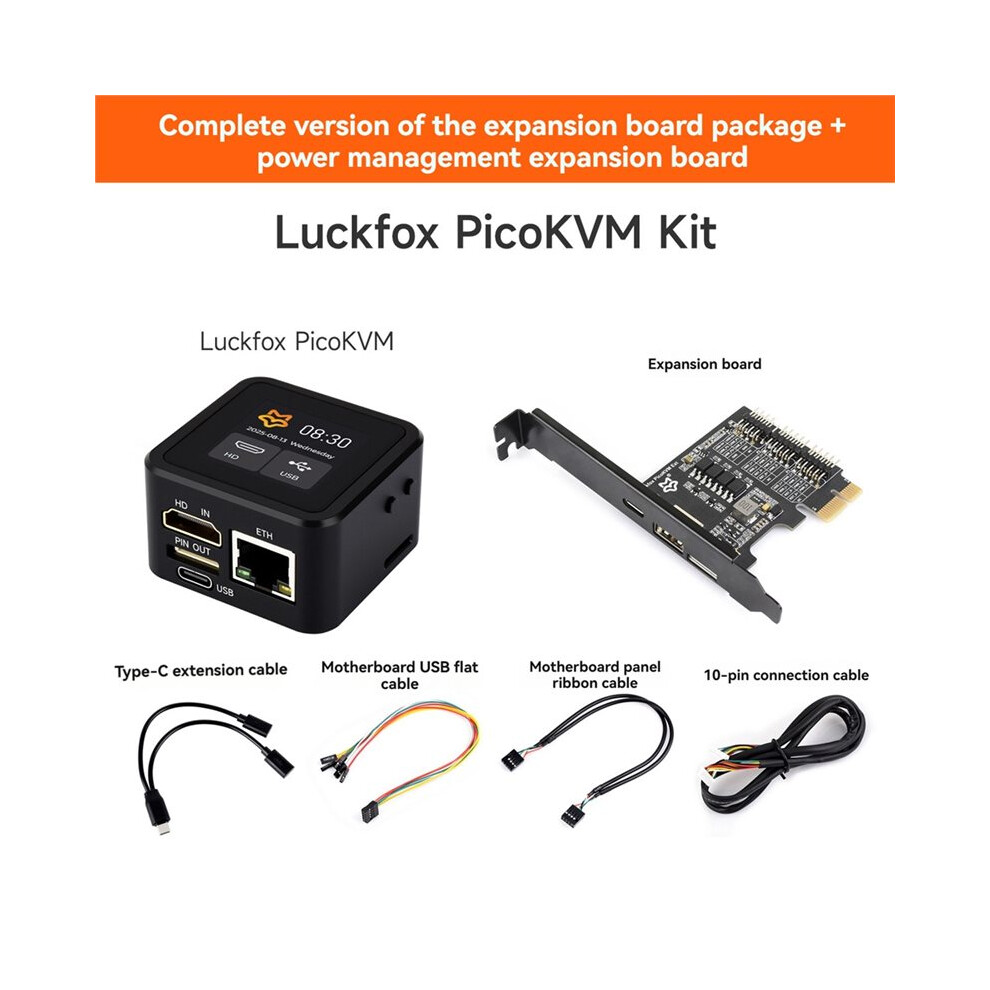

Product: Luckfox PicoKVM Kit
Controller: RV1106G3
Core: 1 x A7 1.2GB
Memory: 256MB DDR3
HDD: 8GB eMMC
OS: PicoKVM
Resolution: 1080P 60fps
Video Codec: H264
Video Latency: 80ms-200ms
Audio Transmission: Y
