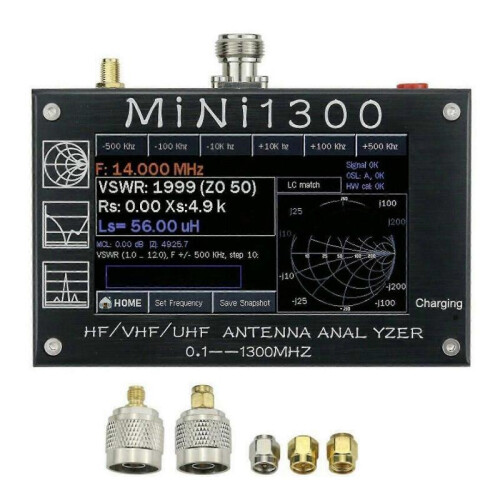

Mini 1300 0.1-1300mhz Vhf/uhf Ant Swr Antenna Analyzer Meter Frequency Sweep It

Descrizione di Mini 1300 0.1-1300mhz Vhf/uhf Ant Swr Antenna Analyzer Meter Frequency Sweep It

Mini1300 HF/VHF/UHF Antenna Analyzer 0.1-1300MHz 4.3" TFT LCD Touch Screen topsSpecifications:- Frequency Range: 0.1-1300MHz- HF/VHF/UHF continuous coverage- In/Out Impedance: 50 ohms- Measurement Parameters: SWR, R, +Jx, -Jx, |Z|, Returnloss- Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode- SWR Measurement Range: 1.0-1999Single Point Mode), 1.0-20.0 (Scan Mode)- Display Modes: Numerical display, curve display, simith chart- Connector Type: UHF N-type connector- VNA: SMA- SMA OPEN-SHORT-LOAD Calibration Kit x 1- LCD size: 480x272 4.3" TFT LCD display- Touch Screen Type: Capacitive- All capacitive touchscreen on the display no buttons are needed- Power Source: USB or Internal Power Supply- Built-in charging circuitry and DC-DC booster- Maximum charging current: 5V/1.5A- External Storage Method: TF card- Dimensions: 133 x 85 x 29 mm (Not including the size of prominent ports)- Weight: 550gPackage Included:- 1 x Set of Antenna AnalyzerNote:- If the product has parameter changes, the actual test will prevail.- USB cable is not included
