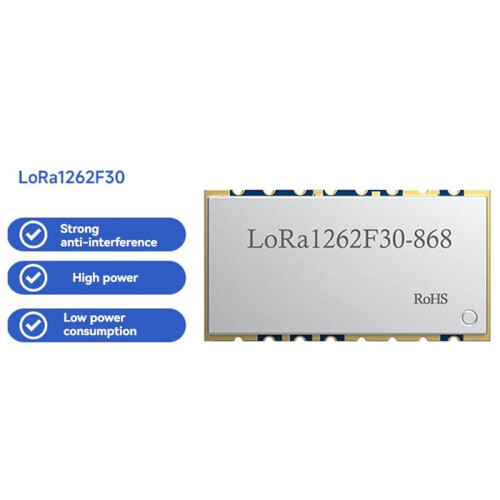

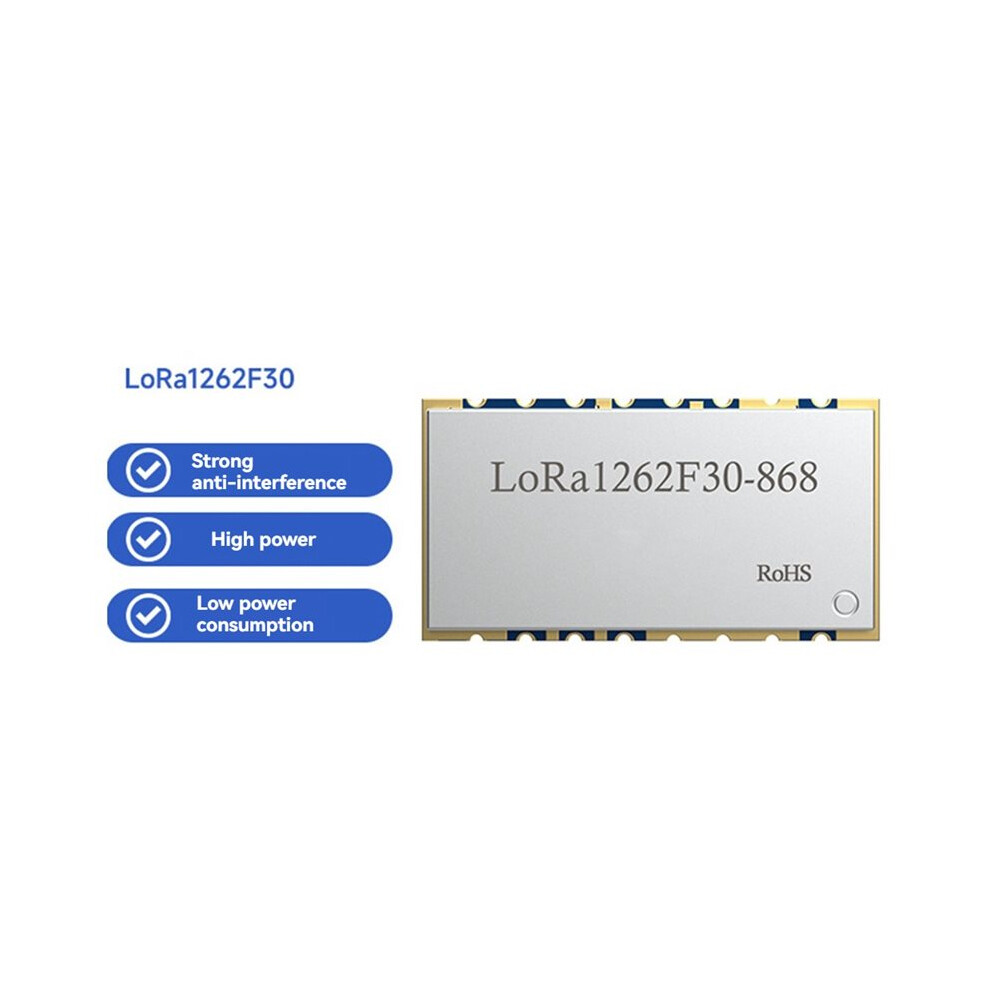

SX1262 LoRa Wireless RF Module 868MHz Ultra-Low Power LoRa1262 Module for IoT Applications RF Transceiver

Descrizione di SX1262 LoRa Wireless RF Module 868MHz Ultra-Low Power LoRa1262 Module for IoT Applications RF Transceiver

Sensitivity to -148dBm @Lora
Receiver power consumption Less than 7 mA
Maximum output power: 33 dBm (2W) @ 6V
256-byte FIFO

Product Overview:
The LoRa1262F30 is an ultra-low power, high-power wireless transceiver module that integrates the Semtech SX1262 chip. This solution uses LoRa spread spectrum modulation frequency hopping technology, and its communication distance and receiving sensitivity far exceed those of other FSK and GFSK solutions. Moreover, its multiple transmission signals can occupy the same channel without being affected, giving it excellent anti-interference capabilities, making it widely used in industries such as remote industrial control.
Modulation modes:Lora TM, (G)FSK
Data transfer rate:
@FSK, 0.6-300 Kbps
@Lora TM, 0.018-62.5 Kbps
Product Applications:
Industrial Meter Reading
Parking Lot Sensor Management
Industrial Automation
Agricultural Sensors
Cities
Warehouse Management
Street Lights
Logistics Management
Environmental Sensors
Health Products
Security Products
Remote Control
Specification:868Mhz
Color:As Shown
Material:PCB

Package Contents:
1 * Wireless RF Module
