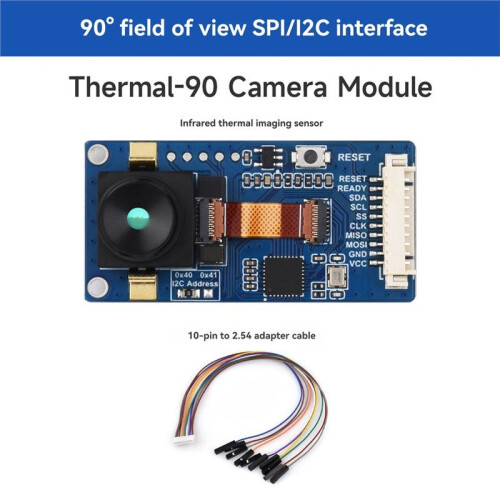

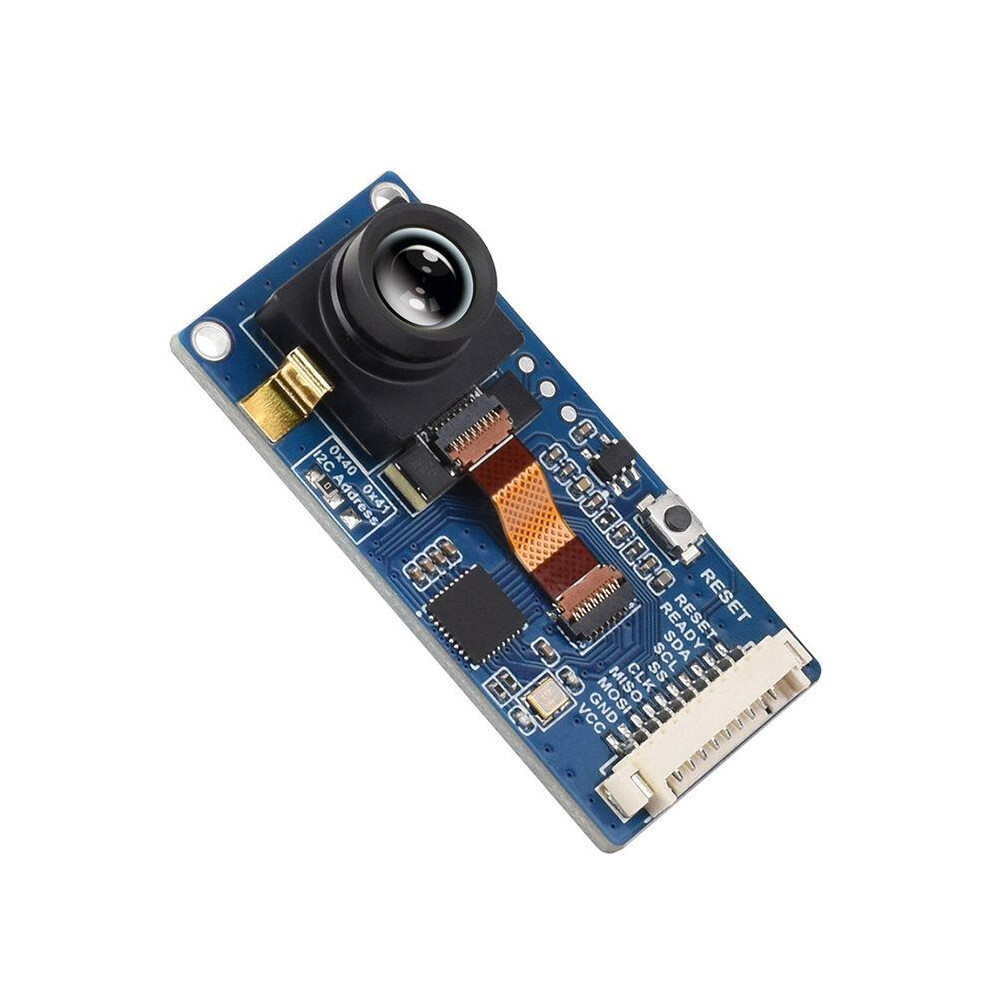

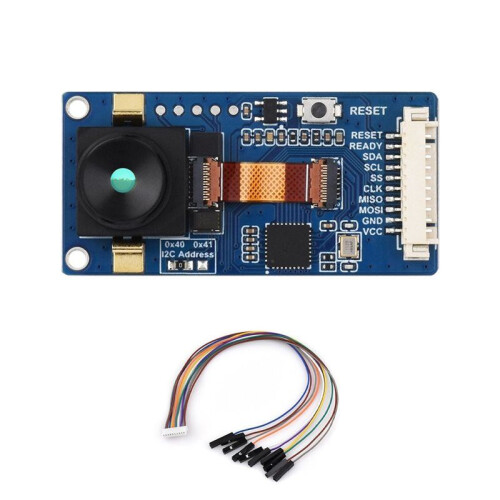

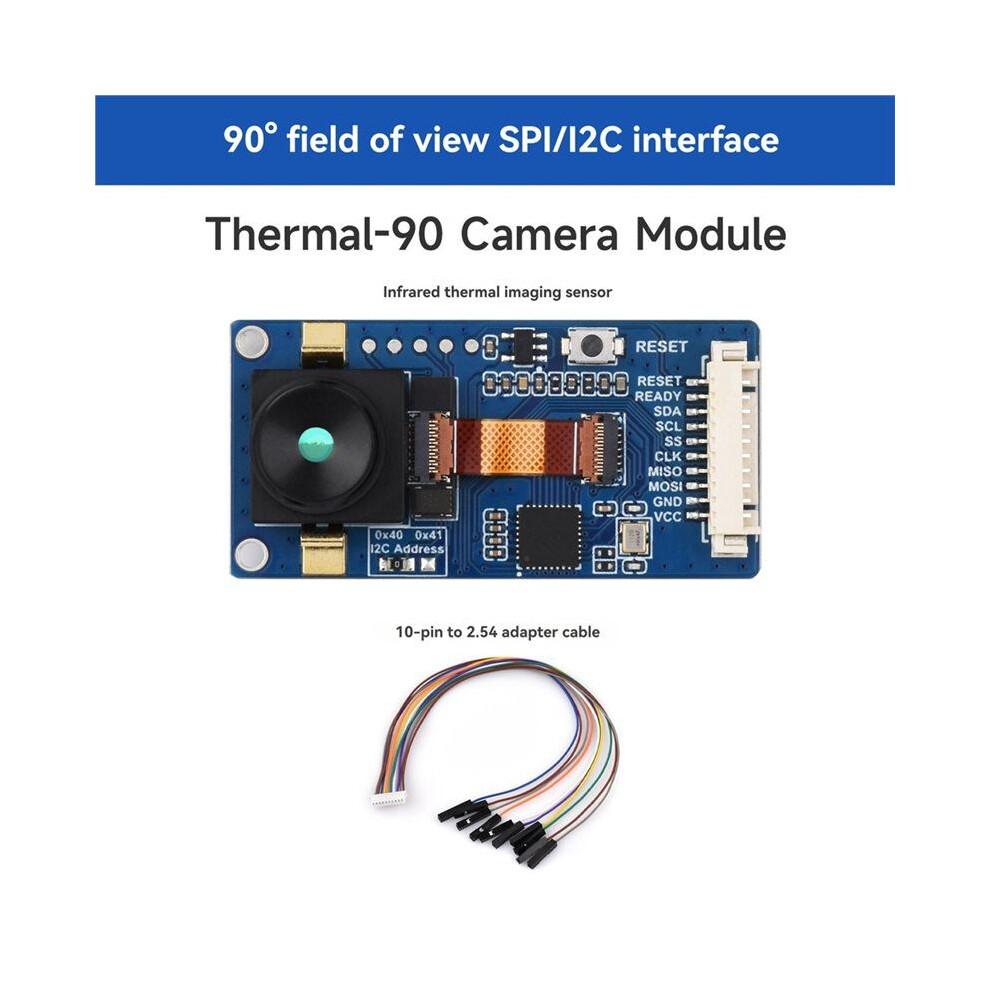

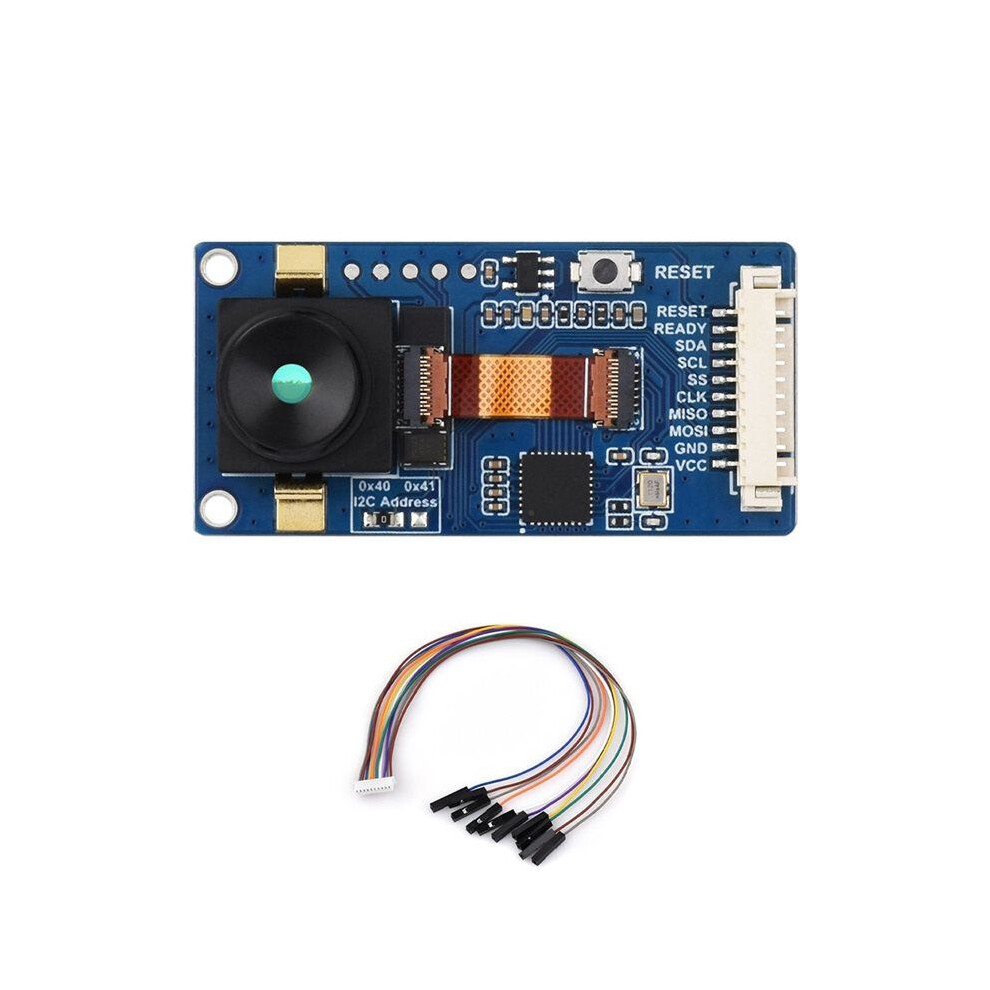

Waveshare Far-Infrared Thermal Imaging Sensor for Raspberry Pi with SPI/I2C Interface 25 FPS Onboard MX1.25 10PIN 90 View

Descrizione di Waveshare Far-Infrared Thermal Imaging Sensor for Raspberry Pi with SPI/I2C Interface 25 FPS Onboard MX1.25 10PIN 90 View

This product is a far-infrared thermal imaging sensor that utilizes a hybrid technology of microbolometers and thermopile pixels, featuring an 80x62 pixel array.
It transcends the limitations of traditional temperature measurement equipment, which rely "single-point detection" and "light reliance." By capturing infrared radiation signals from objects, it empowers equipment in industrial, consumer electronics, security, and fields with the core capability of "seeing temperature distribution," providing the hardware support for intelligent temperature monitoring and risk warning.

Supply voltage:3.3V/5V
Working current:20mA@5V
Wavelength range:8μm - 14μm
working temperature:-20- 85
target temperature:-20- 400
refresh rate:25 FPS (Max)
Noise equivalent temperature difference:150mK
Measurement accuracy:1.5(room temperature 10-70)
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Specifications:90 View
Color:As Shown
Material:PCB

Package Contents:
1 * Thermal Imaging Sensor Kit
