ZEROAXIS 3.7-13V Two-Way Bidirectional Brushed ESC Differential Electronic Speed Controller for RC Tank Crawler Cars

Descrizione di ZEROAXIS 3.7-13V Two-Way Bidirectional Brushed ESC Differential Electronic Speed Controller for RC Tank Crawler Cars

1.UBEC: 5V 1A
2.Input:3.7V-13V
3.Signal:1ms-2ms
4.Motor current: 13A max

Mode Introduction:A.Tank Mode:Channel S1 controls the common speed of the left and right motors, while channel S2 controls their differential speed.
B.Independent Mode:This is equivalent to two independent bidirectional ESCs, where channel S1 governs the left motor and channel S2 governs the right motor
C.Airplane Mode:Channel S1 controls the common speed of the left and right motors, while channel S2 controls their differential speed.However, the motor cannot run in reverse.
Battery Selection Guide:
A. 1S Application:
UBEC has no output
B. 2S Application:
Recommended application.Optimal performance and compatibility.
C. 3S Application (Requires Precautions Against Overvoltage):
To safely use 3S batteries, implement the following measures:

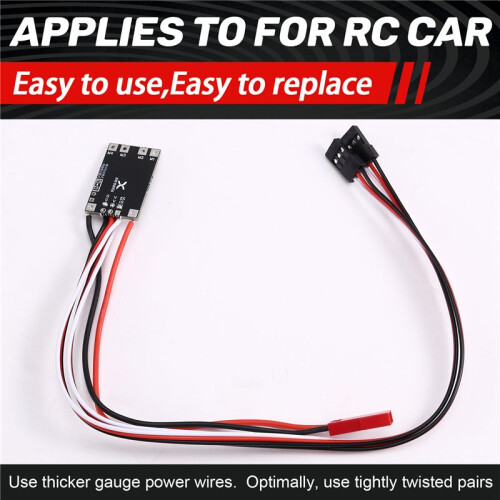

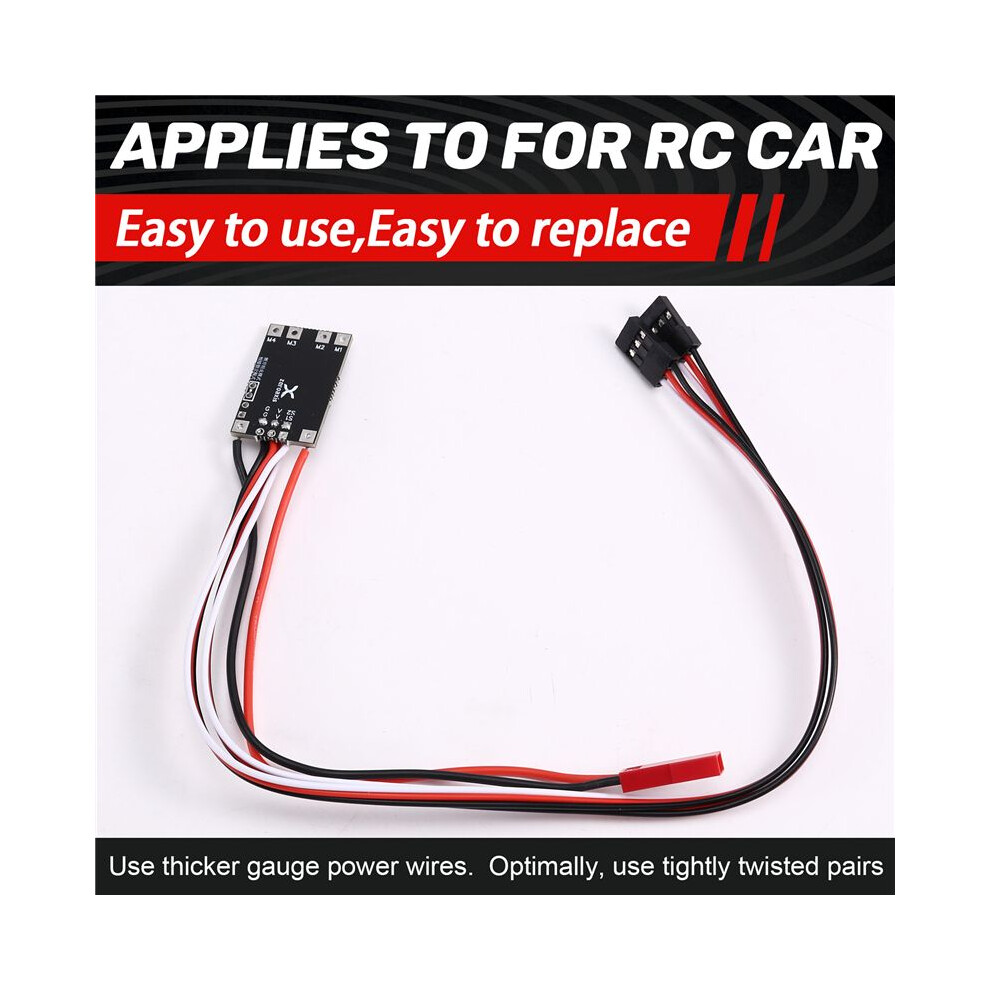

1.Use thicker gauge power wires. Optimally, use tightly twisted pairs. Keep wire length under 20cm whenever possible.
2.Use high C-rate RC model batteries.Avoid using low-performance children's toy car batteries.
Warning:When using the UBEC to power the receiver, an external power source must not be connected to the receiver simultaneously.Failure to observe this may cause damage.
Color: As Shown
Material: PC

Package Contents:
1 x Two-way Bidirectional Brushed Electronic Regulator
