0.5-6G One-Point Quad Power Divider Broadband Power Divider

0.5-6G One-Point Quad Power Divider Broadband Power Divider Beschrijving

0.5-6G One-Point Quad Power Divider Broadband Power Divider Description
DYKB 0.5-6G one-point quad power divider Broadband power divider 2.4G 5.8G Power Splitter SMA Combiner
A power divider is a device that divides the energy of an input signal into two or multiple outputs with equal or unequal energy. It can also conversely combine the energy of multiple signals into one output, and can also be used as a combiner.
This module realizes one point and four equal power divisions. It is used in the frequency range of 500-6000M, with low insertion loss and high isolation, and is widely used in typical transceiver systems of L, S, and C bands; typical frequency points: 1575MHz, 2.4GHz, 3.5GHz, 5.8GHz, etc. The module adopts CNC structure cavity, which has excellent electromagnetic shielding performance;

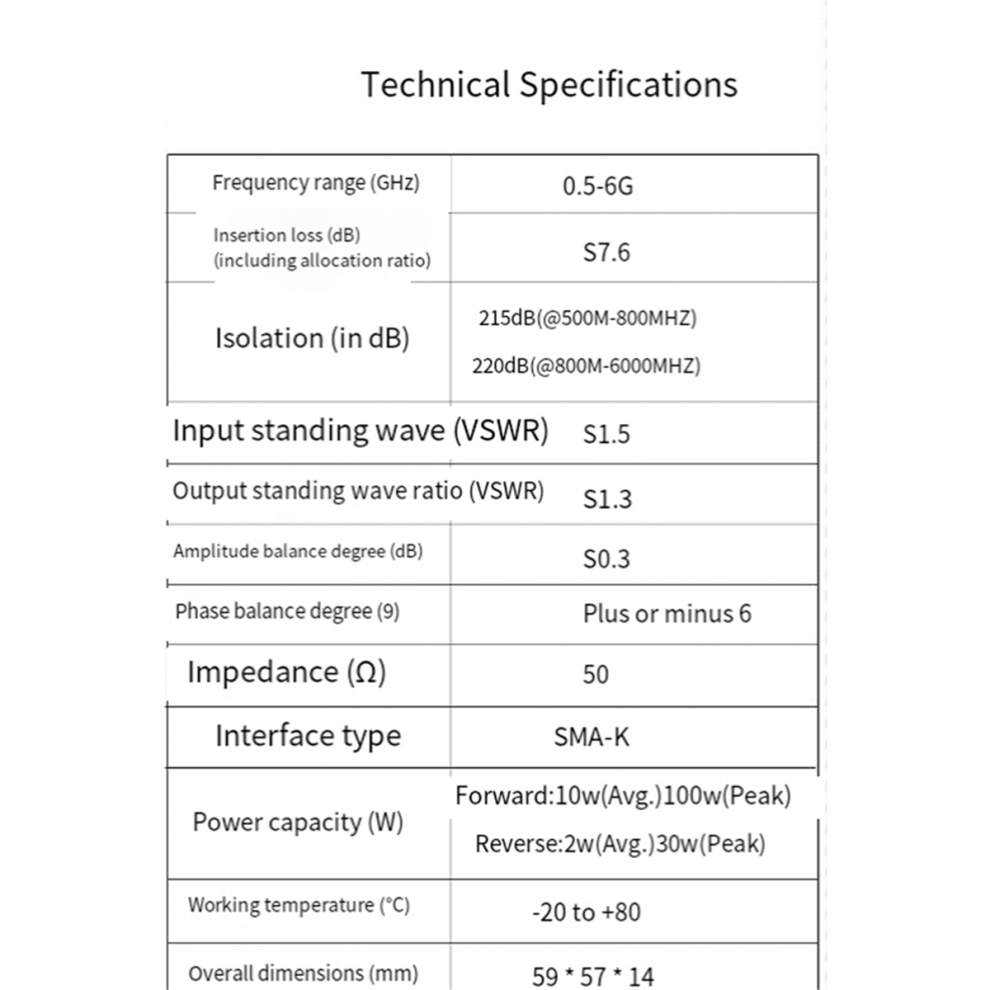

Performance: one point and four equal powers;
Model: QM-PD056020S
Working frequency: 500-6000 MHz;
Insertion loss: 1.4dB;
Branch port isolation: 20dB (16dB@500-800MHz);
Power capacity: 20W CW;
Port standing wave: 1.4;
Working temperature: -20 to +80;
Input and output impedance: 50Ω;
Interface: SMA;

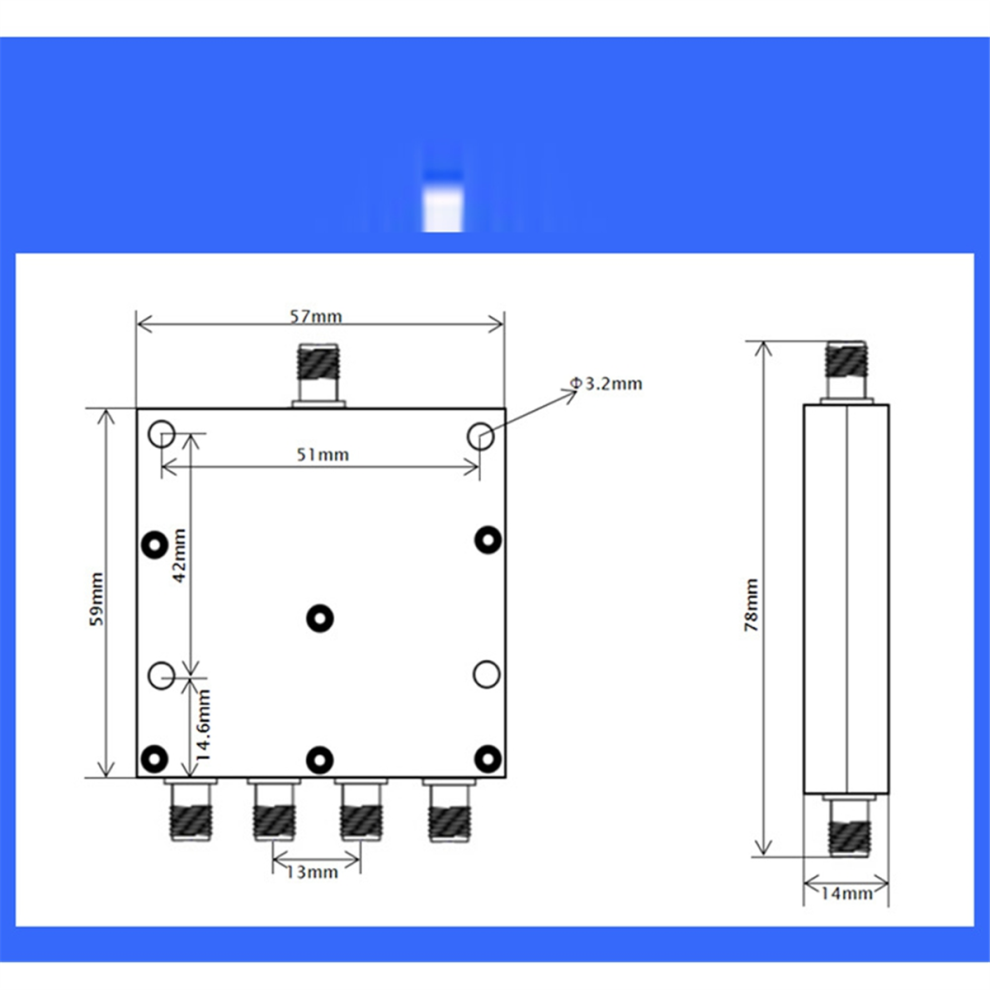

Module size: 67 x 58 x 12mm (with mounting holes);
Size: SMA Combiner
Type: Broadband Power Divider
Model Number: One point four power divider
: Electrical
Style: 2.4G 5.8G Power Divider
Output Voltage: 0.5-6G
2.4G 5.8G Power Divider: Broadband Power Divider
SMA Combiner: One point four power divider
Color: As Shown
Material: Metal
Package Contents:
1 x 0.5-6G one-point quad power divider
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
