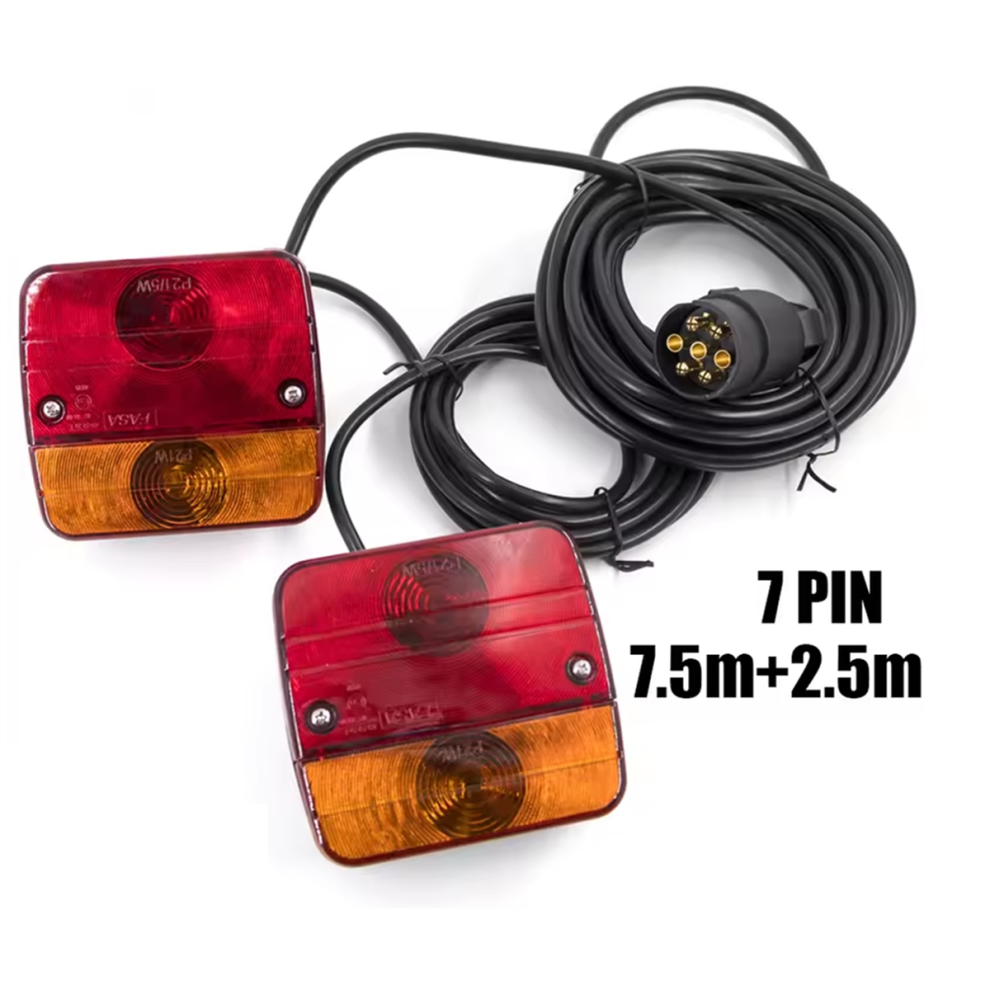

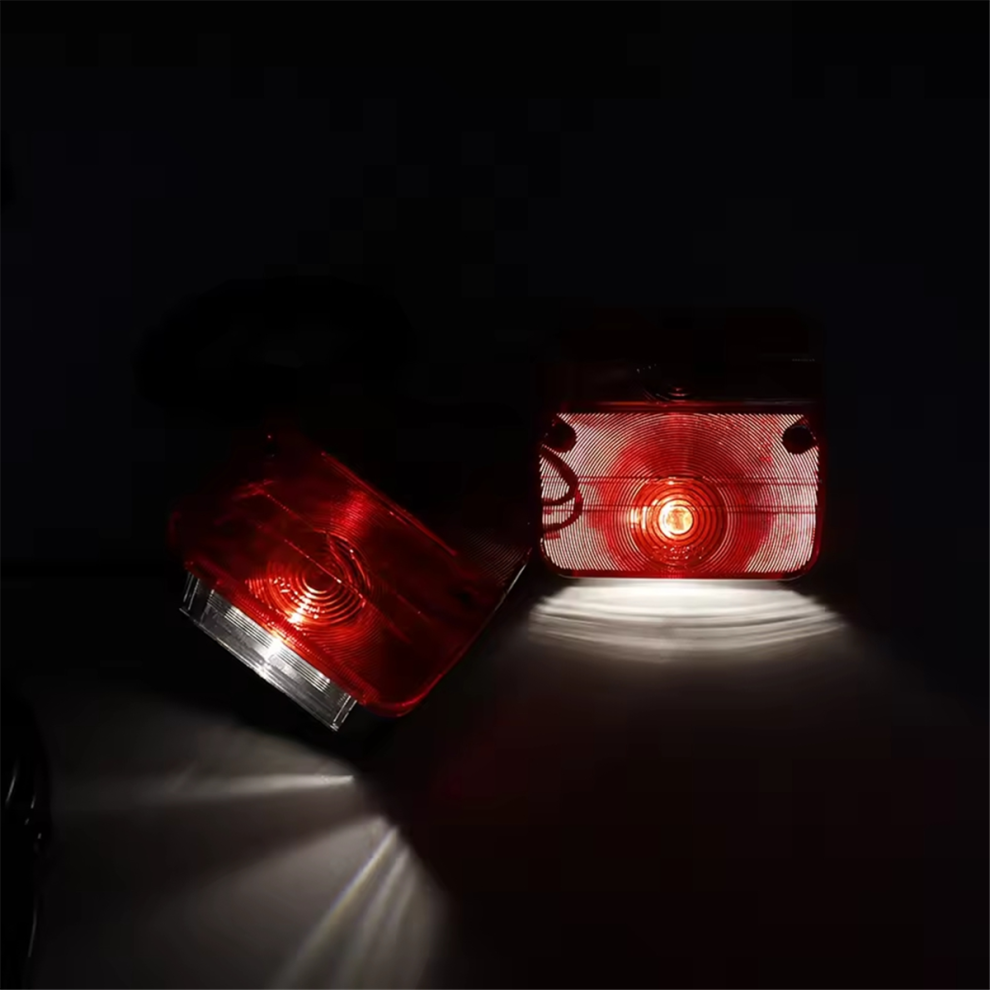

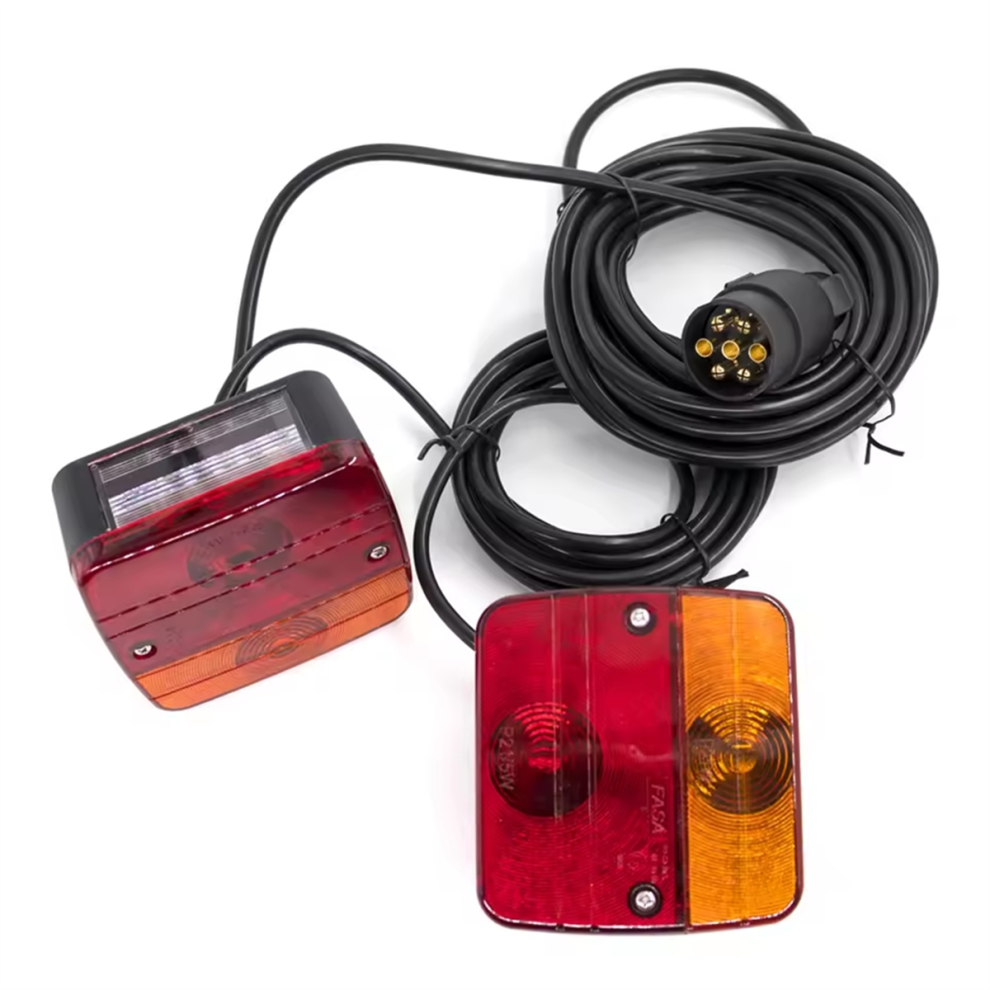

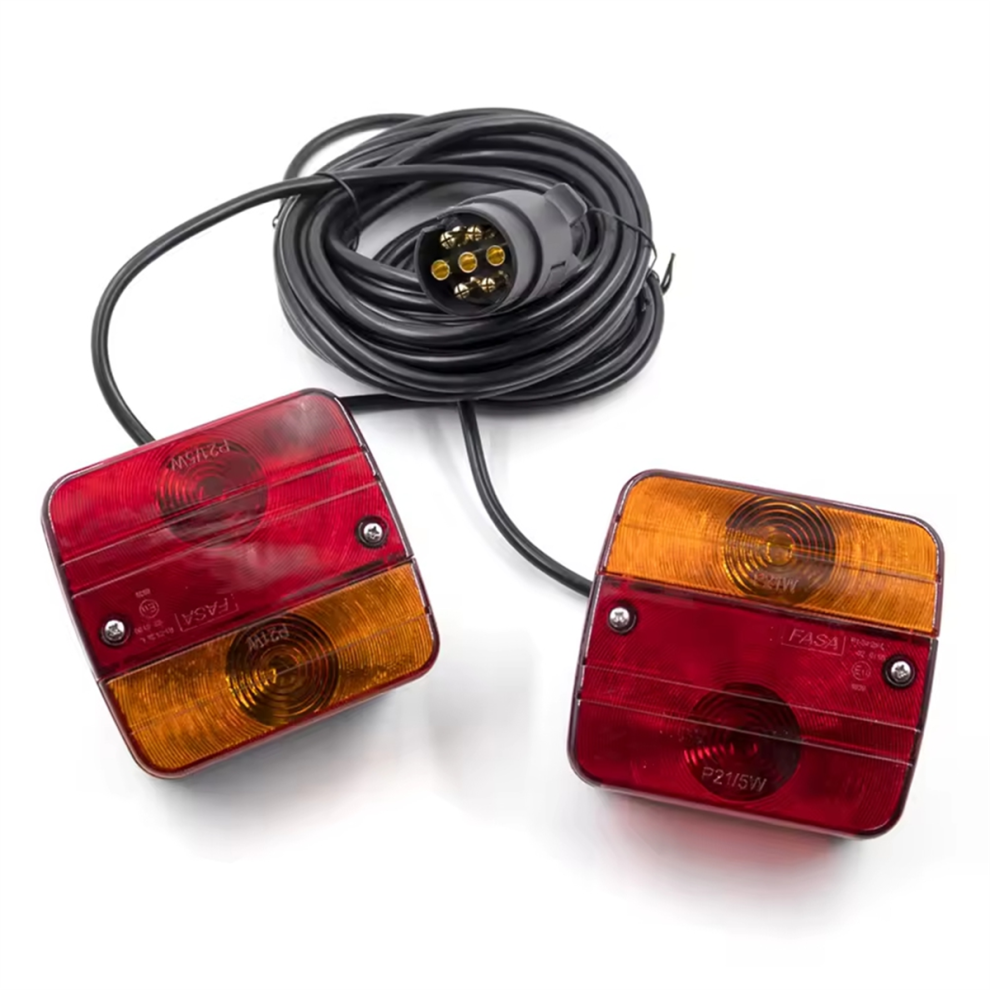

1 Set 12V Universal Rear Combination Towing Tail Light

1 Set 12V Universal Rear Combination Towing Tail Light Beschrijving

1 Set 12V Universal Rear Combination Towing Tail Light Description
Model:104
Voltage: 12V
LED Service Life: 50000h
Color temperature : 3000-4000k
Waterproof Rate: IP65
Size: 10.5cm x 9.7cm x 5cm (L x W x H)
Hole pitch: 5.5cm
Suitable for : Universal Truck trailer Van Bus
Light Color: Red+Yellow
Line Length: 2.5M+7.5M
Wiring:
Schematic diagram of the functional layout of EN 7-Pin socket
Pin 1 = Yellow wire = Left turn signal
Pin 2 = Blue Cable = Anti-fog
Pin 3 = White cable = Ground or ground connection
Pin 4 = Green cable = Right turn signal
Pin 5 = Brown Cable = Right position light
Pin 6 = Red cable = Brake
Pin 7 = Black wire = Position light left(If your hose is 6 wires, you can make a bridge with Pin 5)
1. Low energy consumption.
2. Long lasting, impact .
3. Easy installation, bright, .
4. Fully waterproof, shockproof.
5. Universal fit any Vehicles with DC 12V.
Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is that you need.
2.Please perform professional installation under safe conditions.
Color: As Shown
Material: Metal+Plastic
Package Contents:
1 * Trailer light kit
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
