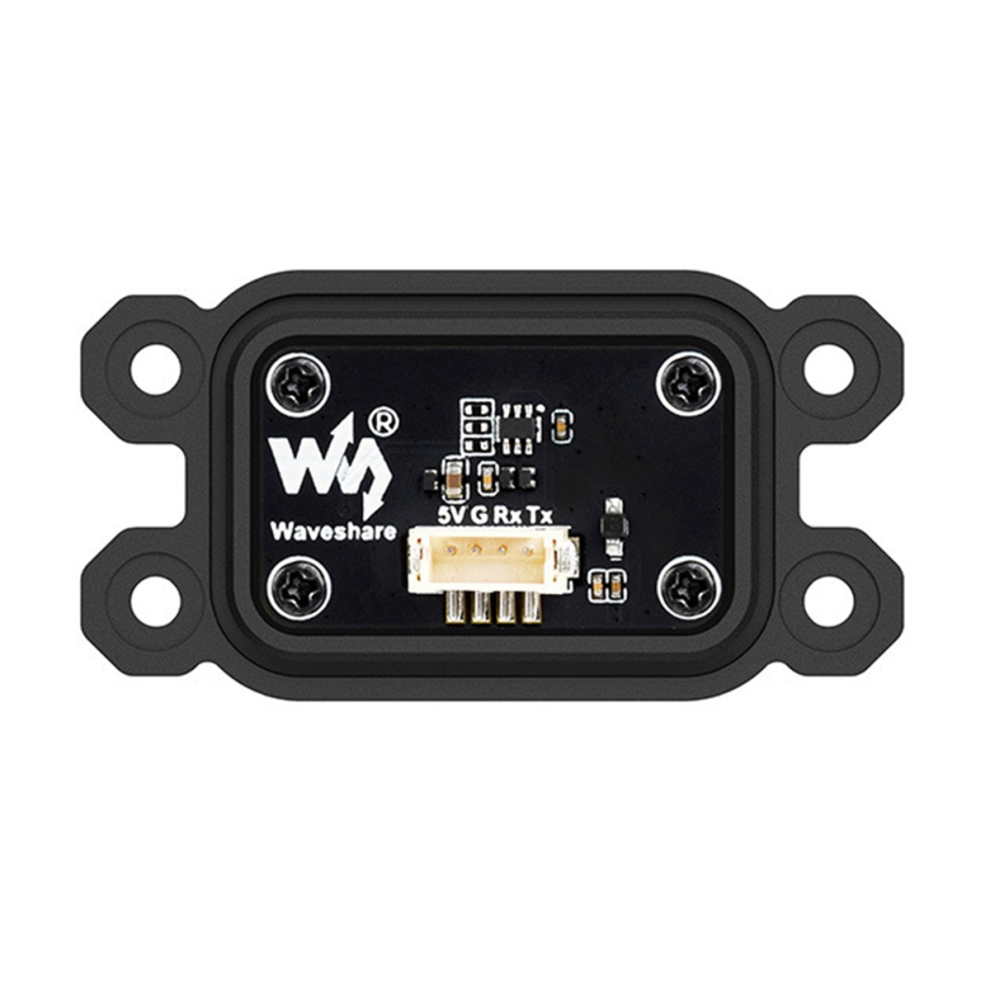

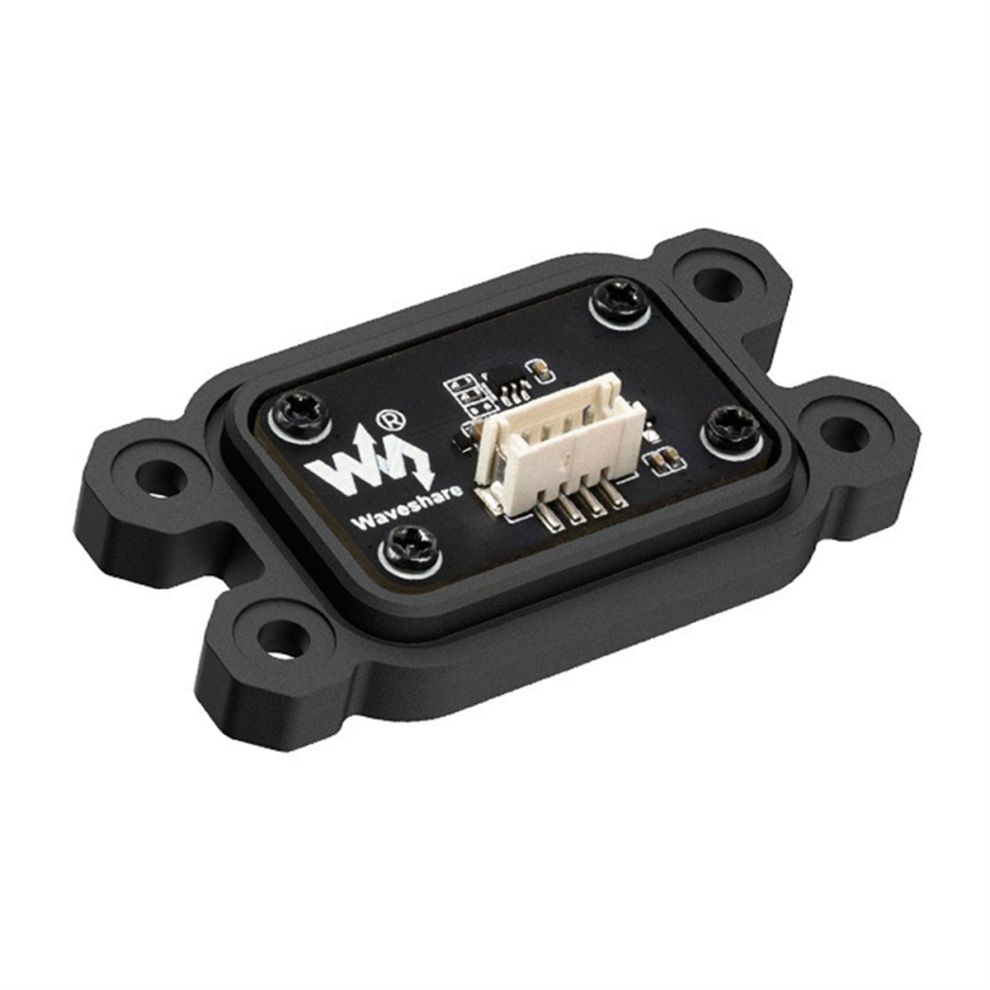

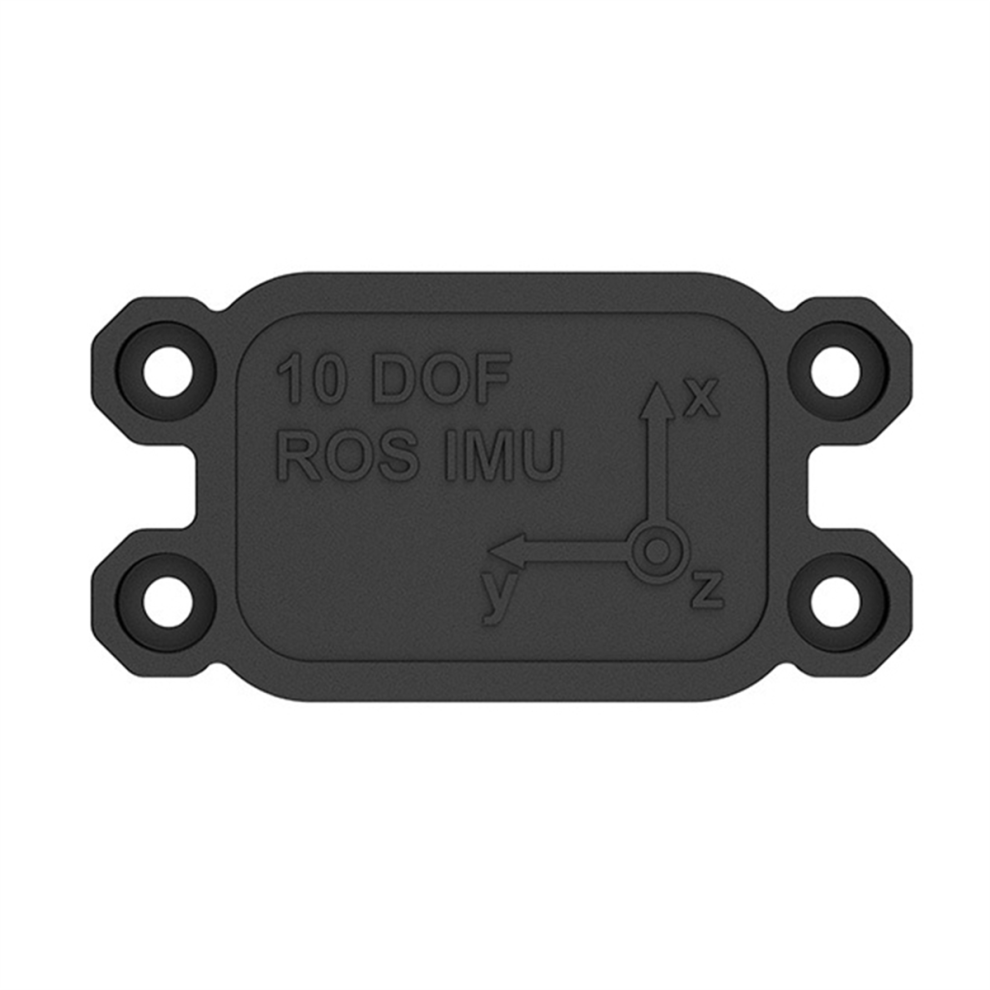

10- IMU Sensor ARM 32-Bit

10- IMU Sensor ARM 32-Bit Beschrijving

10- IMU Sensor ARM 32-Bit Description
This product is a 10- IMU sensor, integrating ARM32-bit processor, BLE5.3 Bluetooth, high- accelerometer, gyroscope, magnetometer, temperature barometer
Adopts self-developed attitude solution algorithm, strong real-time, high-, stable and drift-free
Uses serial port and BLE5.3 Bluetooth communication to assist robot motion posture and orientation detection
Supports Android, lOS, , Linux systems and other BLE Bluetooth devices for connection and use
Compatible with ROS1/ROS2 system Provides IMU data solution routines, quick and easy to get started
Power supply range: 3.3V~5V
Baud rate: 115200
Interface package: ZH1.5-4A
Communication format: 8 data bits, 1 stop bit, no check bit
Data packet format: preamble + code + address + length + data body + check code + end code
Data output: acceleration, angular velocity, magnetic field vector, temperature, atmospheric pressure, Euler angle, quaternion
Colour:black
Material:PCB+Nylon
Package Contents:
1 * IMU Sensor Kit
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
