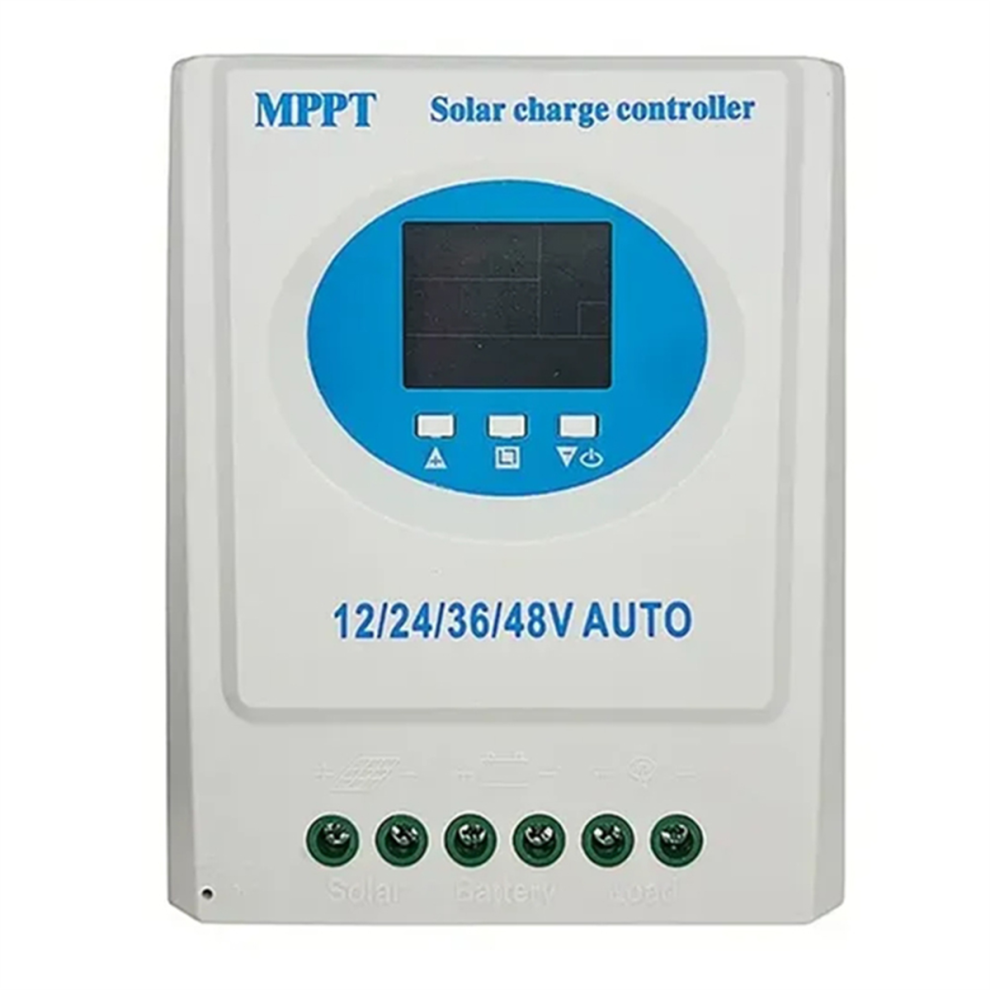

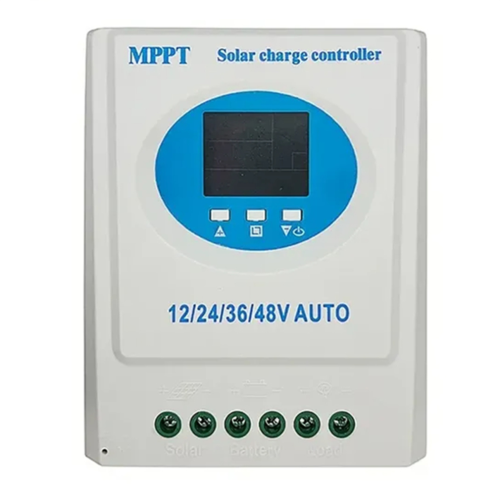

12V/24V/36V/48V Auto 150A MPPT Solar Charge Controller

12V/24V/36V/48V Auto 150A MPPT Solar Charge Controller Beschrijving

12V/24V/36V/48V Auto 150A MPPT Solar Charge Controller Description
Protection function to prevent overcharging, overvoltage, DC output low voltage, high voltage protection, reverse connection protection, etc.

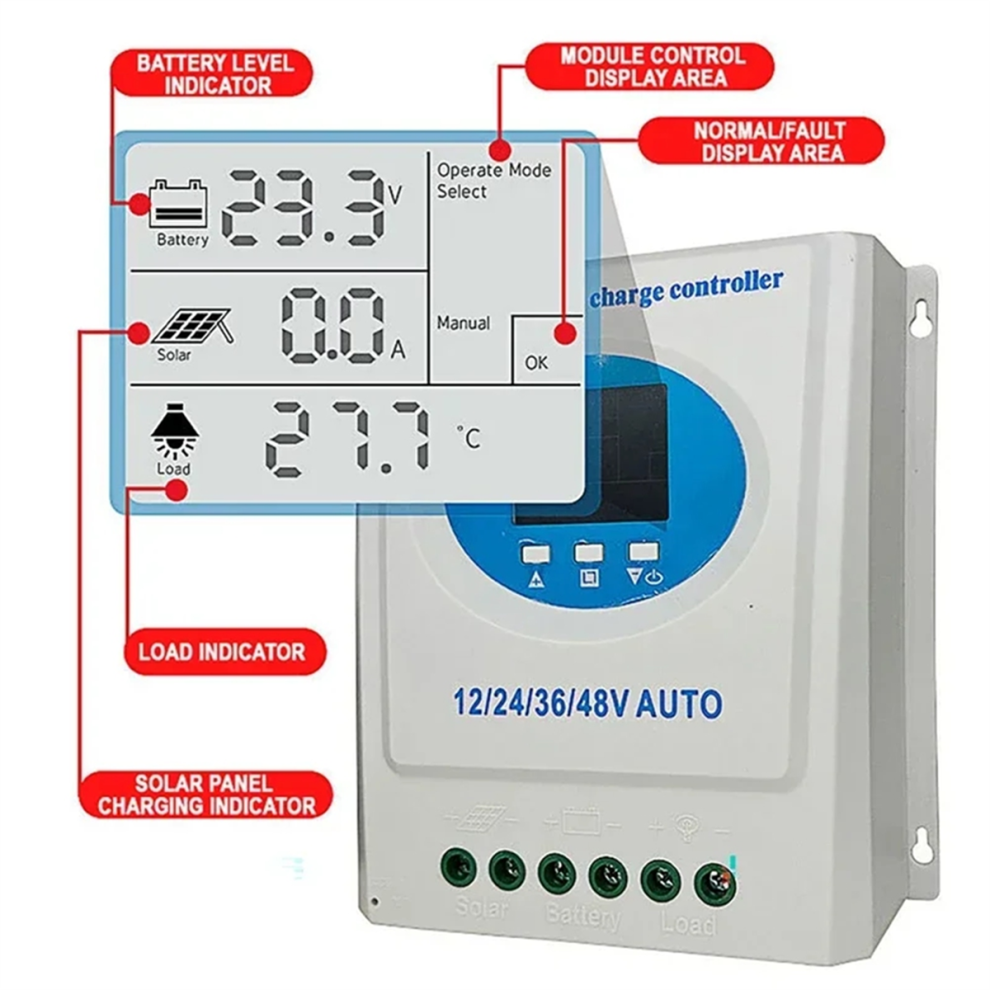

LED intelligent digital display status is clear at a glance. Real-time display of working output voltage.
Multiple operating modes, easy control to control the overall situation, automatic disconnection when full, automatic memory data storage.
Large cross-section boundary port, enlarged wiring port, can connect 16mm wire.
Dual USB charging ports, support most USB port devices on the market.
Name:Solar Controller
Solar panel photovoltaic input peak power:Less than 1800W
Rated charging current: 150A
Photovoltaic panel input voltage range: 15V-23V photovoltaic panel for 12V battery, 30V-45V photovoltaic panel for 24V battery, 45V-69V photovoltaic panel for 36V battery, 60V-90V photovoltaic panel for 48V battery
Rated output current: 50A
Low voltage protection voltage: 10.7V * 2/3/4
High voltage protection voltage: 15.5V * 2/3/4
USB output interface: 5V/1A * 2
DC output interface: 2A * 1
Charging method: Focus MPPT pulse width modulation Charging protection function: Prevent overcharging, overvoltage, DC output low voltage, high voltage protection, reverse connection protection, etc.
Cooling method: Heat sink self-cooling
Operating environment temperature: 0-60
Size: 195x183x68mm
Due to different product batches, the appearance may vary, which does not affect the use.
Colour:As Shown
Material:ABS+ aluminum
Package Contents:
1 * Solar Controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
