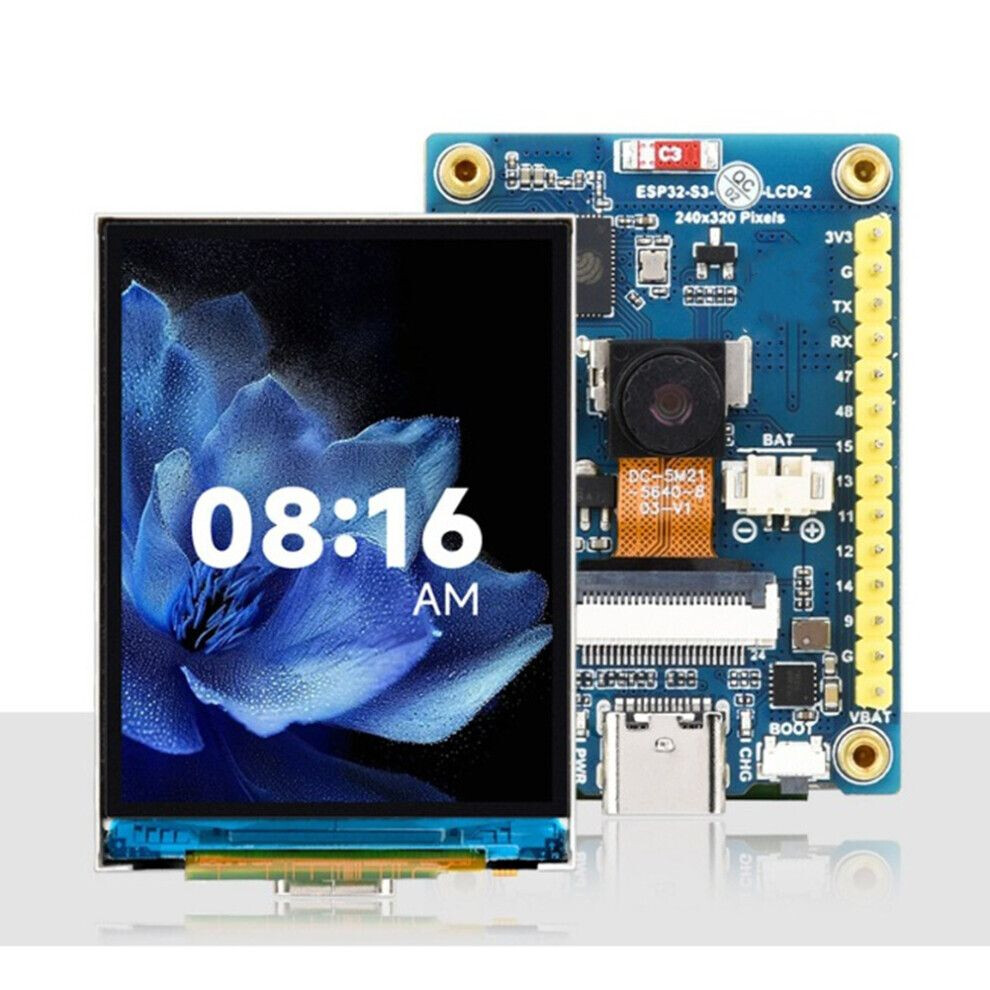

2Inch ESP32-S3 IPS Capacitive Touchscreen Development Board A

2Inch ESP32-S3 IPS Capacitive Touchscreen Development Board A Beschrijving

2Inch ESP32-S3 IPS Capacitive Touchscreen Development Board A Description
On-board Micro-SD card slot and camera interface, built-in ST7789T3 display driver chip, SPI interface communications
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth5(LE) with on-board antenna
Built-in 512KB SRAM and 384KB ROM, 8MB PSRAM and external 16MB Flash.
On-board 2-inch high-definition LCD screen, 240x320 resolution, 262K color, can clearly display color pictures.
On-board 3.7V MX1.25 Li-ion battery charge/discharge interface

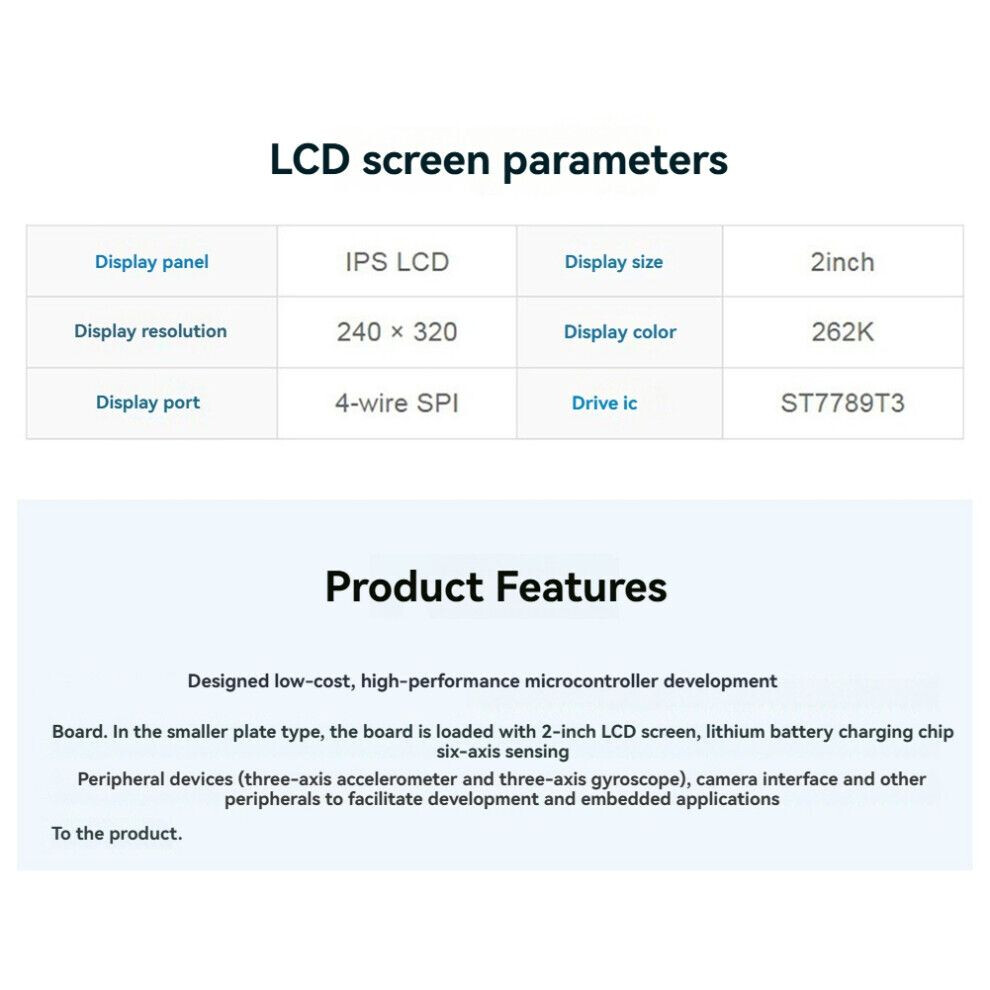

LCD Screen Parameters
Display Panel:IPS LCD
Display Resolution:240x 320
Display Interface:4-wire SPl
Display Size:2inch
Display Color: 262K
Driver: ICST7789T3
Colour: As Shown
Material:PCB+LCD
Specification:A Without camera
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Package Contents:
1 * LCD Display Board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
