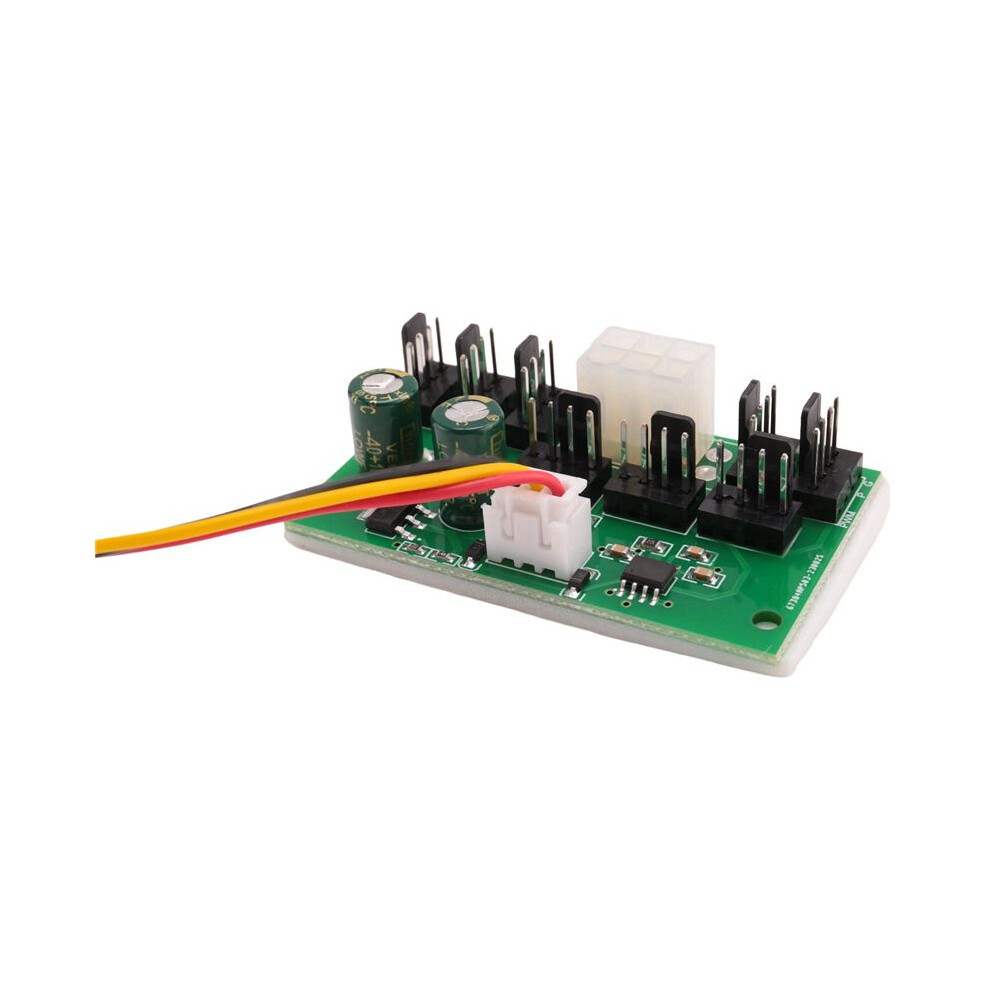

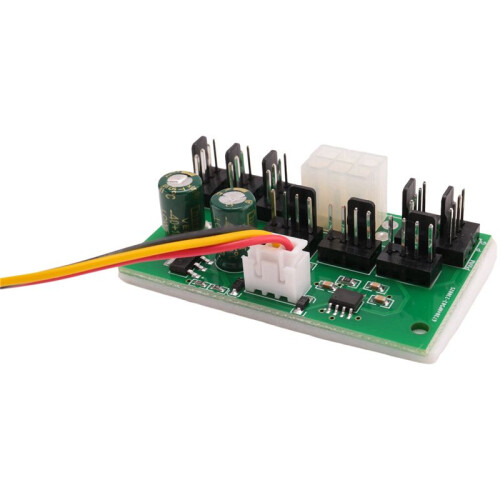

2Pcs Computer Case Miner Fan Speed Controller 8-Channel Fan Hub PWM High-Power Violent Fan Controller DC12V

2Pcs Computer Case Miner Fan Speed Controller 8-Channel Fan Hub PWM High-Power Violent Fan Controller DC12V Beschrijving

(1) Working voltage: DC12V
(2) Control power: 8 fans can be used at the same , PWM fan speed control, 4-wire fan or 3-wire fan with PWM speed control port can be used in common. Note that the fan interface sequence is commonly used. The maximum power of a single fan is within 60W, and the total power is within 300W (note that the total power depends the power supply of the chassis)
(3) Quiescent current: 0.015A (standby state)
(4) PWM duty cycle: 0%-
(5) PWM frequency: 25khz

NOTE:
1. The Fan Speed Controller only suit for fans that with pwm speed regulation, and there must be a pwm speed regulation . If you are not sure, you can consult the fan manufacturer.
2. This model is PWM speed regulation, and the speed regulation frequency is about 25K. PWM is the speed control signal, P is the 12V positive pole, and G is the 12V negative pole. Do not make any mistakes in the wiring sequence, as mistakes will cause damage.
3. The batches of materials are different, and the colors of the interfaces and capacitors the product are random(the specified color cannot be selected), which does not affect the use.
size:60MMx35MMx16MM
Material:PCB+Plastic+Metal
colour:green

Package Contents:
2 * Miner Fan Speed Controller
