2Pcs/Lot UWB3000F00 Decawave'S DW3000, Indoor Positioning Module

2Pcs/Lot UWB3000F00 Decawave'S DW3000, Indoor Positioning Module Beschrijving

2Pcs/Lot UWB3000F00 Decawave'S DW3000, Indoor Positioning Module Description

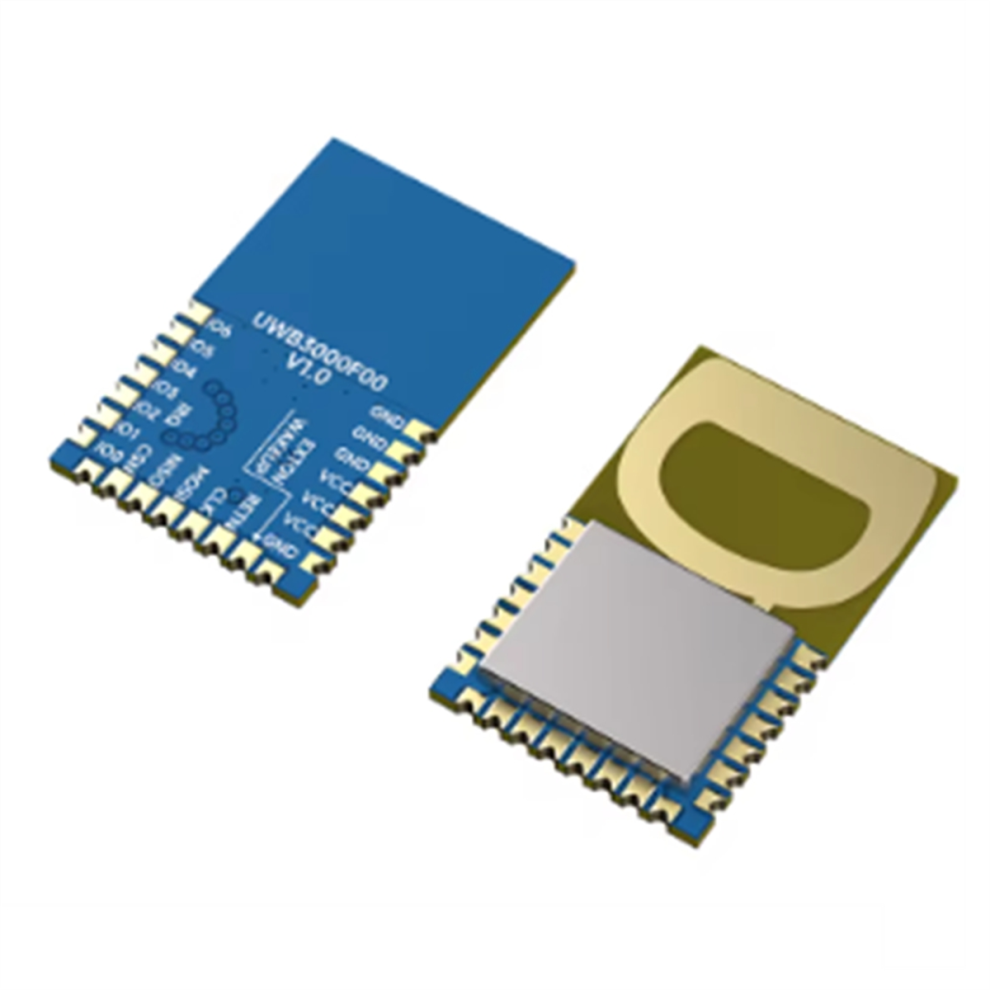

UWB3000F00 adopted Qorvo's DW3000 , designed with PCB Antenna. UWB3000 is in line with IEEE802.15.4-2015 and IEEE802.15.4z (BPRF mode). It can be used for two-way ranging, TDOA and PDOA systems, positioning accuracy of 10 cm
IEEE802.15.4-2015 UWB
IEEE802.15.4z (BPRF mode)
Supports channels 5 & 9 (6489.6 MHz & 7987.2 MHz)
Data rates of 850 kbps and 6.8 Mbps
Features:
Integrated 256
Worldwide UWB Radio
Regulatory compliance
Packet length up to 1023 bytes
Supports 2-way ranging, TDoA and PDoA
location schemes
Programmable output power
Provides precision location and data transfer simultaneously
Asset location to an accuracy of 10 cm
Low power consumption for coin cell
Applications:
Precision real time location systems (RTLS) using two-way ranging, TDoA or PDoA schemes in a variety of markets: Healthcare/Consumer/Industrial/Automotive
Location aware wireless sensor networks
Presence detection for secure entry and secure payment
Color:As Shown
Material:PC+Metal
Package Contents:
2 * module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
