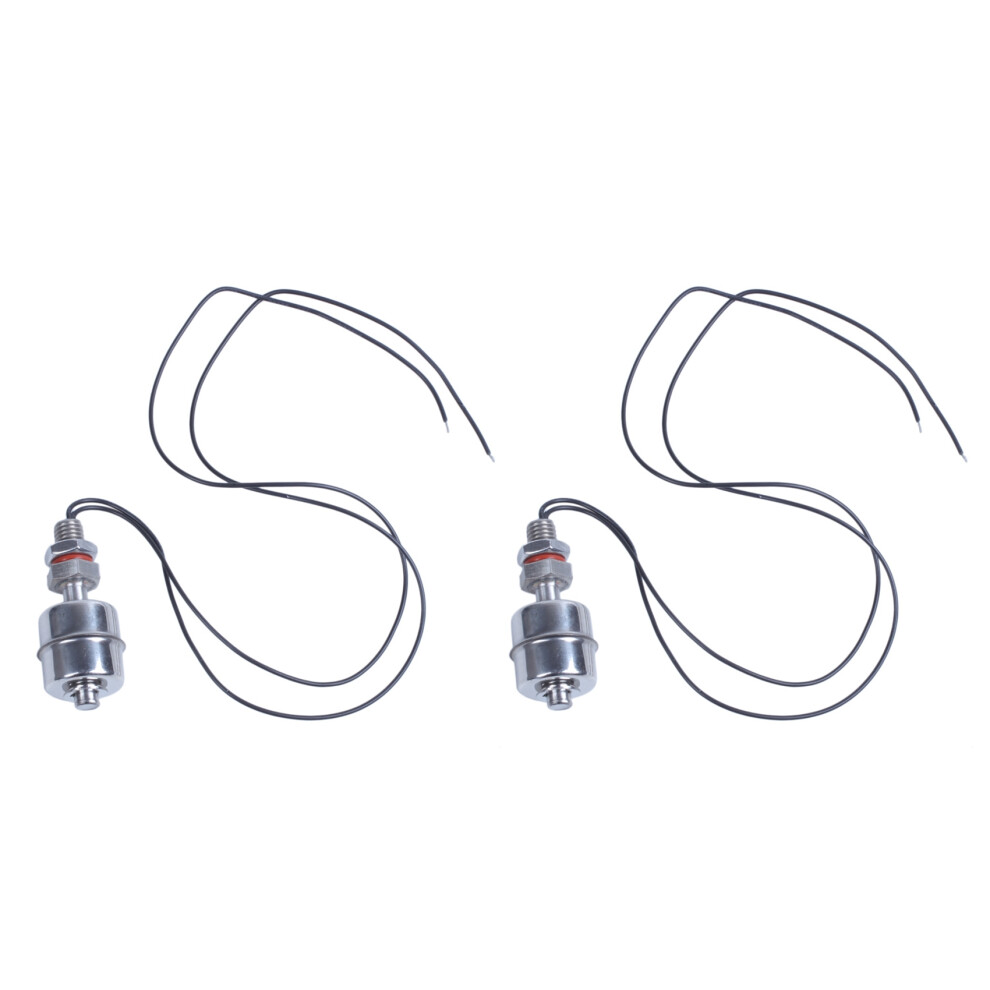

2X Aquarium Pool Liquid Water Level Sensor Stainless Steel Float

2X Aquarium Pool Liquid Water Level Sensor Stainless Steel Float Beschrijving

A float is a device used to sense the level of liquid within a tank.
The may actuate a pump, an indicator, an alarm, or other device.
It can be easily converted from normally open to normally close by inverting the float.
Note: because the current that the can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.

Product Name : Water Level Sensor;
Model No. : ZP4510-S;
Contacts : NO+NC;
Max Contact Rating : 10W
Max Switching Voltage : 100V ;
Max Switching Current : 0.5A;
Max Breakdown Voltage : 220V ;
Max Carry Current : 1.0A;
Max Contact Resistance : 100mohm
Temperature Rating : -30 - +125C;
Float Material : SUS304;
Float Body Material : SUS304;
Float Size(Approx) : 26 x 26mm / 1.02inch x 1.02inch(LxD);
Thread Dia(Approx) : 9.8mm / 0.386inch
Bottom Clip Dia(Approx) : 14.7mm / 0.579inch;
Hex Nut Size(Approx) : 16.6mm / 0.654inch;
Body Total Length(Approx) : 62mm / 2.4inch
Cable Length : 31cm / 12.2inch;
Color : Silver Tone;
Net Weight : 39g;

Package Content : 2 x Water Level Sensor
