2X PWM Motor Speed Controller with Digital Display 30A PWM Adjustable Speed Stepless Regulator

2X PWM Motor Speed Controller with Digital Display 30A PWM Adjustable Speed Stepless Regulator Beschrijving

1.This Motor PWM Speed Controller adopts with screw terminals easy Installation.
2.Input Voltage Range: 6V- 60V.Power supply:12V 24V 36V 48V.Output Current: 0-30A(Can not input 220V and 110V household electricity).

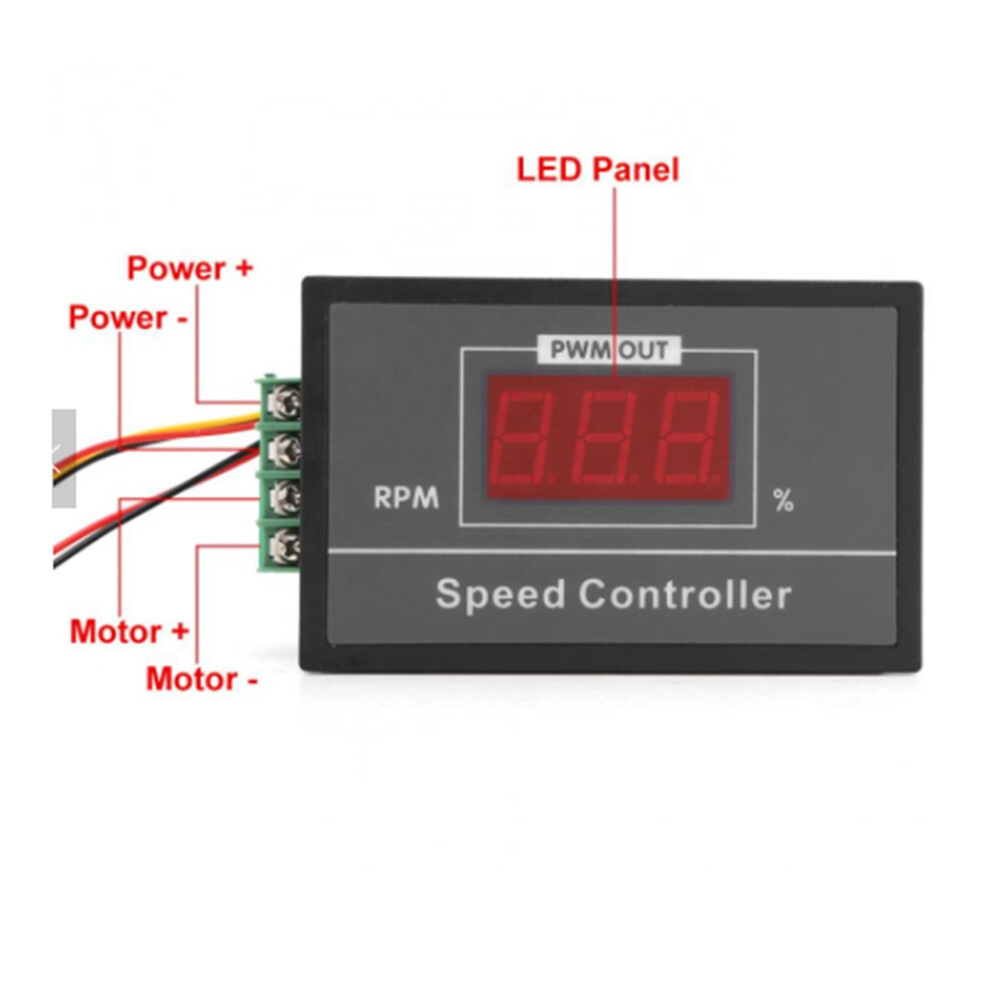

3.LED Display Design which shows percentage rate of actual speed to maximum speed, so the data is readable through the LED display, you can get a precise data easily,but input voltage should be equal to the rated voltage of the motor 6-60V.
4.speed controller size:13x6x3.2cm/5.1 Inch x 2.4 Inch x 1.2 Inch (l x w x h).button size:4x1.8cm/1.5 Inch x 0.69Inch (h x w).potentiometer size: 23 x 20mm /0.9Inch x0.77Inch (h x w). knob size:15.5x23.5mm/0.6 Inchx1 Inch(h x w),Inner hole size:6mm.

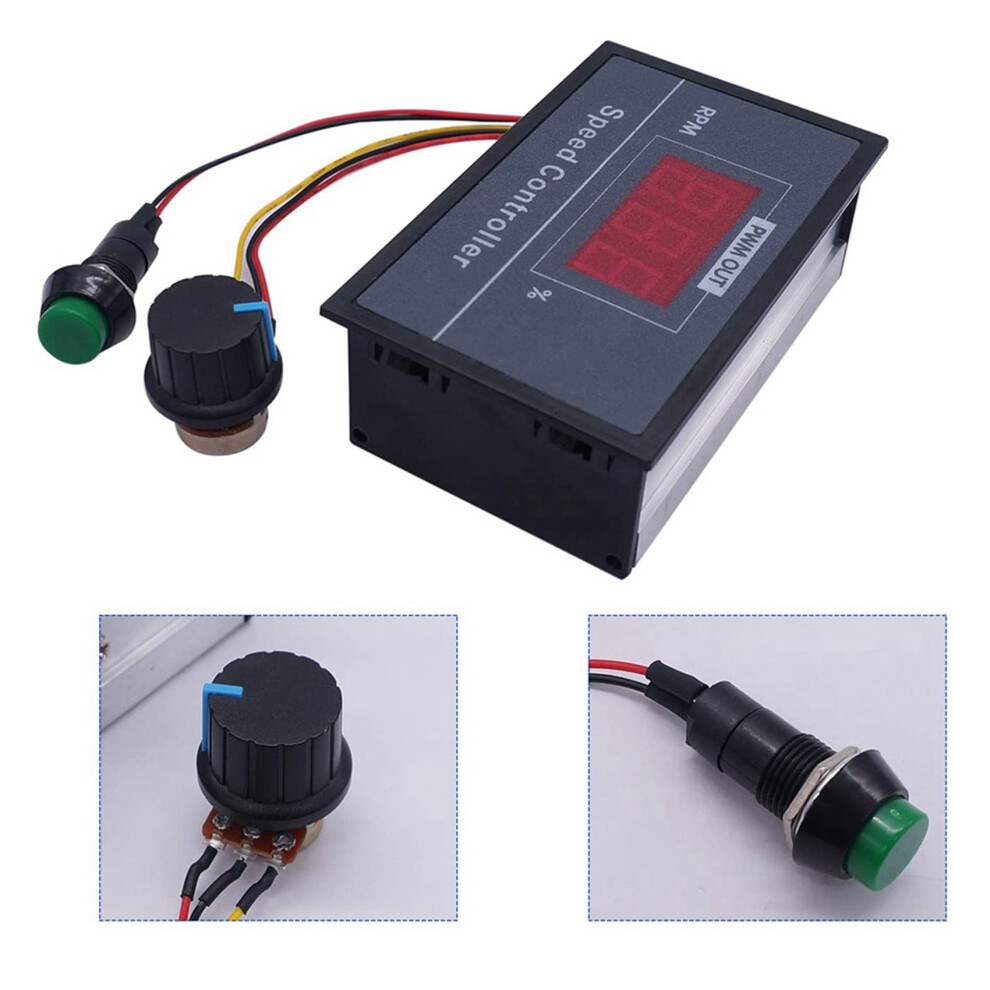

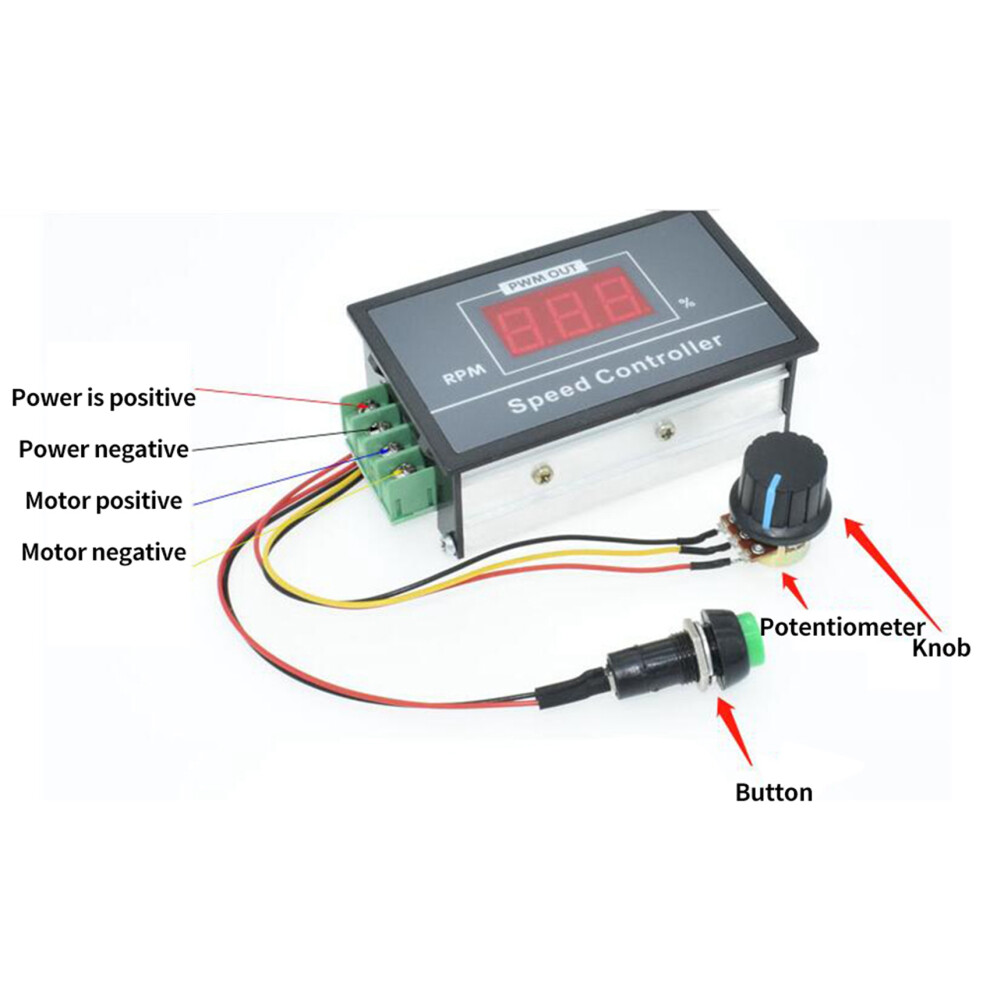

5.It is equipped with a momentary start/stop and a speed control potentiometer and knob,you can regulator Stepless Variable through the potentiometer to provide a better and stable performance.

Speed control type:
speed control mode: potentiometer
Speed range: 0--
Control frequency: 15KHZ

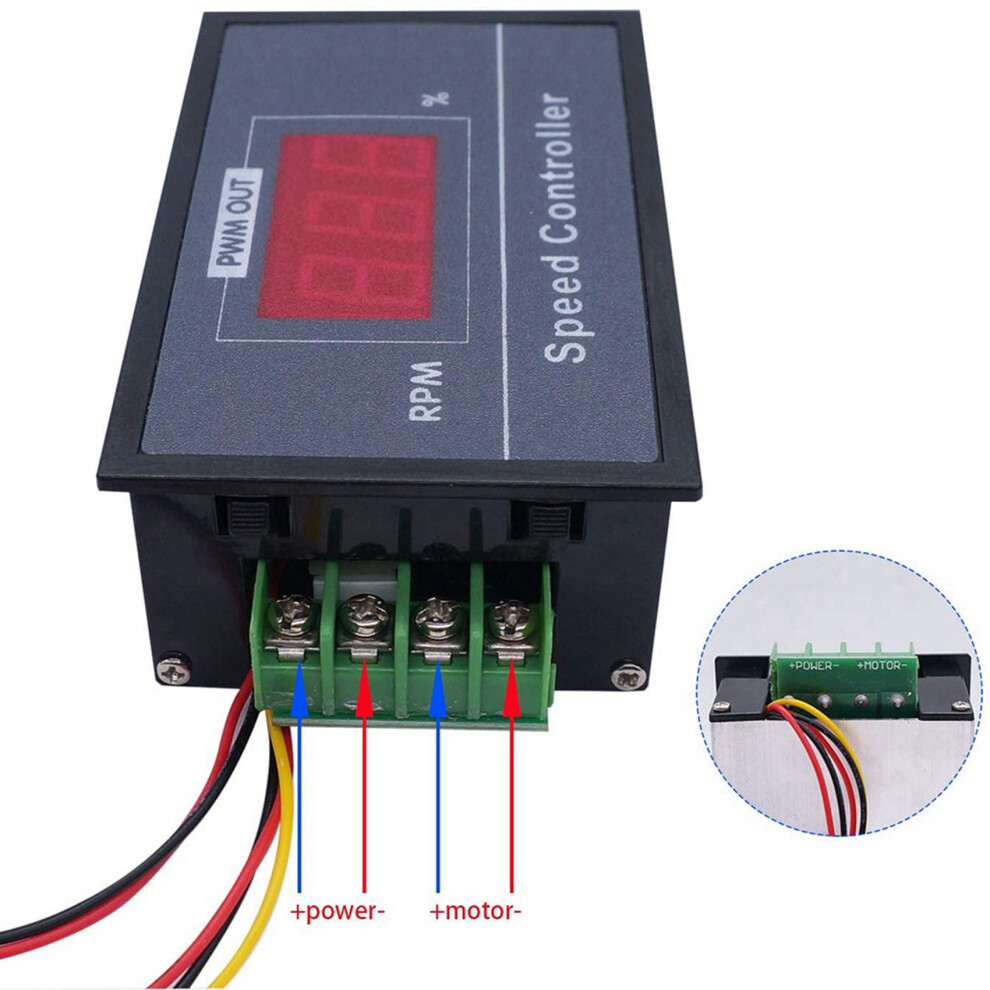

Wiring type: fence terminal knob
Length: 18CM
Product net income: 240 grams
Panel openings: L x W 92mm x 56mm
Speed Digital: Percentage 0-100
Colour:As shown
Material:ABS

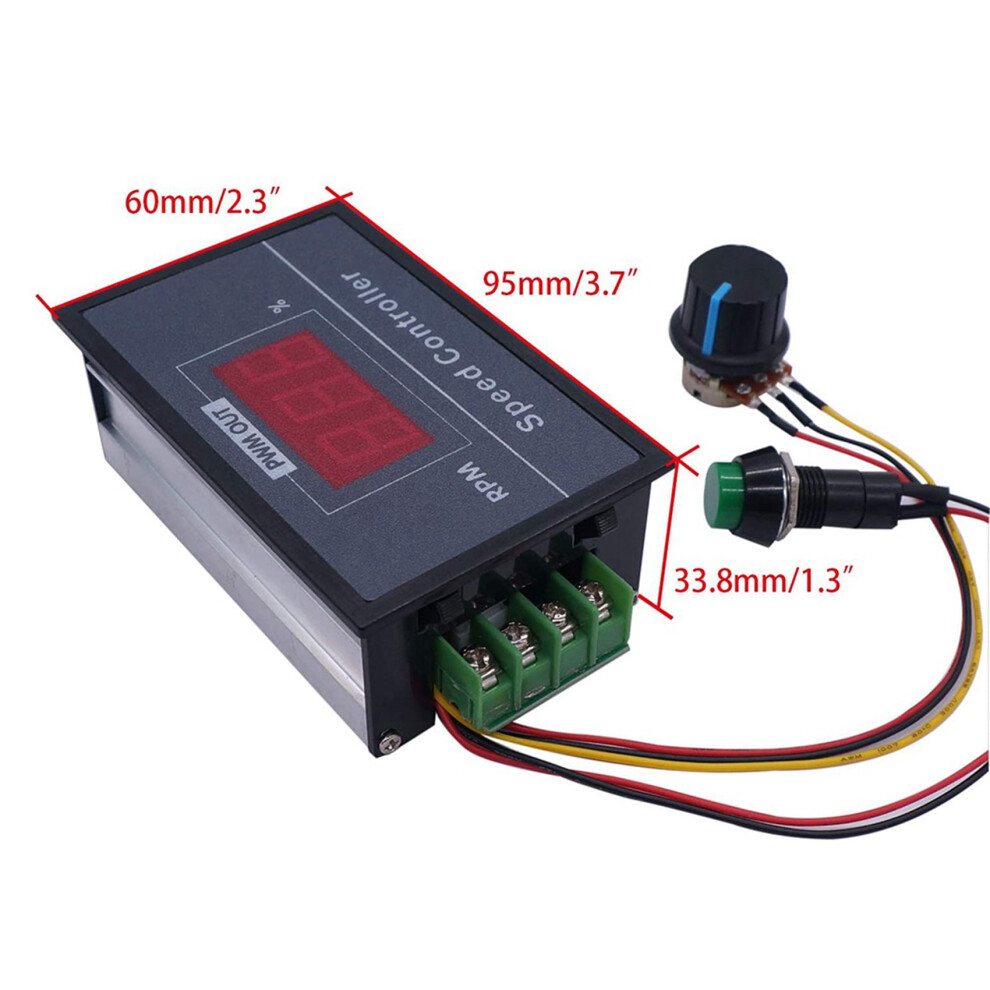

Size:95 x 60 x 33.8mm

Package Contents:

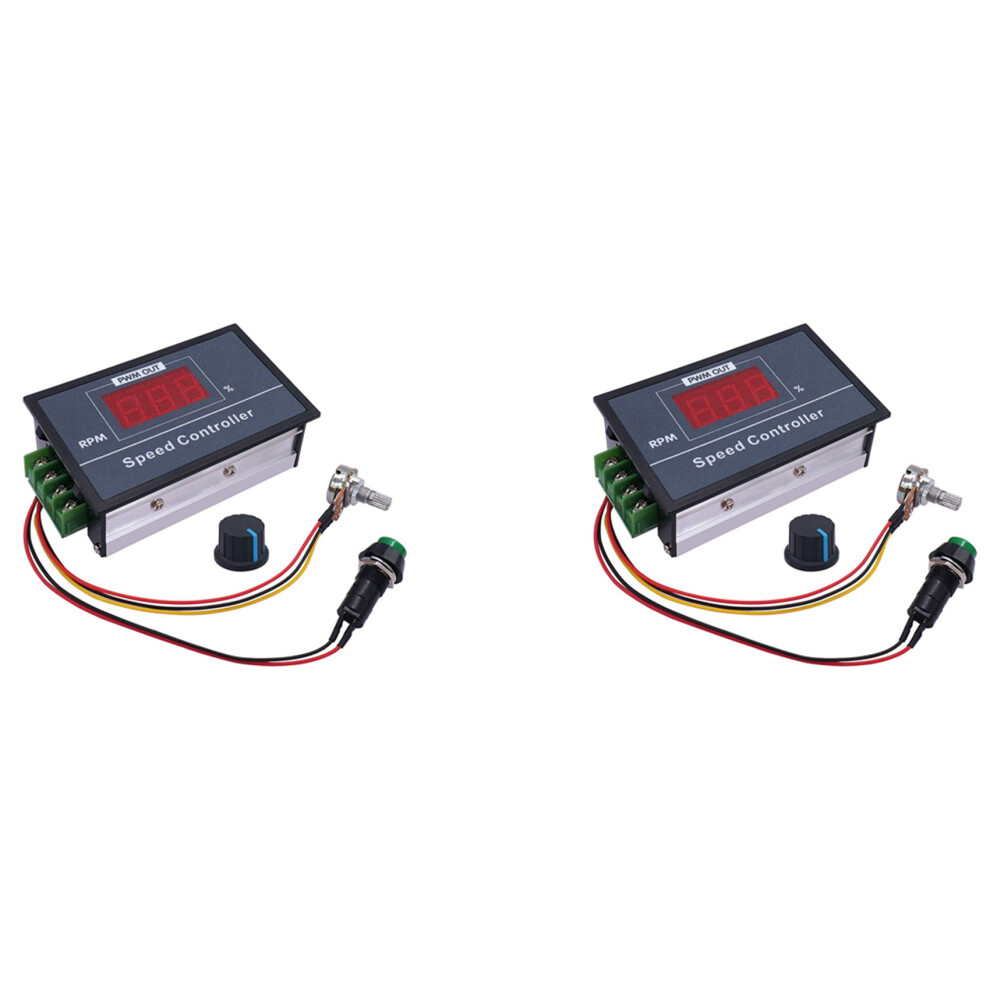

2 x speed controller
2 x momentary start/stop
2 x potentiometer
2 x knob
Note:
1.Digital display is a percentage of non-motor actual speed
2.The input voltage must be positive and negative
3.Can not input 220V household electricity
4.The input voltage should be equal to the rated voltage of the motor (within 6-60V). Such as motor rated voltage 12 input 12V motor 36V input 36V
