-32A Series EtherCAT Remote IO Data Acquisition Module Ethernet

-32A Series EtherCAT Remote IO Data Acquisition Module Ethernet Beschrijving

-32A Series EtherCAT Remote IO Data Acquisition Module Ethernet Description
Real-time industrial Ethernet EtherCAT bus communication
Can match any EtherCAT master station

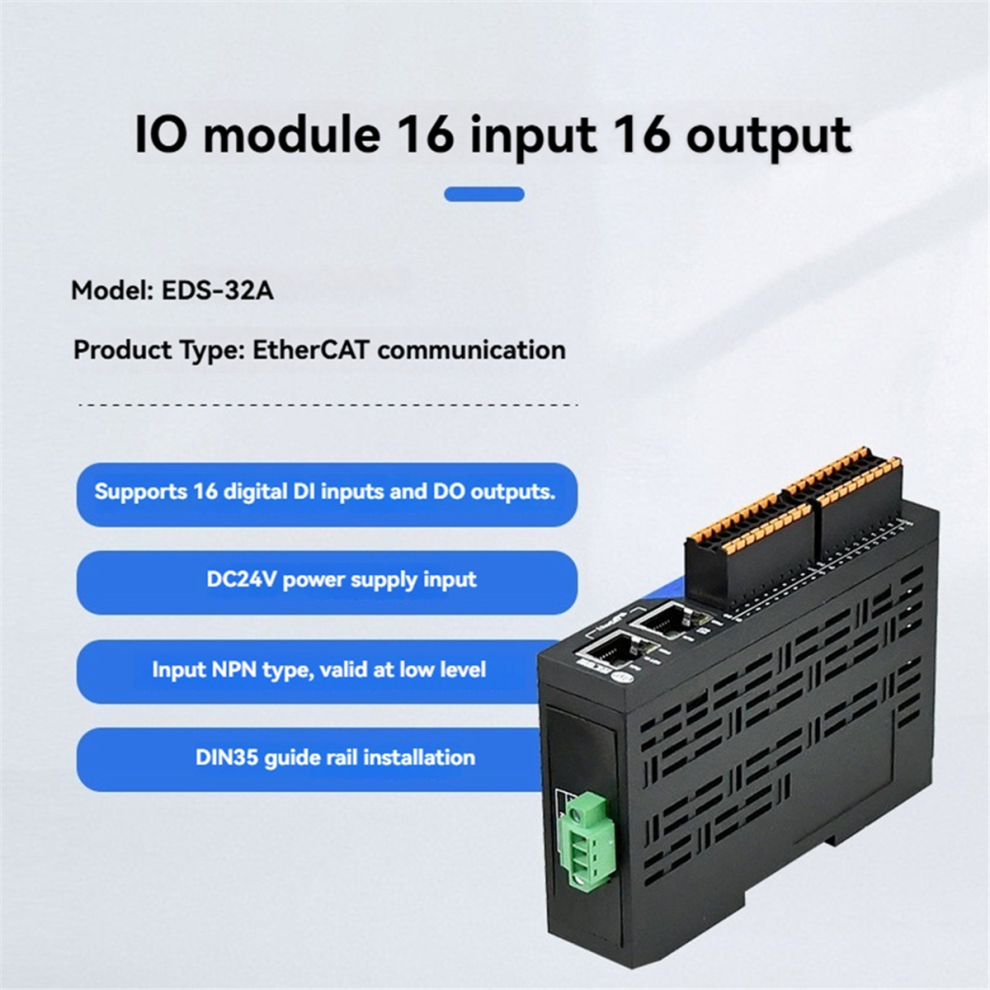

The series supports 16 digital DI inputs and 16 digital DO outputs
Input NPN type, low level effective

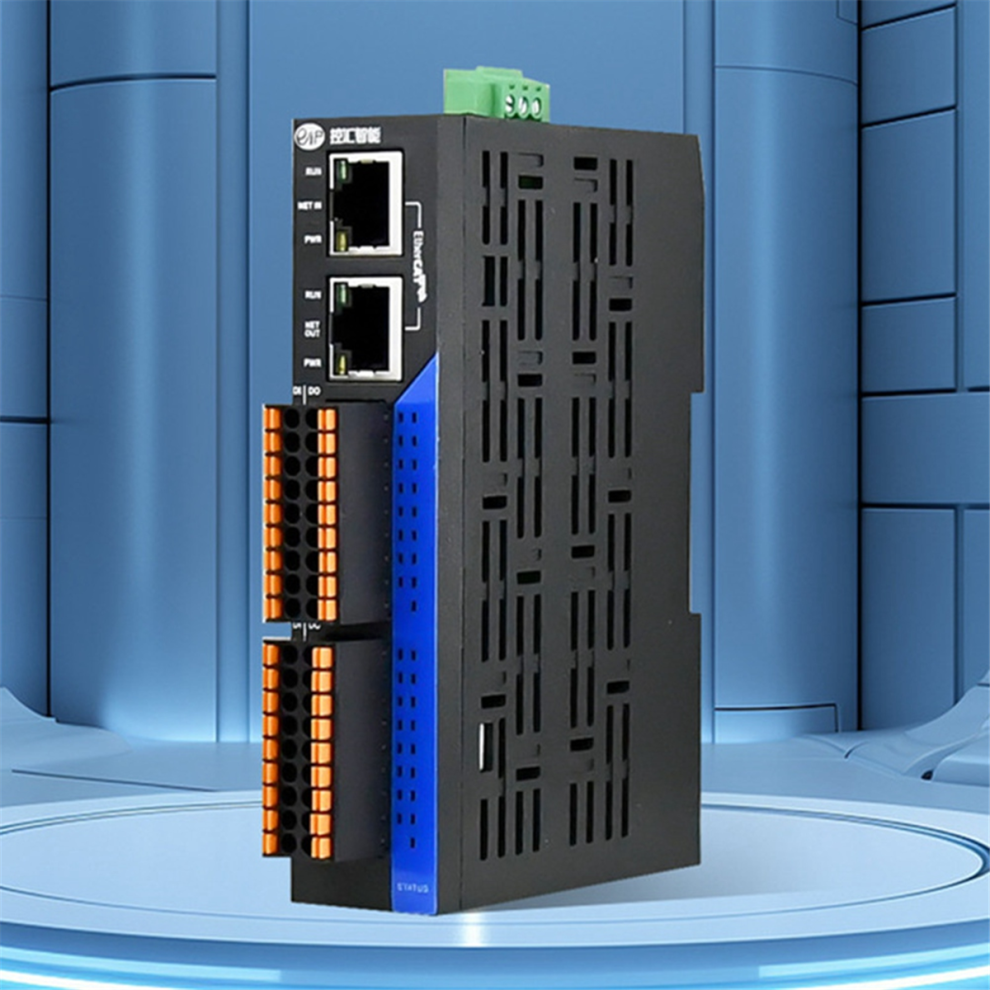

DIN35 rail installation
mastercontrol:Based on high-performance MCU control
communication:

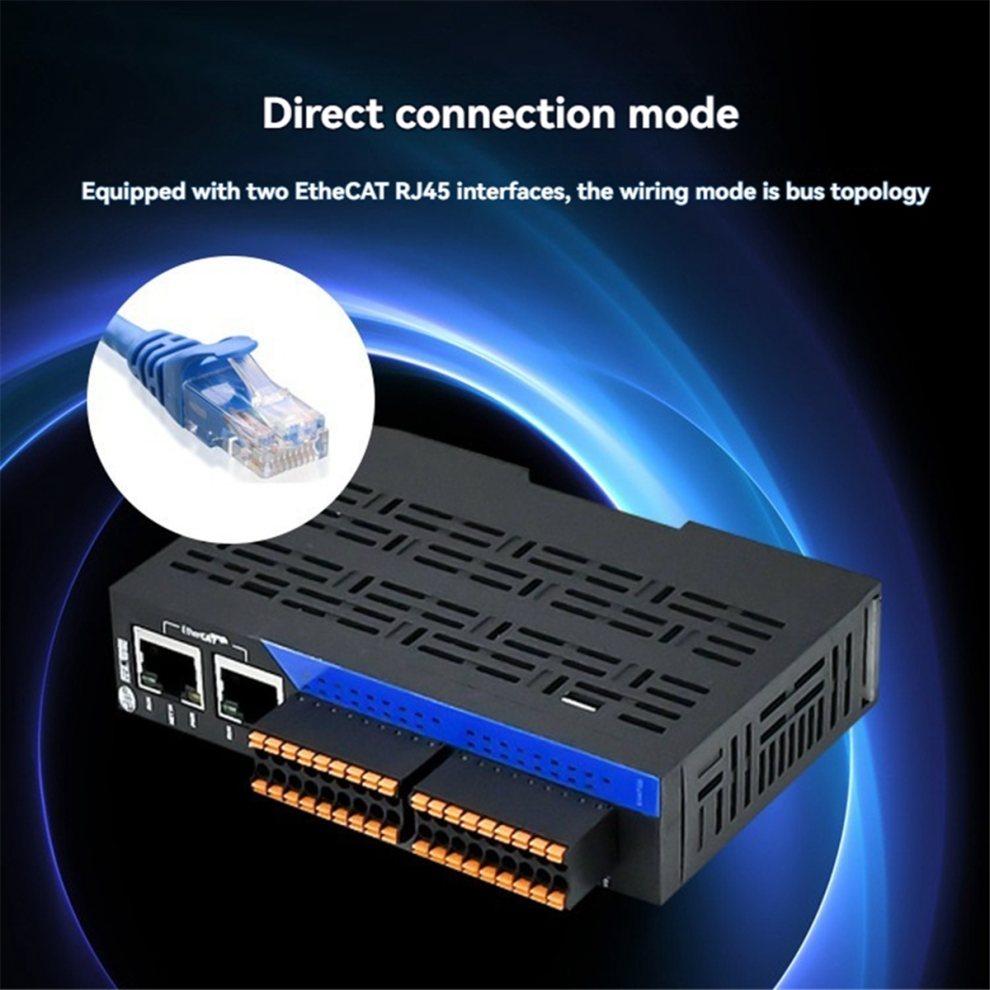

Input: EtherCAT communication, 1 x RJ45 LAN port input;
Output: EtherCAT communication, 1 x RJ45 LAN port output
Inputcurrent Typical value: 8mA
Digital signal output:Signalvoltage 0-+24VDC,
Drivecurrent Maximum value: 500mA
Signaltype type NPN type digital quantity, effective at low level. Input/output with isolation
systemplat form Supporttypes TwinCAT3.0 / 2.0
Different batches may cause differences in label printing, which not affect the use
Colour:Black
Material:ABS
Package Contents:
1 x Controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
