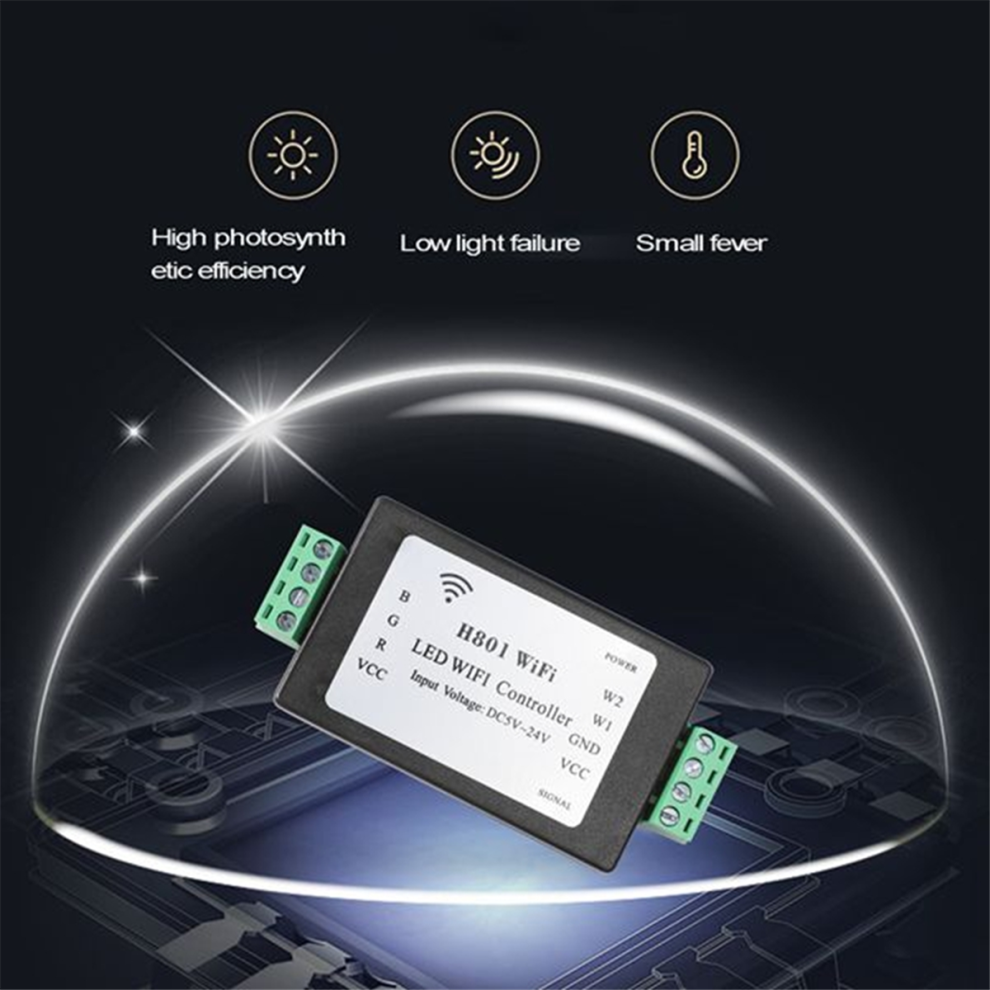

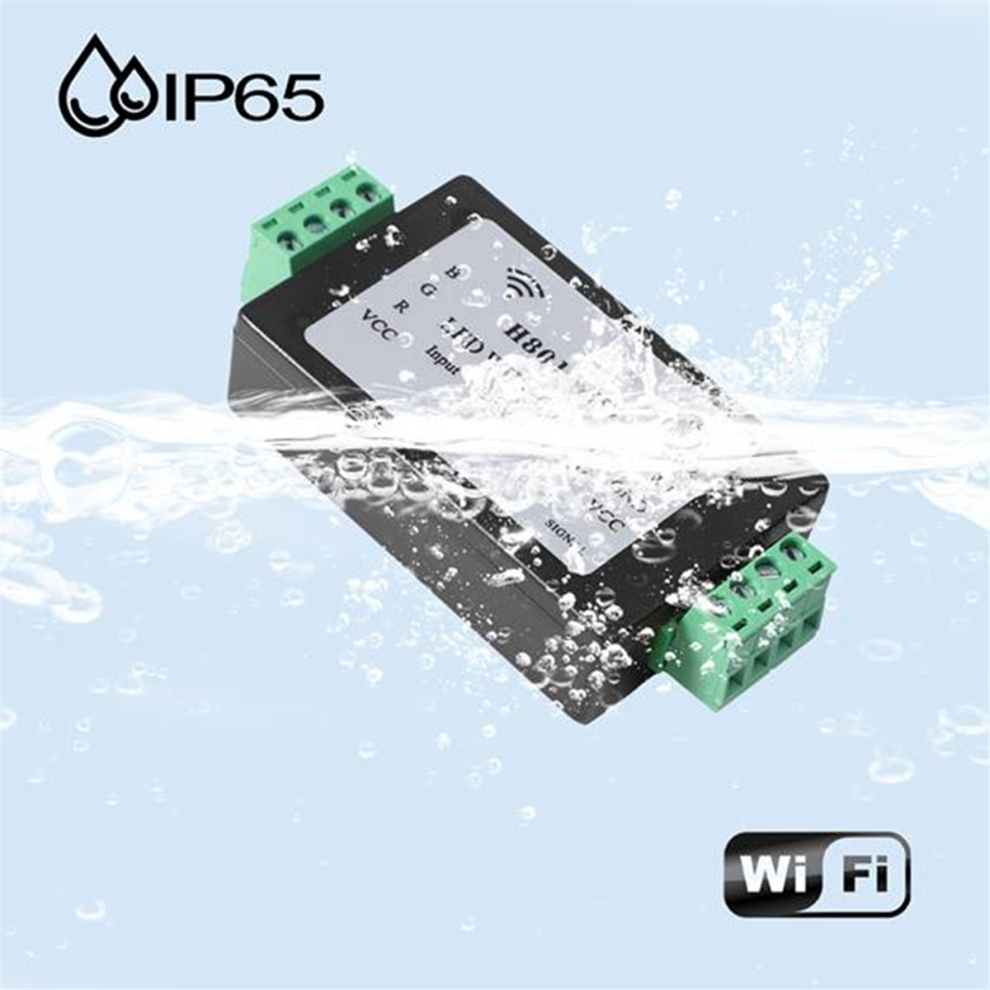

5PCS H801 RGBW LED WIFI Controller LED RGB Controller DC5-24V Input

5PCS H801 RGBW LED WIFI Controller LED RGB Controller DC5-24V Input Beschrijving

5PCS H801 RGBW LED WIFI Controller LED RGB Controller DC5-24V Input Description
Connect and control lamps easily.Output RGBWW, 5 routes PWM data.Refresh frequency is 500HZ, support 802.11 b/g/n.Support for non-encrypted networks and WPA, WPA2 encryption network
Fast transmission, response sensitive.H801WiFi can be controlled separately.Multiple phones can control H801WiFi simultaneously.Built-in dozens of effects.Automatic connection function.
In addition to driving RGB lamps, you can also control the following LED Driver IC:LPD6803, LPD1882, LPD1889, DMX512, APA102, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2811, INK1003, TM1812, TM1809,TM1804
Usage( Connect phone to H801WiFi): Step 1: Power on H801WiFi, install "LED Dimmer" and create shortcut. Duplicate LEDDimmer.apk to phone and click to install, long press the icon and drag it to home screen. Step 2: Turn on WiFi;Power on H801WiFi, click phone pull-down menu, click settings, turn on WLAN, then choose and click "HCX_******", password is "88888888", enter password and click connect. The-up icon indicates WiFi is connected.
Step 3: Run LED Dimmer: Click LED Dimmer, pops up the following operation interface, slide on color wheel, the light will change with the color accordingly. Click the button in the middle, the lights will be off. Click the effect selection dialog, there are many effects to choose. Click menu - Color Rod to set the brightness of each color and playing speed. Step 4: Connect to router
If you want your phone can both surf the internet and control lights, you must connect H801WIFI to router, the following is the procedure.
(1) Install LEDDimmer.apk, and turn on WIFI.
(2) Click menu - "Router", click "WLAN AP", choose the right router, and enter password, then click "link". All H801WIWI that can communicate with phone has been connected to router. Connect your phone to router too, after connected, your phone can both surf the internet and control H801WIFI.
Power Supply: DC
Connecting Model: WLAN
Oscillation Frequency: 500Hz
Controlled Method: WIFI Control, Android Smart Phone
Input Voltage: DC 5V-24V
Load Power: 96W
Channel Power: 0.5W
Frequency: 500Hz
Remote Distance (approx.): 10m
Output: 5 routes PWM, each route 4A
Size:93 x 46 x 20mm
Due to different product batches, the appearance may vary, which does not affect the use.
Colour:As Shown
Material:Plastic
Package Contents:
5 x LED WiFi Controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
