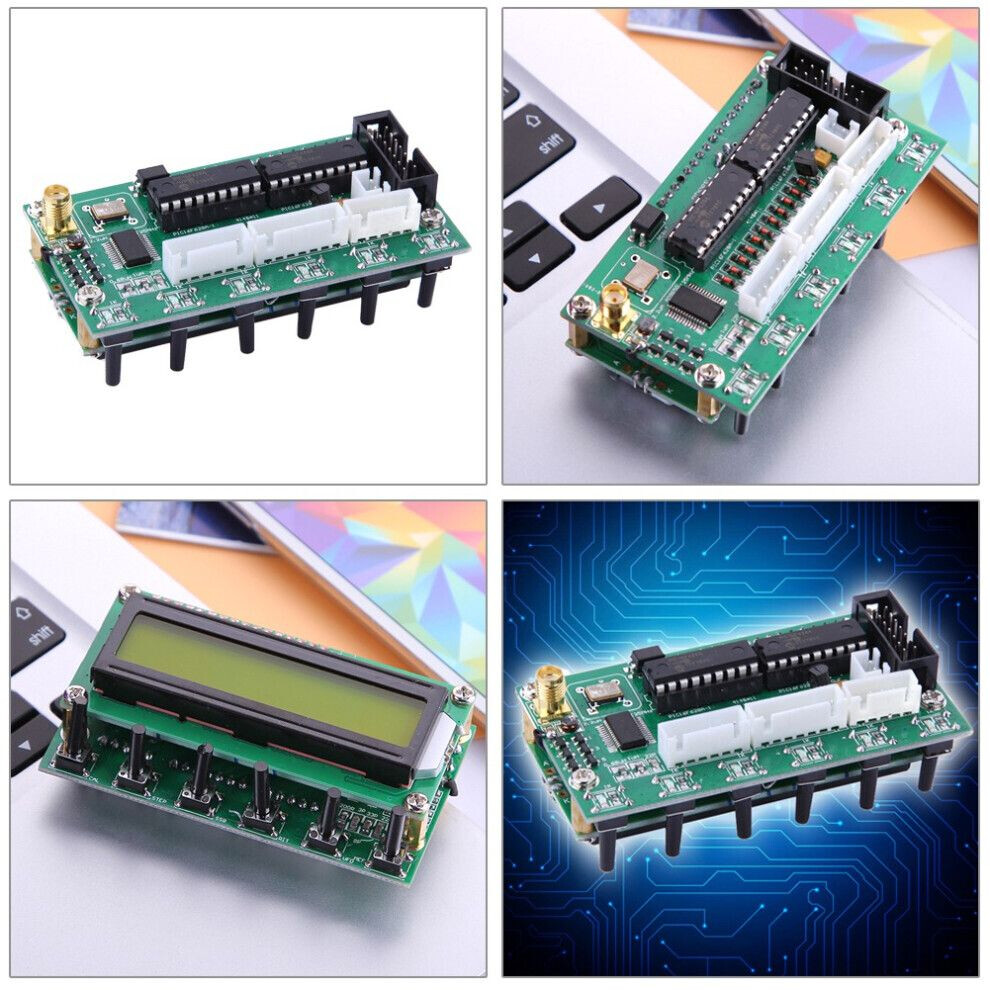

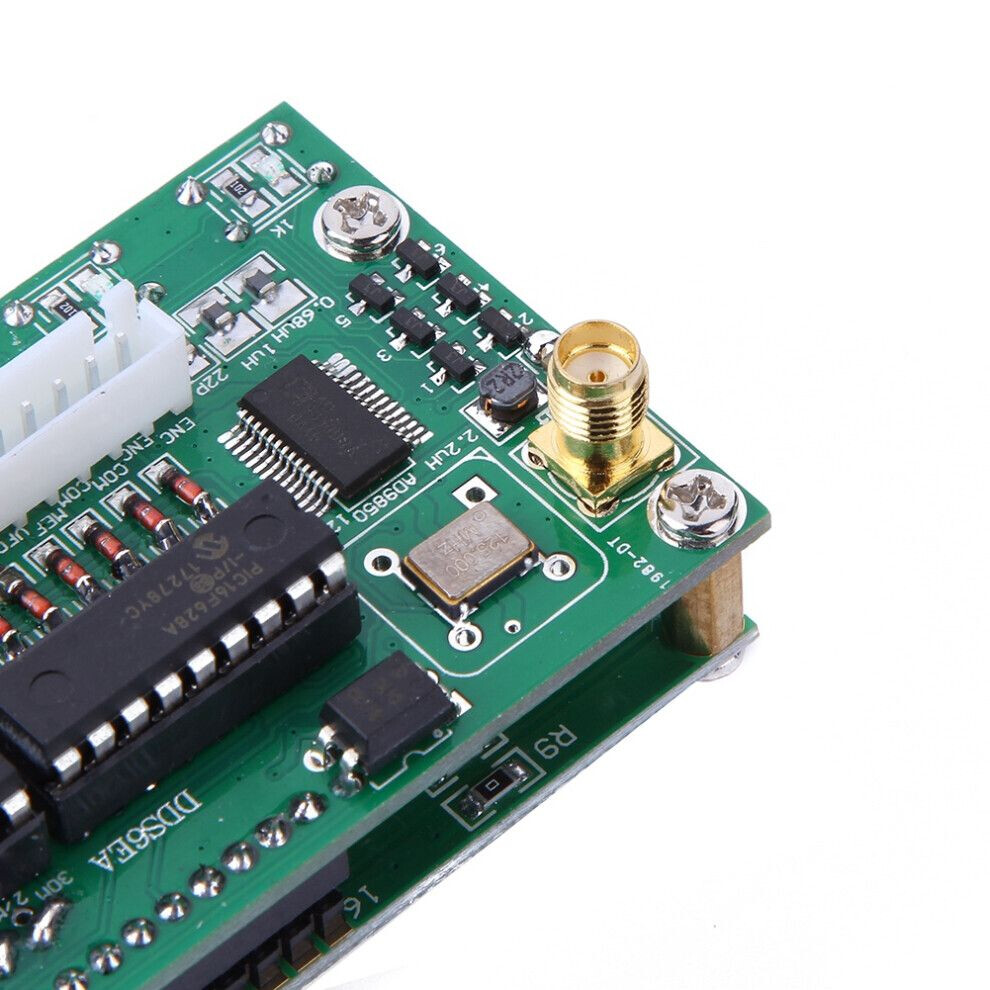

AD9850 0-55MHz Frequency LCD DDS Signal Generator Digital Module

AD9850 0-55MHz Frequency LCD DDS Signal Generator Digital Module Beschrijving

AD9850 0-55MHz Frequency LCD DDS Signal Generator Digital Module Description
1. Supports 0-55MHz continual adjust at 1Hz step.
2. This generator has 78L05 voltage regulate. Input current at 200MA, input voltage 8-9V would be the ideal voltage.
3. Input voltage of 12V can only be used for short time testing, otherwise cause heat to board.
4. 5p/6p connect to encoder as per photo. 7p of the middle connects to digital matrix input. 14p (8V GND) is 8V power supply from main board.
5. If powered by main board, DDS does not need power supply.
1-6 correspond to 6 frequency bands: (3.8, 7, 9, 14, 18 or 21, 27 or 29).
, USB, CW are the three mode choices.
DT is signal from main board.
Keys and Connection interfaces:
ENC: Encoder switch
: Switch for memory mode
VFO: Transfer from VFO A to VFO B, or from VFO B to VFO A.
SSB: Working mode change: circulate from USB, LSB, AM, CW, and on and on...
: Fine tuning to receiving frequency
CAL: Set functions
KB-1 and KB-2 have common shared pin, but is not GND
Specifications:
Display: 1602 LCD
Input voltage: DC 8V-9V
Input current: 200mA
Frequency range: 0-55MHz
Product size: . 80x45x30mm / 3.15x1.77x1.2in
Net weight: . 66g / 2.32oz
Due to different product batches, the appearance , which does not affect the use.
Colour:As Shown
Material:PC
Package Contents:
1 x DDS Signal Generator Digital Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
