AD9959 Module Signal Source AD9959 Signal Generator Description
Module model: AD9959
Module type: digital synthesis frequency source
Module power supply: DC-5V
Module current: 320mA (MAX); quiescent current 90mA (TYP) normal drive current 300mA (TYP)
Module communication protocol: SPI serial. Module provides routines: STM32F103RCT6. Routine platform: STM32F103X-M3; KEIL5 version source code
Module system frequency: 500MHz (MAX)
resolution digits: 10 digits
Phase accumulator bits: 32 bits
Module output interface: SMA; 24-hour salt
Module output signal: sine wave; sine wave with 200MHz low-pass filter.

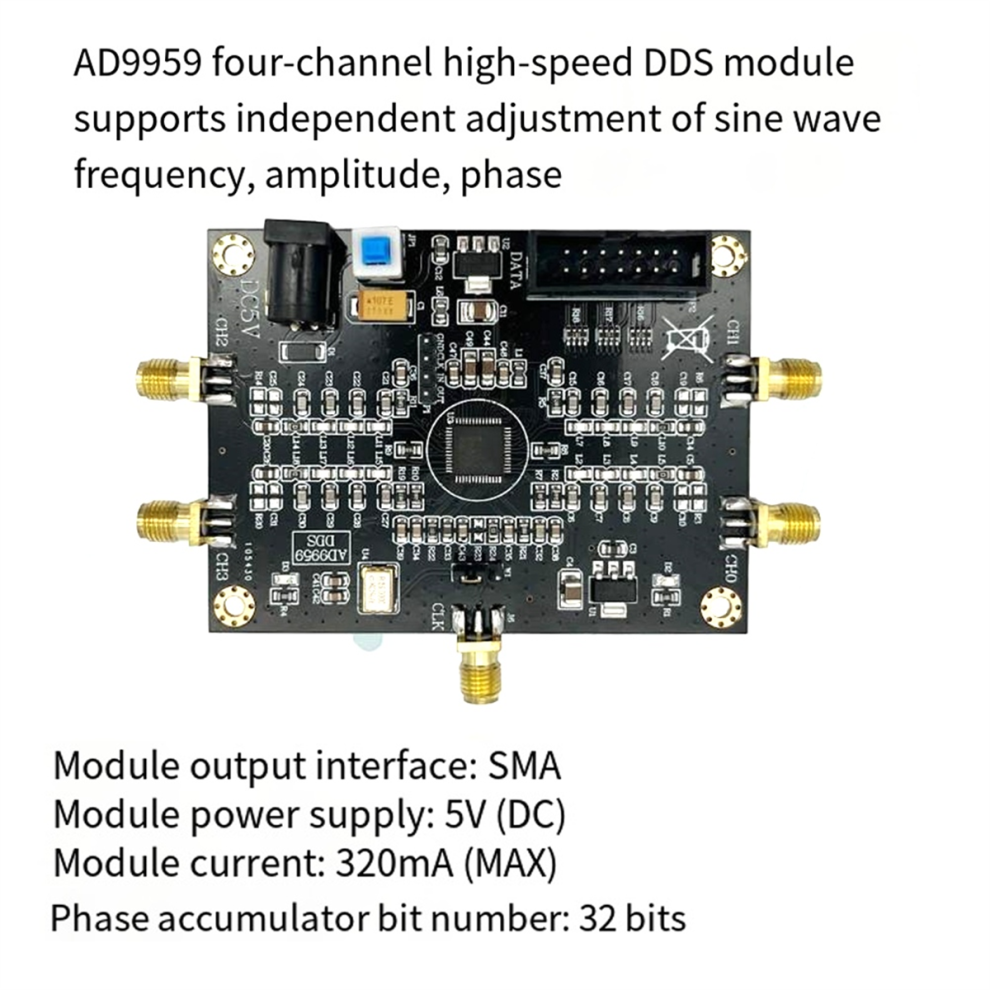

Module output channels: 4 channels; each channel and adjustment of frequency, amplitude, phase.

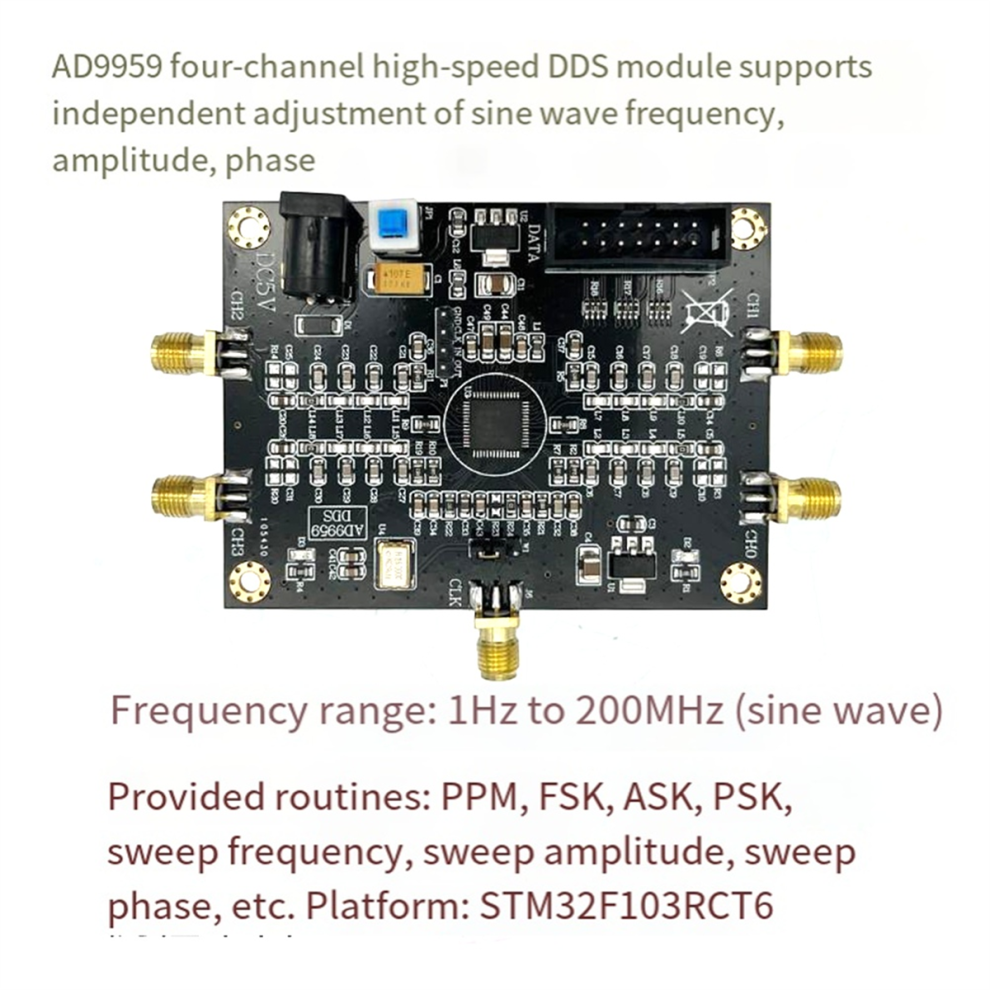

Highest main frequency output sine wave signal range: 1Hz-200MHz
Output amplitude: sine wave 530mVpp (MAX); sine wave amplitude decreases with increasing frequency
Output impedance: 50 ohms
Module specifications: 80 x 60 x 12mm; length * width * height-PCB size

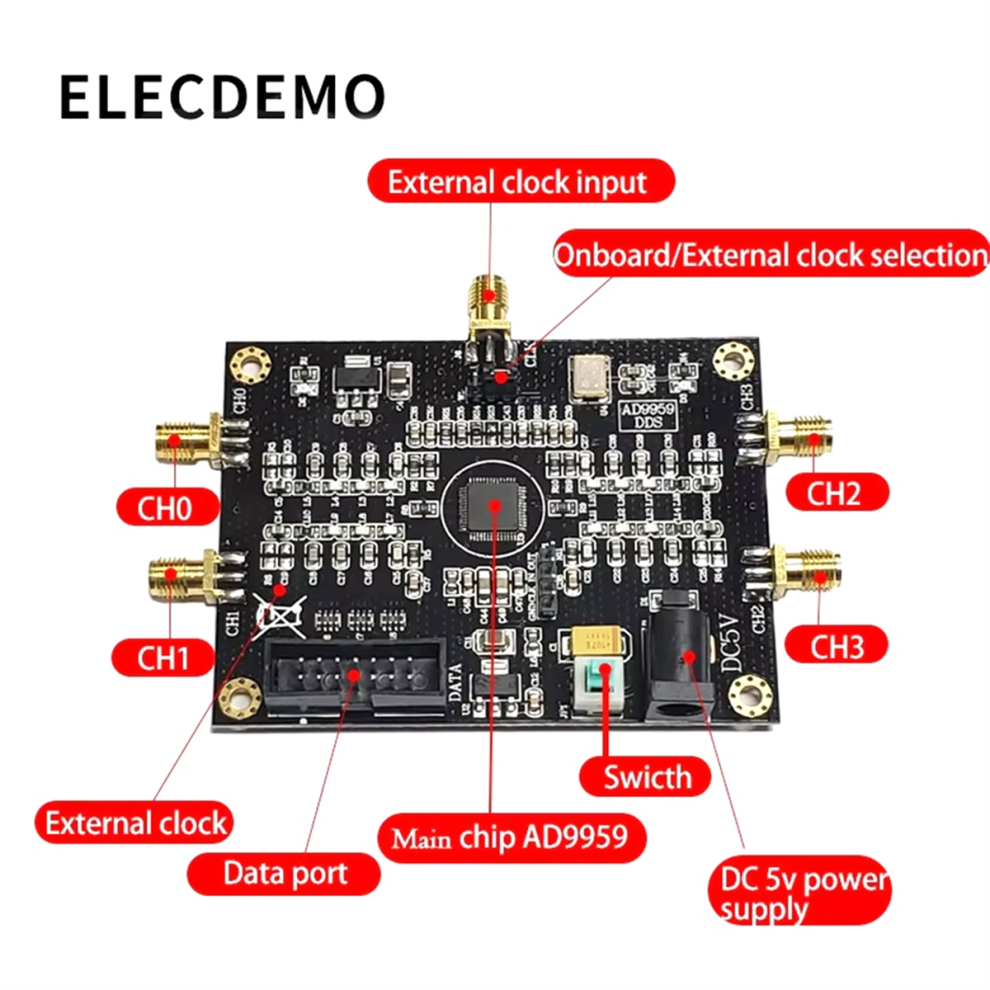

Module interface type: SMA signal output and external clock input, DC5.5 power socket, XH2.54-14PIN dual-row pin data interface
The AD9959 can perform up to 16th-order frequency, phase, or amplitude modulation (, , ASK) by applying data to the mode pins to perform modulation. In addition, the AD9959 also supports linear frequency, amplitude or phase scanning, which is suitable for applications such as radar and instrumentation. The serial I/0 port of the AD9959 can support multiple configurations, providing great flexibility. The four data pins (SDIO _0/ SDIO_ 1/SDIO. 2/SDIO_3) correspond to serial| /0's four programmable modes, thus providing flexibility.
