Audio Converter with IR Remote Control Digital Coaxial

Audio Converter with IR Remote Control Digital Coaxial Beschrijving

Audio Converter with IR Remote Control Digital Coaxial Description
Features:

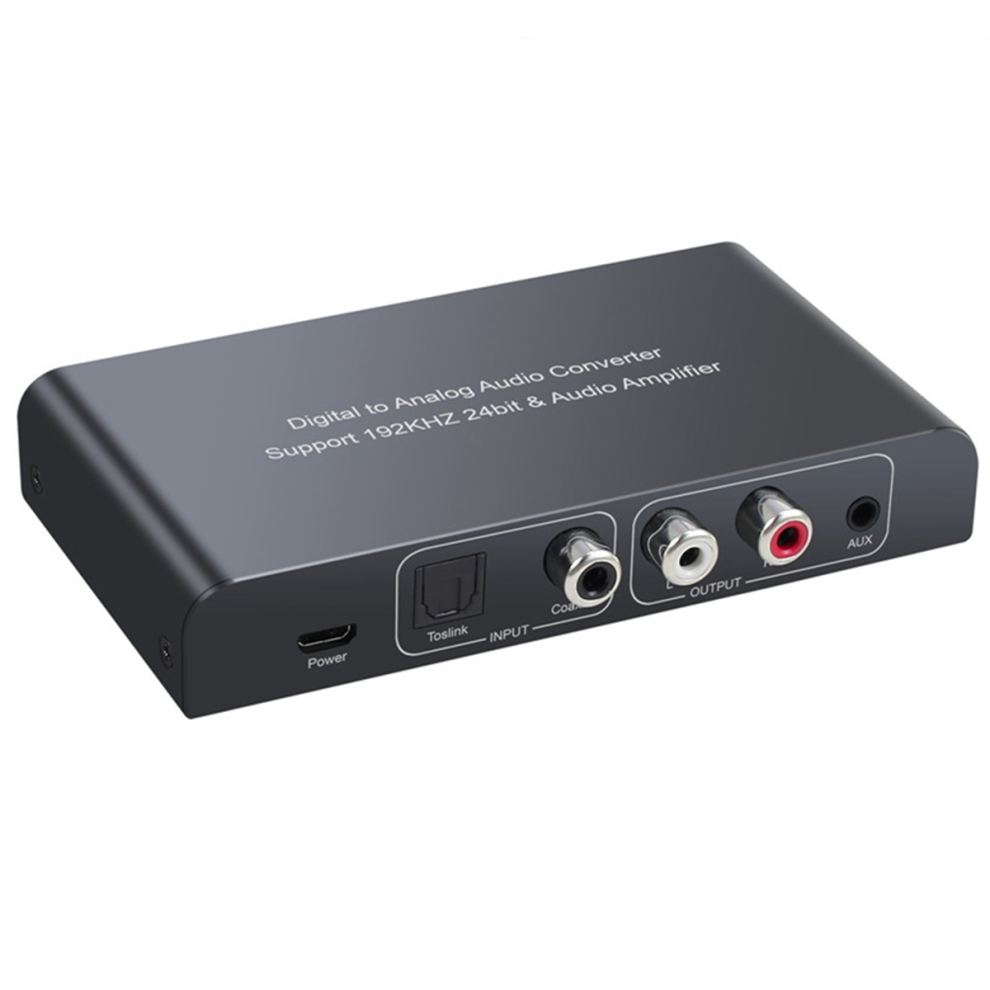

Digital to Analog Audio Converter, Convert Coaxial/ Toslink/ Optical to Analog L/R Audio, with 3.5mm Audio Output, It can Connect to the Headphone, Headphone Amplifier Function.
With IR wireless remote control, easily adjust volume/ choose coaxial or toslink input/ Mute/ Power ON or OFF by using the IR wireless remote. In order to received signal better please make sure the remote is facing the infrared IR indicator on the converter.
Supports 192kHz, 2.4Bit sampling rate.
Aluminum Metal case, and compact. Anti-interference function makes the sound pure and clear.
Specification:
color: Black
material: metal
Support Audio Format: PCM
Signal-to-Noise Ratio: 105DB
Separating Degree(1KHZ): 94DB
+N: -90DB
Total Harmonic Distortion(): 10Hz~20KHz 0.25-0.065%
Blocking Time: 0.577Fs
Sampling Rate: 32~192 KHz
Bit Rate: 16~24 Bit
Input Electrical Level: 0.3V
Output Electrical Level: 3V
Maximum Output Power: 0.3W
Earphone Output Power: 0-250mW
Output Impedance: 10 ohms
Working Voltage: +5V
Dimension: 4.54 inch x 2.45 inch x 0.76 inch
Weight: 160g
Please NOTE:
1. SET your TV's Audio Output to the PCM/LPCM Format.
2. This converter doesn't Support 5.1 Channel Such As and DTS.
3. Pro and Slim CANNOT use this converter as they haven't Optical fiber output interface.
4. For , if there is no sound even you set the audio output to the PCM/LPCM format, please turn ON the TV external speakers (Menus-Sounds- Speaker Setup- HESB/external speaker-ON)

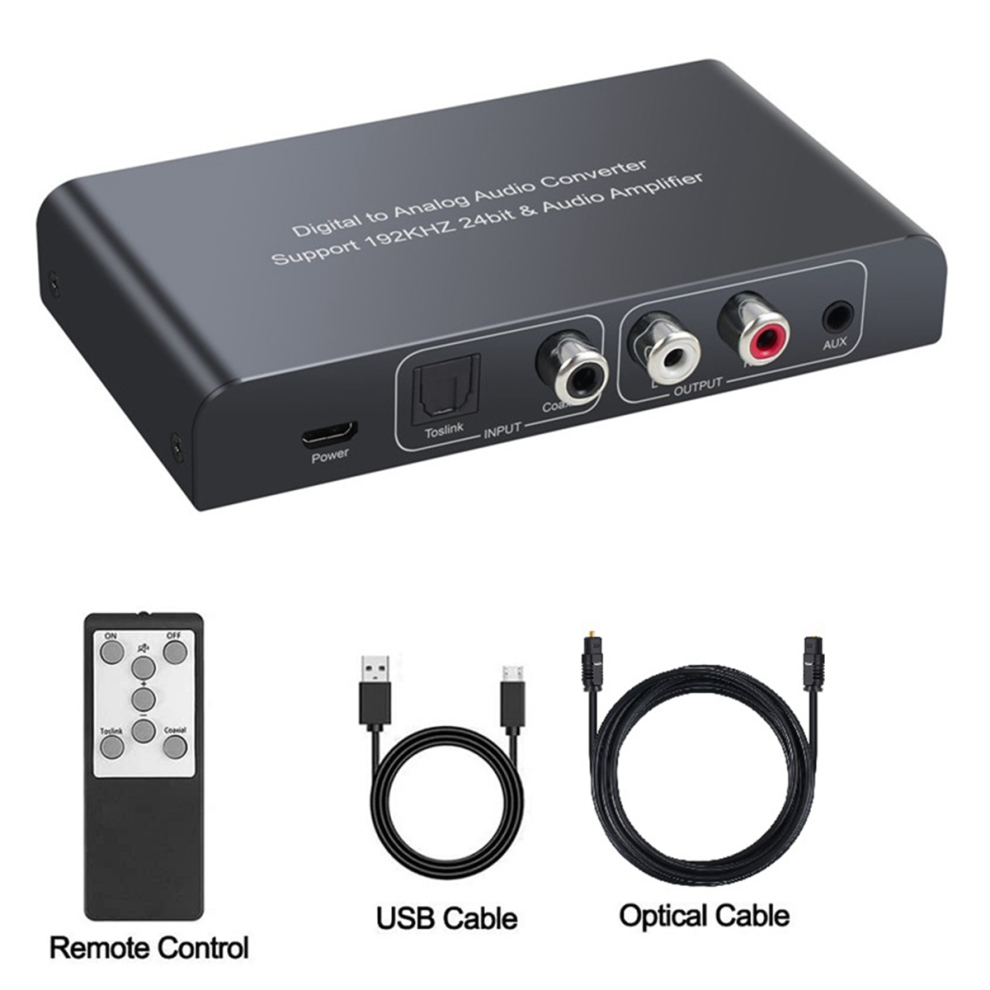

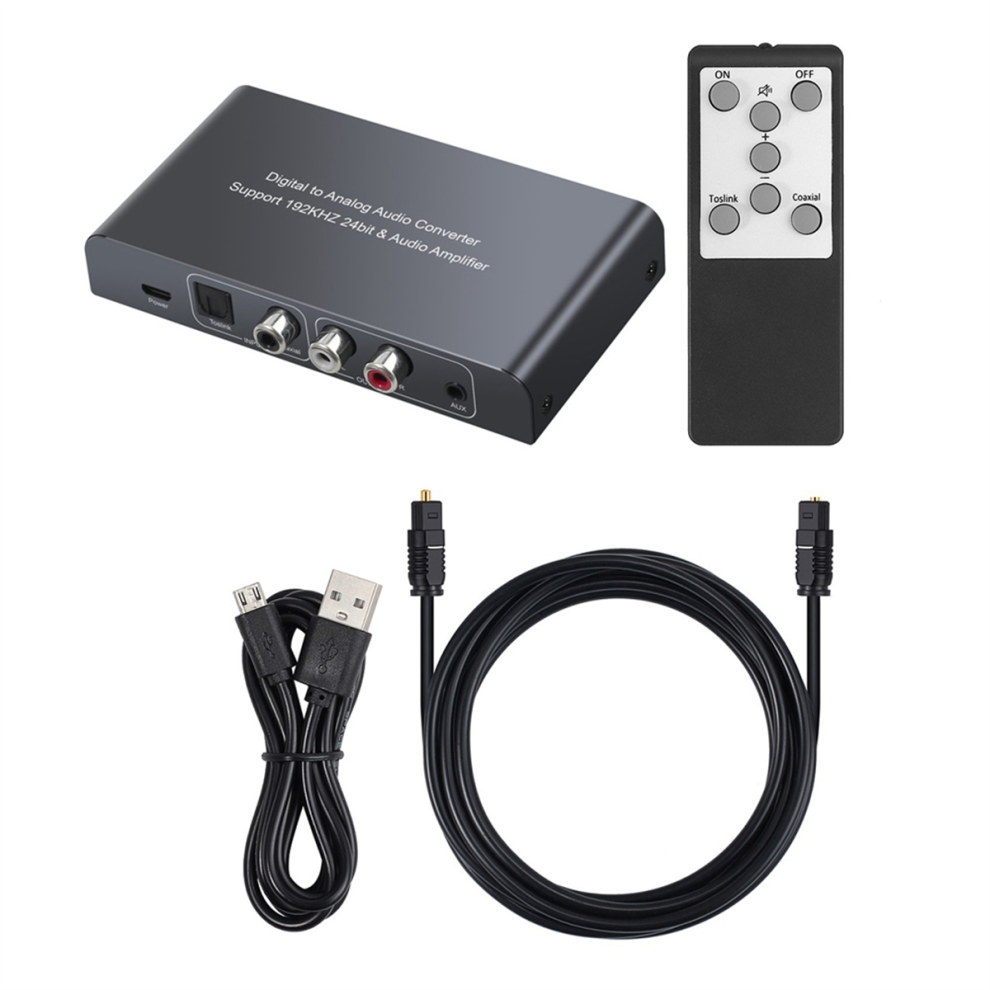

Package Contents:
1 x Digital to Analog Audio Converter
1 x IR Remote Control
1 x Toslink Cable (Optical Cable)
1 x USB Cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
