Battery Voltage Internal Resistance Tester HRM-10 High Precision

Battery Voltage Internal Resistance Tester HRM-10 High Precision Beschrijving

Battery Voltage Internal Resistance Tester HRM-10 High Precision Description

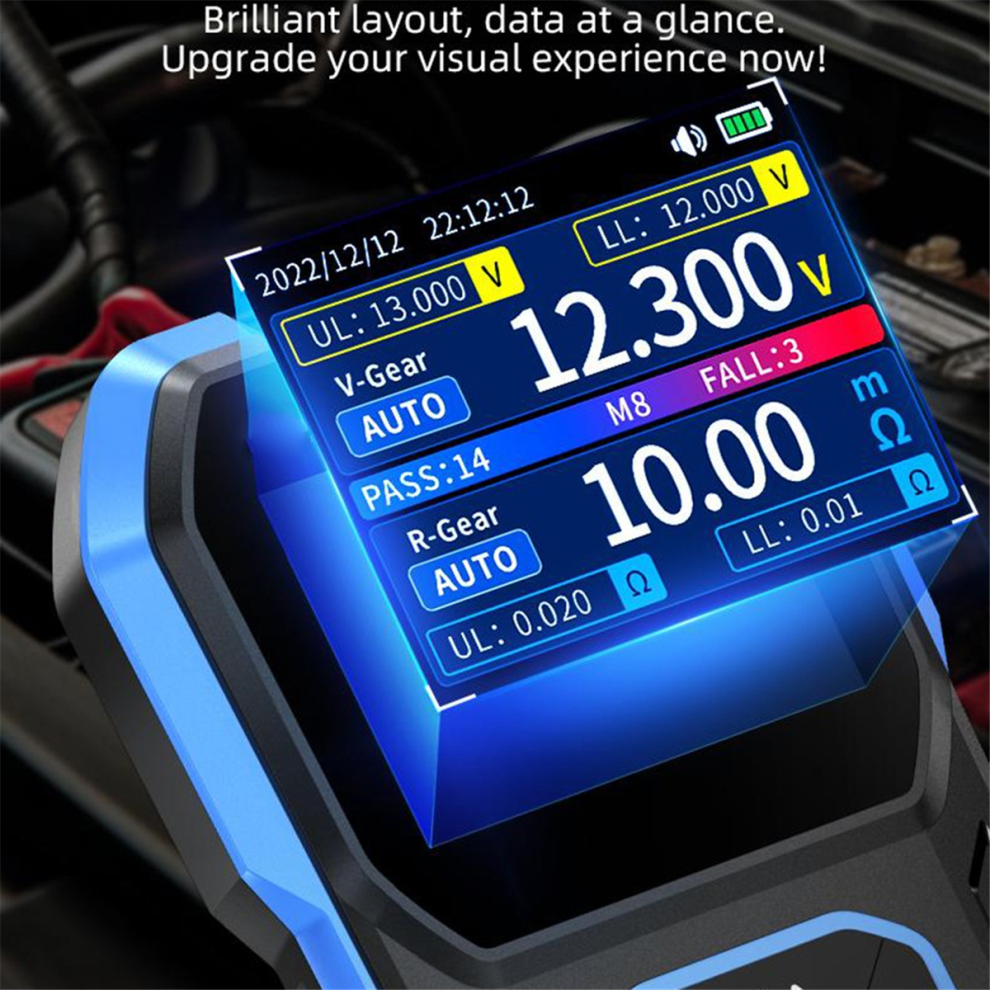

High-definition color screen display: TFT high-definition color screen is used, the screen layout is ingenious, the function data is clear at a glance, and the visual recognition efficiency is faster and smoother.

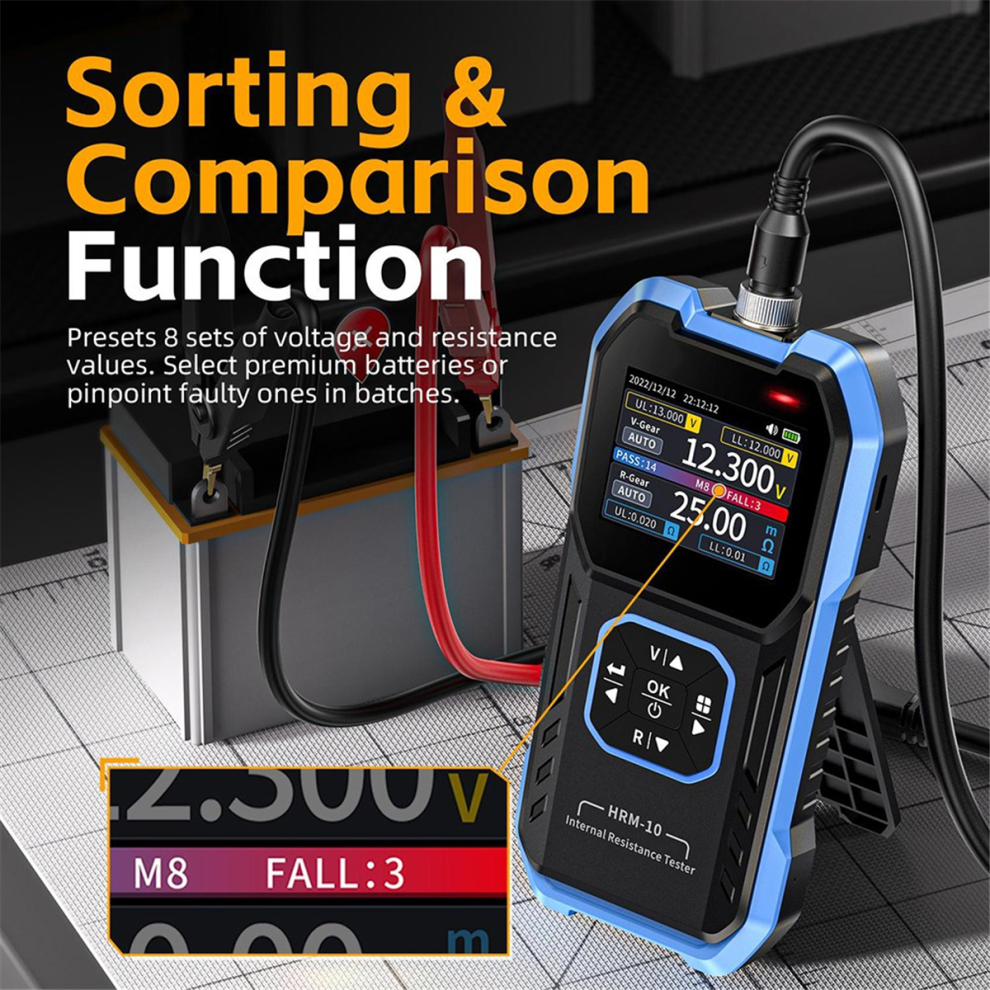

Sorting and comparison function: Eight groups of voltage and resistance values are pre-set. Whether it is batch screening of high-quality batteries or precise positioning of problem batteries, it can be completed in an for instant, greatly improving work efficiency.

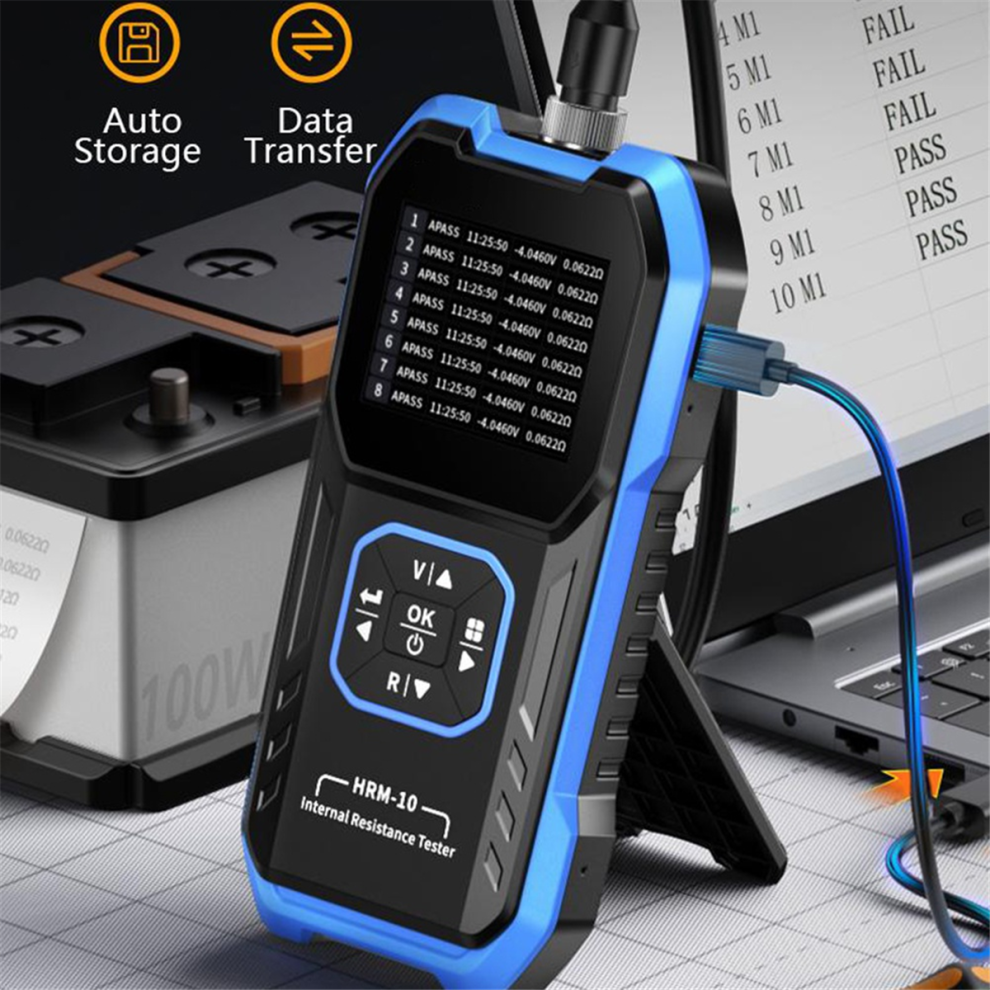

Full-process recording: Equipped with automatic retention of test records, so that the test results are clear at a glance, and say goodbye to vague memories. It can also be connected to a computer to export and analyze test data.
Touch and know: The test uses a Kelvin 4-wire connection to connect and measure, avoiding the influence of wire resistance and contact resistance, and improving test accuracy.
Data retention: 1-click pause, the measured data is permanently displayed.
Automatic shutdown mode: you can freely choose the automatic shutdown mode or set a specific shutdown time.
Part Name: Internal resistance tester
Model: HRM-10
Range: Voltage 0-100V (DC); Resistance 0-200Ω
Accuracy: Voltage 0.5%; Resistance 0.5%
Gear: Voltage: Automatic, 1V, 10V, 100V; Resistance: Automatic, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
Instrument test signal frequency: AC 1Khz
Charging: TYPE-C interface (5V/1A)
Built-in battery: 1000mAh lithium battery
User calibration: Support
Sorting mode: Support
Historical record: Support
Record data export: Support
Working environment: -10-+45, relative humidity Less than 80%
Storage environment: -20-+80, relative humidity Less than 80%
Size:158.7x80.5x28.4mm
Weight:225g
Colour:As Shown
Material:Plastic
Package Contents:
1 * Internal Resistance Meter
1 * Internal Resistance Meter Probe
1 * Internal Resistance Meter Kelvin Clip
1 * Battery Holder
1 * USB Cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
