CM4-uitbreidingsmodule + SIM7600G 4G-module, complete kit, EU-stekker

CM4-uitbreidingsmodule + SIM7600G 4G-module, complete kit, EU-stekker Beschrijving

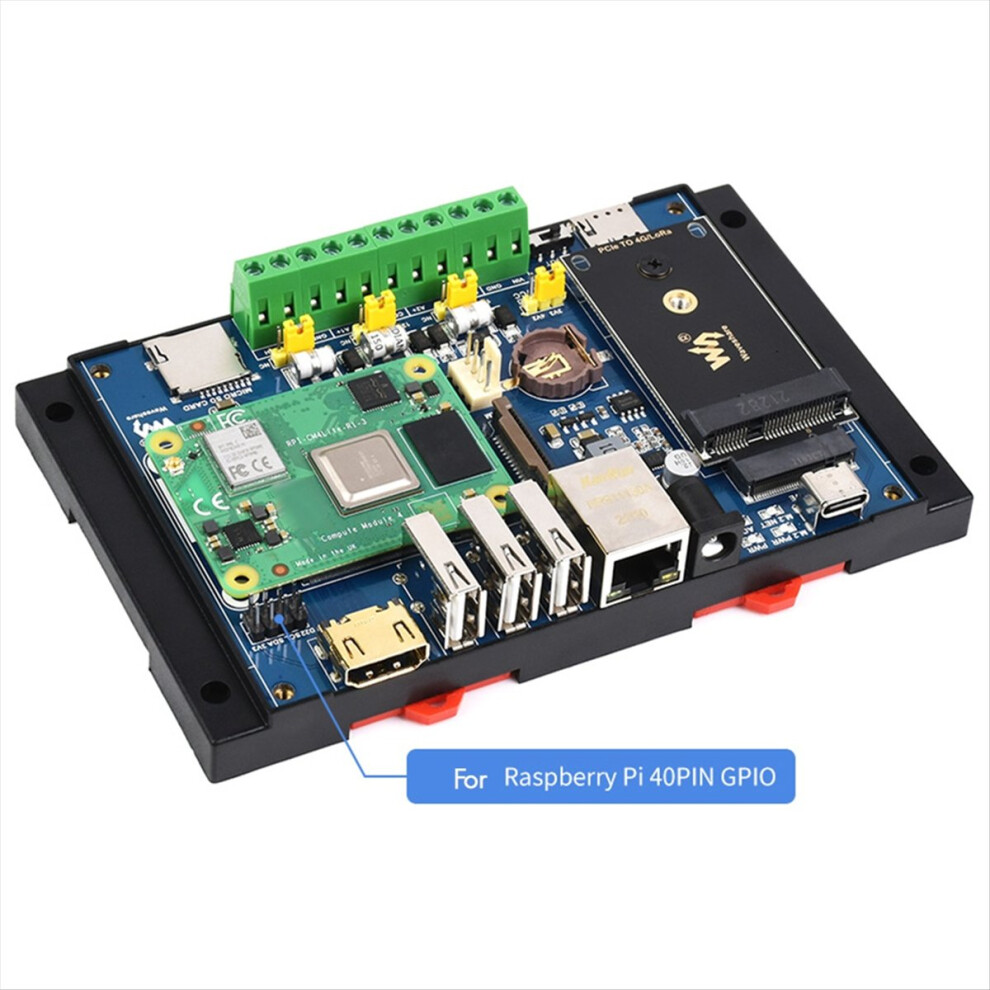

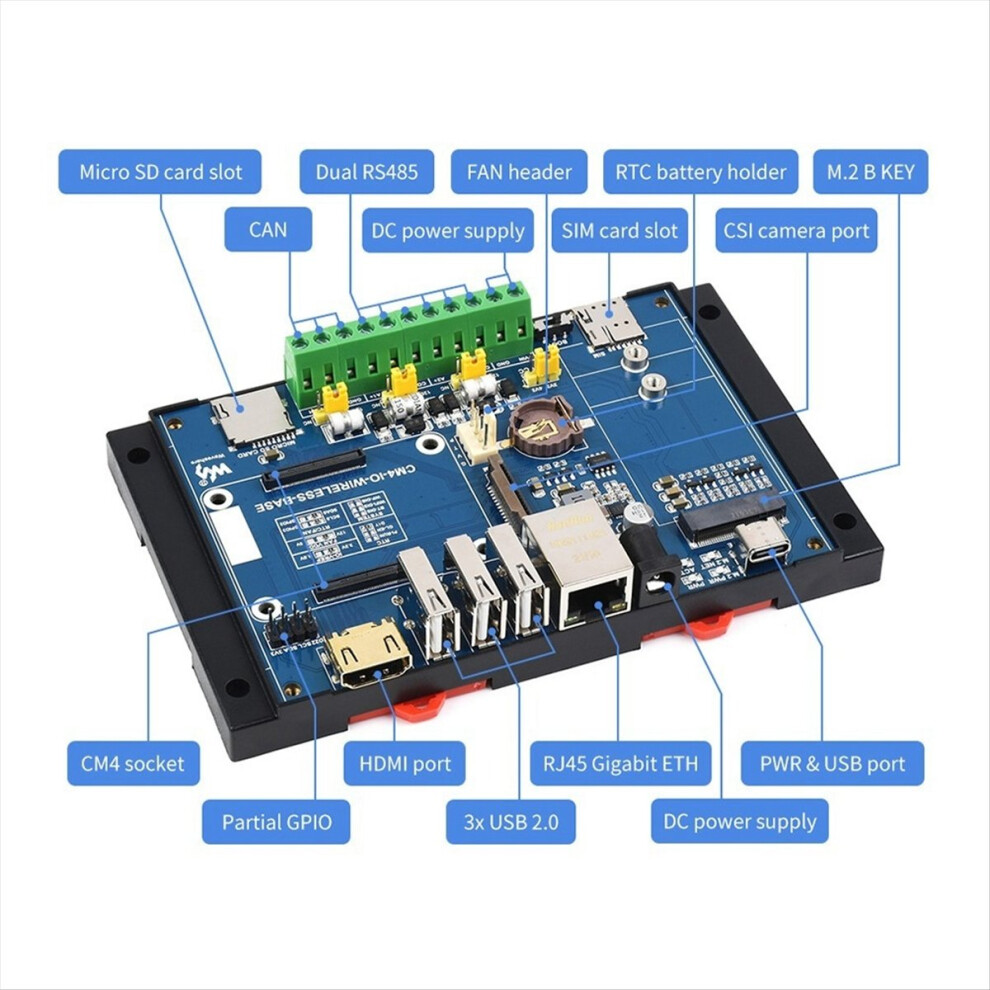

The industrial expansion module designed based on CM4 has common interfaces such as Gigabit Ethernet, , USB and GPIO on board, supports external wireless communication modules such as 4G/5G/LoRa through M.2 or Mini-PCIe, and also expands industrial interface resources such as RS485, CAN and RTC. The industrial rail housing design is very suitable for building IoT gateways, 4G/5G routers
Colour:Black
Material:ABS

Precautions for use
1: Do not unplug or plug any device except USB and when powered
2: Confirm the fan voltage before connecting. 5V and 12V are supported. 12V is connected by default. Please modify the resistance of FAN_VCC when switching
3: In order to the normal power supply of CM4, please do not connect other devices when burning the image using the Type C interface.
4: The module needs to provide 5V 2.5A /12V 1A or higher power supply. Otherwise, there may be problems such as automatic shutdown, frequency reduction, etc.
5: Do not power the 12V DC interface and the 5V Type c interface at the same time
6: USB2.0 is turned off by default. If you need to turn it on, you need to add dtoverlay=dwc2,dr_mode=host in config.txt
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.
Plug Type: EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
Voltage: AC100-240V

Package Contents:
1x Extension modules Kit
1x Power adapter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
