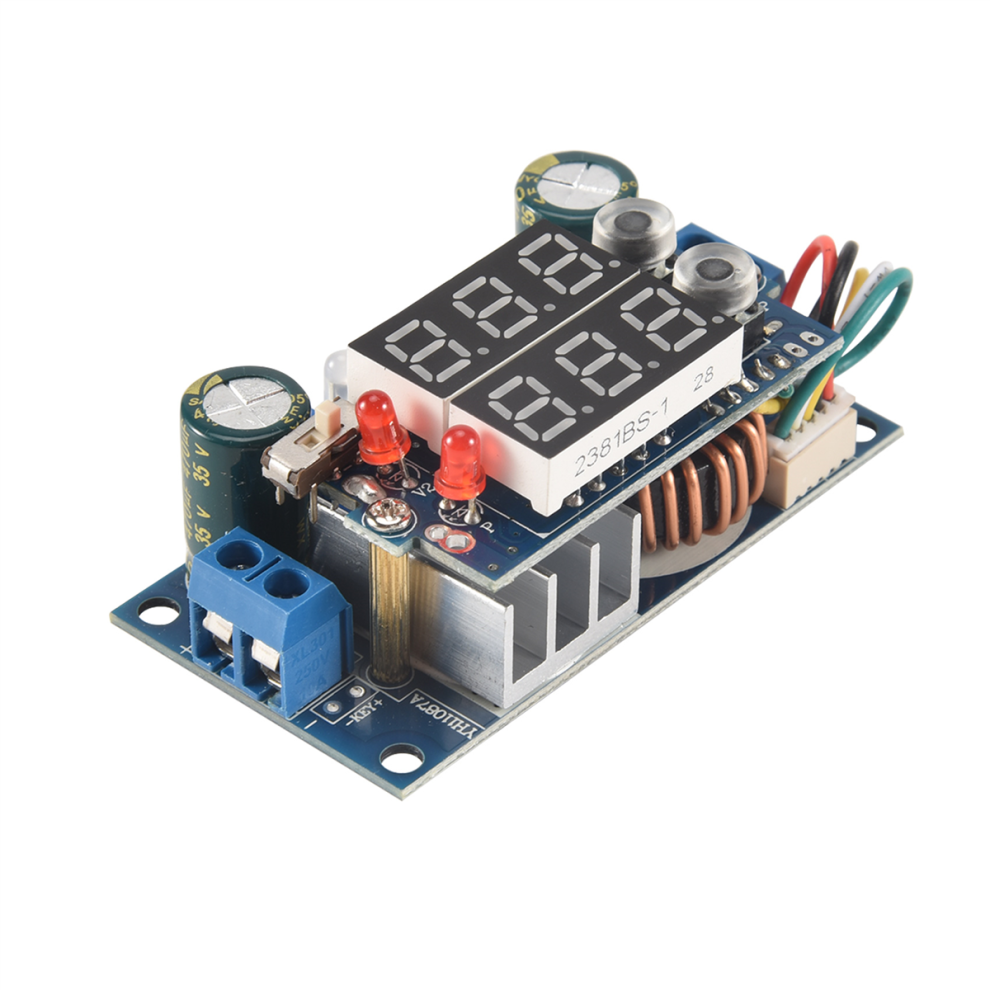

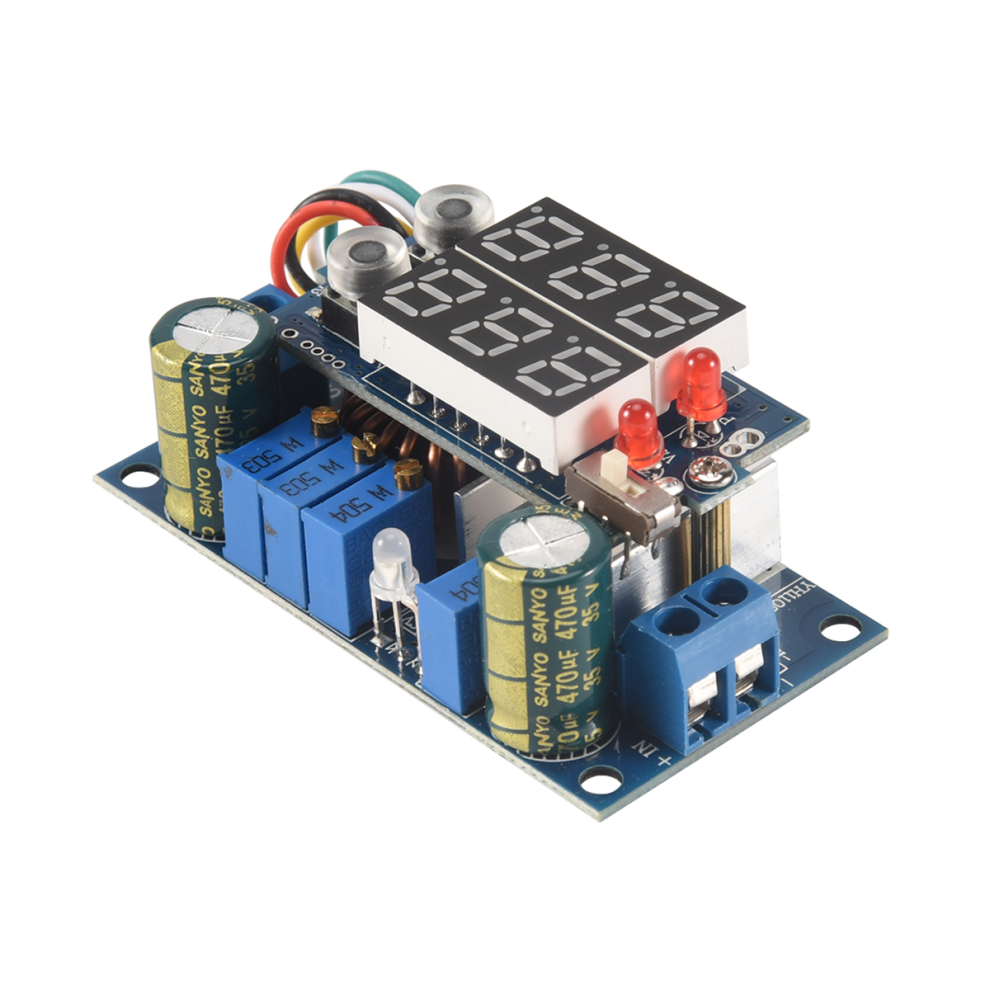

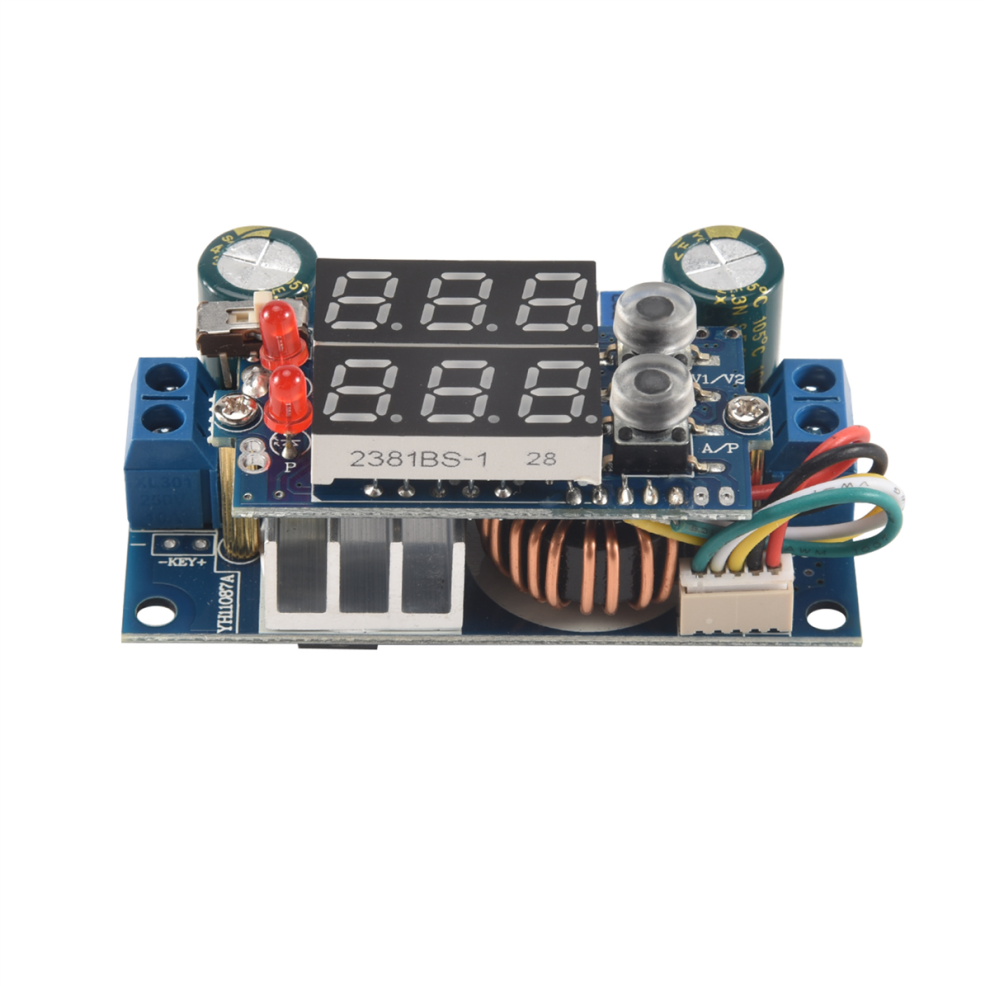

DC 6-36V 5A MPPT LED Digital Solar Panel Controller DC-DC Step Module

DC 6-36V 5A MPPT LED Digital Solar Panel Controller DC-DC Step Module Beschrijving

DC 6-36V 5A MPPT LED Digital Solar Panel Controller DC-DC Step Module Description

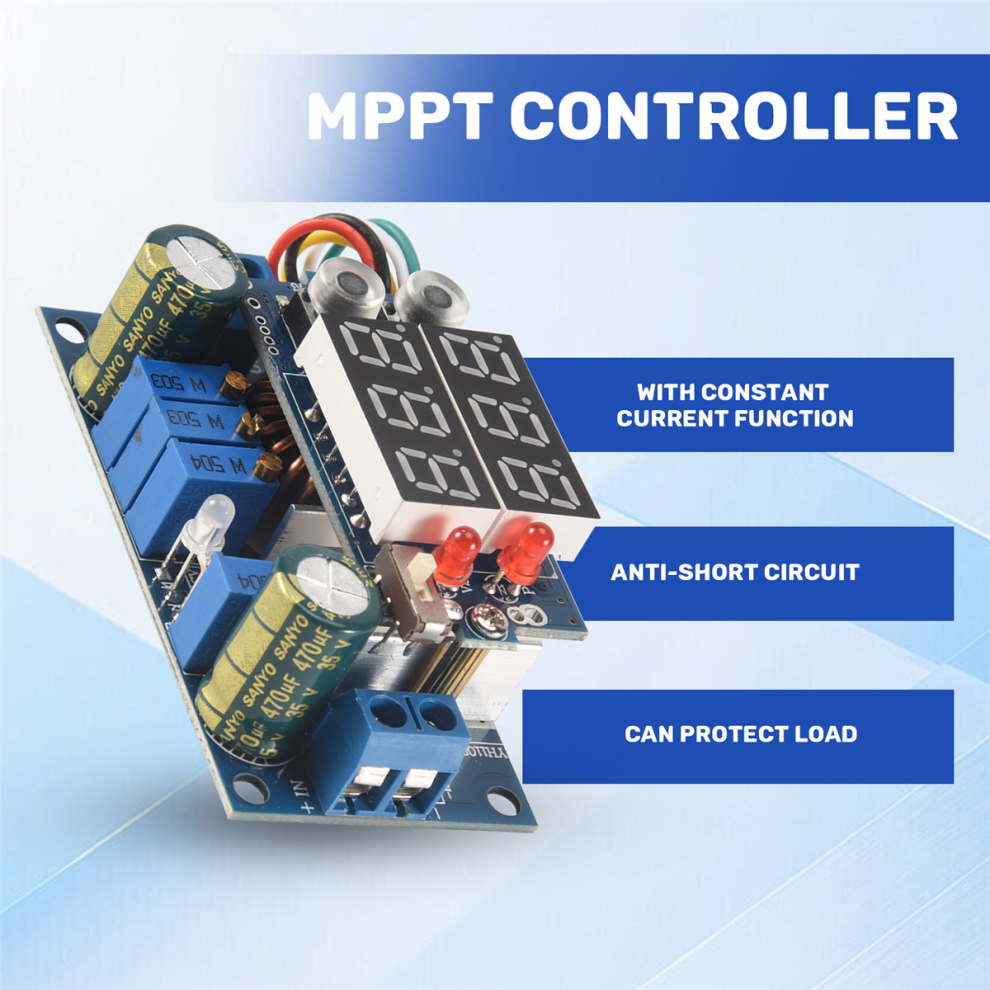

1. DIY a voltage Regulator, with constant current function, Short-circuit proof, can protect the load.
2. It can power supply for electronic devices.
3. Charging indicator: charging red, bright green when fully . Turn lamp is the output current detection.
4. charger for all kinds of batteries, with MPPT function, can enhance the charging current to double. With a constant current and prevents battery overcharge, effective protection of the battery.
5. it can support high-power LED. As a car power supply , it can for your cell phone or digital products supply.
1. Module Name: 5A buck constant voltage constant current MPPT
2. Module Properties: Non-isolated buck module (BUCK)
3. Input voltage: 6-36V
4. Output voltage: 1.25-32V continuously adjustable (the default output 5V). MPPT voltage setting range: 6-36V
5. Output current range: 0.05-5A (The default output current is 3A)
6. Turn lights output range: 0.01-5A (default turn lamp current 0.3A)
7. Operating temperature: -40 to + 85 degree
8. Operating frequency: 180KHz
9. Conversion efficiency: up to 95% (efficiency, input & output voltage, current and pressure-related)
10. Over temperature protection: (automatically shut off the output after overtemperature)
11. Input reverse polarity protection: None, (if necessary, please add into the diode)
12. Output anti-anti-irrigation protection: no, the output must be connected to the battery plus blocking diode, otherwise it burn the module!
13. Installation: 4 pcs 3mm screws
14. Connection: IN is the input, OUT is output
15. Module dimensions:60 x 31 x 22 mm(without meter)
Note: Detection module, please do not direct connect the output of negative electrode and the input of negative electrode
colour:Blue
Material:plastic
size:60 x 31 x22mm
Package Contents:
1 x Digital Solar Panel Controller
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
