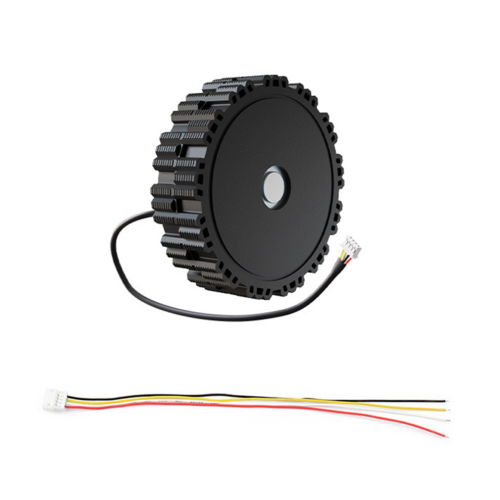

DC Servo Motor High Torque Low Speed Integrated Wheel Hub Motor

DC Servo Motor High Torque Low Speed Integrated Wheel Hub Motor Beschrijving

DC Servo Motor High Torque Low Speed Integrated Wheel Hub Motor Description

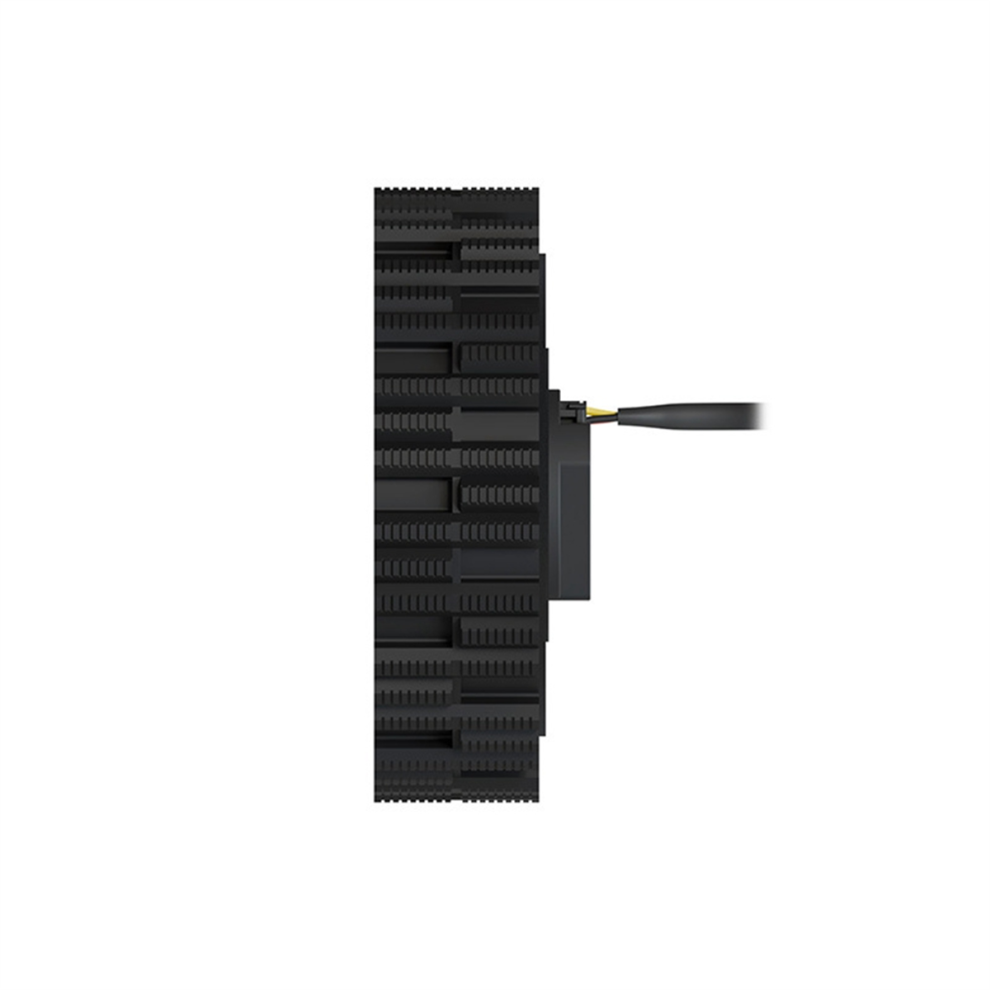

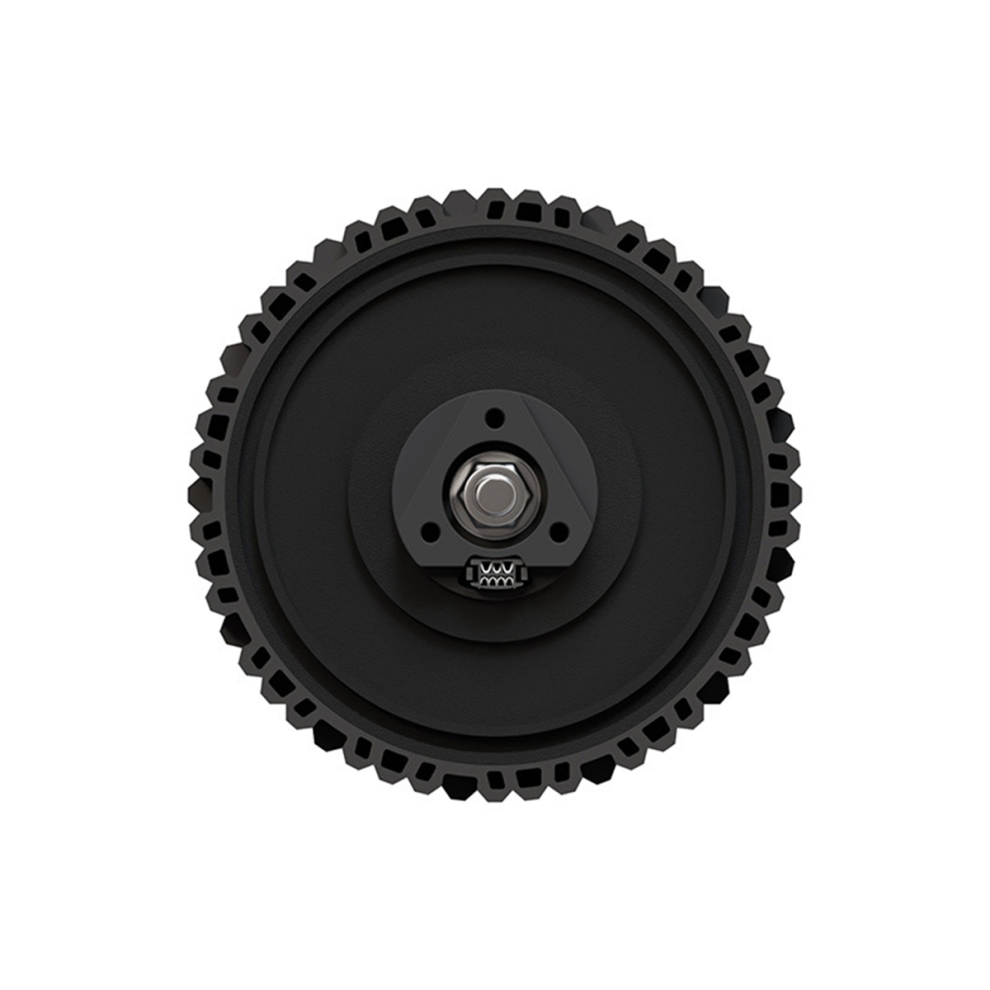

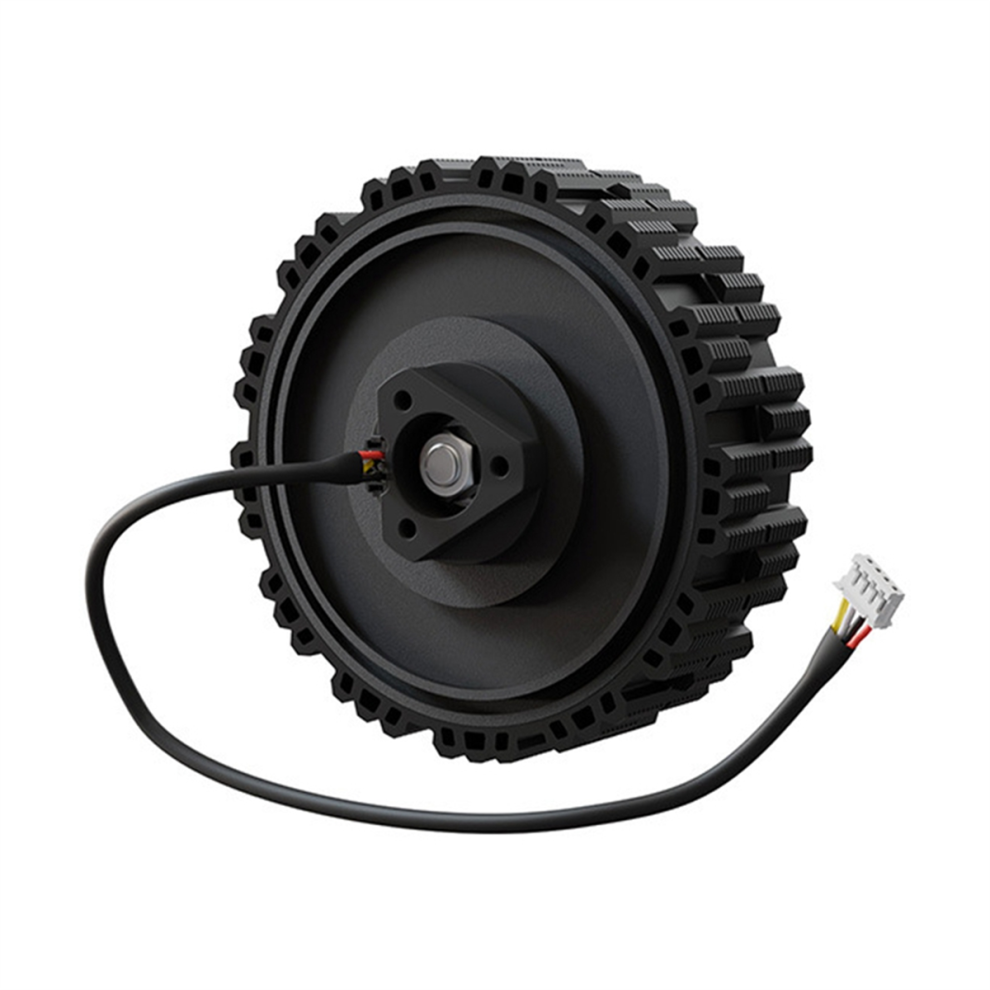

The DDSM210 direct-drive servo motor is a high-reliability permanent magnet synchronous motor based on the integrated development concept, integrating an outer rotor brushless motor, an encoder, and a servo drive. It has a compact structure, easy installation, stable operation, small size, and high torque.
It is particularly suitable for the following direct drive fields: robot joints, small AGV drive wheels, balance car drive wheels, development of vehicle-mounted platforms and other advanced robot projects
The driver adapted to this motor uses a field-oriented control (FOC) algorithm, combined with the motor's built-in high-precision sensor to achieve precise control of the motor and better quietness
Best performance: The DDSM210 direct-drive servo motor is designed for remote control cars and robots, providing excellent control and stability. Its low-speed, high-torque capabilities ensure powerful and precise movement
Quiet operation: This servo motor is designed to run quietly, which enhances the user experience without the noise interference commonly found in similar motors
Versatile design: This motor uses an integrated hub design to simplify installation and maintenance, making it an ideal choice for DIY enthusiasts and professionals
No-load speed: 21010rpm
No-load current: 0.15A
Rated speed: 98rpm
Rated torque: 0.25Nm
Rated current: 0.5A
Stalled torque: 0.85Nm
Stalled current: 3A
Input voltage: 11-22V DC
Ambient operating temperature: -25-45
Machine weight: 260g
Encoder resolution: 4096
Relative accuracy: 1024
Noise level: 48dB(A)
Single wheel load: 3Kg
Colour:black
Material:plastic
Package Contents:

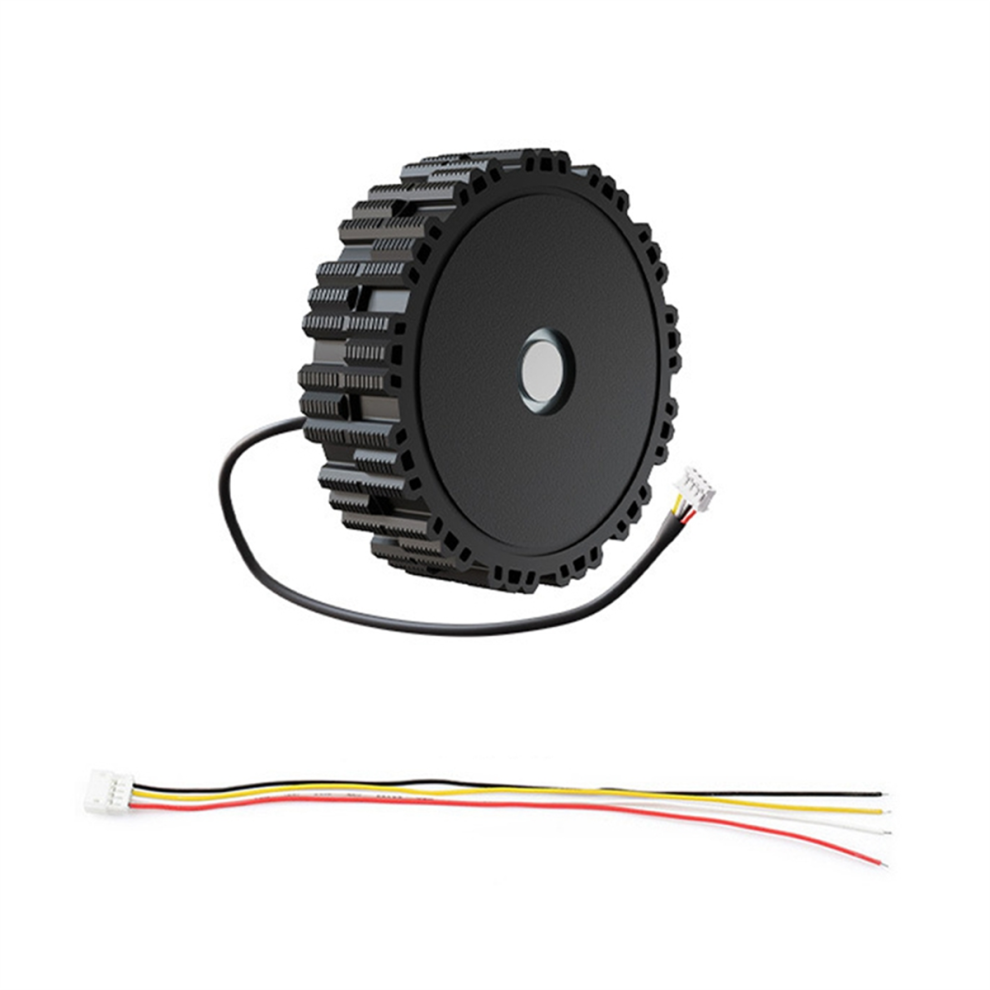

1 * DC Servo Motor
Only the above package content, other products are not included.
