Digital Handheld Battery Internal Resistance Tester Cell Internal Resistance Meter Gauge

Digital Handheld Battery Internal Resistance Tester Cell Internal Resistance Meter Gauge Beschrijving

FEATURES
The battery internal resistance tester can measure internal resistance and voltage of the battery at the same for time. The Kelvin four-wire test clamp is adapted in order to better avoid the influence of contact resistance and wire resistance, and more accurate measurement can be performed
This product adopts intelligent contrl, liquid crystal display, and simultaneous insertion of Kalman flter mathematical algorithm, which has the advantages of high precision, high eficiency, low cost, light weight, energy saving and environmental for protection. Built-in 1000mAh lithium battery,5V charging. Android mobile phone charger can be used, which is very convenient.
This product is widely used in various battery production, maintenance, testing, scientific research laboratories and other occasions.It can also be used to measure AC resistance of capacitors and resistors with low resistance and high precision.
SPECIFICATIONS
Parameters Accuracy:AC resistance, for DC voltage, R:0.5%, V:0.5%
Measurement Range,Signal SourceRange:
R:0.01mQ ~200MV:0.001V~t75VDCV
AC:1kHz At 20m@ range:50mA At 200mQ/ 2Qrange
5mA At 20Q/200Q range:0.5mA
R:Automatic and Manual.5ranges
V: Automatic and Manual,3 ranges
Speed:10 times/second
Adjustment: Correction for resistance and voltage separately
Factory Setting: Save factory information, restore factory state with one key
Backlight: Can turn it on/off by entering setting menu
Energy Saving Settings: 30 minutes delay, it will be turned off automatically if no operation
Application: Battery maintenance for mobile, computer, battery car;battery factories check and test
Result Display: LCD display, direct reading
GENERAL FEATURES
Power Supply: Built-in lithium battery, Be suitable to use5V1A Android mobile phone charger
Size: 166mm (Length)~80mm(Width)28mm(Height) 173.5g
Language:English and Chinese switchable

Note:
1. calibrated before shipment, please do not arbitrarily restore the factory
2. If you need software, please contact us.

Package include:
1* Battery Internal Resistance Tester

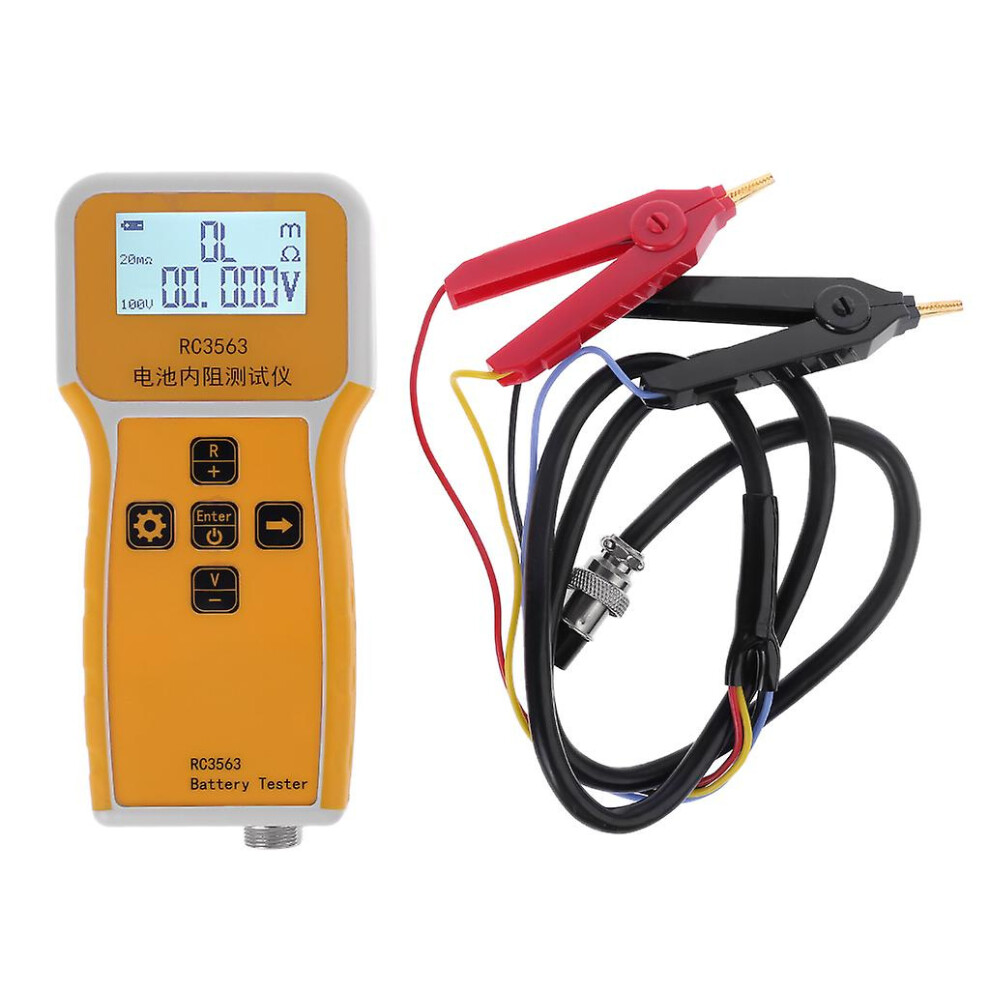

1* Test clip
1* User's manual
