ESP32-P4-Module Development Board with 5MP OV5647 Camera Speaker

ESP32-P4-Module Development Board with 5MP OV5647 Camera Speaker Beschrijving

ESP32-P4-Module Development Board with 5MP OV5647 Camera Speaker Description
High-performance MCU with RISC-V 32-bit dual-core and single-core processors
Powerful image and voice processing capabilities, image and voice processing interfaces include JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), H264 video encoder
Chip package stacked 32MB PSRAM, module integrated 16MB Nor Flash

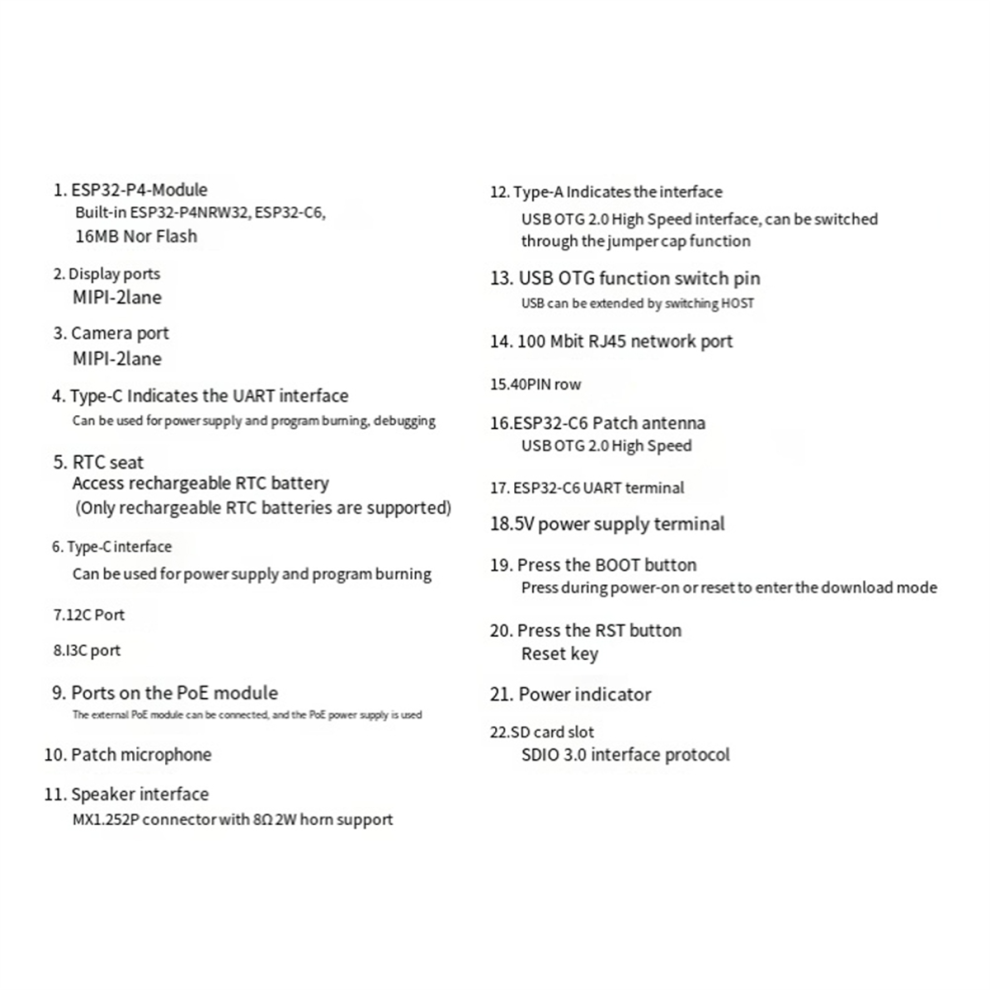

Common peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0, SD card slot, microphone, speaker terminal and RTC battery terminal are brought out on the board
2*20 pin headers on the board, 28 remaining programmable GPIOs
This product is a multimedia development board based on ESP32-P4, integrated with ESP32-C6, supporting Wi-Fi 6 and Bluetooth 5 wireless connections. It provides a rich set of human-computer interaction interfaces, including MIPI-CSI PWM, MCPWM, RMT, ADC, UART, TWAI, etc. In addition, it supports USB OTG 2.0 HS, reserves an RJ45 Ethernet interface for expandable PoE, and has an onboard 40PIN GPIO expansion interface, which is compatible with some for Raspberry Pi HAT expansion boards to achieve a wider range of application adaptation.
ESP32-P4 uses a 400MHz dual-core RISC-V processor, supports a maximum of 32MB PSRAM, and has peripherals such as USB 2.0, MIPI-CSI/DSI, and H.264 encoding to meet the needs of low-cost, high-performance, and low-power multimedia development.
In addition, ESP32-P4 integrates digital signature peripherals and a dedicated key management unit to ensure data and operation security. ESP32-P4-Module-DEV-KIT is designed for high-performance and high-security applications to meet the needs of embedded systems in human-computer interaction, edge computing, 10 expansion, etc. (Integrated Image Signal Processor ISP), MIPI-DSI, SPI, I2S, I2C, LED
The product appearance and printed words may vary depending on the batch, but this does not affect use.
Colour:As Shown
Material:PCB
Package Contents:
1 * ESP32-P4-Module
1 * Speaker
1 * OV5647 Camera
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
