ESP32-S3 1.3inch Display Development Board, 240x240 Pixels

ESP32-S3 1.3inch Display Development Board, 240x240 Pixels Beschrijving

ESP32-S3 1.3inch Display Development Board, 240x240 Pixels Description
The ESP32-S3-LCD-1.3 is a low-cost, high-performance MCU board equipped with 240MHz dual-core processor. It is compact in size, with onboard 1.3inch 262K color LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RGB LCD, and Wi-Fi/Bluetooth antenna, which makes it easy for you to develop and integrate it into products quickly.
Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna.
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory.
Type-C connector, keeps it up to date, easier to use.
Onboard 1.3inch 240x240 pixels 262K display for clear and colorful pictures.
Built-in ST7789V2 display driver, using SPI communication, effectively saving the IO resources.
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures and other applications.
Onboard 3.7V MX1.25 lithium battery recharge/discharge header.
Adapting 13PIN 2.54mm GPIO header for connecting peripherals and debugging, supports flexible configuration of pin functions.
Optional for prism cube to enhance the optical display effect and greater expandability.
Note:due to different production batches, there are differences in printing screen printing, which does not affect the use.
Colour:Black
Material:PCB
Package Contents:

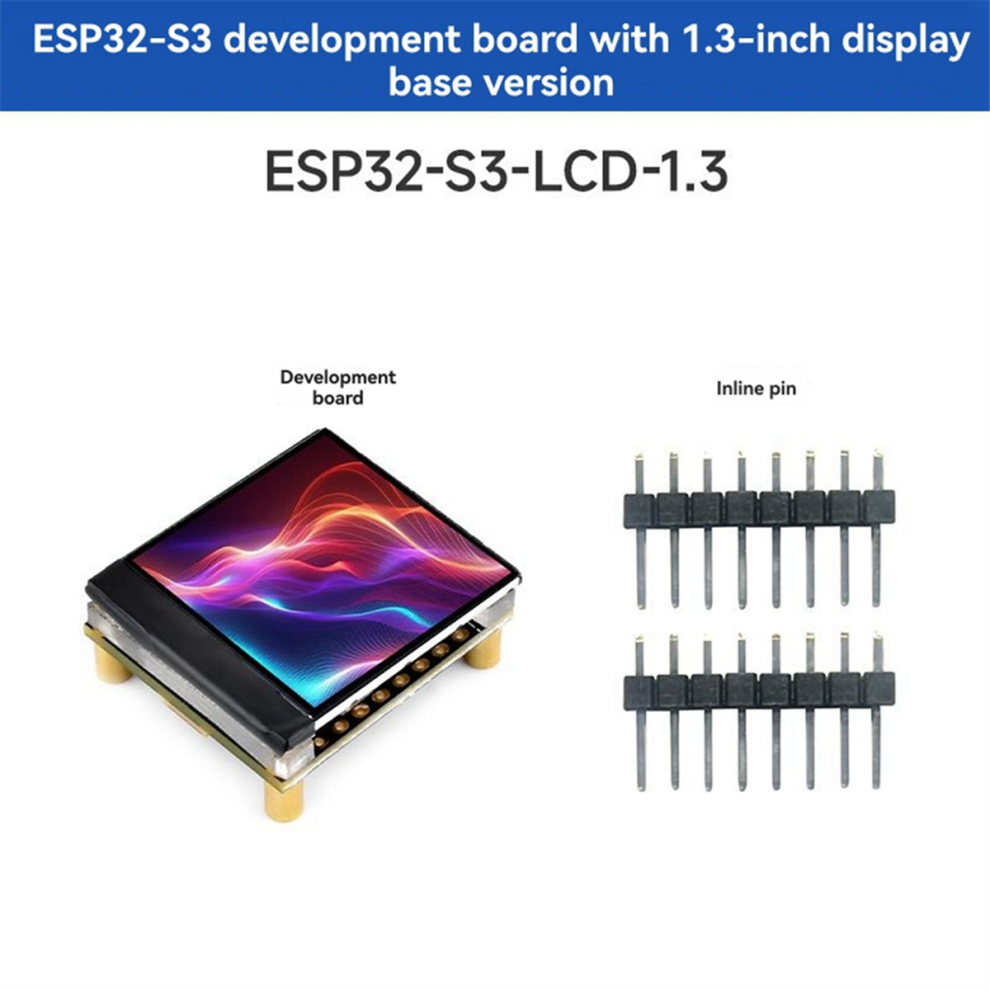

1 * ESP32-S3 1.3inch Display Development Board
2 * pin
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
