ESP32-S3 1.3inch LCD Display Development Board 240x240 Pixels

ESP32-S3 1.3inch LCD Display Development Board 240x240 Pixels Beschrijving

ESP32-S3 1.3inch LCD Display Development Board 240x240 Pixels Description

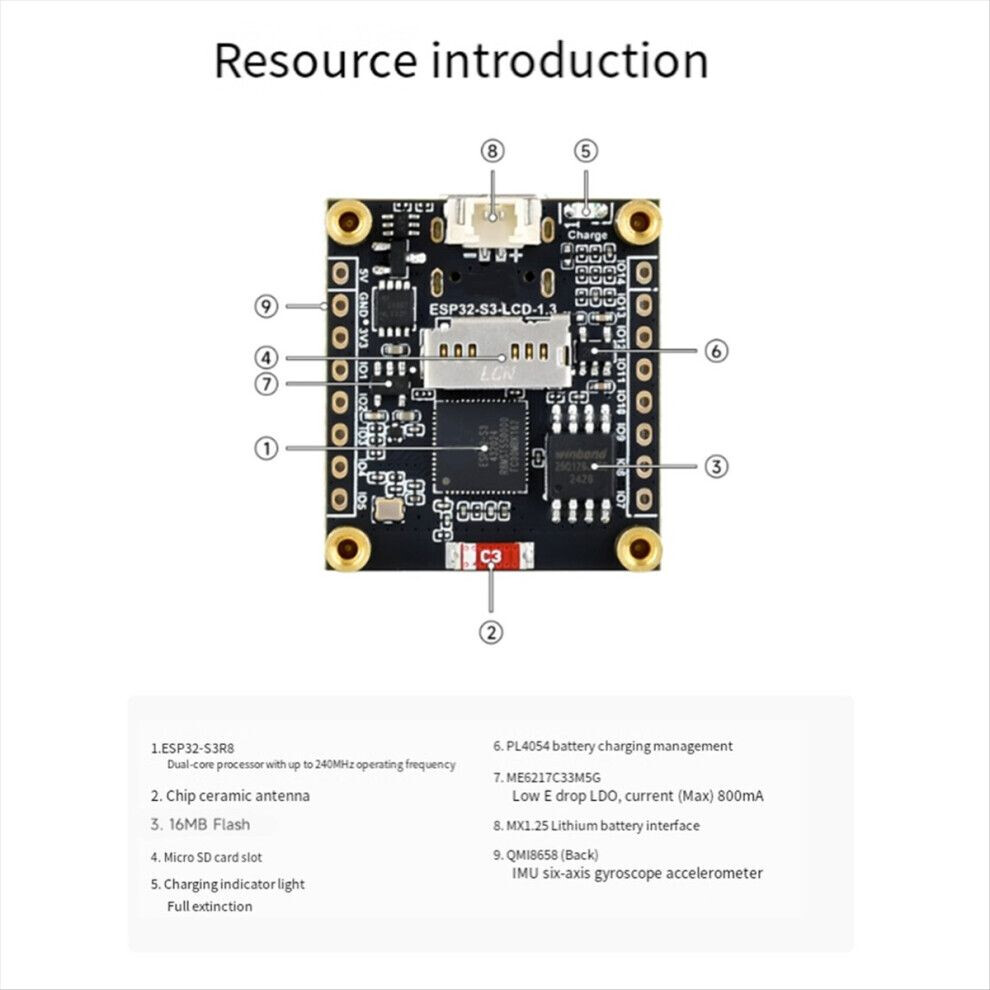

This product is a low-cost, high-performance microcontroller development board equipped with a 240MHz dual-core processor. In a small form factor, it is equipped with a 1.3-inch 262K color LCD screen, a lithium battery charging chip, a six-axis sensor (three-axis accelerometer and three-axis gyroscope), RGB lamp beads, and a Wi-Fi/Bluetooth antenna, making it suitable for development and embedding applications into products.
Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB SRAM and 384KB ROM, stacked with 8MB PSRAM and external 16MB Flash
Use Type-C interface, no need to worry about plugging in the right or wrong direction
Onboard 1.3-inch LCD screen, 240x240 resolution, 262K color, can clearly display color images.
Built-in ST7789V2 driver chip, using SPI does not occupy too many interface pin resources.
Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope) can detect motion posture and expand applications.
Onboard 3.7V MX1.25 lithium battery charging and discharging interface.
Lead out 13PIN 2.54mm pitch GPIO interface, can be used for external devices and debugging, flexible configuration of peripheral functions.
The product appearance and printed words may vary depending on the batch, but this does not affect use.
Colour:As Shown
Material:PCB+LCD
Package Contents:
1 * 1.3inch LCD Display Development Board
1 * pin header
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
