Esp32-S3 1.43-Inch Round LCD Screen Amoled Capacitive Touch Screen B

Esp32-S3 1.43-Inch Round LCD Screen Amoled Capacitive Touch Screen B Beschrijving

Esp32-S3 1.43-Inch Round LCD Screen Amoled Capacitive Touch Screen B Description

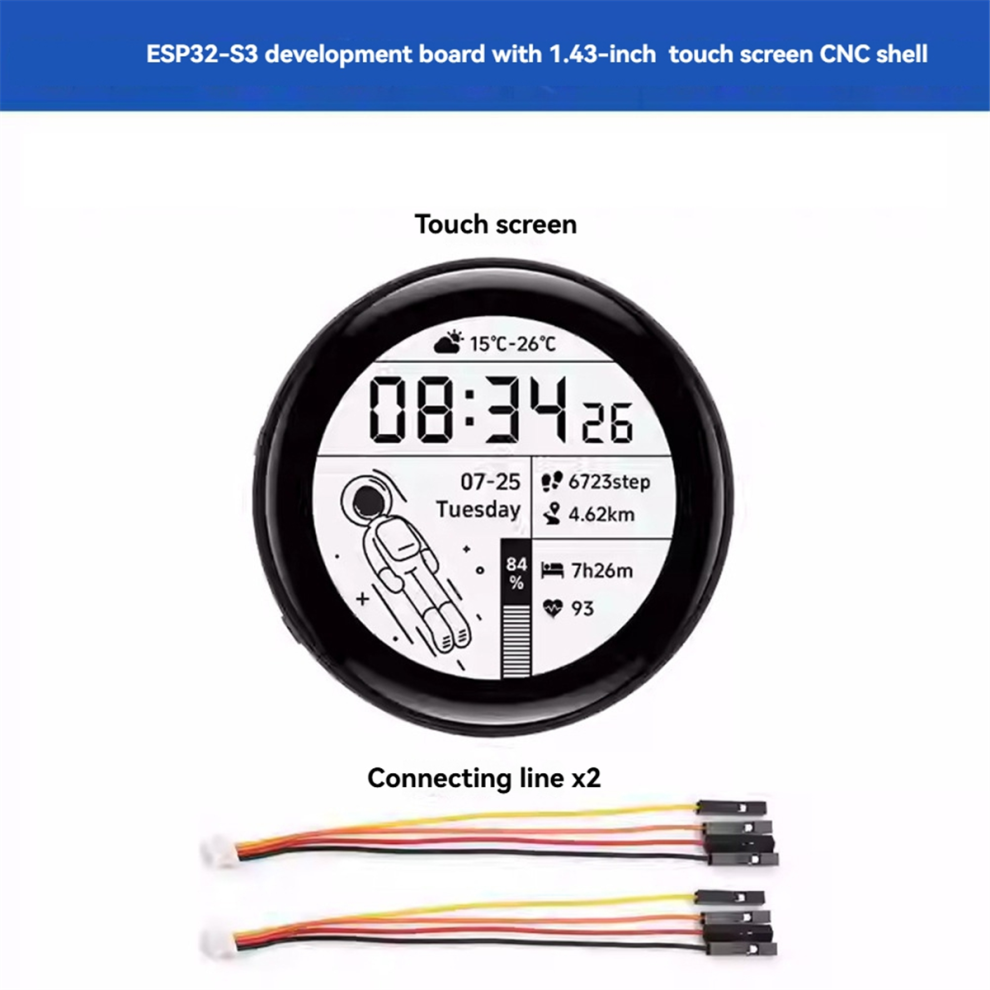

ESP32-S3 1.43-inch AMOLED screen development board,466x466 resolution, AMOLED circular touch screen, multiple onboard peripheral interfaces.
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz.
Supports 2.4GHz Wi-Fi and Bluetooth 5 (LE), with internal antenna on board and reserved solder joints, which can be set as external antenna.
AMOLED screen display uses QSPI interface, touch uses I2C interface, capacitive touch, supports interrupt output.
Onboard PCF85063 RTC chip, reserved SH1.0 battery slot (supports charging), can easily realize RTC function requirements.
Display Panel:Amoled
Display Size:1.43inch
Display Resolution:466 x 466
Display Color:16.7m
Display Brightness:350cd/M²
Contrast:60000:1
Communication Interface:Qspi
Driver Ic:Sh8601/C05300
Touch:Support
Touch Ic:Ft3168
The product appearance and printed words may vary depending on the batch, but this does not affect use.
Type:B:with shell
Colour:As Shown
Material:LCD
Package Contents:
1 * round screen with accessories
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
