ESP32-S3 1.43inch AMOLED Display Development Board 466x466

ESP32-S3 1.43inch AMOLED Display Development Board 466x466 Beschrijving

ESP32-S3 1.43inch AMOLED Display Development Board 466x466 Description
Adopts ESP32-S3R8 chip with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM.
Onboard 1.43inch AMOLED display which can smoothly run GUI programs such as for LVGL.

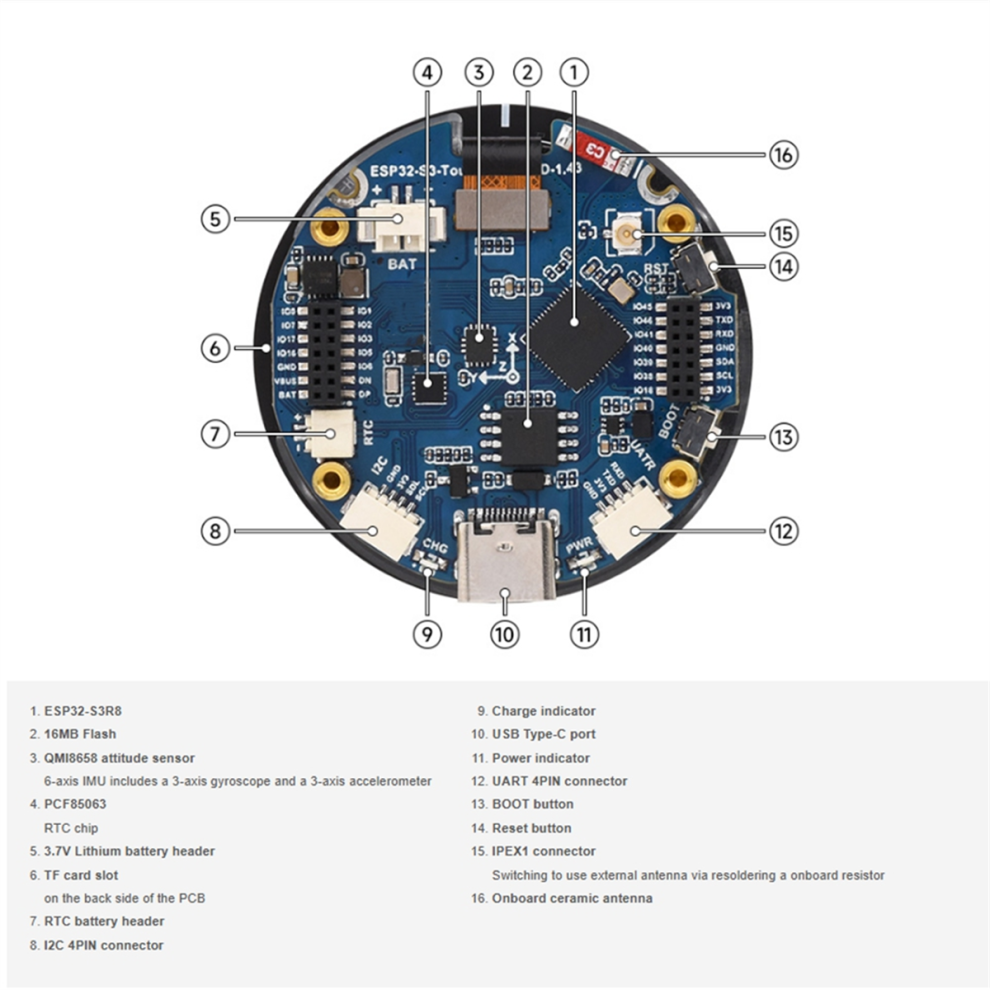

Onboard rich peripheral resources such as RTC chip, QMI8658 6-axis IMU, TF card slot, Lithium battery header, etc., and reserved USB, UART, I2C and GPIO pin headers, offering strong compatibility and expandability.
It is suitable for the quick development of the HMI and other ESP32-S3 applications.
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. Supports switching to use external antenna via resoldering an onboard resistor.
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

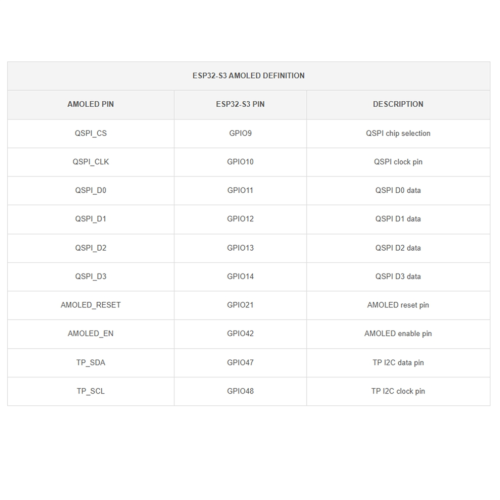

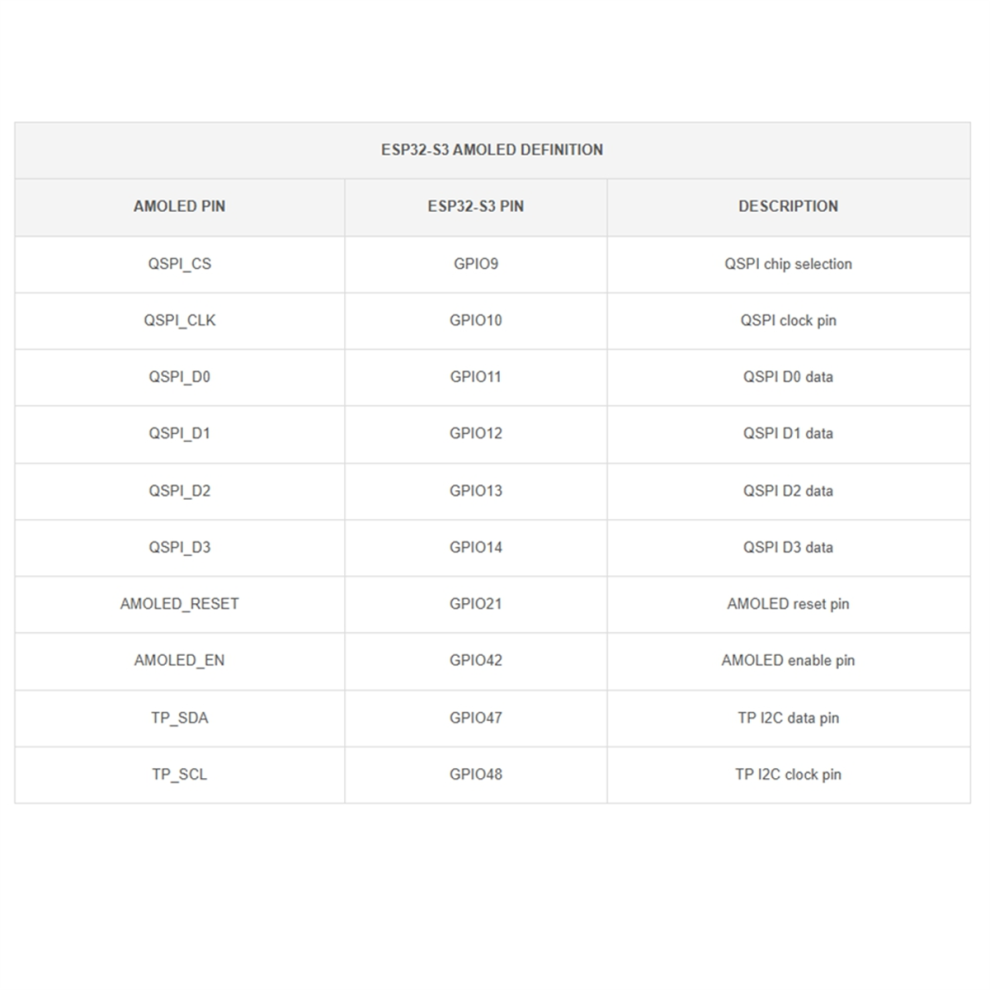

Onboard 1.43inch AMOLED display, QSPI interface, 466 x 466 resolution, 16.7M color
Supports capacitive touch function controlled via I2C interface, with interrupt support
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement
Onboard RST button and programmable BOOT button for easy custom function development
Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
Onboard TF card slot for external TF card storage of pictures or files
Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
Onboard UART and I2C SH1.0 4PIN connector, reserved 2 x 14PIN 1.27mm pitch headers, adapting multiple GPIO interfaces
CNC metal case, with clear and colorful label on the back, nice looking and easy to carry
Note:due to different production batches, the printing screen printing/appearance is different, which does not affect the use.
Colour:Black
Material:Metal
Package Contents:
1 * ESP32-S3 1.43inch AMOLED Development Board
2 * Connecting cable(The color is random, and the designation is not accepted)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
