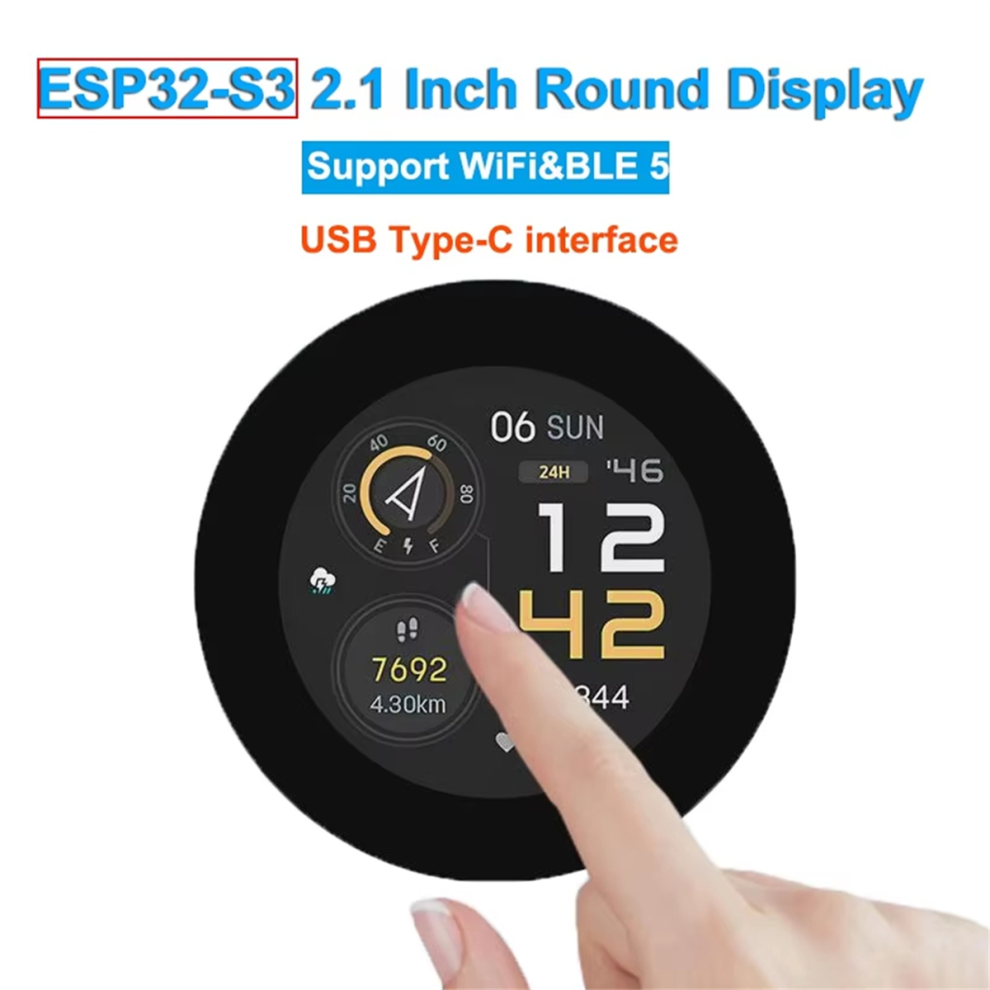

ESP32 S3 2.1 inch LCD Development Board with 6-Axis Sensor & LVGL

ESP32 S3 2.1 inch LCD Development Board with 6-Axis Sensor & LVGL Beschrijving

ESP32 S3 2.1 inch LCD Development Board with 6-Axis Sensor & LVGL Description
ESP32-S3-Touch-LCD-2.1 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.1inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

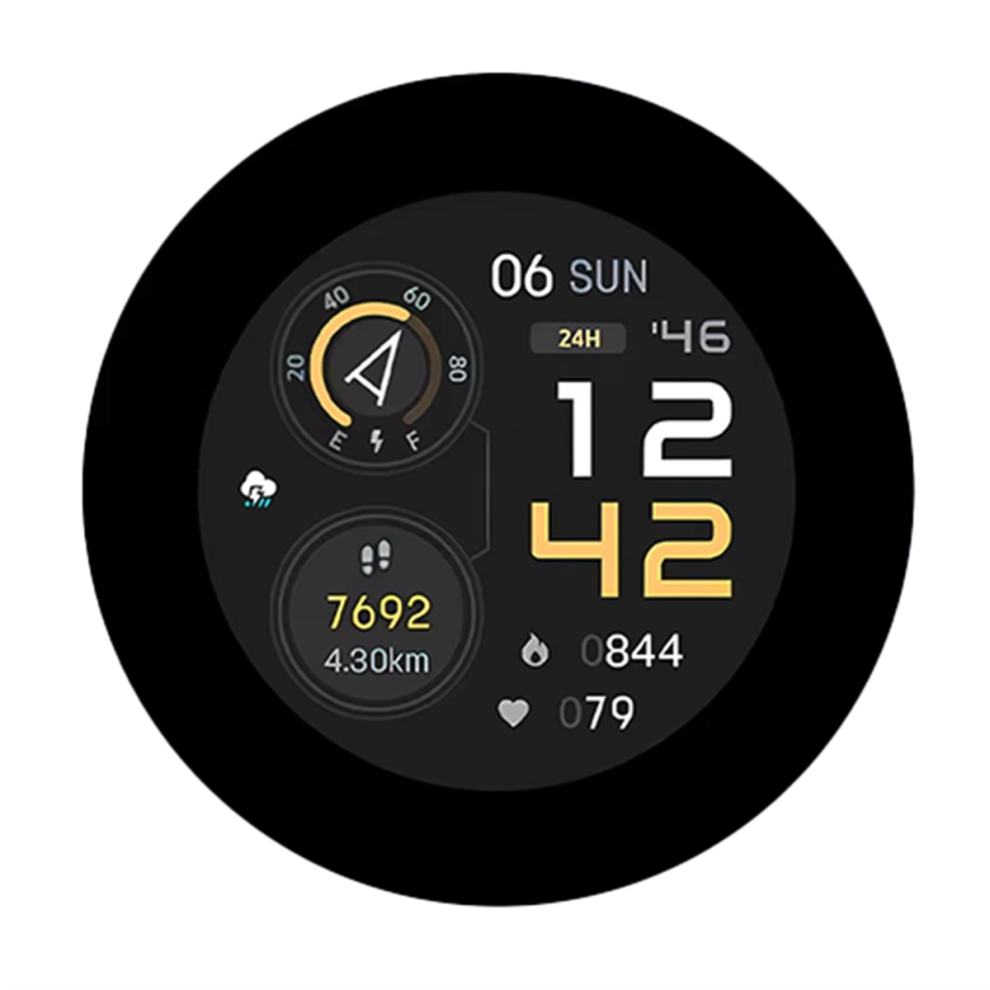

Onboard 2.1inch capacitive touch display, 480x480 resolution, 262K color
Supports touch control via I2C interface, with interrupt support
Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
Onboard QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Colour:Black
Material:plastic
Package Contents:
1 * display
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
