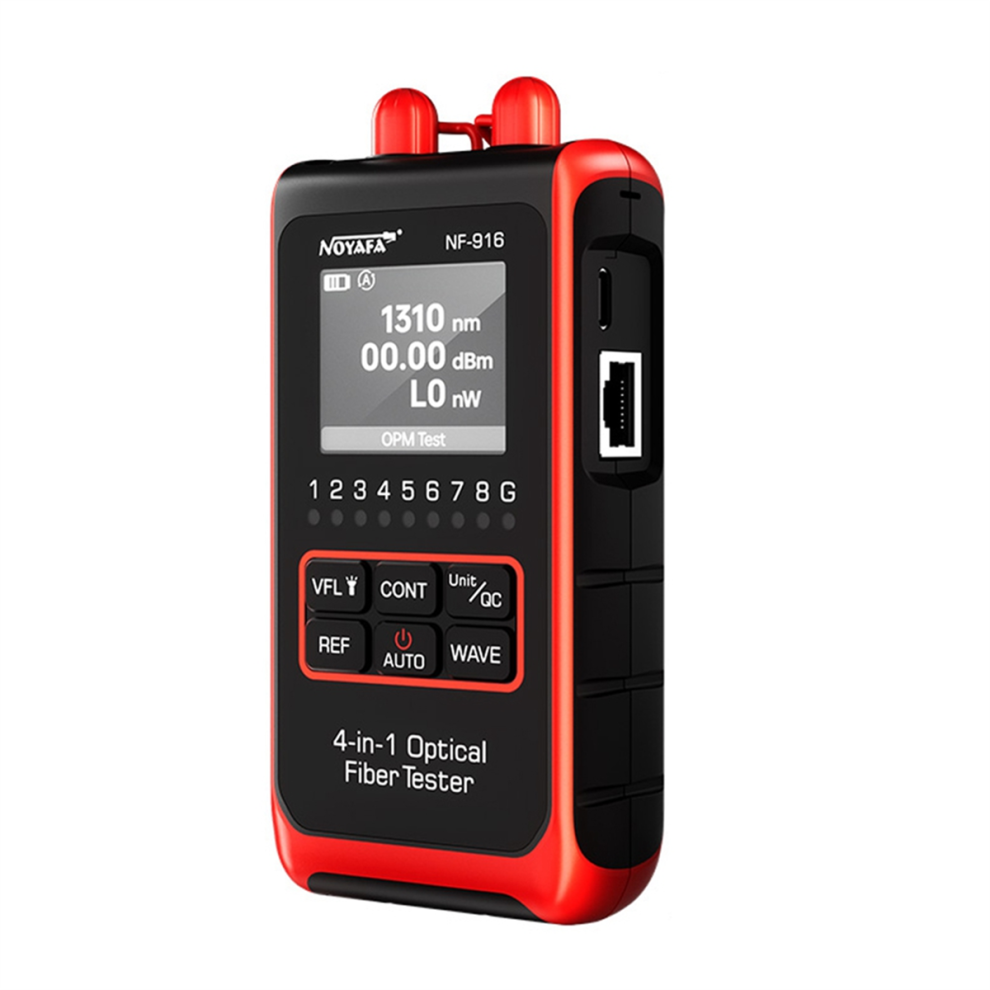

Fiber Optical Power Meter Visual Fault Locator

Fiber Optical Power Meter Visual Fault Locator Beschrijving

Fiber Optical Power Meter Visual Fault Locator Description

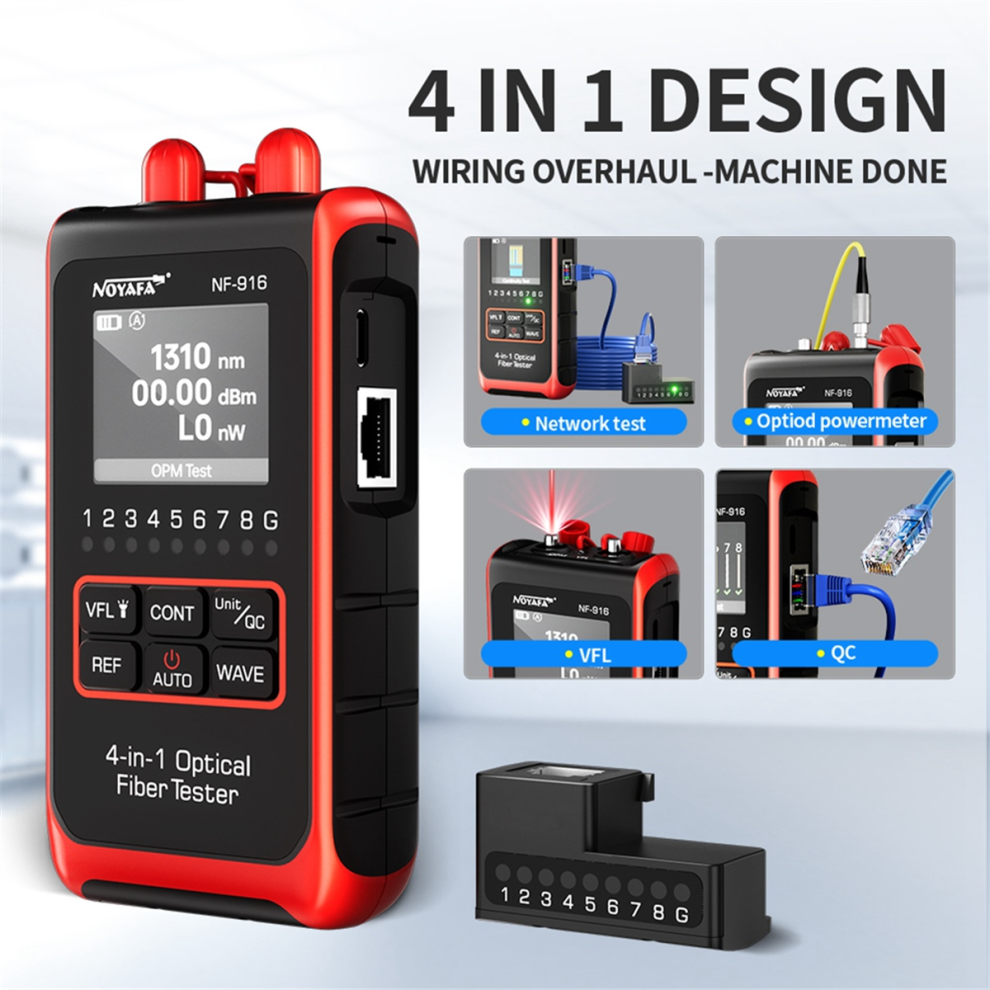

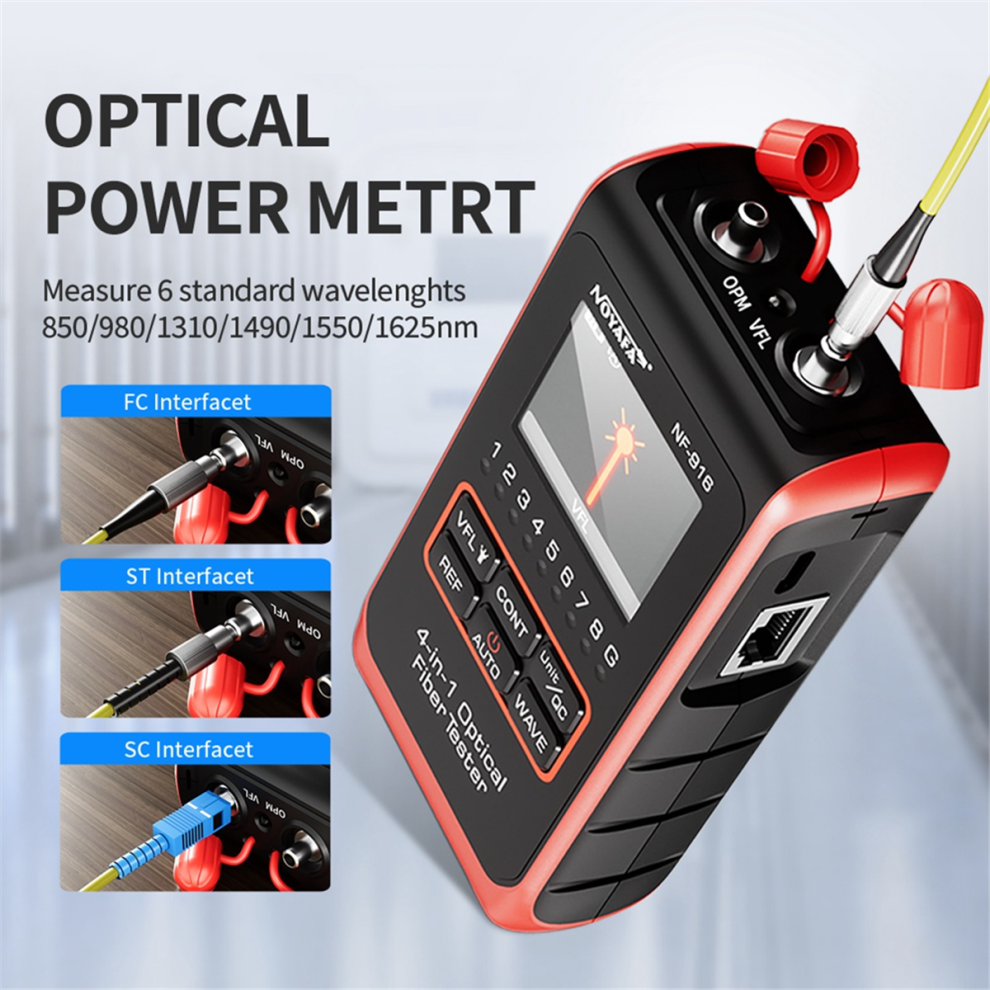

1. Optical Power Meter Function: a). Optical power measurement: supports 850/980/1310/1490/1550/1625nm wavelength, b). Unit switching: dBm or mW/uW/nW, c). REF reference, d). Optical power frequency test: can identify light sources with 270Hz, 1KHz, and 2KHz frequencies.
2. Cable Continuity Testing: Used to detect line sequence, short circuit, open circuit, crossover, etc. of network cables, and display the results in the form of line sequence lights and the screen.
3. Red Light Function: Supports 3 modes of "constant light, slow flash, fast flash".
4. Crystal Head Crimp Test Function: Check whether the crystal head is crimped well.
Please note: the physical slightly color difference or difference, does not affect the use, please do not mind, thank you!
:
Product Name: Optical Power Meter
Type: -916
Display: Color screen

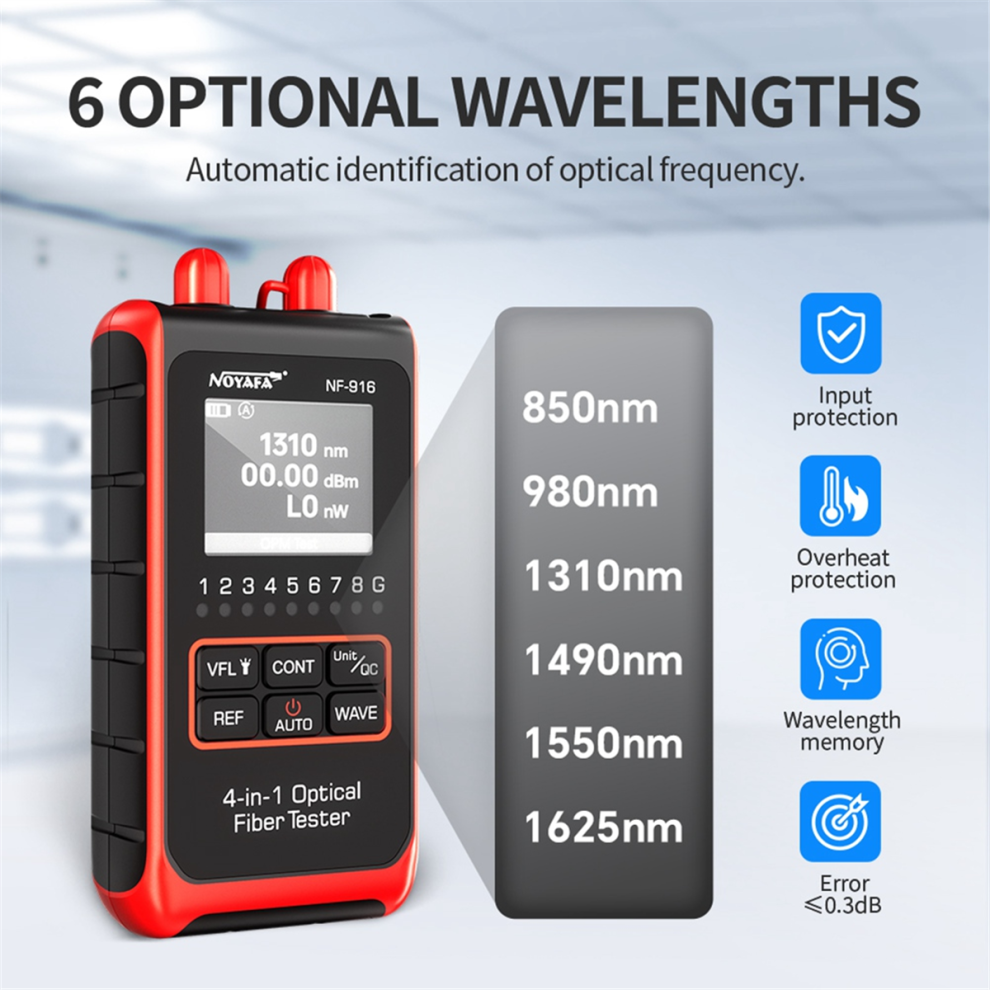

Optical power measurement: 850/980/1310/1490/1550/1625nm
Lighting function: Yes
Charging method: Type-C charging, 3.7V lithium battery
Colour:Photo Color
Material:plastic
Package Contents:
1Pcs -916 Network Cable Tester
1Pcs Type-C Data Cable
1Pcs English manual
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
